Display Size: 1.5"
Model No.: TP15MC01F
Display Format: 128*32 X2 Dots
Controller: LD7138 or Equal
Color Valid: Colors
Outline: 23.10X27.46MM
18 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Features
    >> Display Format: 128(W) x RGB x 64(H) dots
    >> Display Color: 65K(5:6:5) Colors
    >> Driver Element: Transparent PMOLED
    >> Control (Drive) IC: LD7138 (Manufacturer : LDT)
    >> Interface: Serial Interface(SPI)
    >> Power supply: 16V(VCC)/2.8V(VDD) Typ.
    >> Polarizer: Without Polarizer
    • Mechanical Data
    Item
    		 Specification Unit  Note
    Number of Dots
    		 128(W) x RGB x 64(H)  dot
    Outline Dimension
    		 29(W) x 48.5(H) x 1.01(T) mm (1)
    Panel Outline
    		 29(W) x 36(H) x 1.01(T) mm
    Transparent Area
    		 24.4(W) x 30.4(H) mm
    Active Area
    		 23.78(W) x 5.93(H) x 2 parts mm
    Pixel Pitch
    		 0.186(W) x 0.186(H) mm
    Dot Pitch
    		 0.062(W) x 0.186(H)  mm
    Dot Size
    		 0.034(W) x 0.164(H)  mm
    Weight 2.6
    g
    Note (1) COF Unfolded, Refer to the Outline Dimension at the page

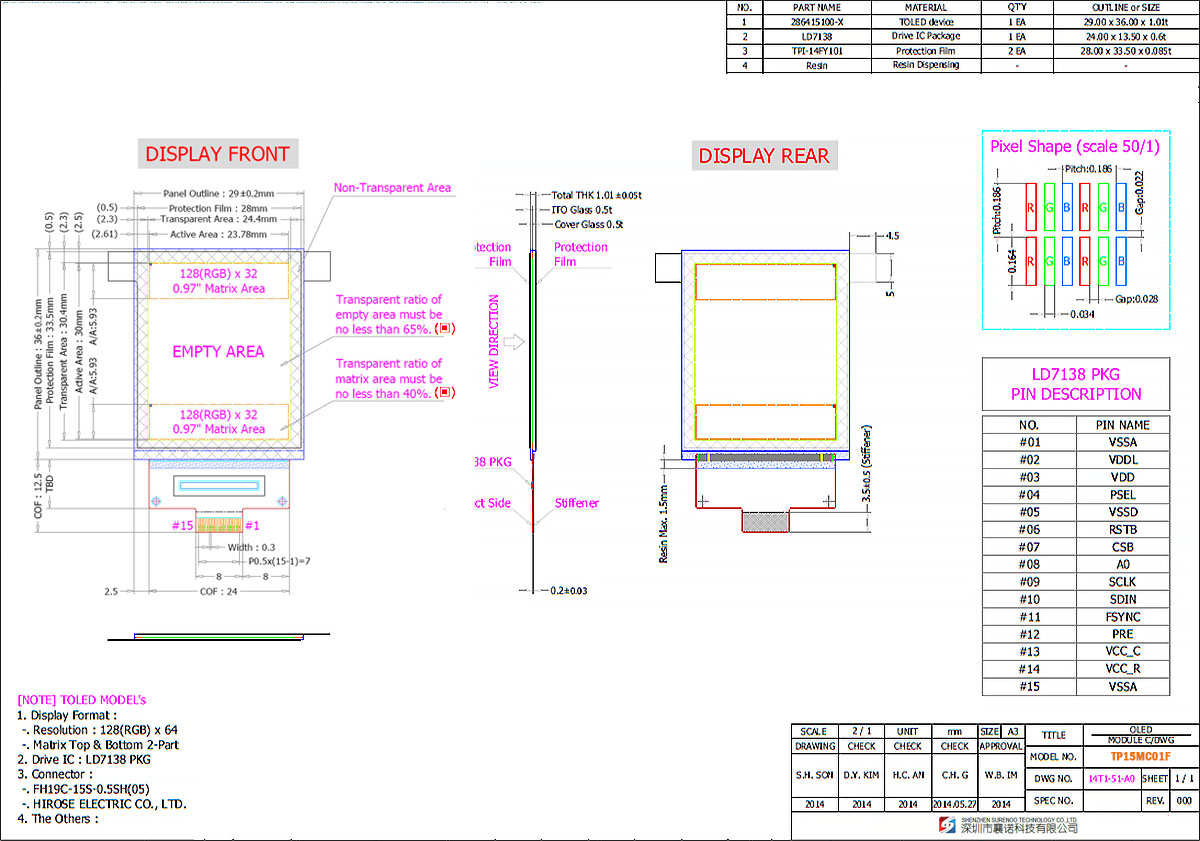

    • Outline Drawing

    • Interface (Serial SPI)
    Pin assignment for 4-wire Serial Interface                                                               I: Input, I/O: Input/Output, P: Power pin

    • Documents
    1. Color OLED Panel (Transparent): TP15MC01F
