Surenoo Display Selection Guide for Guition HMI Series >> Guition HMI Q3 Series (ArtInChip)
NTP=Without Touch Panel; RTP=Resistive Touch Panel; CTP=Capacitive Touch Panel

Display Model No. (Link)
Core		 Touch
Type		 Voltage
 WIFI Bluetooth  Main
Frequency		 SRAM
(KB)		 PSRAM
（MB）		 ROM
(KB)		 Flash
(MB)		 Mark Buy Now
(Image)
Guition ESP32 HMI Display Series (Support Arduino IDE, ESP IDE, Micropython and Guition)

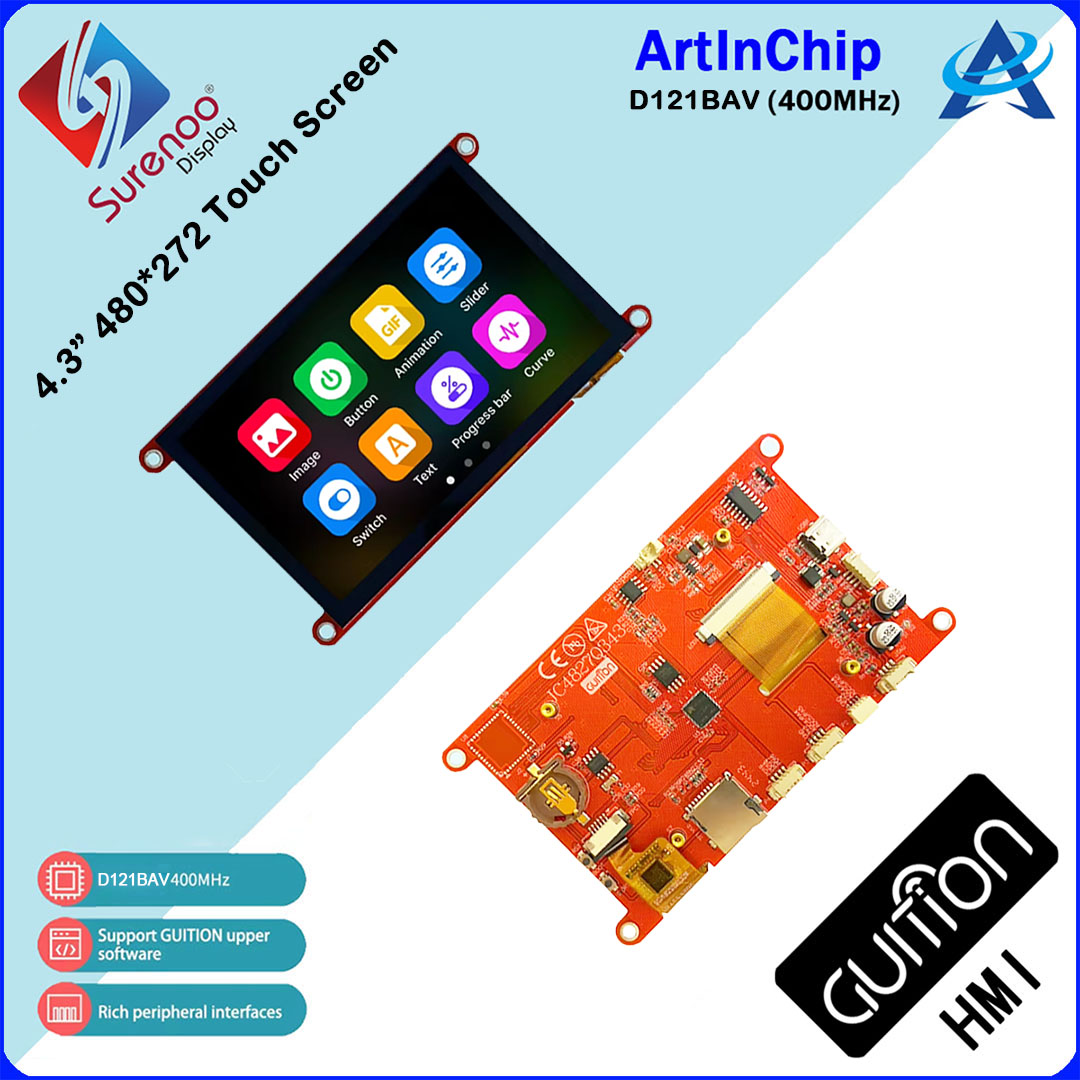

Q3 Series
4.3" IPS

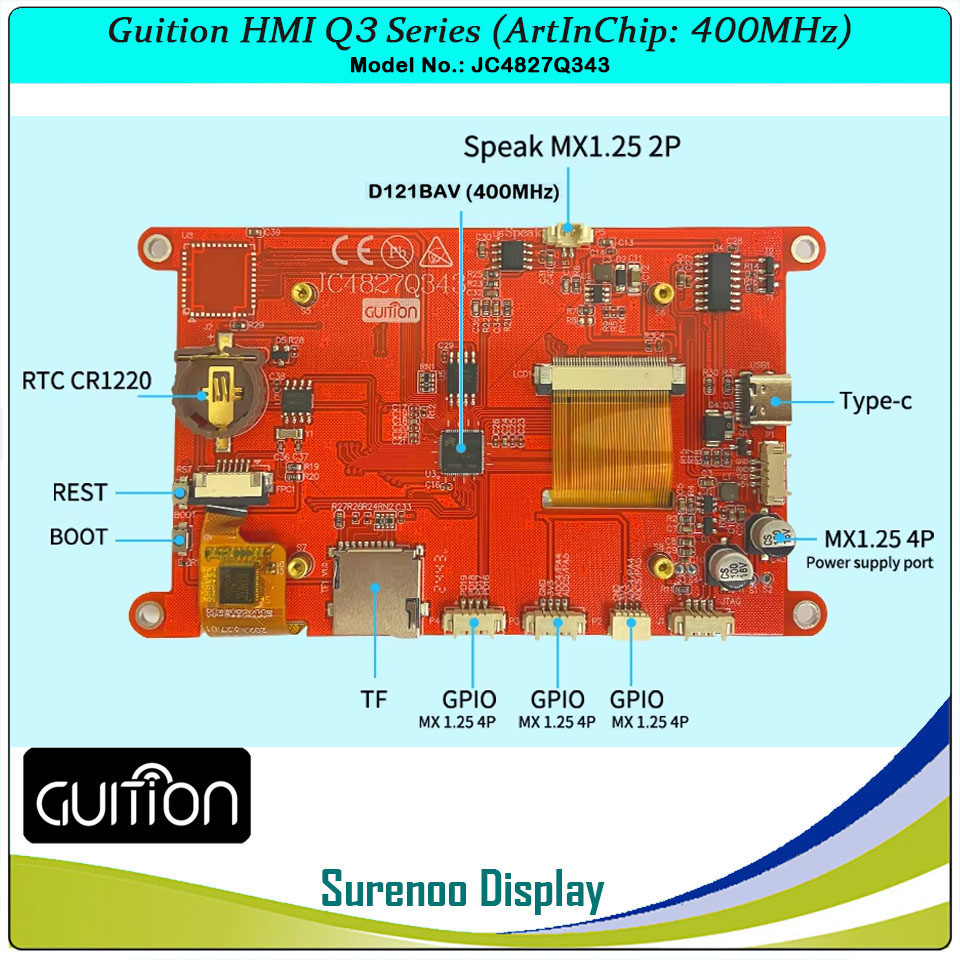

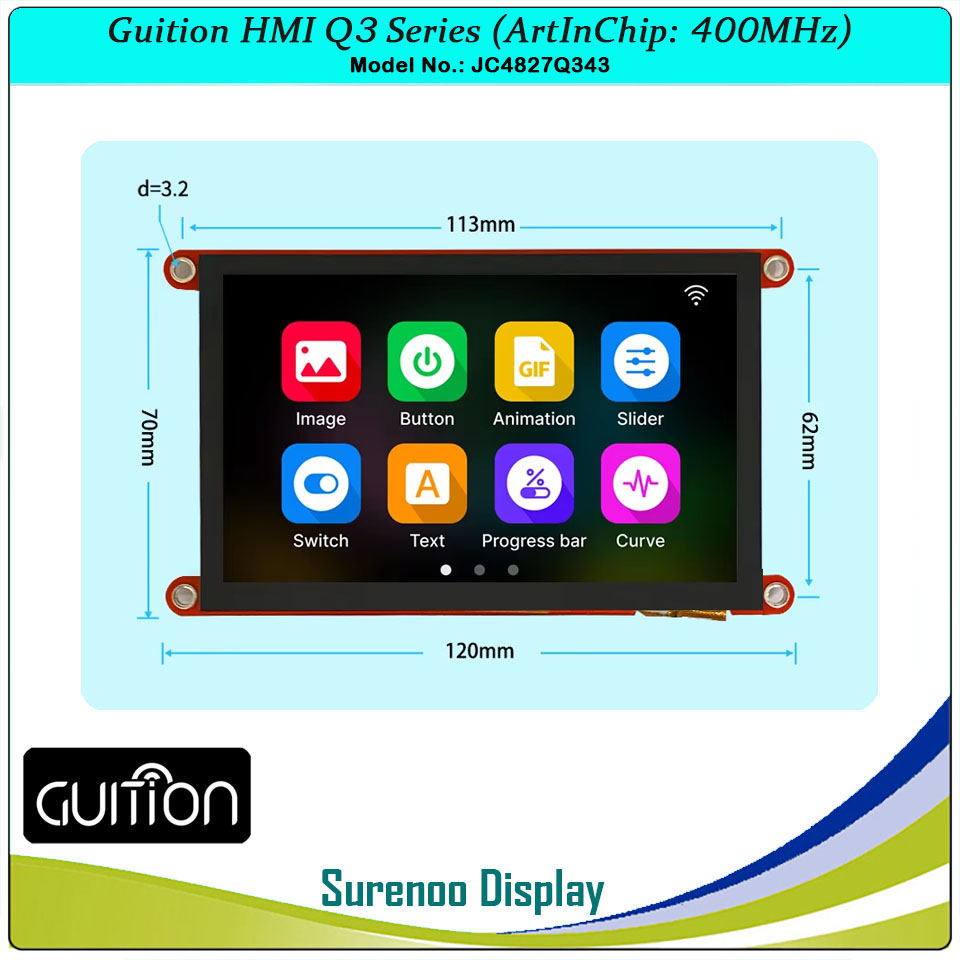

480*272		 JC4827Q343
D121BAV (ArtInChip)
 CTP
NTP		 5.0V × × 400MHz 32 4 32 16
Q3 Series
5.0" IPS

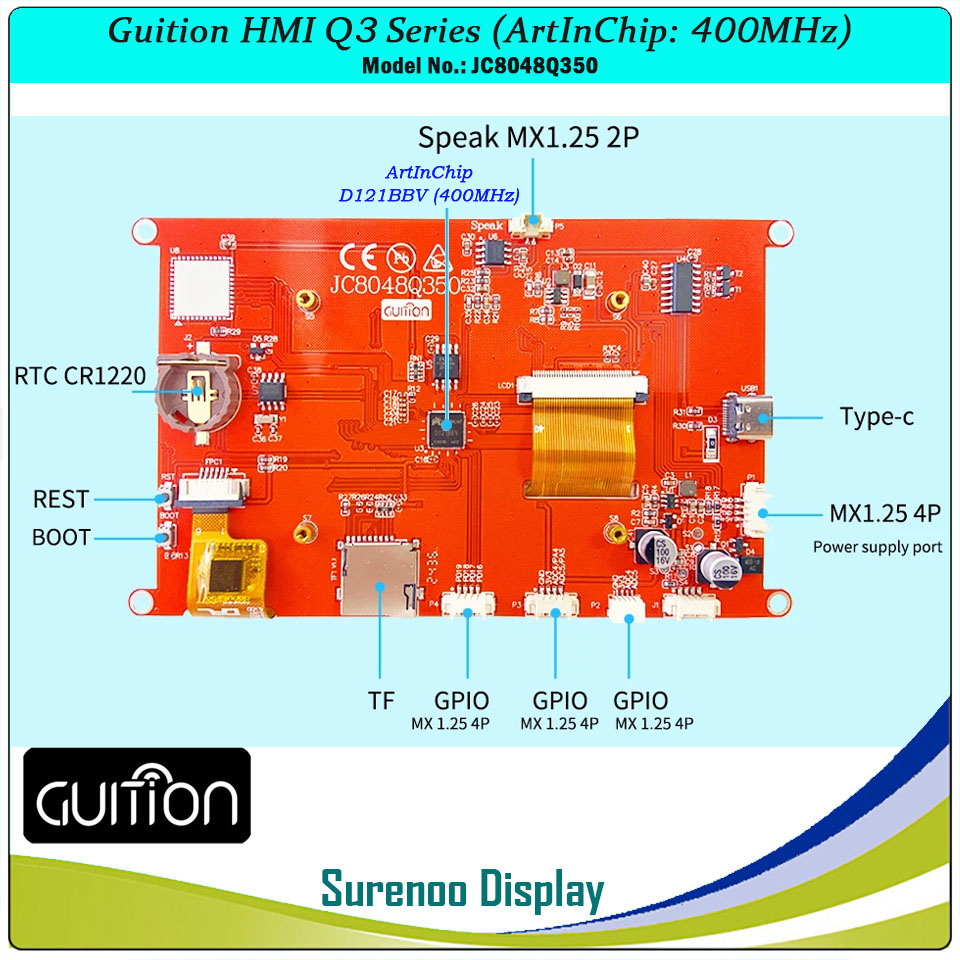

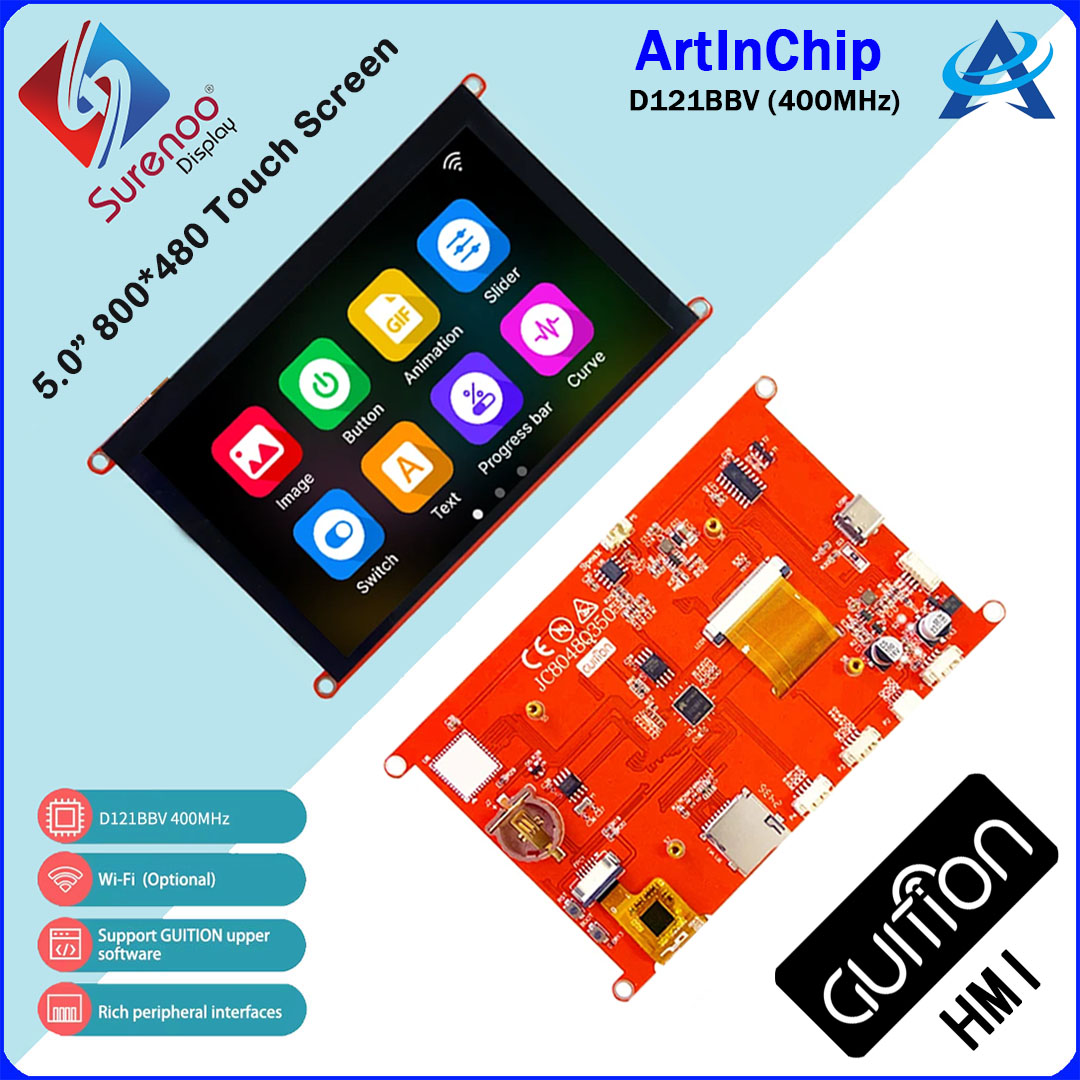

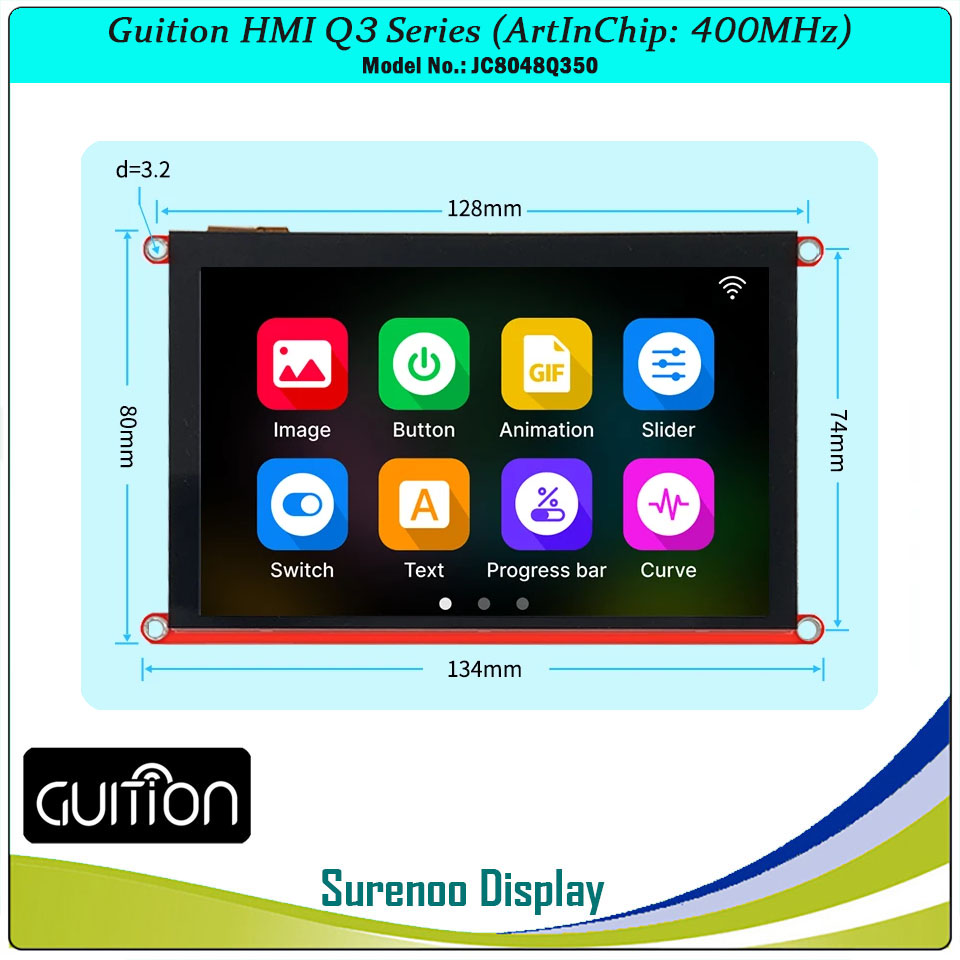

800*480		 JC8048Q350
D121BBV (ArtInChip)		 CTP
RTP		 5.0V Optional × 400MHz 32 8  32 16
 Q3 Series
7.0" IPS

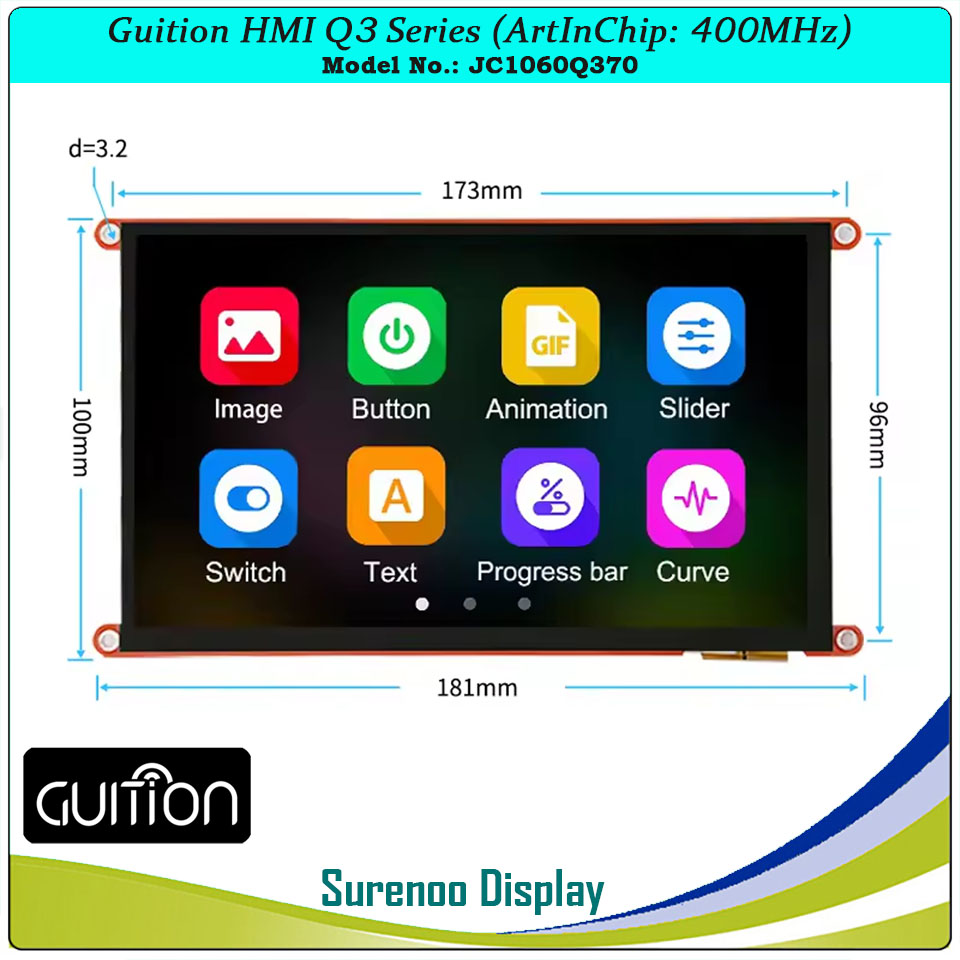

1024*600		 JC1060Q370
D121BBV (ArtInChip)		 CTP
NTP		 5.0V × × 400MHz 32 8 32 16
