Surenoo 1.12" 128128 128*128 128X128 Transparent Graphic OLED Panel LCD Module Display Screen Panel PM-OLED PMOLED Serial SPI SH1107 Controller SOG128128A_T112 Yellow Green Blue Color are Optional

WISHLIST
Display Size: 1.12"
Model No.: SOG128128A_T112
Display Format: 128*128 Dots
Controller: SH1107 or Equal
Color Valid: Blue, Yellow, Green
Outline: 23.10X27.46MM
43 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOG128128A_T112 is 1.12" 128X128 Pixels Transparent Graphic OLED Module, build-in SH1107 controller support Serial SPI MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.020Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Panel
    Continuity Supply More than 10 years
    Part No. SOG128128A_T112
    Diagonal Size (Visual Area)
    		 1.12"
    Display Format 128*128 Pixels (Blue / Yellow / Green)
    Interface Serial SPI
    IC or Equivalent SH1107 or Equal
    Voltage(Type) 3.3V
    Outline Dimension 23.10W)x27.46(H)x1.27(T)mm
    Visual Area 21.10x21.10mm
    Active Area
    		 20.14x20.14mm
    Dots Size 0.1575x0.1575mm
    Dots Pitch
    		 0.1375x0.1375mm
    Display Type PM-OLED Panel
    Colors Code Transparent Blue / Yellow / Green
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃

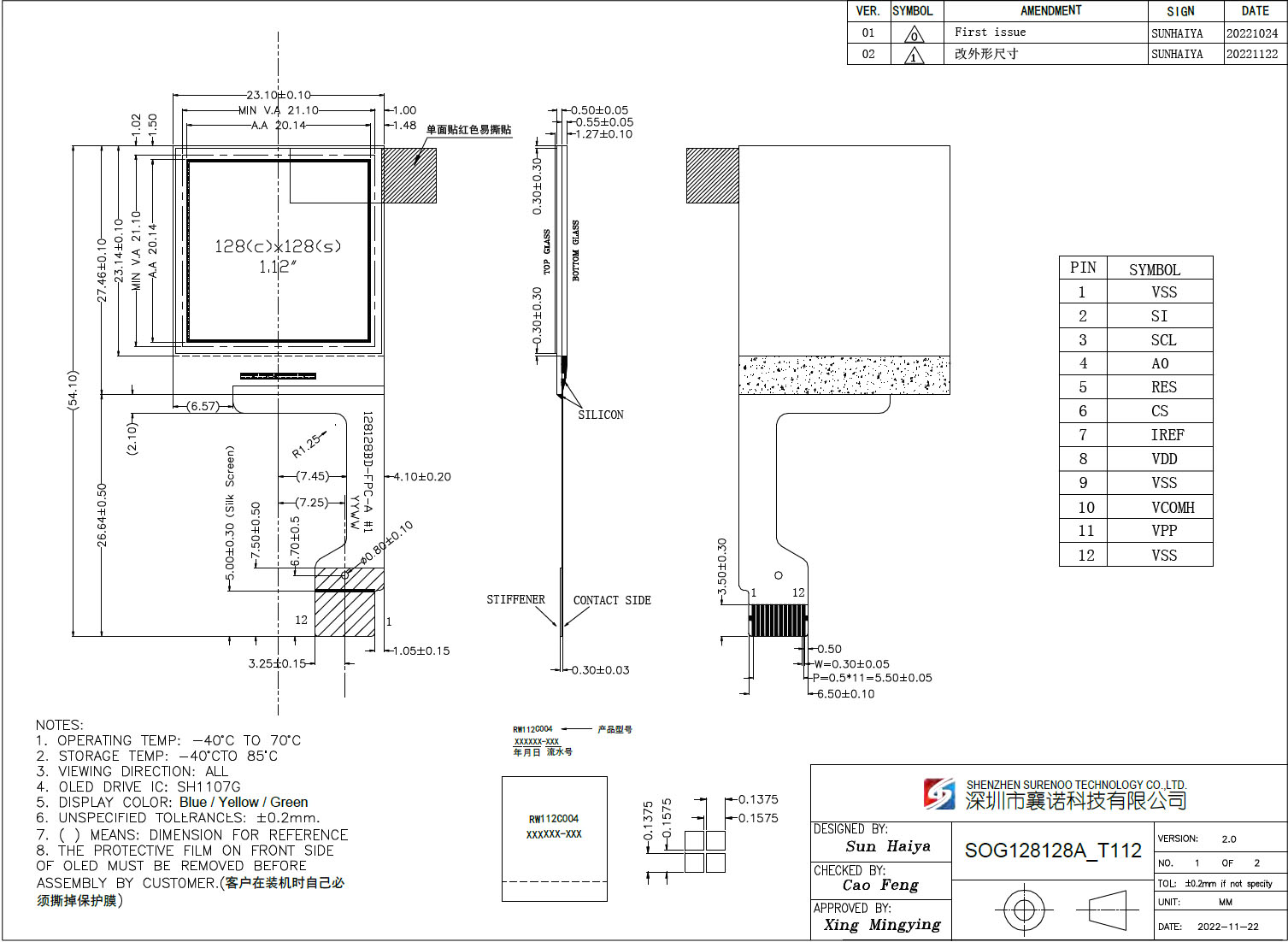

    • Outline Drawing

    • Interface (Serial SPI)

    Pin No. Symbol Description
    1 VSS Ground Pin
    2 SI When the serial interface is selected.
    Then D0 serves as the serial clock input pin (SCL) and D1 serves as the serial data input Pin (Sl).
    3 SCL
    4 A0 This is the Data/Command control pin
    That determines whether the data bitsare data or a command.
    5 RES  This is a reset signal input pin.
     When RES is set to “L", the settings are initialized.
    6 CS  This pin is the chip select input.
     When CS ="L", then the chip select becomes active, and data command l/O is enabled.
    7 IREF  This is a segment current reference pin.
     A resistor should be connected between this pin and VSS.
    8 VDD
     Power Supply for Logic and Input/Output
    9 VSS  Ground Pin
    10 VCOMH  This is voltage output high level forcommon signals.
     A capacitor should be connected between this pin and VSS.
    11 VPP  Power Supply for Panel Driving Voltage
    12 VSS
     Ground Pin
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG128128A_T112 PDF 2013-03-17 Standard 128*128 Transparent Graphic OLED Panel
    2 Controller SH1107 PDF 2008-09-24 SH1107 is a COG Graphic 128*128 OLED Controller
