Display Size: 3.83"
Model No.: SOG320132A_P383
Display Format: 320*132 Dots
Outline: 105.52X41.67MM
Controller: SSD1320 X2 or Equal
Model No.: SOG320132A_P383
Display Format: 320*132 Dots
Outline: 105.52X41.67MM
Controller: SSD1320 X2 or Equal
11 sold
Quantity
Detail
Customer Reviews
- Overview
It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.080Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic OLED Panel |
| Continuity Supply | More than 10 years |
| Part No. | SOG320132A_P383 |
| Diagonal Size (Visual Area) |
3.83" |
| Display Format | 320*132 Dots |
| Interface |
4-Wire Serial SPI |
| IC or Equivalent | SSD1320 X2 or Equal |
| Voltage(Type) | 3.3V |
| Outline Dimension | 105.52(W)x41.67(H)x2.03(T)mm |
| Visual Area | 90.90x38.07mm |
| Active Area |
89.90x37.07mm |
| Dots Size | 0.281x0.281mm |
| Dots Pitch |
0.261x0.261mm |
| Display Type | PM-OLED Panel |
| Colors Code | White |
| IC Package | COG |
| Viewing Direction | Full Viewing Angle |
|
Operating Temperature
|
-40℃~70℃
|
|
Storage Temperature
|
-40℃~80℃
|

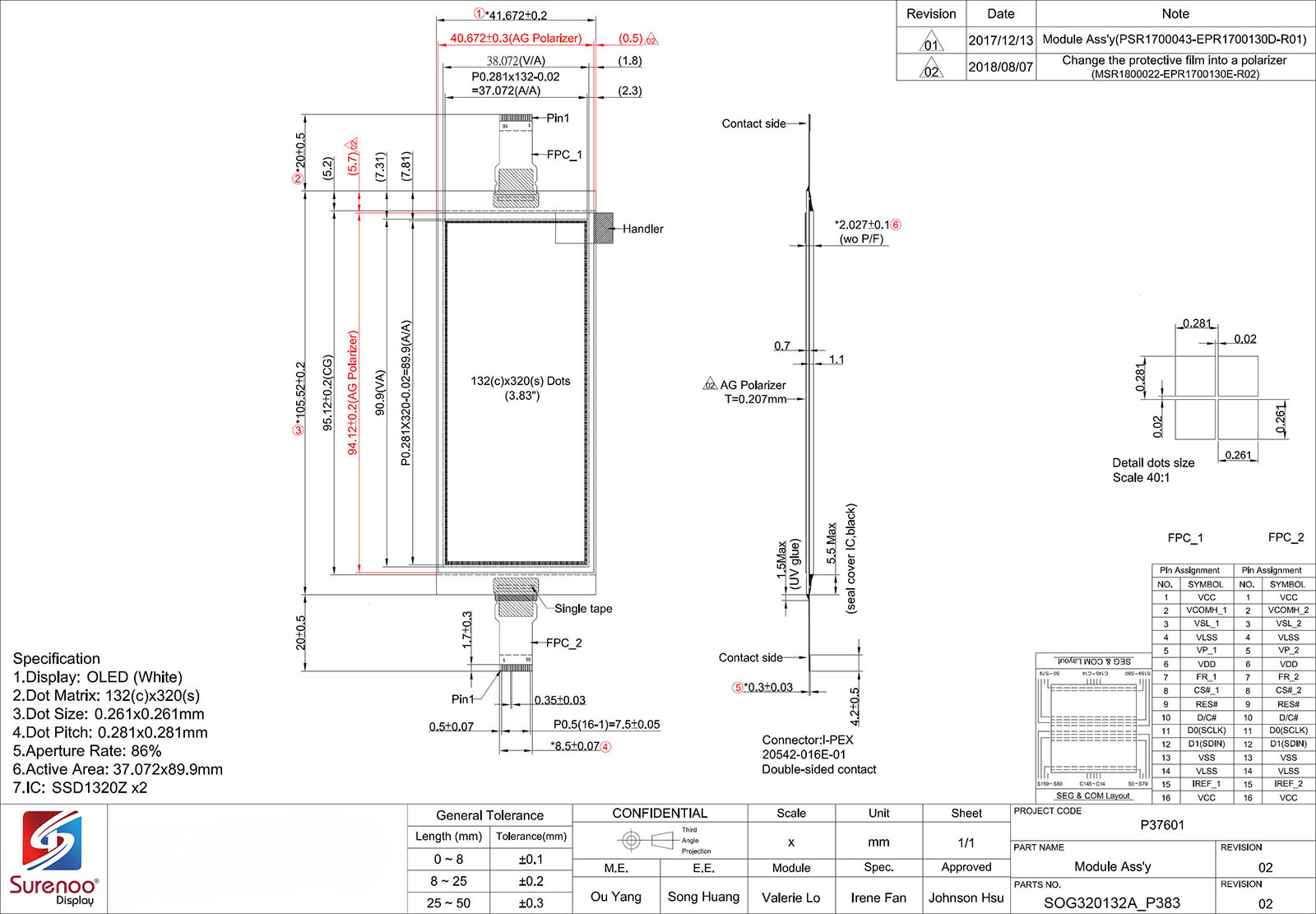

- Outline Drawing
- Interface (FPC_1 & FPC_2)
| Pin No. | Pin Name | Description |
| 1 | VCC | Power supply for panel driving voltage. |
| 2 | VCOMH_1 / VCOMH_2 | COM signal deselected voltage level. |
| 3 | VSL_1 / VSL_2 | This is segment voltage (output low level) reference pin. |
| 4 | VLSS | Analog system ground pin. |
| 5 | VP_1 / VP_2 | This pin is the segment pre-charge voltage reference pin. |
| 6 | VDD | Power supply pin for core logic operation. |
| 7 | FR_1 / FR_2 | This pin outputs RAM write synchronization signal. |
| 8 | CS#_1 / CS#_2 | This pin is the chip select input connecting to the MCU. (active LOW) |
| 9 | RES# | This pin is reset signal input. |
| 10 | D/C# | This pin is Data/Command control pin connecting to the MCU. |
| 11 | D0(SCLK) |
The serial clock input: SCLK.
|
| 12 | D1(SDIN) |
The serial data input: SDIN.
|
| 13 | VSS | Ground pin. |
| 14 | VLSS | Analog system ground pin. |
| 15 | IREF_1 / IREF_2 | This pin is the segment output current reference pin. |
| 16 | VCC | Power supply for panel driving voltage. |
Please download the datasheet to get the detailed Pin description.
- Documents
| No. | Item | File Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | SOG320132A_P383 |
 |
2013-03-17 | Standard 320*132 Graphic OLED Panel | ||
| 2 | Controller | SSD1320 | |
2008-09-24 | SSD1320 is a COG Graphic 160*160 OLED Controller |
