Surenoo Graphic OLED Module 0.91" 12832 128*32 128X32 Graphic LCD Module Display Screen Panel PM-OLED Serial SPI IIC SSD1306 Controller SOG12832B_M091 SOG12832B_P091

• Overview

SOG12832B is 0.91" 128X32 Dots Graphic OLED Module, build-in SSD1306 controller supprot Serial SPI/IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.

• Specification

Gross Weight	0.020Kg
Manufacturer	Surenoo
Display Type	Graphic OLED Module / Graphic OLED Panel
Continuity Supply	More than 10 years
Part No.	SOG12832B
Diagonal Size (Visual Area)	0.91"
Display Format	128*32 Dots
Interface	SOG12832B1_M091, Serial SPI (7Pin/2.54 Pin Header) (OLED Module)
	SOG12832B2_M091, Serial IIC (4Pin/2.54 Pin Header) (OLED Module)
	SOG12832B1_P091, Serial SPI/IIC (14P/0.62 FPC) (OLED Panel)
IC or Equivalent	SSD1306 or Equal
Voltage(Type)	3.3V
Outline Dimension	SOG12832B1_M091, 32.50(W)x20.50(H)x2.55(T)mm (OLED Module)
	SOG12832B2_M091, 38.00(W)x12.00(H)x2.55(T)mm (OLED Module)
	SOG12832B1_P091, 30.00(W)x11.50(H)x1.20(T)mm (OLED Panel)
Visual Area	24.38x7.58mm
Active Area	22.38x5.58mm
Dots Size	0.159x0.159mm
Dots Pitch	0.175x0.175mm
Display Type	PM-OLED Panel
Colors Code	White(SOGW) / Yellow(SOGY) / Blue(SOGB)
IC Package	COG
Viewing Direction	Full Viewing Angle
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~80℃

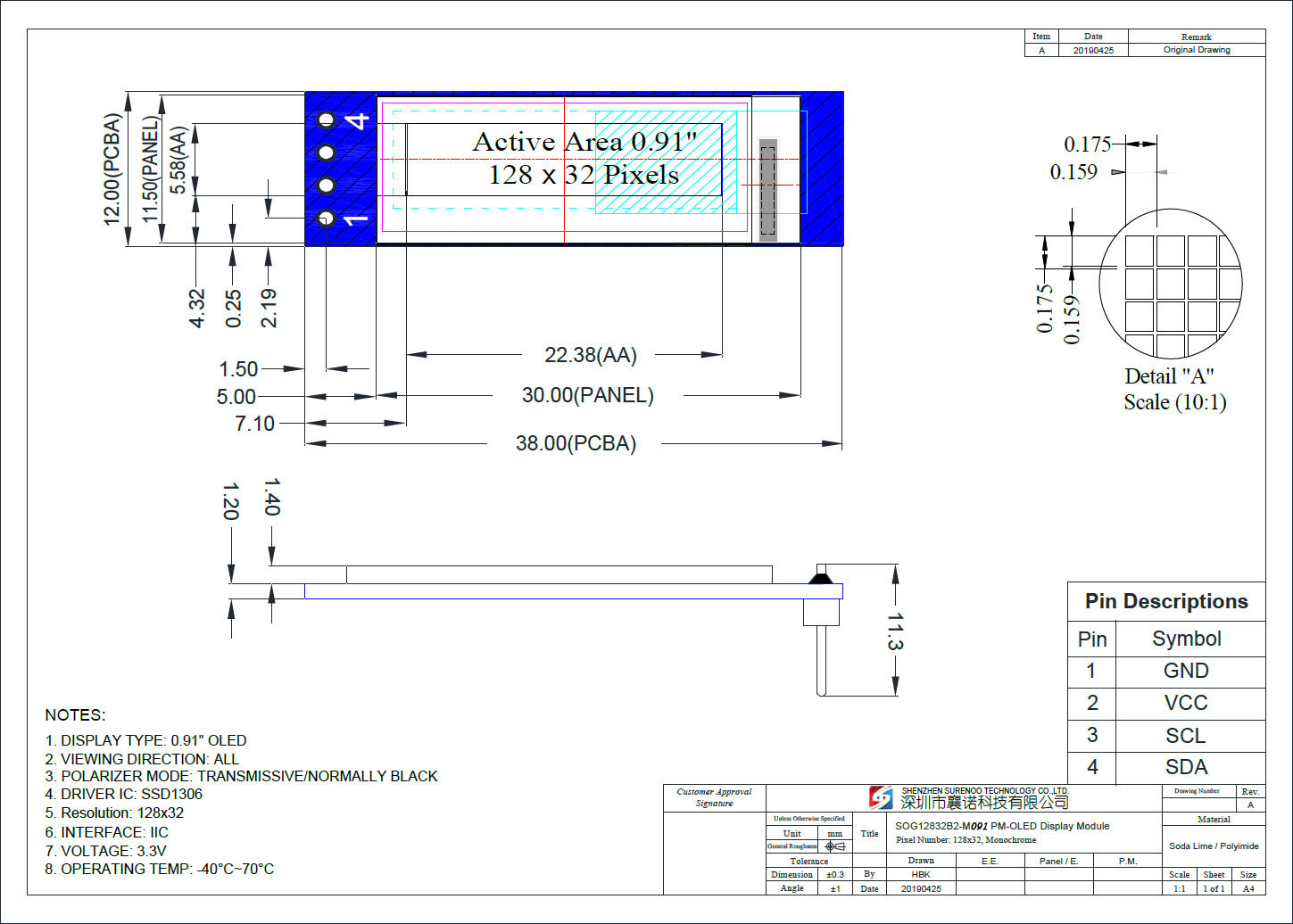

• Outline Drawing

1. OLED Module: SOG12832B1-M091-7Pin (SPI)


2. OLED Module: SOG12832B2-M091-4Pin (IIC)


3. OLED Panel: SOG12832B1-P091 (14P/0.62)

• Interface

1. OLED Module: SOG12832B1-M091-7Pin (SPI)

Pin No.	Pin Name	Description
1	GND	Ground 0V
2	VCC	Power Supply for OLED
3	SCL	The Serial Clock Input SCL
4	SDA	The Serial Data Input SDA
5	RES	Power Reset for Controller and Driver
6	DC	Data/Command Control
7	CS	Chip Selection

2. OLED Module: SOG12832B2-M091-4Pin (IIC)

Pin No.	Pin Name	Description
1	GND	Ground 0V
2	VCC	Power Supply for OLED
3	SCL	The Serial Clock Input SCL
4	SDA	The Serial Data Input SDA

3. OLED Panel: SOG12832A1-P091-14P/0.62

PIN No.	1	2	3	4	5	6	7	8	9	10	11	12	13	14
Symbol	C2P	C2N	C1P	C1N	VBAT	VBREF	VSS	VDD	RES#	SCL	SDA	IREF	VCOMH	VCC

Please download the datasheet to get the detailed Pin description.
