SLG12864I Outline=53.50X46.50MM 2.2" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel ST7567 Controller Serial SPI STN Yellow Green STN Blue Negative D-FSTN Negative White LED Backlight for MCU 8051 PIC AVR ARM Arduino
SLG12864I Outline=53.50X46.50MM 2.2" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel ST7567 Controller Serial SPI STN Yellow Green STN Blue Negative D-FSTN Negative White LED Backlight for MCU 8051 PIC AVR ARM Arduino
Model No.: SLG12864I (2.2" COG)
Display Format: 128*64 Dots
Outline Size: 53.50X46.50MM
Controller: ST7567 or Equal
Display Format: 128*64 Dots
Outline Size: 53.50X46.50MM
Controller: ST7567 or Equal
16 sold
Quantity
Detail
Customer Reviews
- Overview
SLG12864I is a 2.2" 128*64 COG Monochrome Graphic LCD Module, ST7567 Controller standard 13P/2.54 12864 COG Graphic LCD Module.
SLG12864I supprot Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.
SLG12864I supprot Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.060Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12864I (2.2") |
| Display Format | 128*64 Dots |
| Interface | Serial SPI |
| IC or Equivalent | ST7567 or Equal |
| Voltage | 3.3V in default |
| Connection | 1X13P/2.54 Pin Header |
| Outline Dimension | 58.50(W)x46.50(H)x5.00(T)mm |
| Visual Area | 53.60x28.60mm |
| Active Area | 48.61x24.93mm |
| Display Type | STN Yellow Green, STN Blue Negative, D-FSTN Negative |
| Backlight Type (LED) | Green, White |
| IC Package | COG |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

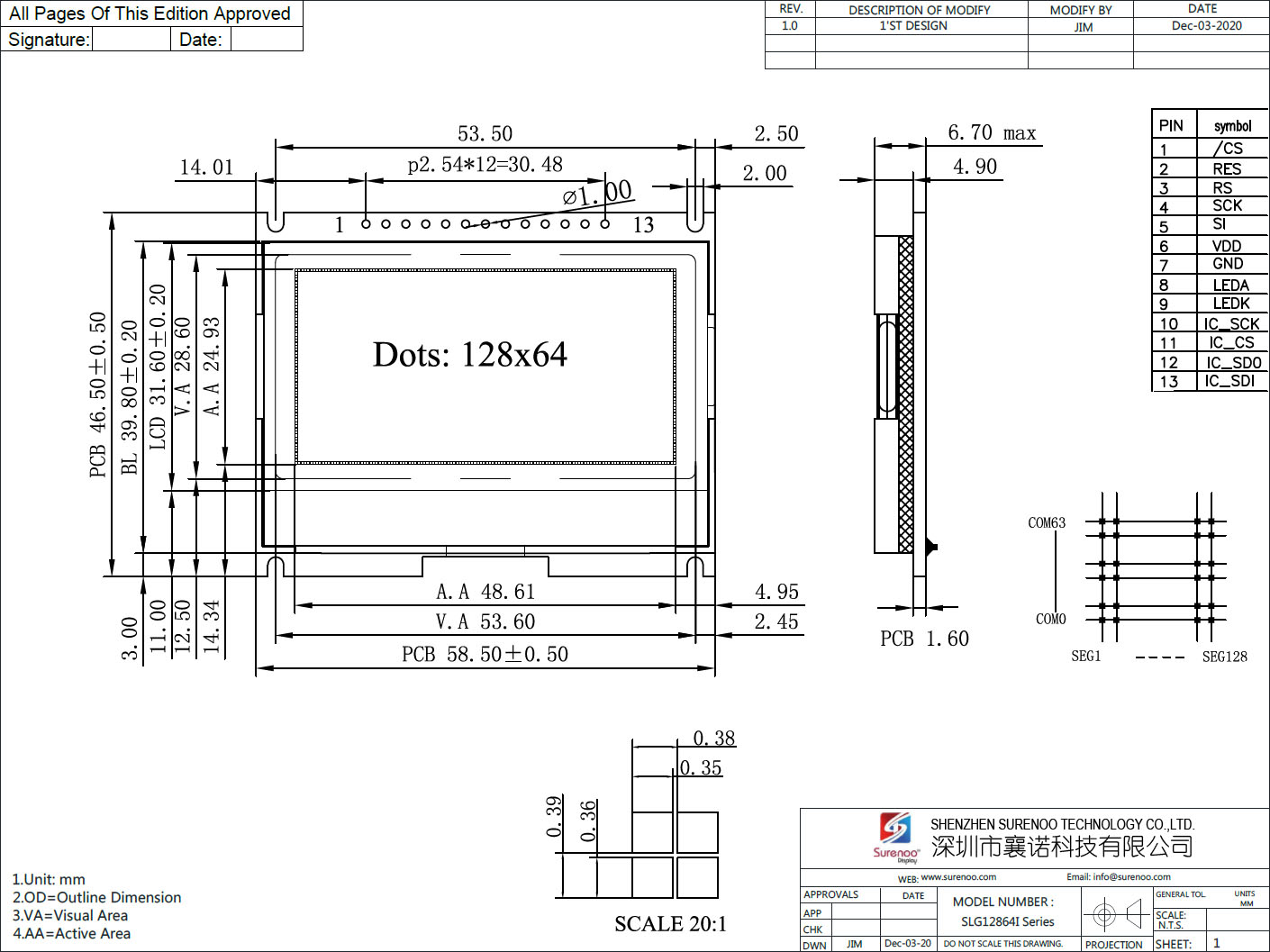

- Outline Drawing
- Interface
| Pin No. | Symbol | Description |
| 1 | CS |
Chip select input pin. Interface access is enabled when CSB is “L”. |
| 2 | RST | Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized. |
| 3 | CD |
Select Control data or Display data for read/write operation. CD=“H”: Display Data. CD=“L”: Control Data. |
| 4 | SCK |
Serial Clock Input |
| 5 | SDA | Serial Data Input |
| 6 | VDD | Power Supply (3.3V) |
| 7 | GND | Ground |
| 8 | BLA | Backlight Anode |
| 9 | BLK | Backlight Cathode |
| 10 | ROM_SCK |
GT20L16S1Y: Serial Clock Input |
| 11 | ROM_CS | GT20L16S1Y: Chip Enable Input |
| 12 | ROM_SDO |
GT20L16S1Y: Serial Data Output |
| 13 | ROM_SDI |
GT20L16S1Y: Serial Data Input |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 128X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 12864 Graphic LCD Module | ||
| 2 | Controller | Controller IC ST7567 Datasheet | |
2008-09-24 | Graphic LCD Controller: ST7567 |
