SLG12864L Outline=87.00X57.00MM 2.9" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 8080 MPU Parallel Serial SPI ST7565P Controller STN Yellow Green Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino
SLG12864L Outline=87.00X57.00MM 2.9" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 8080 MPU Parallel Serial SPI ST7565P Controller STN Yellow Green Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino
Model No.: SLG12864L (2.9" COG)
Display Format: 128*64 Dots
Outline Size: 87.00X57.00MM
Controller: ST7565P or Equal
Display Format: 128*64 Dots
Outline Size: 87.00X57.00MM
Controller: ST7565P or Equal
14 sold
Quantity
Detail
Customer Reviews
- Overview
SLG12864L is a 2.9" 128*64 COG Monochrome Graphic LCD Module, ST7565P Controller standard 20P/2.54 Pin Header 12864 COG Graphic LCD Module.
SLG12864L supprot 8080 8-Bit Parallel or Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.
SLG12864L supprot 8080 8-Bit Parallel or Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.080Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12864L (2.9") |
| Display Format | 128*64 Dots |
| Interface | 8080 8-Bit Parallell, Serial SPI |
| IC or Equivalent | ST7565P or Equal |
| Voltage | 3.3V in default |
| Connection | 1X20P/2.54 Pin Header |
| Outline Dimension | 87.00(W)x57.00(H)x9.50(T)mm |
| Visual Area | 70.00x37.00mm |
| Active Area | 65.265x32.625mm |
| Display Type | STN Blue Negative, FSTN Positive, D-FSTN Negative |
| Backlight Type (LED) | White |
| IC Package | COG |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

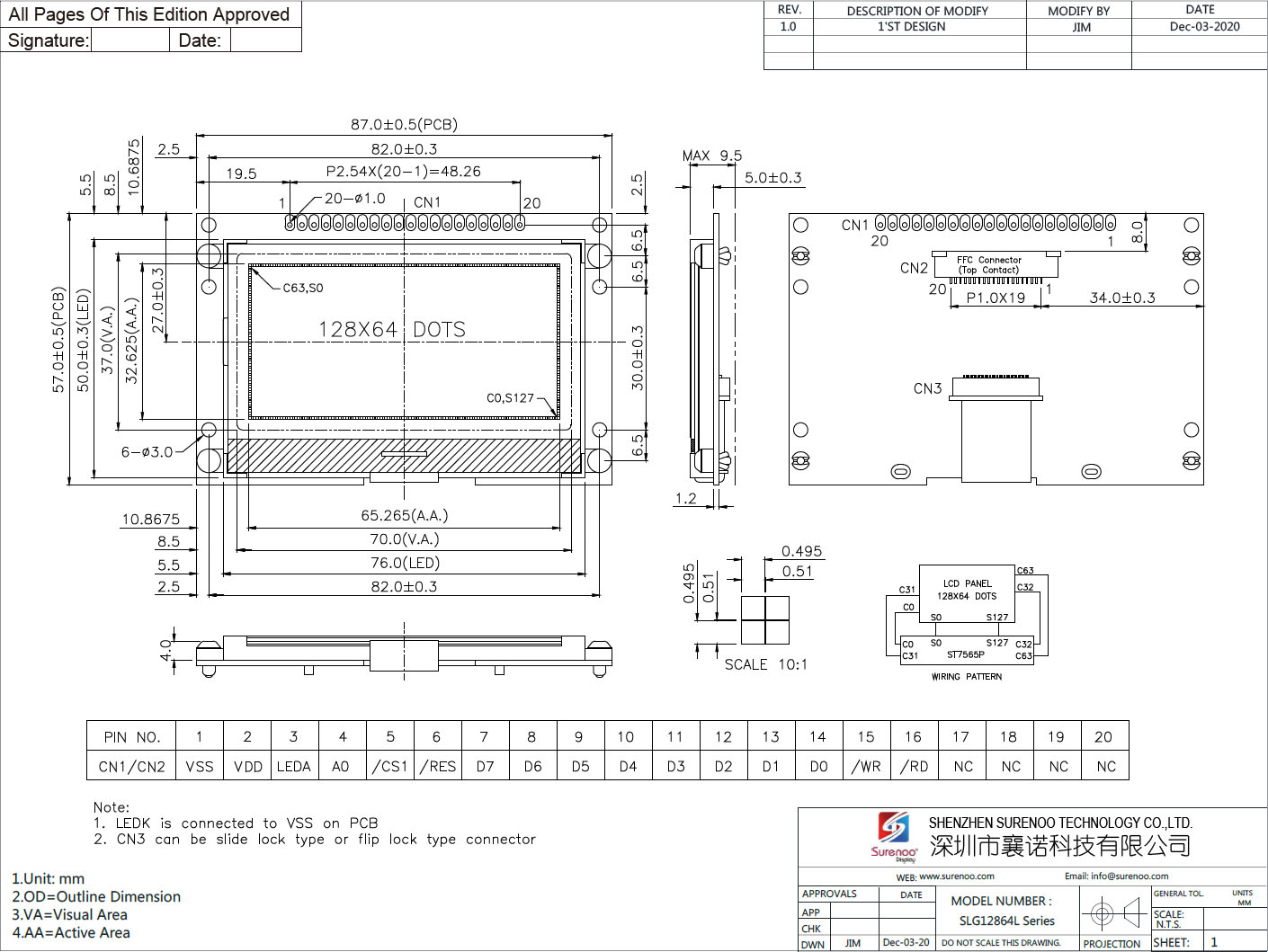

- Outline Drawing
- Interface
| Pin No. | Symbol | Level | Description |
| 1 | VSS | 0V | Ground |
| 2 | VDD | 3.3V | Power Supply for Logic (3.3V) |
| 3 | LEDA | 3.3V | Power Supply for LED Backlight (3.3V) |
| 4 | A0 | H/L | A0=“H”: Display data, A0=“L”: Instruction Code. |
| 5 | CS1 | L | Chip Select Signal, Active "L". |
| 6 | RST | L | Reset Singal, Active "L". |
| 7 | D7(SI) | H/L | When P/S=“H” (Parallel interface mode): D0 to D7 are 8-bit bi-directional data bus. When P/S=“L” (Serial interface mode): D7 is serial data input (SI). D6 is serial clock input (SCL). Serial interface mode does not support read operation |
| 8 | D6(SCL) | H/L | |
| 9 | D5 | H/L | |
| 10 | D4 | H/L | |
| 11 | D3 | H/L | |
| 12 | D2 | H/L | |
| 13 | D1 |
H/L | |
| 14 | D0 |
H/L | |
| 15 | /WR | L | /WR signal for 8080 series MPU. Write data at rising edge of /WR. |
| 16 | /RD | L | /RD signal for 8080 series MPU. Read data when /RD is “L”. |
| 17 | X1/NC | - | RTP: Touch Position / NTP: No Connection |
| 18 | Y2/NC | - | RTP: Touch Position / NTP: No Connection |
| 19 | X2/NC | - | RTP: Touch Position / NTP: No Connection |
| 20 | Y1/NC | - | RTP: Touch Position / NTP: No Connection |
| Note: D0 to D5, /RD and /WR signals are pulled to VDD by on-board 100KΩ resistors. These terminals can be kept open in serial interface mode. |
|||
Select Parallel or Serial Interface by Jumpers
| J2 | J3 | P/S Level | MPU Interface Mode |
| Close | Open | H | 8080 8-bit parallel interface <Default> |
| Open | Close | L | Serial interface (4-wire SPI) |
| Open | Open | Float | Not allowed |
| Close | Close | - | Not allowed |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 128X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 12864 Graphic LCD Module | ||
| 2 |
Controller |
Controller IC ST7565P Datasheet |
|
2008-09-24 | Graphic LCD Controller: ST7565P |
