SLG12864N Outline=43.50X40.80MM 1.7" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel Serial SPI UC1701x ST7567 Controller STN Yellow Green Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino

WISHLIST
Model No.: SLG12864N (1.7" COG)
Display Format: 128*64 Dots
Outline Size: 43.50X40.80MM

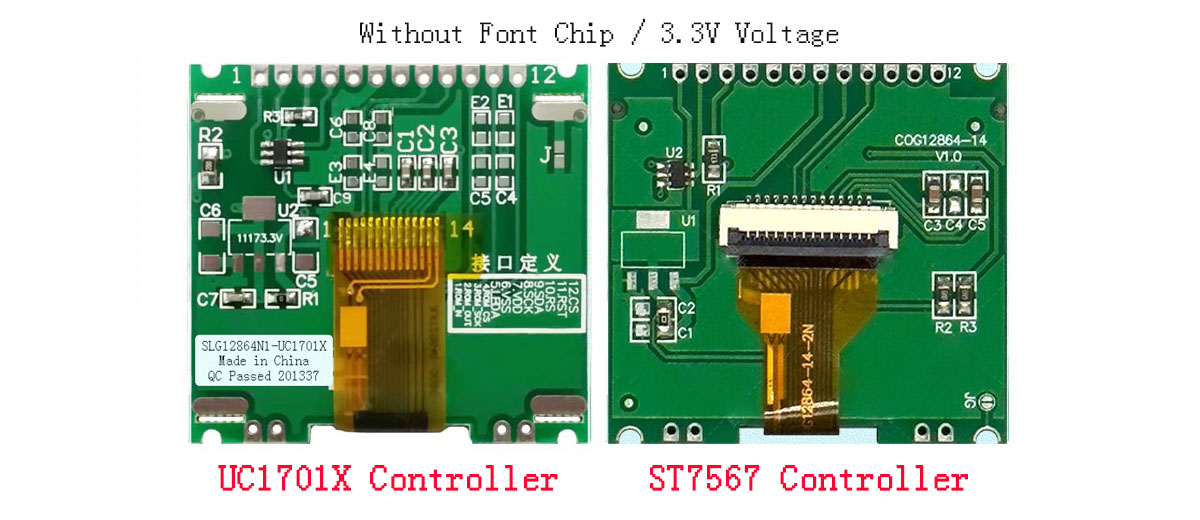

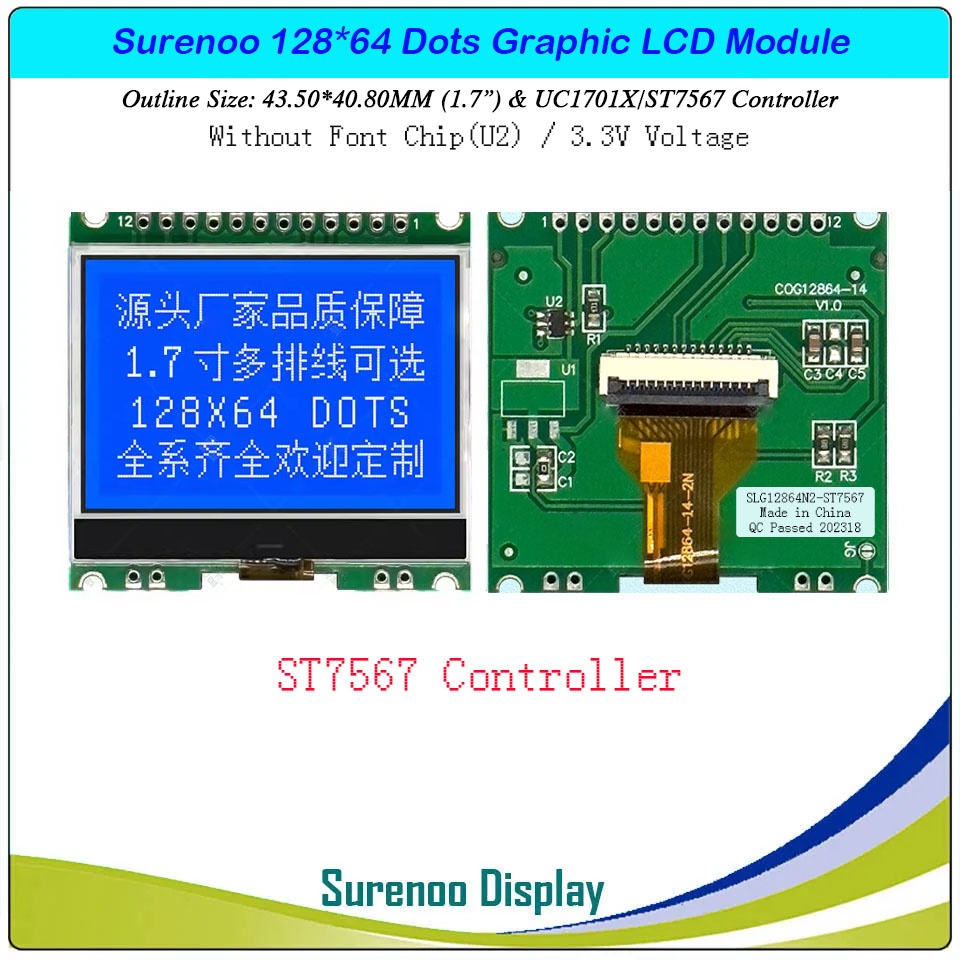

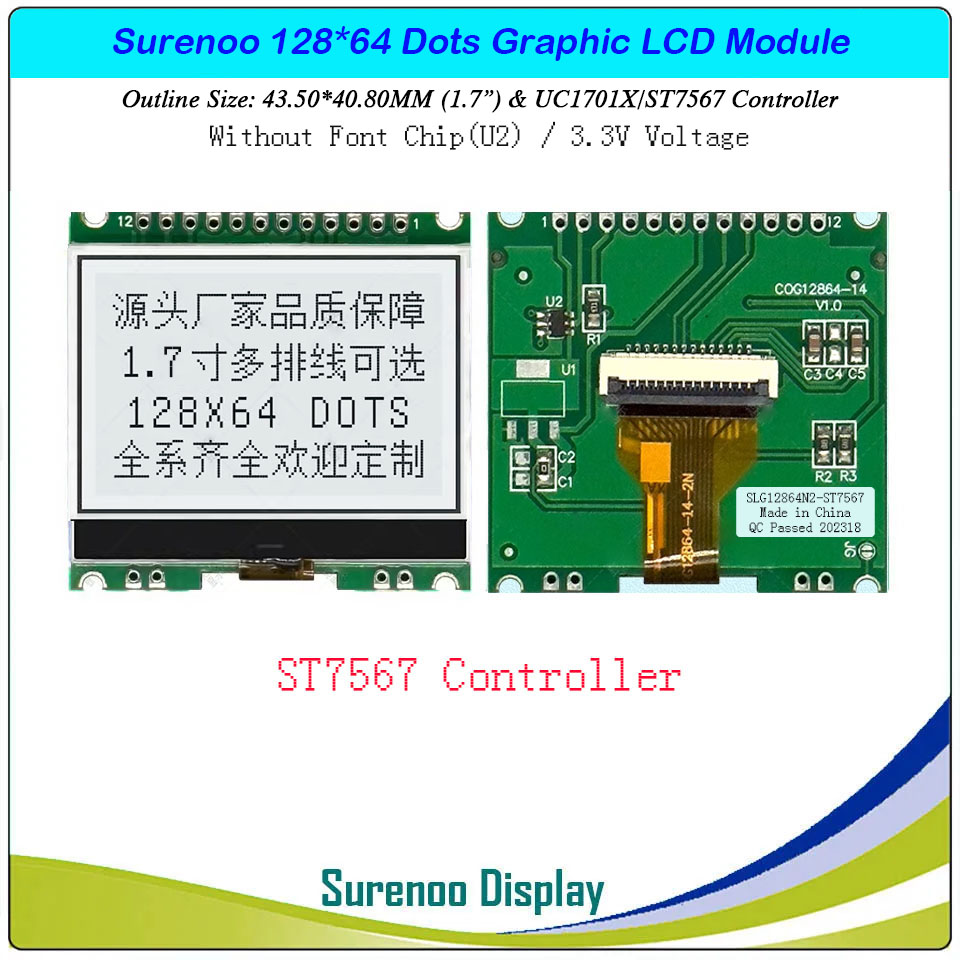

Controller: UC1701x / ST7567 or Equal
82 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

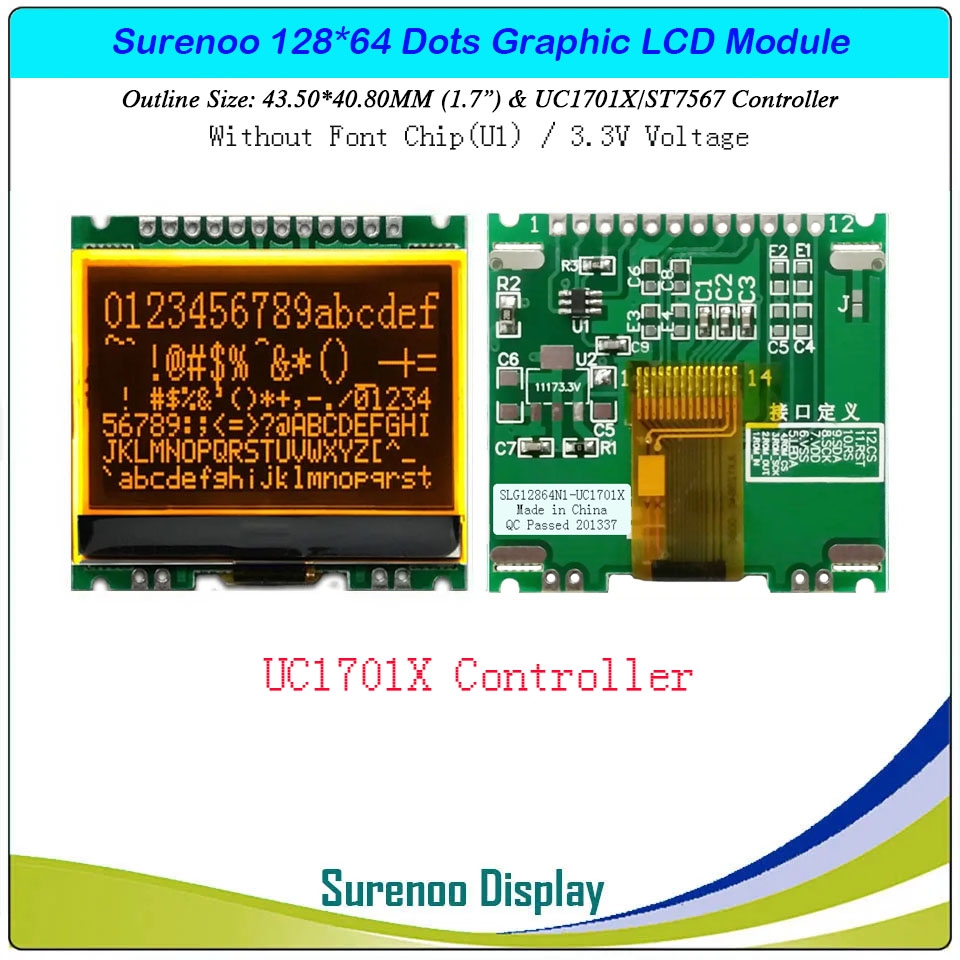

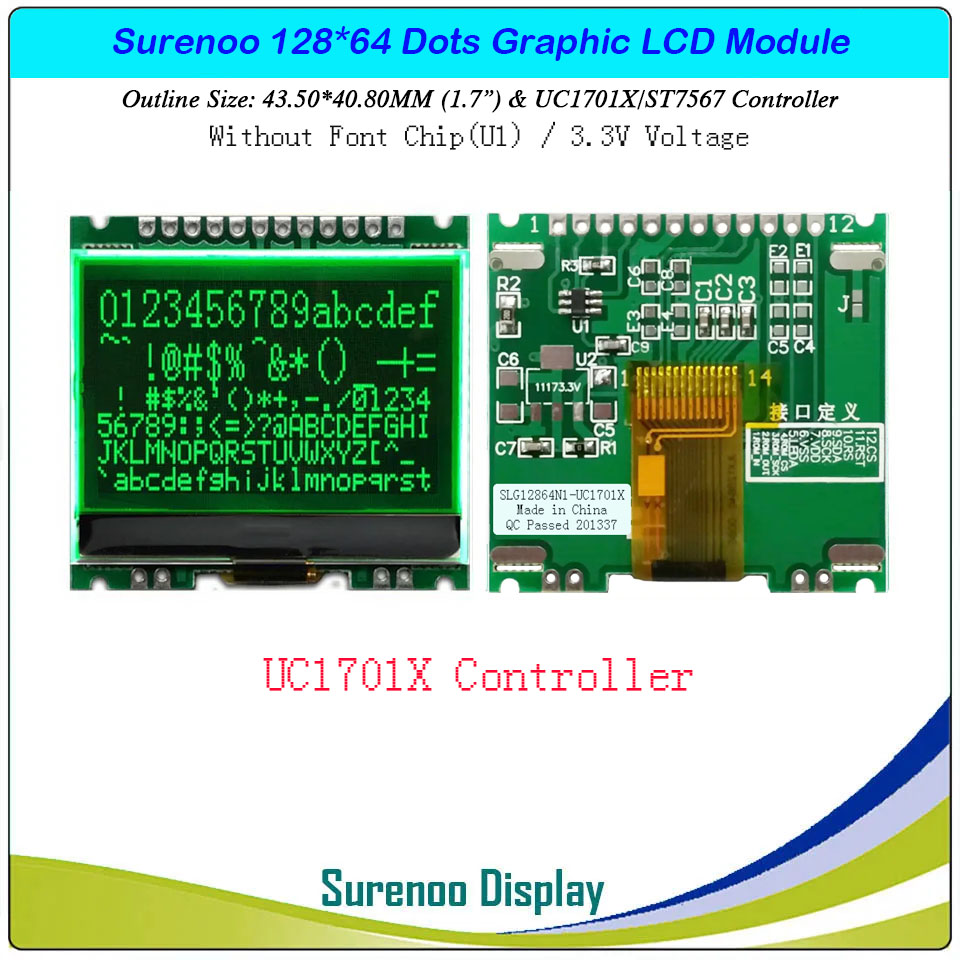

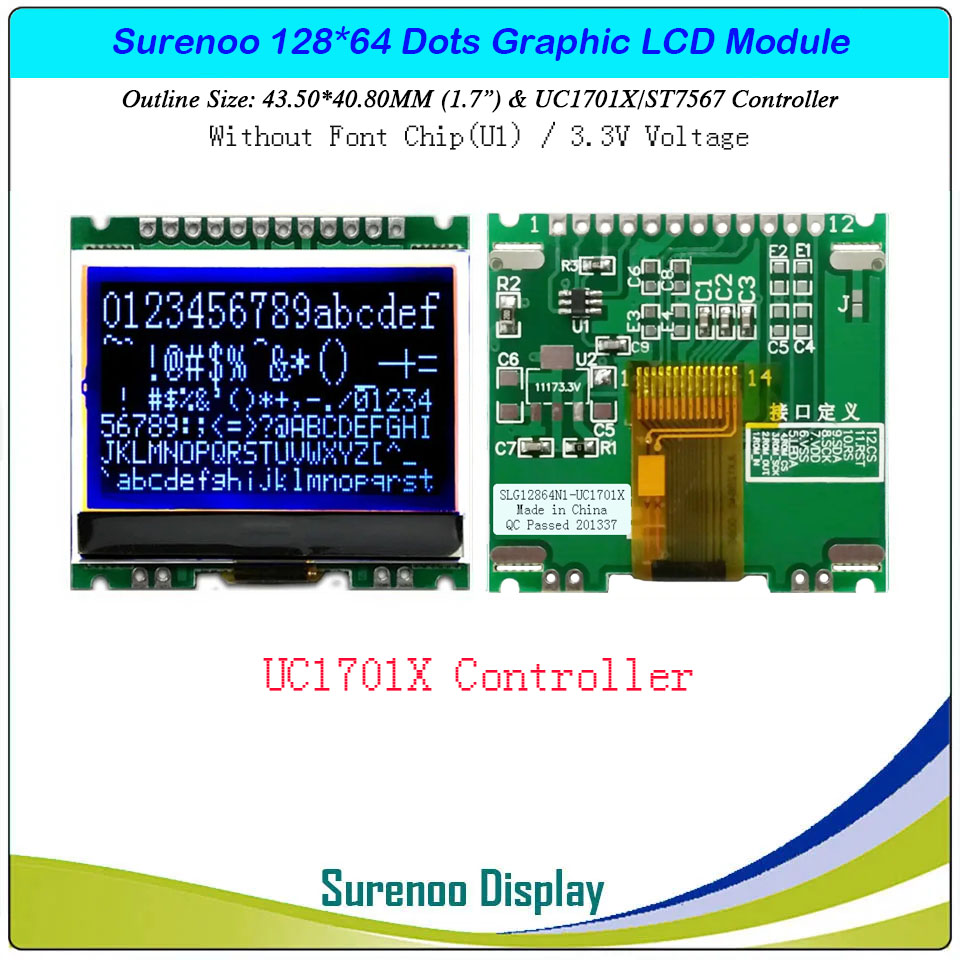

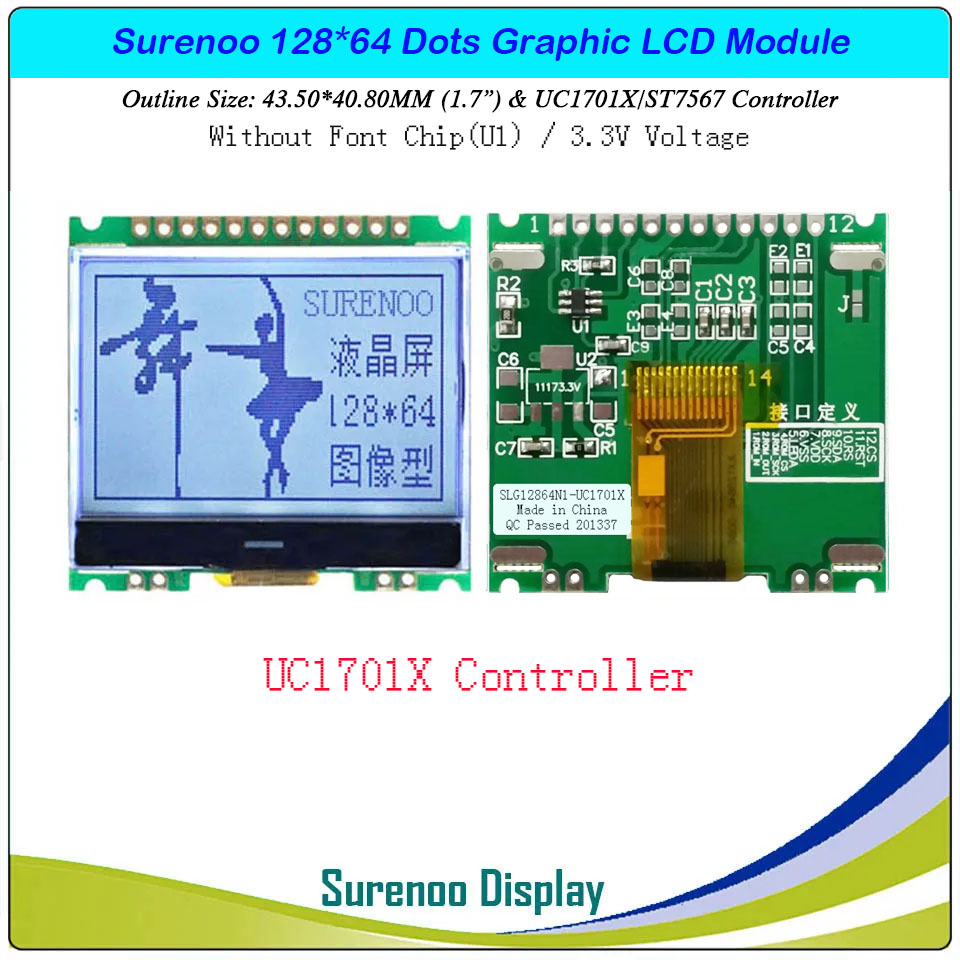

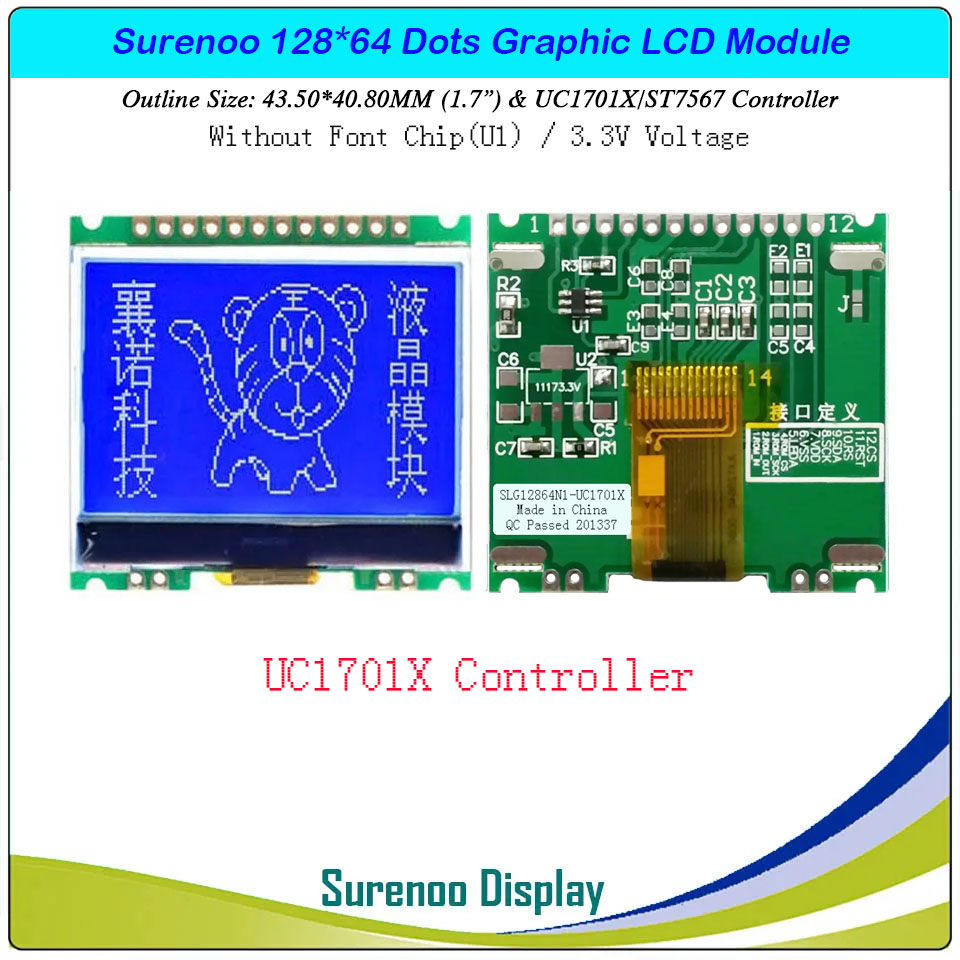

    SLG12864N is a 128*64 COG Monochrome Graphic LCD Module, UC1701X/ST7567 Controller standard 12P/2.54 12864 COG Graphic LCD Module.

    SLG12864N supprot Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG12864N (1.7")
    Display Format 128*64 Dots
    Interface Serial SPI
    IC or Equivalent UC1701X / ST7567 or Equal
    Voltage 3.3V in default
    Connection 1X12P/2.54 Pin Header
    Outline Dimension 43.50(W)x40.80(H)x4.50(T)mm
    Visual Area 39.80x25.50mm
    Active Area 37.09x23.01mm

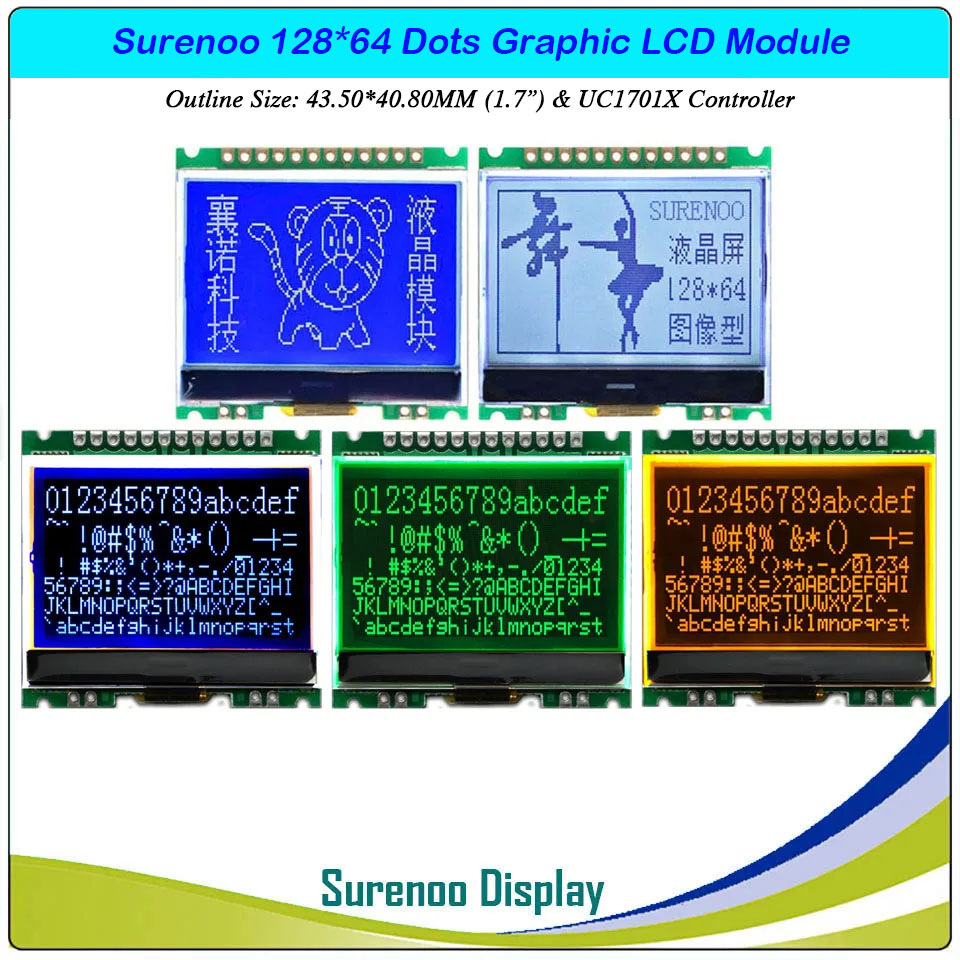

    Display Type STN Blue Negative, FSTN Positive, D-FSTN Negative
    Backlight Type (LED) White, Green, Orange
    IC Package COG
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃

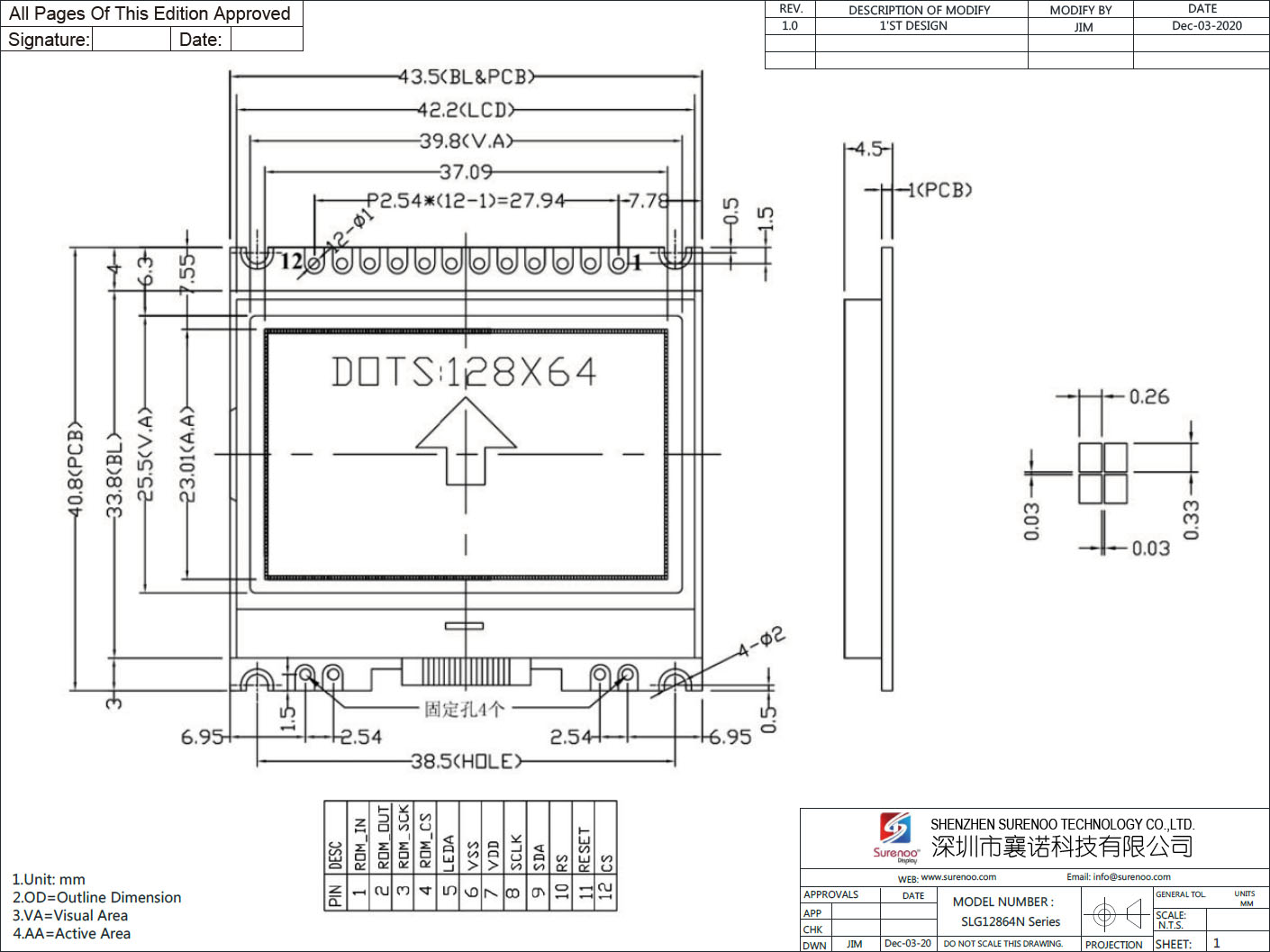

    • Outline Drawing

    • Interface
    Pin No. Symbol Description
    1-4 NC
    		 No Connection (If you need GB2312 Font Chip, please contact us before your purchase)
    1: ROM_IN, 2: ROM_OUT, 3: ROM_SCK, 4: ROM_CS.
    5 LEDA
    		 Power Supply for Backlight (3.3V)
    6 VSS
    		 Ground
    7 VDD
    		 Power Supply for Logic (3.3V)
    8 SCLK
    		 Serial Clock Input
    9 SDA
    		 Serial Data Input
    10 RS It determines whether the access is related to data or command. RS=“H” : Display data. RS=“L” : Command.
    11 RESET Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized.
    12 CS Chip select input pin. Interface access is enabled when CSB is “L”.
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 128X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12864 Graphic LCD Module
    2
    		 Controller
    		 Controller IC UC1701x Datasheet PDF 2008-09-24 Graphic LCD Controller: UC1701x
    Controller IC ST7567 Datasheet
    		 PDF 2008-09-24 Graphic LCD Controller: ST7567
