SLG12864P Outline=80.40X45.00MM 2.42" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel NT7538 Controller STN Yellow Green Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino

WISHLIST
Model No.: SLG12864P (2.42" COG)
Display Format: 128*64 Dots
Outline Size: 80.40X45.00MM
Controller: NT7538 or Equal
8 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG12864P is a 2.42" 128*64 COG Monochrome Graphic LCD Module, NT7538 Controller standard 28P/0.5 12864 COG Graphic LCD Module.

    SLG12864P supprot 8080 MCU Parallel interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG12864P (2.42")
    Display Format 128*64 Dots
    Interface 8080 8-Bit Parallel
    IC or Equivalent NT7538 or Equal
    Voltage 3.3V in default
    Connection 1X28P/0.5 FPC & 2P/2.54 Connector
    Outline Dimension 80.40(W)x45.00(H)x5.30(T)mm
    Visual Area 60.00x32.60mm
    Active Area 55.01x27.49mm
    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, Orange, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -10℃~60℃
    Storage Temperature
    -20℃~70℃

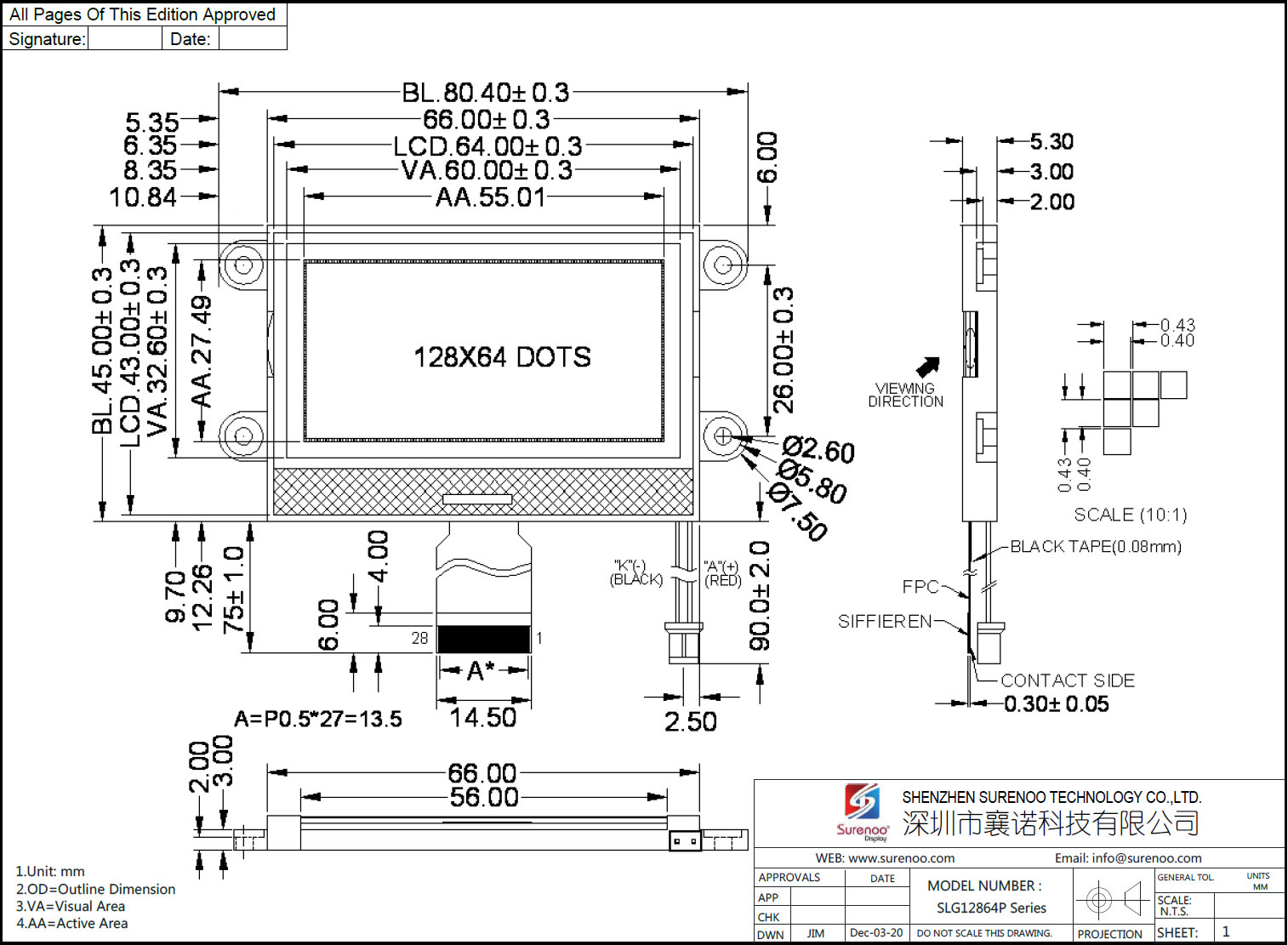

    • Outline Drawing

    • Interface
    Pin No. Symbol Level Description
    1 CS1
    L Chip Select Input Pin, Active Low
    2 RES L When /RST is "L", initialization is executed
    3 A0
    H/L
    Register select input pin, A0 = "H": Indicates that "A0" are display data, A0 = "L": Indicates that "A0" are control data
    4 WR
    H/L
    Write signal.  Active Low
    5 RD H/L
    When connected to an 8080 MPU, this is Read signal. Low active.
    6-13 DB0-DB7 H/L
    Data bus DB0~DB7
    14 VDD +3.0V Power supply for Logic
    15 VSS 0V Ground
    16 Vout - DC/DC converter. Connect a capacitor to ground
    17 CAP3+ - DC/DC converter.
    Connect a capacitor between CAP3+ and CAP1-
    Connect a capacitor between CAP1- and CAP1+
    18 CAP1- -
    19 CAP1+
    --
    20 CAP2+
    - DC/DC converter.
    Connect a capacitor between CAP2+ and CAP2-
    21 CAP2-
    -
    22-26 V1-V4, V0 - Voltage levels for LCD, Connect a capacitor to ground
    27 NC - No Connection
    28 IRS
    H/L
    This terminal selects the resistors for the V0 voltage level adjustment.
    IRS = “H”: Use the internal resistors
    IRS = “L”: Do not use the internal resistors. The V0 voltage level is regulated by an external resistive voltage divider attached to the VR terminal
    29(Red) A +3.0V
    Anode of LED Backlight
    30(Black) K 0V
    Cathode of LED Backlight
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 128X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12864 Graphic LCD Module
    2 Controller Controller IC NT7538 Datasheet PDF 2008-09-24 Graphic LCD Controller: NT7538
