SLG12864D Outline=93.00X70.00MM 3.0" 12864 128X64 Surenoo Graphic LCD Module Display Screen Panel UART CMOS TTL RS232 STN Yellow Green STN Blue Negative with White LED Backlight for MCU 8051 PIC AVR ARM
SLG12864D Outline=93.00X70.00MM 3.0" 12864 128X64 Surenoo Graphic LCD Module Display Screen Panel UART CMOS TTL RS232 STN Yellow Green STN Blue Negative with White LED Backlight for MCU 8051 PIC AVR ARM
Model No.: SLG12864D (3.0")
Display Format: 192*64 Dots
Outline: 93.00X70.00MM
Interface: UART (CMOS/RS232)
Display Format: 192*64 Dots
Outline: 93.00X70.00MM
Interface: UART (CMOS/RS232)
12 sold
Quantity
Detail
Customer Reviews
- Overview
SLG12864D is a 128*64 Monochrome Graphic LCD Module, UART(CMOS/RS232) interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by Arduino. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Selection Recommendations
>> Interface
CMOS: Signal transmission distance control in less than 20CM;
RS232: Signal transmission distance of up to 10M.
>> Display Mode
The best use of the sun to choose the positive mode products. In the indoor environment, both the negative mode and the positive mode can be used.
- RS232 vs CMOS(TTL): What's the difference?
>> Susceptibility to external conditions
RS232 more extreme voltages help make it less susceptible to noise, interference, and degradation.
>> Minimum and Maximum voltages
The minimum and maximum voltages of RS-232 signals are +/-13V, while TTL signals are 0 to 3.3V/5V.
>> Ease of pairing with a microcontroller
TTL serial would be an easier option for microcontroller pairing since it operates nicely between a microcontroller voltage supply range.
>> Logic levels
Logic levels between the RS232 and TTL are inverted, with the “1”s and “0”s inverted from each other.
>> Summary
Overall, TTL is much easier to implement into embedded circuits. However, lower voltage levels limit long transmission usages. This makes the RS232 a more versatile all-around option.
- Specification
| Gross Weight | 0.100Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12864D (3.0") |
| Display Format | 128*64 Dots |
| Interface | UART (CMOS / RS232) |
| IC or Equivalent | - |
| Voltage | 5.0V in default |
| Connection | 1X5P/2.54 Pin Header |
| Outline Dimension | 93.00(W)x70.00(H)x13.50(T)mm |
| Visual Area | 72.00x40.00mm |
| Active Area | 66.52x33.24mm |
| Display Type | STN Yellow Green, STN Blue Negative |
| Backlight Type (LED) | Yellow Green, White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

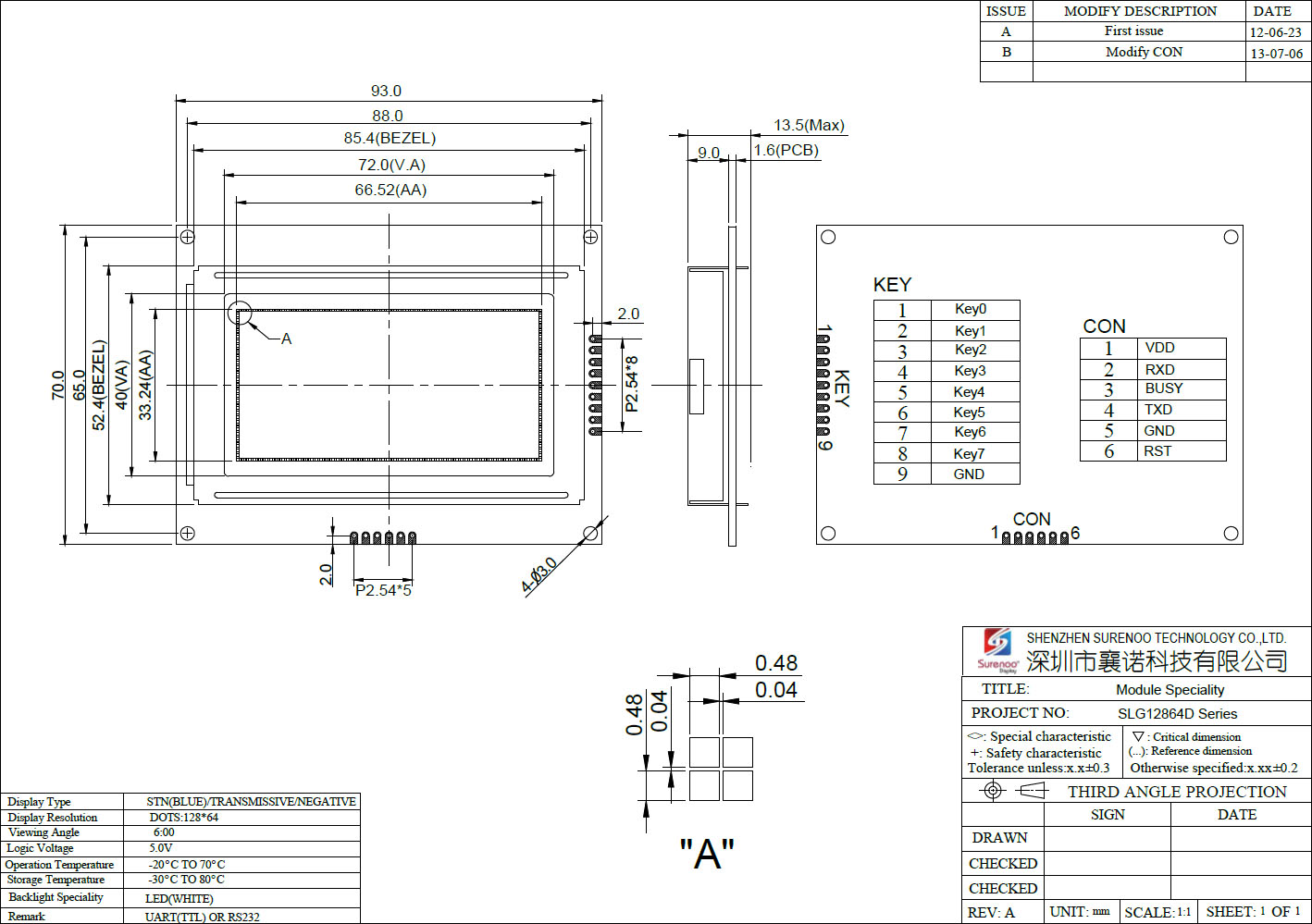

- Outline Drawing
- Interface
| Pin No. | Symbol | I/O | Description |
| Interface for Display (CON) | |||
| 1 | VDD |
P | Power (5.0V) |
| 2 | RXD |
I | UART receives signal, connecting to the master's TXD |
| 3 | BUSY |
O | 1:Busy, 0:Idle Generally can be suspended treatment |
| 4 | TXD |
O | UART transmit signal, connecting to the master's RXD |
| 5 | GND |
P | Power ground |
| Interface for KEY | |||
| 1-8 | Key0-Key7 | - | Key scan signal, using a key connection between the signal and ground |
| 9 | GND | P | Power ground |

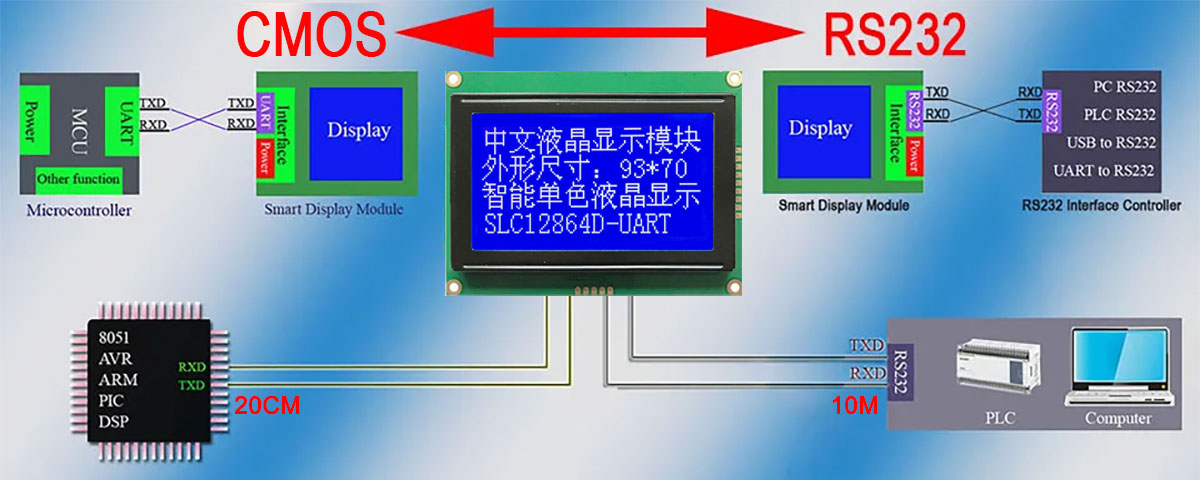

- Application
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 128X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 19264 Graphic LCD Module |
