Model No.: SLG12864B (3.0")
Display Format: 128*64 Dots
PCB Size: 93.00X70.00MM
Controller: ST7920, AIP31020 or Equal
Display Format: 128*64 Dots
PCB Size: 93.00X70.00MM
Controller: ST7920, AIP31020 or Equal
45 sold
Quantity
Detail
Customer Reviews
- Overview
SLG12864B is a 128*64 Monochrome Graphic LCD Module, ST7920/AIP31020 Controller standard 20P/2.54 12864 parallel Graphic LCD Module.
SLG12864B supprot 6800 4/8-Bit & Serial SPI parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
SLG12864B supprot 6800 4/8-Bit & Serial SPI parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.080Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12864B (3.0") |
| Display Format | 128*64 Dots |
| Interface | 6800 4-bit Parallel, 6800 8-bit Parallel, 3-Wire Serial SPI |
| IC or Equivalent | ST7920, AIP31020 or Equal |
| Voltage | 5.0V in default |
| Connection | 1X20P/2.54 Pin Header |
| Outline Dimension | 93.00(W)x70.00(H)x12.50(T)mm |
| Visual Area | 71.80x40.00mm |
| Active Area | 66.52x33.24mm |
| Display Type | STN Yellow Green, STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | Yellow Green, White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

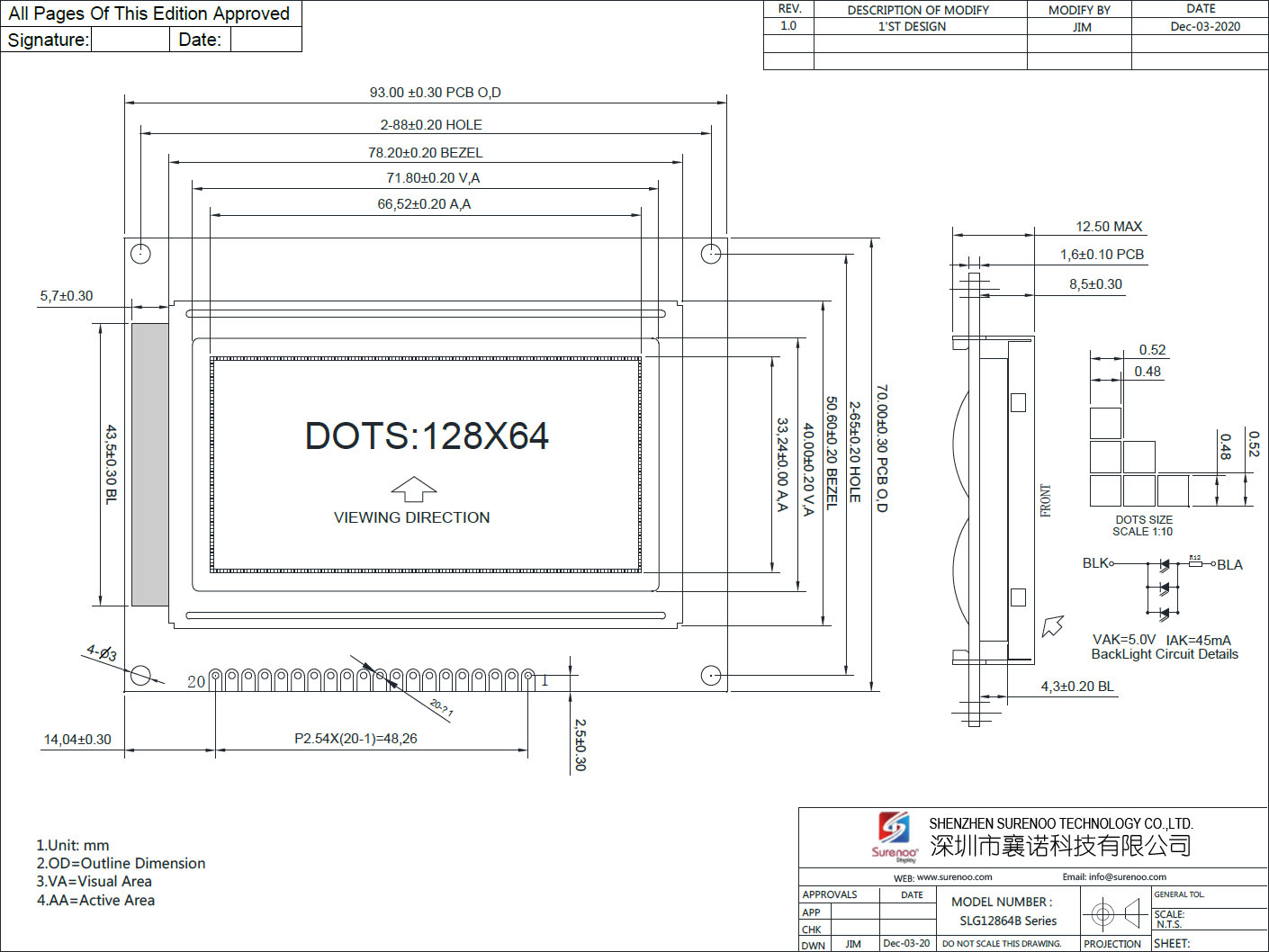

- Outline Drawing
- Interface
| Pin No. | Symbol | Description |
| 1 | VSS |
Ground |
| 2 | VDD | Logic Power Supply |
| 3 | V0 |
Operating Voltage for LCD |
| 4 | RS(CS) |
Parallel (H: Data; L: Instruction Code); Serial SPI (Chip Selection) |
| 5 | R/W(SID) |
Parallel (H: Read; L: Write); Serial SPI (Serial Data Signal) |
| 6 | E(SCLK) |
Parallel (Enable Signal); Serial SPI (Serial Clock Signal) |
| 7-14 | DB0-DB7 | Data Bus Line |
| 15 | PSB | H: Parallel Interface Mode L: Serial Interface Mode |
| 16 | NC | No Connection |
| 17 | RST | Reset Signal, active "L" |
| 18 | VOUT | Output Voltage for LCD Driving |
| 19 | LED_A | Power Supply for Backlight |
| 20 | LED_K |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 128X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 12864 Graphic LCD Module | ||
| 2 | Controller | Controller IC ST7920 Datasheet | |
2008-09-24 | Graphic LCD Controller: ST7920 or AIP31020 |
