SLG320240A Outlne=160.00X109.00MM 5.7" inch 320240 320X240 320*240 Surenoo Graphic LCD Module Display Screen Panel 8080 8-bit MPU Parallel RA8835 Controller STN Blue Negative FSTN Positive LED CCFL White Backlight Resistive Touch Panel RTP Optional

Model No.: SLG320240A (5.7")
Display Format: 320*240 Dots
Outlne: 160.00X109.00MM
Driver: RA8835 or Equal
9 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG320240A is a 5.7" 320*240 dots Monochrome Graphic LCD Module, RA8835 standard 1X20P/2.54 320*240 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, Resistive Touch Panel is optional, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.240Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG320240A (5.7")
Display Format 320*240 Dots
Interface 8080 8-bit Parallel
IC or Equivalent RA8835 or Equal (RTP Optional)
Voltage 5.0V in default
Connection 1X20P/2.54 Pin Header, 1X8P/2.54 Pin Header (Touch Interface), 1X24P/0.5 Connector
Outline Dimension 160.00(W)x109.00(H)x11.00/12.40(T)mm
Visual Area 122.00x92.00mm
Active Area 115.17x86.37mm
Display Type STN Blue Negative, FSTN Positive
Backlight Type (LED/CCFL) White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
  • Outline Drawing

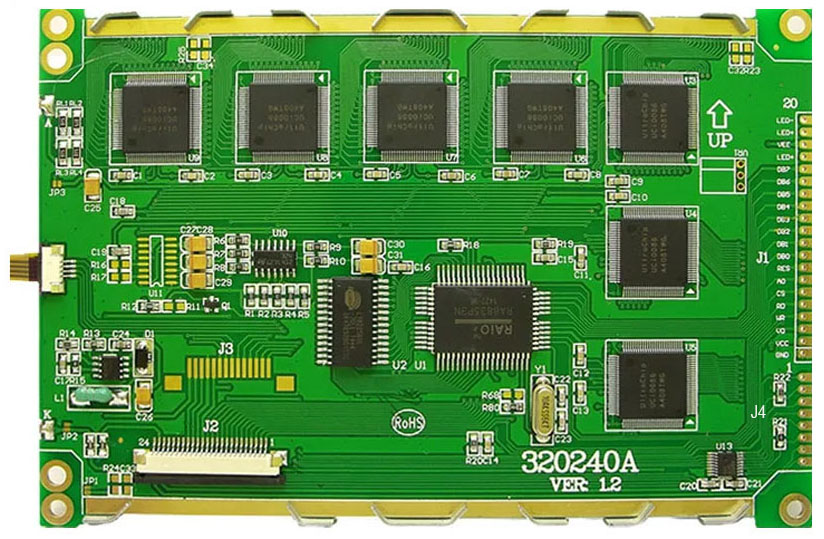

  • Interface


>> 1. J1 Interface (8080 8-Bit LCD Interface)
Pin No. Symbol Level Description
1 VSS 0V Ground
2 VDD 5.0V Power Supply for Logic
3 V0 - Power Supply for LCD (+22.5V)
4 WR L Write Signal
5 RD L Read Signal
6 CE L Chip Enable Signal
7 A0 H/L Instruction / Data Selection
8 RST L Reset Signal, Low Active
9-16 DB0-DB7 H/L Data Bus Line
17 NC - Open
18 VEE - Negative Voltage Output (-20.0V)
19 BLA 5.0V Backlight Anode (+5V)
20 BLK 0V Backlight Cathode (0V)

>> 2. J2 Interface (8080 8-Bit LCD and ADS7843 Touch Interface)
Pin No. Symbol Level Description
1 RST L Reset Signal, Low Active
2 RD L Read Signal
3 WR L Write Signal
4 CS L Chip Enable Signal
5 A0(RS) H/L H: Instruction / L: Data Selection
6-13 DB0-DB7 H/L Data Bus Line
14 VDD 5.0V Power Supply for Logic
15 VSS
 0V
 Ground
16 VEE - Negative Voltage Output (-20.0V)
17 V0 - Contrast Adjust
18 DCLK H/L ADS7843 Serial Clock Signal
19 DOUT H/L ADS7843 Serial Data Output
20 DIN H/L ADS7843 Serial Data Input
21 T-CS H/L ADS7843 Chip Enable Signal
22 PEN H/L ADS7843 Interrupt Signal
23 BLA 5.0V Backlight Anode (+5V)
24 BLK 0V Backlight Cathode (0V)

>> 3. J3 Interface (4-Bit Parallel Interface: Without Controller, If you need this interface, please buy SLG320240B instead of it)
Pin No. Symbol Level Description
1-4 D0-D4 H/L Data Bus Line
5 DISP H/L Display Switch, H: ON / L: OFF
6 FRM H/L Frame Signal
7 M H/L AC Signal for LCD Driver Output
8 LP H/L Latch Pulse
9 CP H/L Data Shift Clock
10 VDD 5.0V Power Supply for Logic
11 VSS 0V Ground
12 VEE H/L Negative Voltage Output for LCD Driving
13 V0 - Adjust Contrast
14 FG - Frame (Bezel) Ground

>> J4 Interface (ADS7843 Touch Interface)
Pin No. Symbol Level Description
1 DCLK H/L ADS7843 Serial Clock
2 T-CS L ADS7843 Chip Enable Signal
3 DIN H/L ADS7843 Serial Data Input
4 BUSY H/L ADS7843 Busy Signal
5 DOUT H/L ADS7843 Serial Data Output
6 PEN H/L ADS7843 Interrupt Signal
7 IN3 H/L ADS7843 Auxiliary Input 1
8 IN4 H/L ADS7843 Auxiliary Input 2
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 320X240 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 320240 Graphic LCD Module
2 Controller Controller IC RA8835 Datasheet PDF 2008-09-24 Graphic LCD Controller: RA8835
