SLG240128D Outline=100.00X85.00MM 3.8" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel UC1608X 6800 8080 8-Bit Parallel Serial SPI STN Blue Negative FSTN Positive LED Backlight Resistive Touch Panel RTP Optional

Model No.: SLG240128D
Display Format: 240*128 Dots
Outline: 100.00X85.00MM
Controller: UC1608X COG or Equal
2 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG240128D is a 3.8" 240*128 dots Monochrome Graphic LCD Module, UC1608X COG Controller standard 2X13P/2.54 & 2X7P/2.54 240*128 Parallel/Seriall SPI Graphic LCD Module, supprot 8080 8-Bit parallel, 6800 8-Bit parallel and Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.120Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG240128D
Display Format 240*128 Dots
Interface 6800 8-Bit Parallel / 8080 8-Bit Parallel / Serial SPI
IC or Equivalent UC1608X or Equal
Voltage 3.3V in default
Touch Panel Yes (RTP)
Touch Controller Not including
Connection 2X13P/2.54 & 2X7/2.54 Pin Header
Outline Dimension 100.00(W)x85.00(H)x12.50(T)mm
Visual Area 92.00x52.00mm
Active Area 83.98x44.78mm
Display Type STN Blue Negative, FSTN Positive
Backlight Type (LED) White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
 BLW: -10℃~60℃ / FPW: -20℃~70℃
Storage Temperature
 BLW: -20℃~70℃ / FPW: -30℃~80℃

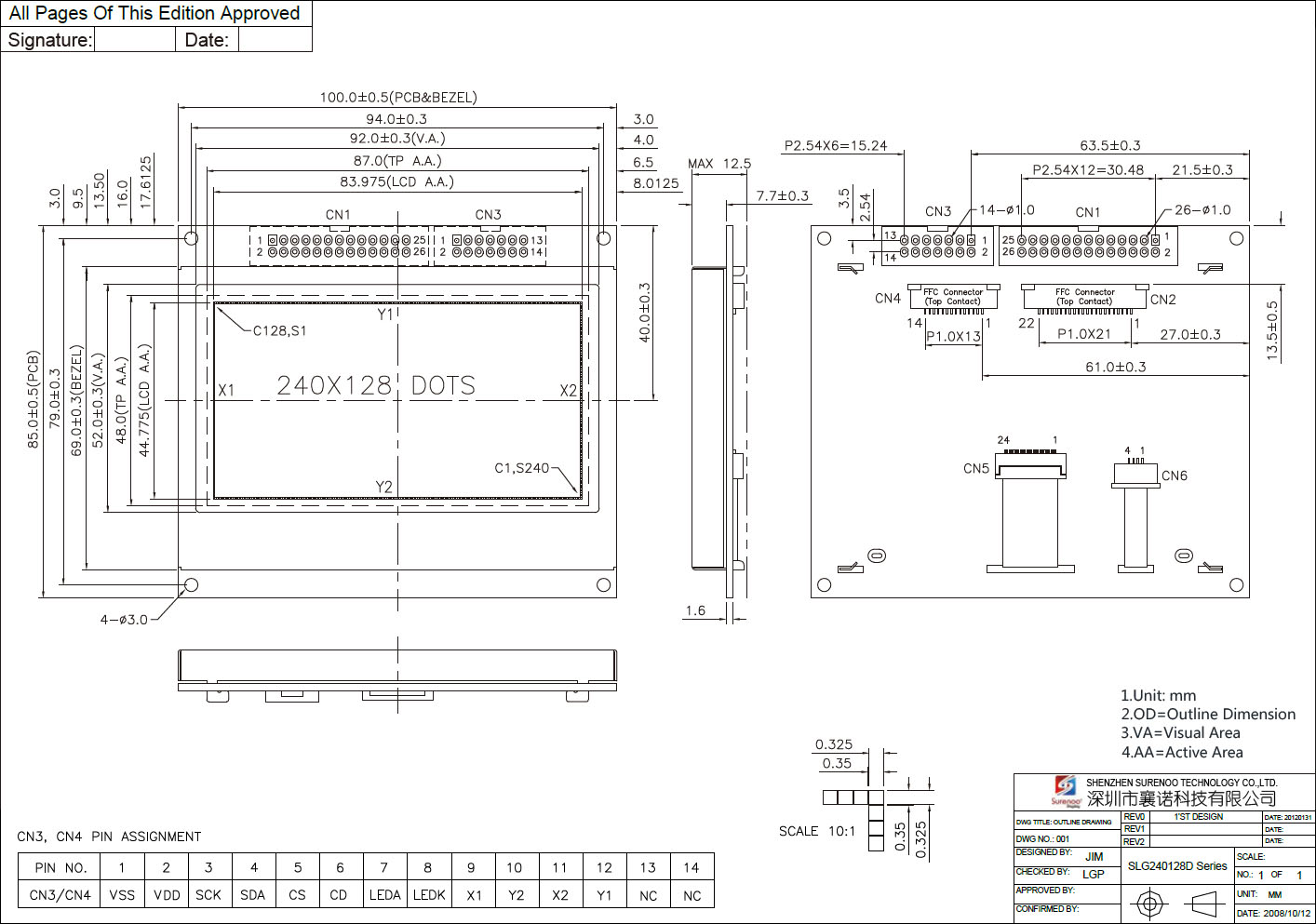

  • Outline Drawing

  • Interface (CN1/CN2)
Pin No. Symbol
 Level
 Description
80 MPU 68 MPU
1 VSS
 0V Power Ground
2 VDD
 3.3V Logic Power Supply
3 CD H/L H: Data Code L: Instruction Code
4 WR R/W H/L Write Signal / Write & Read Signal
5 RD E H/L Read Signal / Enable Signal
6-13 DB0-DB7
 H/L
 Data Bus Line
14 CS
 H Chip selection signal. Active "H".
15 BLA
 3.3V Backlight Anode
16 BLK
 0V Backlight Cathode
17  X1/NC
 - Touch Panel left side terminal / No Connection
18  Y2/NC - Touch Panel Bottom side terminal / No Connection
19 X2/NC
 - Touch Panel Right side terminal / No Connection
20 Y1/NC
  - Touch Panel Top side terminal / No Connection
21-26 NC
 - No Connection
  • Interface (CN3/CN4)
Pin No. Symbol
 Level
 Description
1 VSS
 0V Power Ground
2 VDD
 3.3V Logic Power Supply
3 SCK - Serial Clock Input
4 SDA - Serial Data Input
5 CS
 H Chip selection signal. Active "H".
6 CD H/L
 H: Data Code L: Instruction Code
7 BLA
 3.3V Backlight Anode
8 BLK
 0V Backlight Cathode
9  X1/NC
 - Touch Panel left side terminal / No Connection
10  Y2/NC - Touch Panel Bottom side terminal / No Connection
11 X2/NC
 - Touch Panel Right side terminal / No Connection
12 Y1/NC
  - Touch Panel Top side terminal / No Connection
13-14 NC - No Connection
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 240X128 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 240128 Graphic LCD Module
2 Controller Controller IC UC1608X Datasheet PDF 2008-09-24 Graphic LCD Controller: UC1608X
