SLG240128E Outline=144.00X104.00MM 4.7" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel RA8806 STN Yellow Green Blue Negative FSTN Positive LED Backlight with Resistive Touch Panel for 8051 PIC AVR ARM
SLG240128E Outline=144.00X104.00MM 4.7" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel RA8806 STN Yellow Green Blue Negative FSTN Positive LED Backlight with Resistive Touch Panel for 8051 PIC AVR ARM
Model No.: SLG240128E (4.7")
Display Format: 240*128 Dots
Outline: 144.00X104.00MM
Controller: RA8806 or Equal
Display Format: 240*128 Dots
Outline: 144.00X104.00MM
Controller: RA8806 or Equal
2 sold
Quantity
Detail
Customer Reviews
- Overview
SLG240128D is a 4.7" 240*128 dots Monochrome Graphic LCD Module, RA8806 Controller standard 1X22P/2.54 & 2X11P/2.54 240*128 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.200Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG240128E (4.7") |
| Display Format | 240*128 Dots |
| Interface | 8080 8-Bit Parallel |
| IC or Equivalent | RA8806 or Equal |
| Voltage | 5.0V in default |
| Touch Panel | Yes (RTP) |
| Touch Controller | RA8806 Build-in Touch Controller |
| Connection | 1X22P/2.54 & 2X11/2.54 Pin Header |
| Outline Dimension | 144.00(W)x104.00(H)x12.70(T)mm |
| Visual Area | 114.00x64.00mm |
| Active Area | 107.96x57.56mm |
| Display Type | STN Yellow Green, STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | Yellow Green, White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

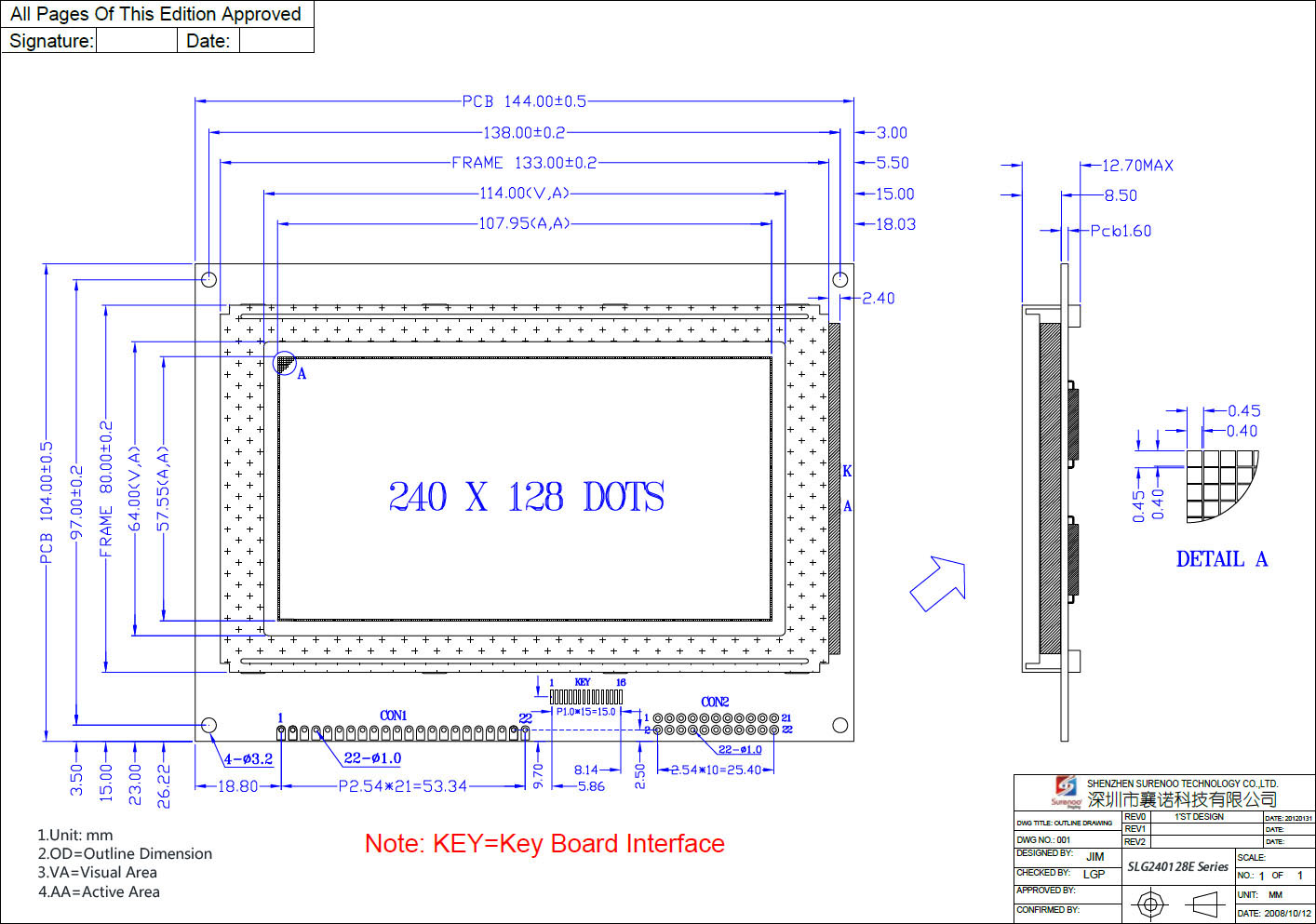

- Outline Drawing
- Interface (CN1/CN2)
| Pin No. | Symbol | Level |
Description |
| 1 | VSS | 0V | Power Ground |
| 2 | VDD | 5.0V | Logic Power Supply |
| 3 | V0 | - | Operating voltage for LCD |
| 4 | RS | H/L | L : Data Code H : Instruction Code |
| 5 | WR | L | Write Signal |
| 6 | RD | L | Read Signal |
| 7 | CS1 |
L | Chip enable singal. Active "L". CS1=L, CS2=H, Active IC. |
| 8 | CS2 | H | Chip enable singal. Active "H". CS1=L, CS2=H, Active IC. |
| 9 | BUSY | H/L |
Busy Status Output Port |
| 10 | INT | H/L | RA8806 Interrupt Signal |
| 11 | RST |
L | Reset Signal, Active-Low |
| 12-19 | DB0-DB7 | H/L | Data Bus Line |
| 20 | VEE | - | Negative Voltage for LCD Driving |
| 21 | BLA | 5.0V | Backlight Anode |
| 22 | BLK | 0V | Backlight Cathode |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 240X128 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 240128 Graphic LCD Module | ||
| 2 | Controller | Controller IC RA8806 Datasheet | |
2008-09-24 | Graphic LCD Controller: RA8806 |
