SLG240128B Outline=144.00X104.00MM 4.7" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green Blue Negative FSTN Positive LED Backlight for 8051 PIC AVR ARM

Model No.: SLG240128B (4.7")
Display Format: 240*128 Dots
Outline: 144.00X104.00MM
Controller: UCi6963 or Equal
23 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG240128B is a 4.7" 240*128 dots Monochrome Graphic LCD Module, T6963C/RA6963/UCi6963 Controller standard 1X21P/2.54 & 1X22P/2.54 240*128 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.200Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG240128B (4.7")
Display Format 240*128 Dots
Interface 8080 8-bit Parallel
IC or Equivalent UCi6963 or Equal
Voltage 5.0V in default
Connection 1X21P/2.54 & 1X22/2.54 Pin Header
Outline Dimension 144.00(W)x104.00(H)x12.00(T)mm
Visual Area 114.00x64.00mm
Active Area 107.96x57.56mm
Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

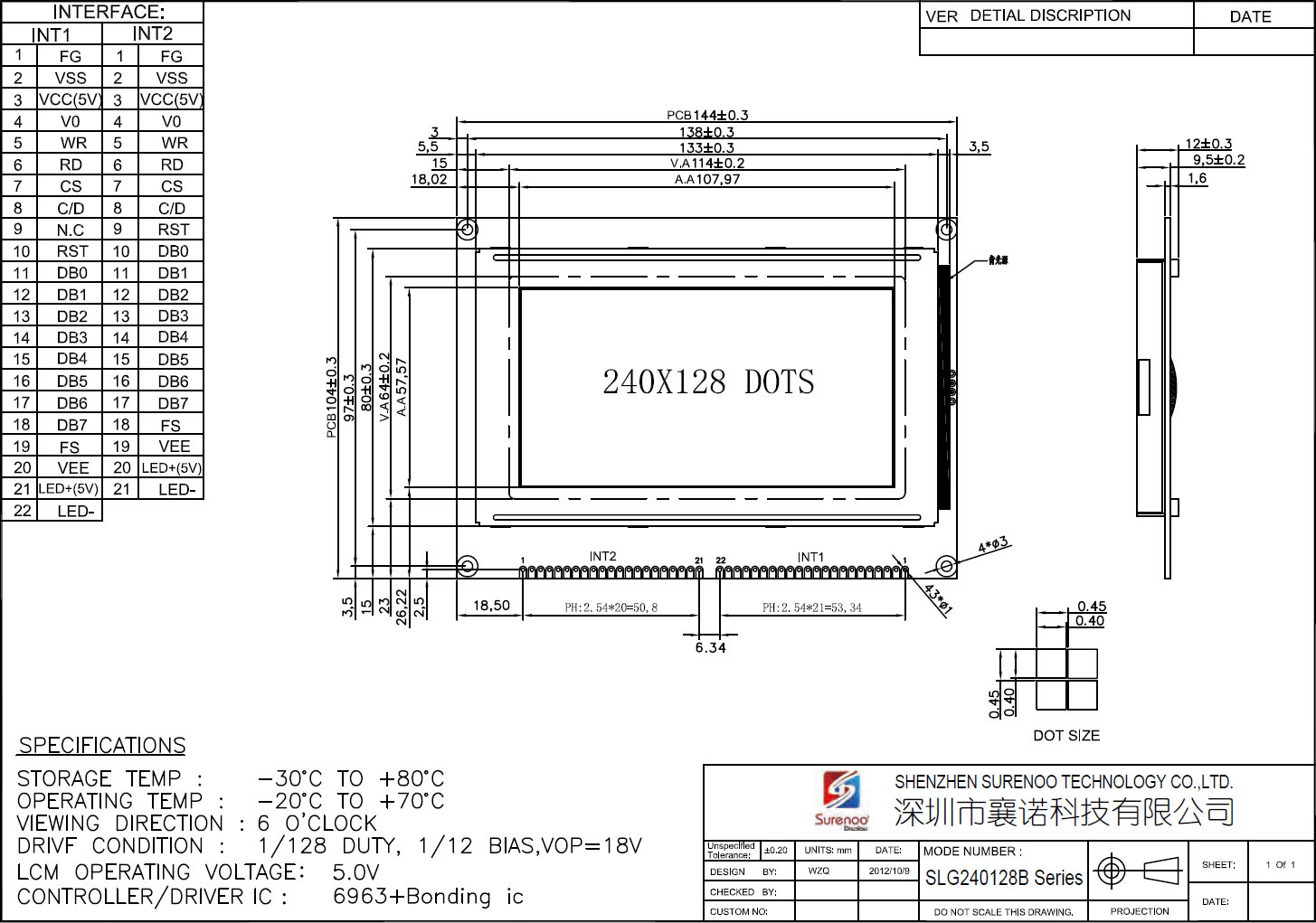

  • Outline Drawing

  • Interface
Pin No. Symbol Level
Description
CN1 (1X21P/2.54) CN2 (2X10P/2.54)
1  1 FG - Frame Ground
2  2 VSS 0V Power Ground
3  3 VDD 5.0V Logic Power Supply
4  4 V0 - Operating voltage for LCD (LCD Contrast Adjust)
5  5 WR L Write Signal
6 6 RD L Read Signal
7  7 /CE
L Chip Enable Singal, Active-Low
8 8 C/D H/L L : Data Code H : Instruction Code
9 -
NC - No Connection
10 9 RST
L Reset Signal,  Active-Low
11-18  10-17 DB0-DB7 H/L
Data Bus Line
19 18 FS H/L Font Selection (H: 6X8 Dots, L: 8X8 Dots)
20 19 VEE - Negative Voltage for LCD Driving
21 20 BLA 5.0V Backlight Anode
22 21 BLK 0V Backlight Cathode
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 240X128 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 240128 Graphic LCD Module
2 Controller Controller IC UCi6963 Datasheet PDF 2008-09-24 Graphic LCD Controller: UCi6963
