SLG128128A Outline=69.00X74.00MM 2.5" 128128 128X128 128*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green LED Backlight for 8051 PIC AVR ARM

Model No.: SLG128128A (2.5")
Display Format: 128*128 Dots
Outline: 69.00X74.00MM
Controller: RA6963 or Equal
2 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview

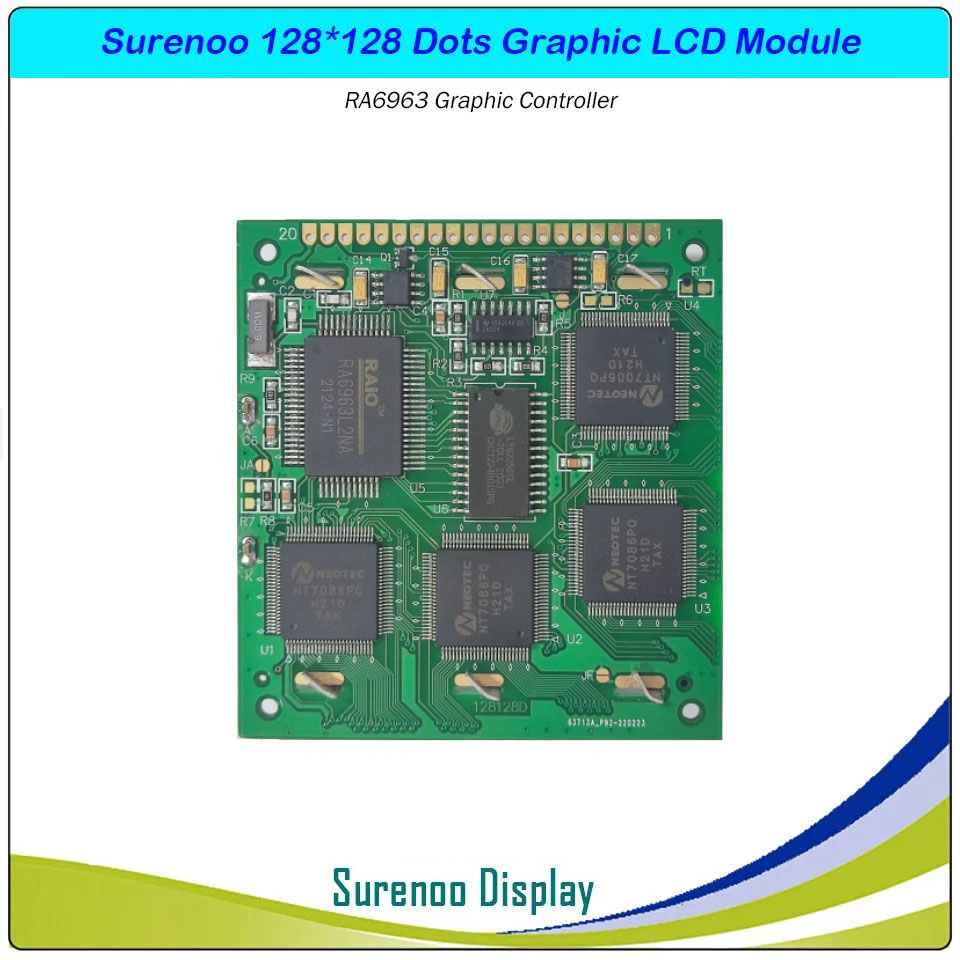

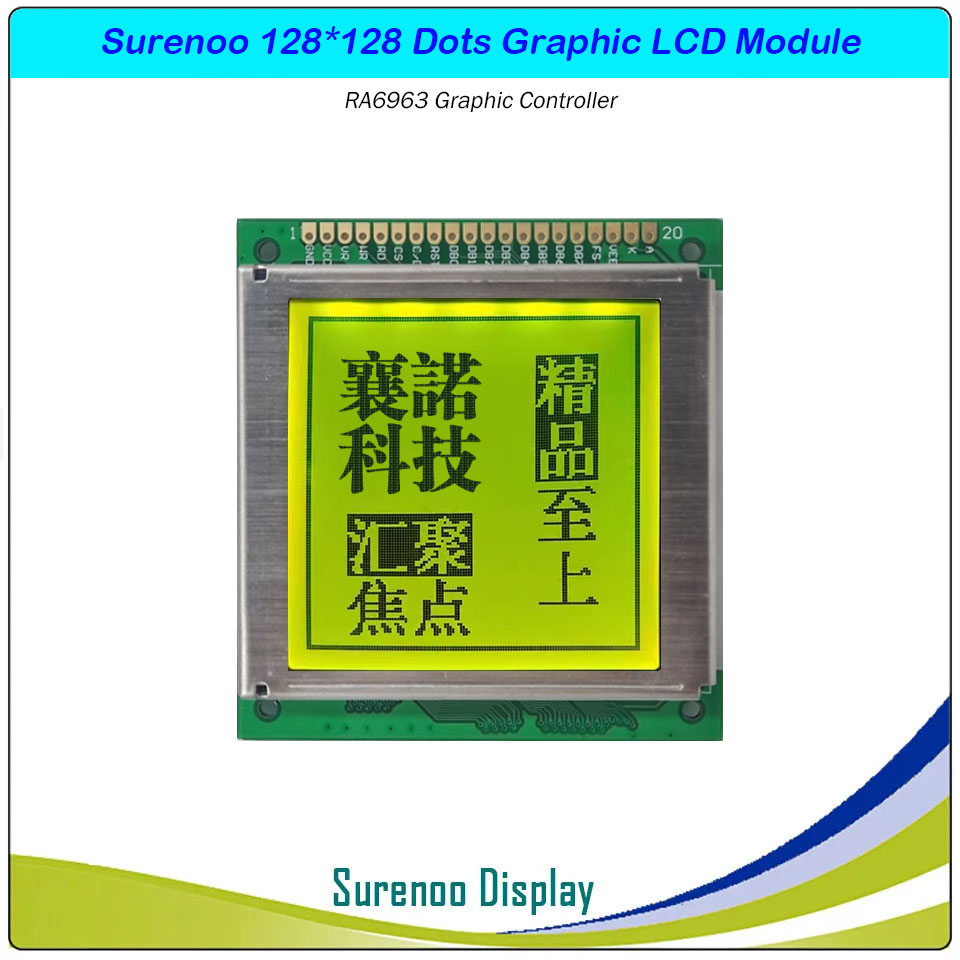

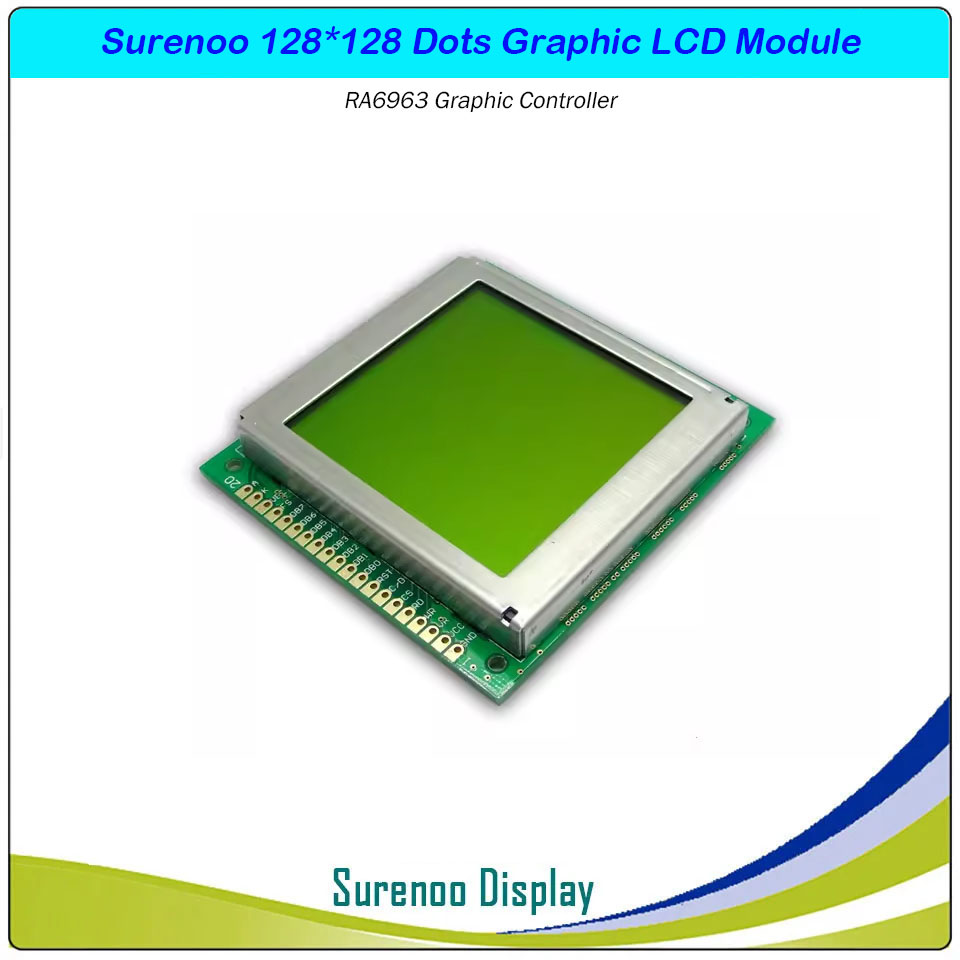

SLG128128A is a 2.5" 128*128 dots Monochrome Graphic LCD Module, T6963C/RA6963/UCi6963 Controller standard 20P/2.54 128128 parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.160Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG128128A (2.5")
Display Format 128*128 Dots
Interface 8080 8-Bit Parallel
IC or Equivalent RA6963 or Equal
Voltage 5.0V in default
Connection 1X20P/2.54 Pin Header
Outline Dimension 69.00(W)x74.00(H)x12.30(T)mm
Visual Area 49.00x49.00mm
Active Area 44.77x44.77mm
Display Type STN Yellow Green
Backlight Type (LED) Yellow Green
IC Package COB (SMD)
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
  • Outline Drawing

  • Interface
Pin No. Symbol Description
1 VSS Power Ground
2 VDD
 Logic Power Supply
3 V0
 Negative Voltage Adjust (LCD Contrast Adjust)
4 WR
 Write Signal
5 RD Read Signal
6 CS Chip Selection, CS=LOW: Data IO is enabled
7 A0
 Register Select
A0=HIGH: write address of register and read status word;
A0=LOW: write & read data of register and DDRAM.
8 RST
 Reset Signal,  Active-Low
9-16 DB0-DB7 Data Bus Line
17 Busy Controller Busy Signal, MPU should poll this signal before accessing the LCD module
18 VOUT Power Booster Output for V0
19 BLA Backlight Anode
20 BLK Backlight Cathode
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 128X128 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 128128 Graphic LCD Module
2 Controller Controller IC RA6963 Datasheet PDF 2008-09-24 Graphic LCD Controller: RA6963
