Model No.: SLG24064B (5.0")
Display Format: 240*64 Dots
Outline: 164.00X65.00MM
Controller: ST75256 or Equal
Display Format: 240*64 Dots
Outline: 164.00X65.00MM
Controller: ST75256 or Equal
16 sold
Quantity
Detail
Customer Reviews
- Overview
SLG24064B is a 240*64 Monochrome Graphic LCD Module, ST75256 COG Controller standard 20P/2.54 24064 parallel Graphic LCD Module, supprot 8080 8-Bit Parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.160Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG24064B (5.0") |
| Display Format | 240*64 Dots |
| Interface | 8080 8-Bit Parallel |
| IC or Equivalent | ST75256 or Equal |
| Voltage | 3.3V in default |
| Connection | 2X10P/2.54 Pin Header |
| Outline Dimension | 164.00(W)x65.00(H)x10.10(T)mm |
| Visual Area | 135.00x35.00mm |
| Active Area | 125.98x28.46mm |
| Display Type | STN Blue Negative |
| Backlight Type (LED) | White |
| IC Package | COG |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

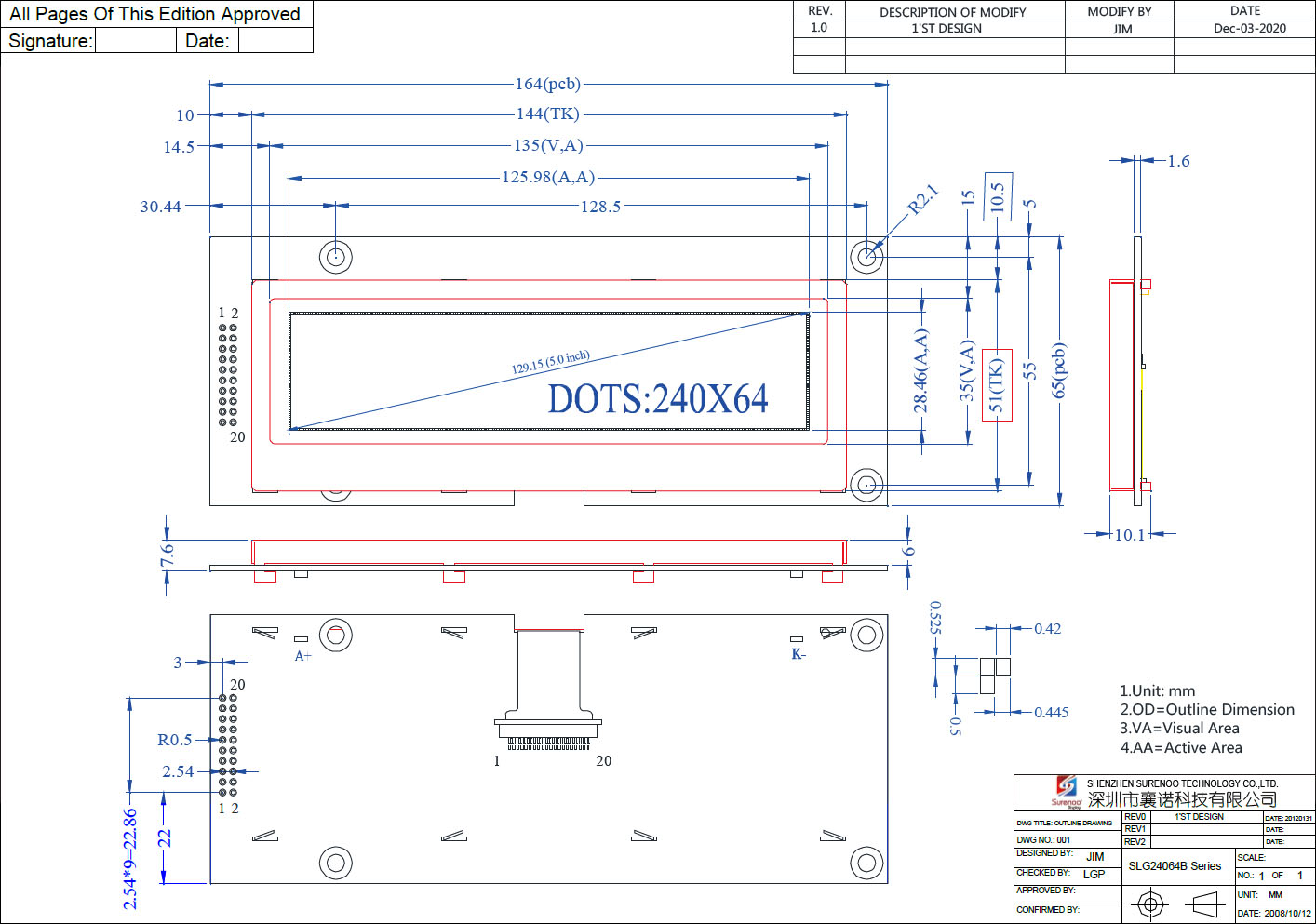

- Outline Drawing
- Interface
| Pin No. | Symbol | Description |
| 1 | SI# | ROM Input / NC |
| 2 | SO# | ROM Output / NC |
| 3 | SCLK# | ROM Clock Input / NC |
| 4 | CS# | ROM Chip Selection / NC |
| 5 | LEDA | Backlight Control Pin, H is valid, MCU-10 control |
| 6 | VDD |
Power Supply for Logic |
| 7 | VSS | Ground |
| 8 | CS0 | L: Chip Enable Signal |
| 9 | RS |
H: Data; L: Instruction |
| 10 | RD | Read Signal |
| 11 | WR |
Write Signal |
| 12 | RST | L: Reset Signal |
| 13-20 | DB0-DB7 | Data Bus |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 240X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 24064 Graphic LCD Module | ||
| 2 | Controller | Controller IC ST75256 Datasheet | |
2008-09-24 | Graphic LCD Controller: ST75256 |
