SLG24064A Outline=180.00X65.00MM 5.2" 24064 240X64 240*64 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green STN Blue Negative FSTN Positiven LED Backlight for 8051 PIC AVR ARM
SLG24064A Outline=180.00X65.00MM 5.2" 24064 240X64 240*64 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green STN Blue Negative FSTN Positiven LED Backlight for 8051 PIC AVR ARM
Model No.: SLG24064A (5.2")
Display Format: 240*64 Dots
PCB Size: 180.00X65.00MM
Controller: UCi6963, RA6963, T6963C or Equal
Display Format: 240*64 Dots
PCB Size: 180.00X65.00MM
Controller: UCi6963, RA6963, T6963C or Equal
9 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
- Overview
SLG24064A is a 240*64 Monochrome Graphic LCD Module, T6963C/RA6963/UCi6963 Controller standard 22P/2.54 24064 parallel Graphic LCD Module, supprot 8080 8-Bit Parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.240Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG24064A (5.2") |
| Display Format | 240*64 Dots |
| Interface | 8080 8-Bit Parallel |
| IC or Equivalent | UCi6963 / RA6963 / T6963C or Equal |
| Voltage | 5.0V in default |
| Connection | 2X11P/2.54 Pin Header |
| Outline Dimension | 180.00(W)x65.00(H)x13.30(T)mm |
| Visual Area | 132.00x39.00mm |
| Active Area | 127.16x33.88mm |
| Display Type | STN Yellow Green, STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | Yellow Green, White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

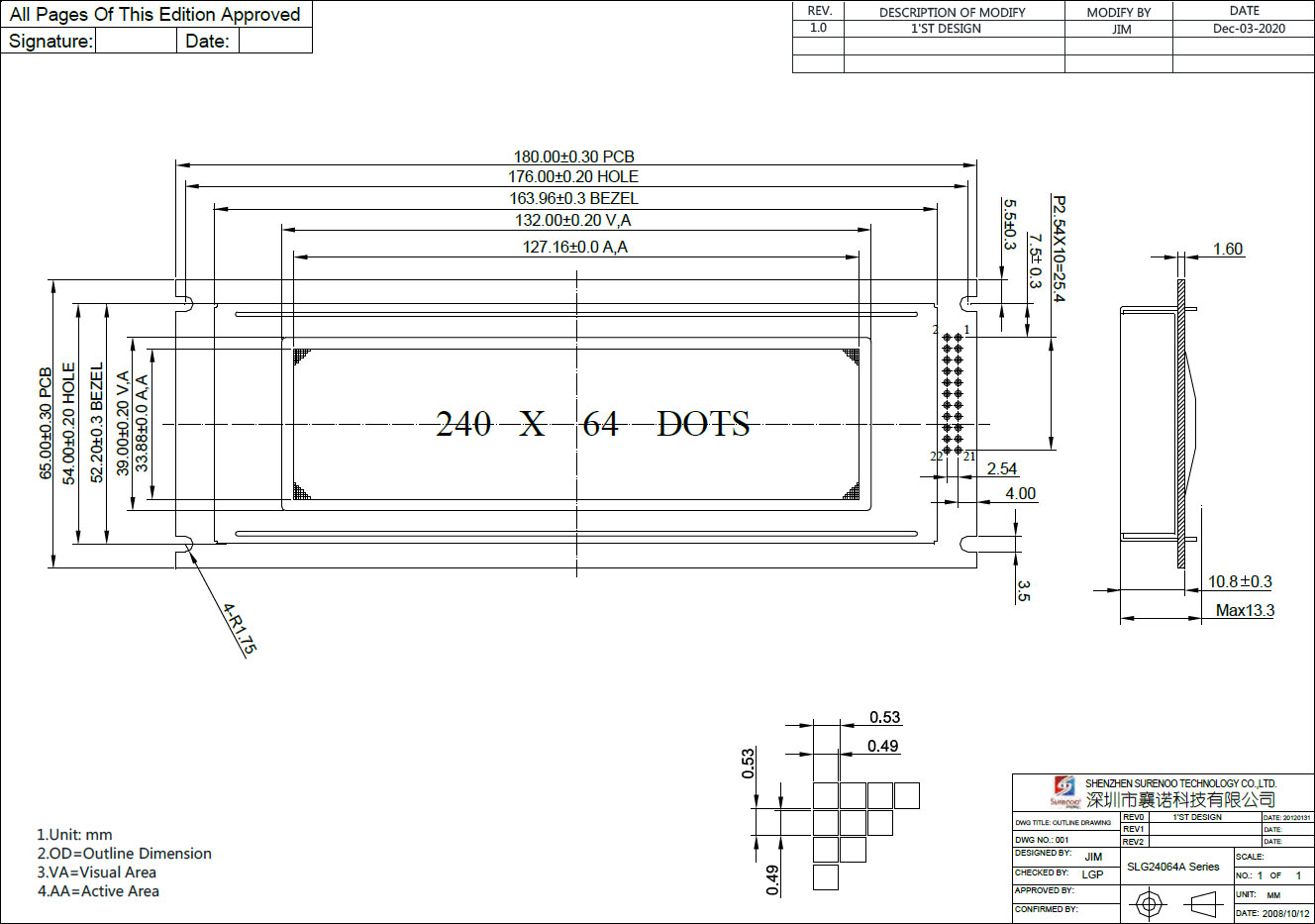

- Outline Drawing
- Interface
| Pin No. | Symbol | Description |
| 1-2 | GND |
Power Ground |
| 3 | VCC |
Logic Power Supply |
| 4 | V0 |
Negative Voltage Adjust (LCD Contrast Adjust) |
| 5 | /WR |
Write Signal |
| 6 | /RD |
Read Signal |
| 7 | /CE | Chip Enable Signal |
| 8 | C/D | H:Instruction; L: Data |
| 9 | NC | No Connection, Leave Open |
| 10 | /RST |
Reset Signal |
| 11-18 | DB0-DB7 | Data Bus Line |
| 19 | FS | Font Selection Input ( H: 6x8 L: 8x8) |
| 20 | VOUT | Negative Voltage Output |
| 21 | LED_A | Backlight Anode |
| 22 | LED_K | Backlight Cathode |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 240X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 24064 Graphic LCD Module | ||
| 2 | Controller | Controller IC T6963C Datasheet | |
2008-09-24 | Graphic LCD Controller: T6963C/RA6963/UCi6963 |
