SLG32064A Outline=190.00X54.00 5.5" 32064 320X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4/8-Bit Parallel KS0108 AIP31108 Controller STN Yellow Green with Yellow Green LED Backlight replacement for TM32064AD P-1 for Atlas Air Compressor

Model No.: SLG32064A (5.5")
Display Format: 320*64 Dots
Outline: 190.00X54.00MM
Controller: KS0108, AIP31108 or Equal
9 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG32064A is a 320*64 Monochrome Graphic LCD Module, KS0108/AIP31108 Controller standard 24P/2.54 32064 parallel Graphic LCD Module, It's easy to drive it as KS0108 12864 LCD Module, 1PCS 32064 Display = 2.5PCS 12864 Display, supprot 6800 4/8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

It's easily controlled by MPU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.200Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG32064A (5.5")
Display Format 320*64 Dots
Interface 6800 4/8-Bit Parallel
IC or Equivalent KS0108, AIP31108 or Equal
Voltage 5.0V in default
Connection 1X24P/2.54 Pin Header
Outline Dimension 190.00(W)x54.00(H)x13.60(T)mm
Visual Area 149.00x29.50mm
Active Area 137.55x26.19mm
Display Type STN Yellow Green
Backlight Type (LED) Yellow Green
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

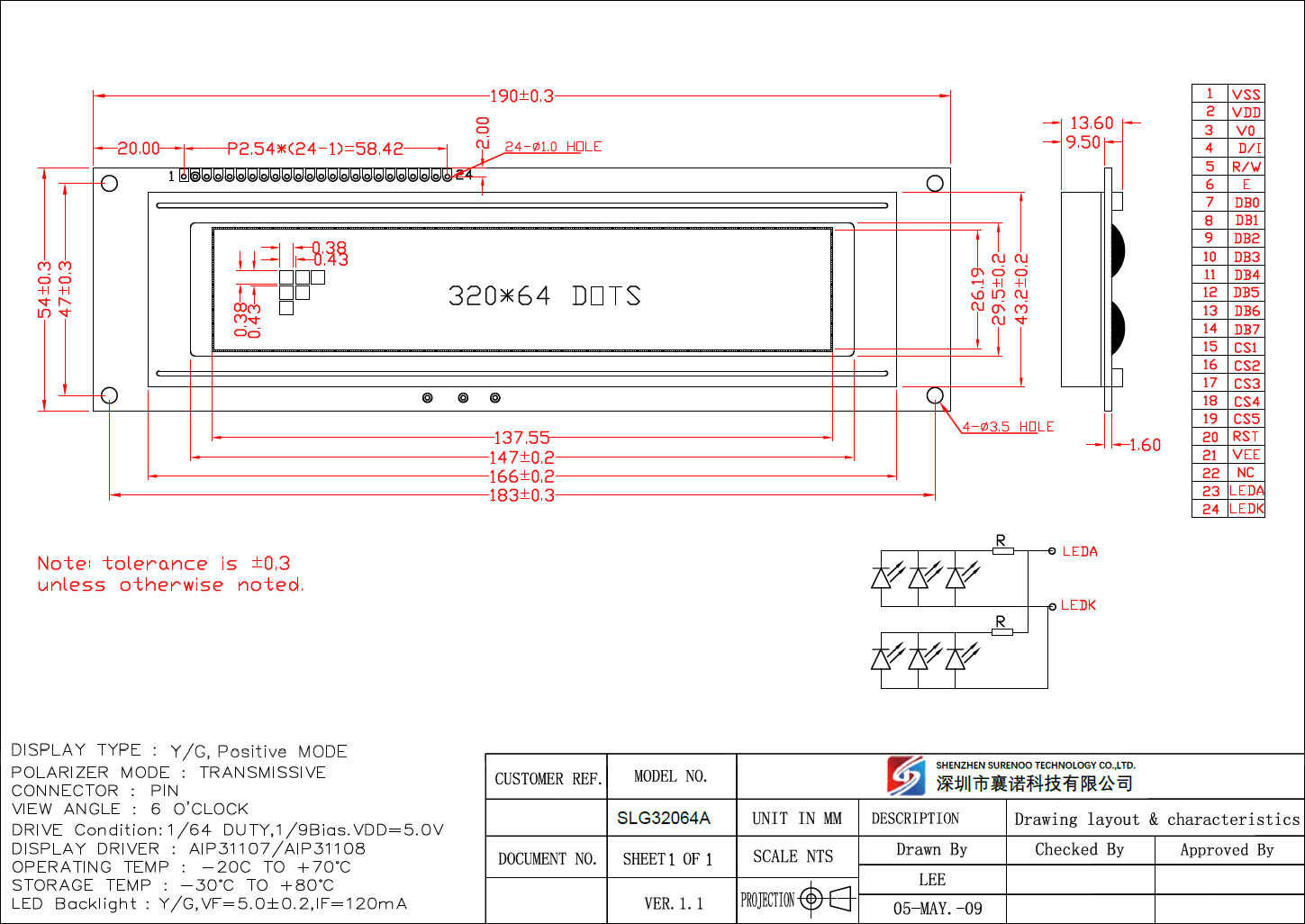

  • Outline Drawing

  • Interface
Pin No. Symbol I/O Description
1 VSS
 0V Ground
2 VDD
 5.0V Logic Power Supply
3 V0
 - Operating Voltage for LCD
4 RS
 H/L H: Data; L: Instruction Code
5 R/W
 H/L H: Read; L: Write
6 E H, H/L Enable Signal
7-14 DB0-DB7 H/L Data Bus Line
15 CS1 H/L Chip selection, enable access to 1/5(64*64) section of the LCD module
16 CS2 H/L Chip selection, enable access to 2/5(64*64)  section of the LCD module
17 CS3 H/L Chip selection, enable access to 3/5(64*64) section of the LCD module
18 CS4 H/L Chip selection, enable access to 4/5(64*64)  section of the LCD module
19 CS5 H/L Chip selection, enable access to 5/5(64*64) section of the LCD module
20 RST - L: Reset Signal
21 VEE - Negative Voltage
22 NC - No Connect
23 LED_A 5.0V Backlight Anode
24 LED_K 0V Backlight Cathode

Documents

No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 320X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 32064 Graphic LCD Module
2 Controller Controller IC KS0108 Datasheet PDF 2008-09-24 Graphic LCD Controller: KS0108 or AIP31108
