SLG19264G Outline=61.50X23.27MM 2.0" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel Serial SPI UC1604 UC1604c COG Controller STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

Model No.: SLG19264G (2.0")
Display Format: 192*64 Dots
Outline: 61.50X23.27MM
Controller: UC1604c or Equal
8 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG19264G is a 192*64 Monochrome Graphic LCD Module, build-in UC1604c COG Controller, Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.024Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG19264G (2.0")
Display Format 192*64 Dots
Interface Serial SPI
IC or Equivalent UC1604C or Equal
Voltage 3.3V in default
Connection 1X12P/2.0 Pin Header; 12P/0.8 FPC
Outline Dimension 61.50(W)x23.27(H)x4.30(T)mm / 56.20(W)x23.24(H)x3.30(T)mm
Visual Area 47.50x17.49mm
Active Area 45.68x15.21mm
Display Type STN Blue Negative, FSTN Positive
Backlight Type (LED) White
IC Package COG
Viewing Direction 6:00 O'Clock
Operating Temperature
-10℃~60℃
Storage Temperature
-20℃~70℃

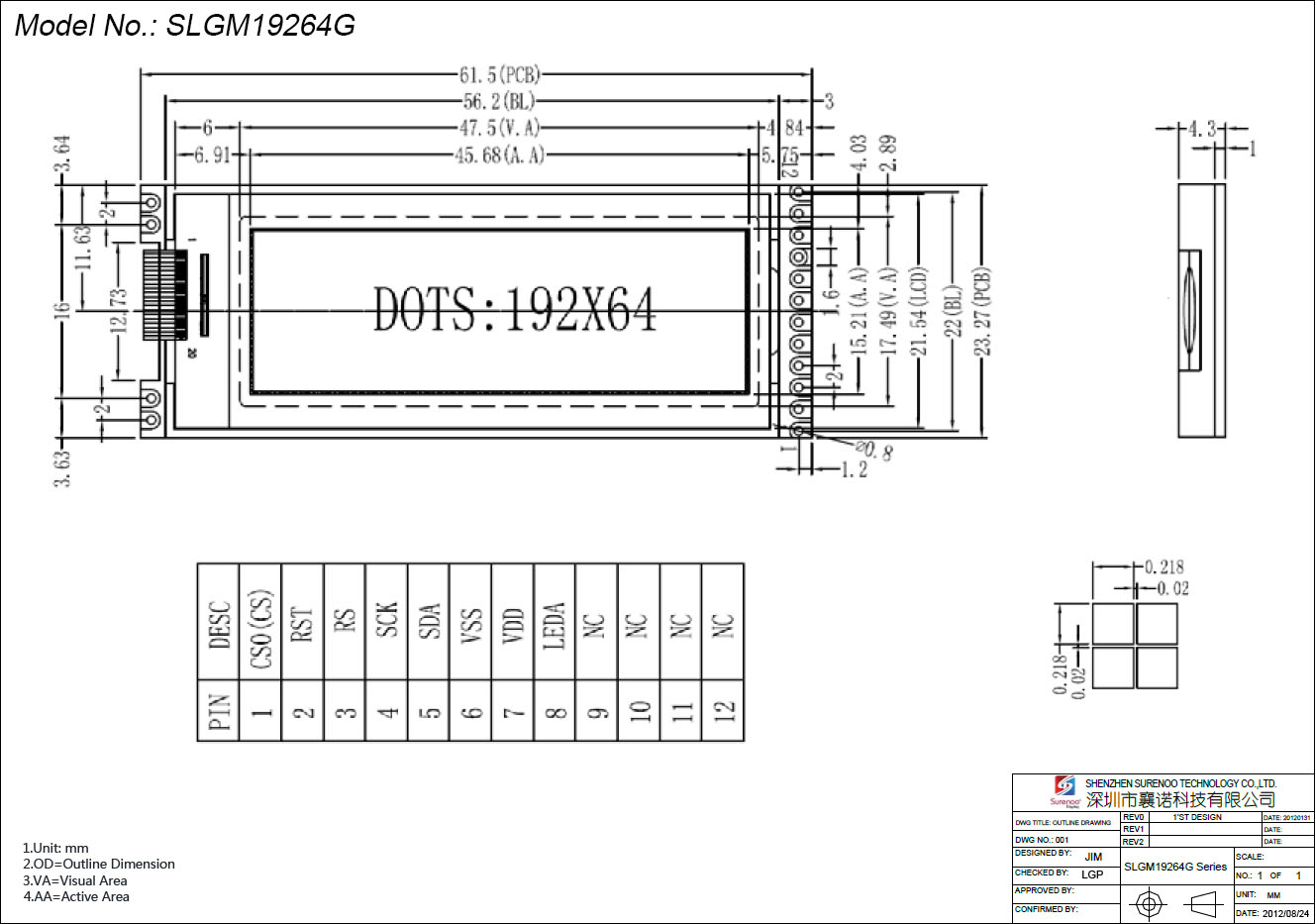

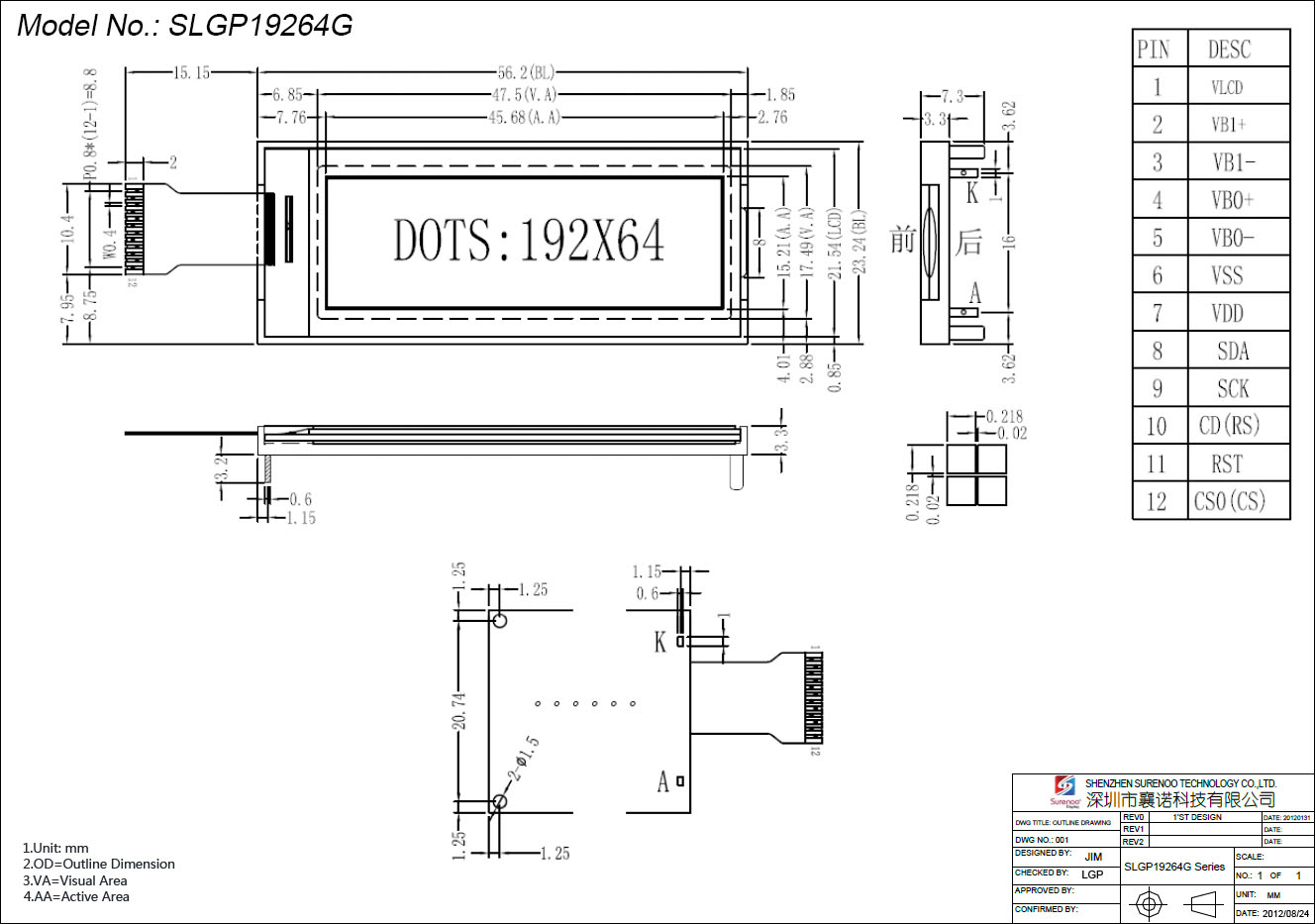

  • Outline Drawing



  • Interface
SLGM19264G (LCD Module: With PCB Adapter) SLGP19264G (LCD Panel: Without PCB Adapter)
Pin No. Symbol Description Pin No.  Symbol  Description
1 CS0 (CS)
L: Chip Selection
1 VLCD Boost Output
2 RST

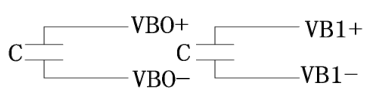

L: Reset Signal 2 VB1+ Pasted Image
3 CD (RS)
H: Data; L: Instruction Code 3 VB1-
4 SCK Serial Clock Input 4 VB0-
5 SDA Serial Data Input 5 VB0+
6 VSS Ground 6 VSS Ground
7 VDD Logic Power Supply 7 VDD Logic Power Supply
8 LEDA
Backlight Anode 8 SDA Serial Data Input
9 ROM_CS No Connect 9 SCK Serial Clock Input
10 ROM_SCK No Connect 10 CD (RS) H: Data; L: Instruction Code
11 ROM_OU No Connect 11 RST L: Reset Signal
12 ROM_IN No Connect 12 CS0 (CS) L: Chip Selection
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
2 Controller Controller IC UC1604c Datasheet PDF 2008-09-24 Graphic LCD Controller: UC1604c
