SLG19264E Outline=130.00X65.00MM 4.0" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial SPI ST7525 COG Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

Model No.: SLG19264E (4.0")
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Controller: ST7525 or Equal
19 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG19264E is a 192*64 Monochrome Graphic LCD Module, build-in ST7525 Controller, supprot 6800 4/8-Bit parallel and 3-wire SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.100Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG19264E (4.0")
Display Format 192*64 Dots
Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial SPI
IC or Equivalent ST7525 or Equal
Voltage 3.3V in default
Connection 1X20P/2.54 Pin Header
Outline Dimension 130.00(W)x65.00(H)x9.50(T)mm
Visual Area 104.00x39.00mm
Active Area 97.49x32.46mm
Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
Backlight Type (LED) Yellow Green, White
IC Package COG
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
  • Outline Drawing

  • Interface
 6800 4/8-Bit Parallel (Default) 3-Wire Serial SPI (Need Revise it by yourself)
Pin No. Symbol Description Pin No.  Symbol  Description
1 VSS
 Ground 1 VSS Ground
2 VDD
 Logic Power Supply 2 VDD Logic Power Supply
3 NC
 No Connect 3 NC No Connect
4 RS H: Data; L: Instruction Code 4  RS Instruction Code
5 R/W H: Read; L: Write 5 NC No Connect
6 E H: Enable Signal  6 NC No Connect
7 DB0 Data Bus Line 7 SCL Serial Clock Input
8 DB1
 Data Bus Line 8 SDA Serial Data Input
9-14 DB2-DB7 Data Bus Line 9-14 NC No Connect
15 CS L: Chip Select Signal 15 CS L: Reset Signal
16 RST L: Reset Signal 16 RST L: Reset Signal
17-19 NC No Connect 17-19 NC No Connect
20 BLA Positive Power for LED backlight 20 VOUT (NC) Power Booster Output for V0

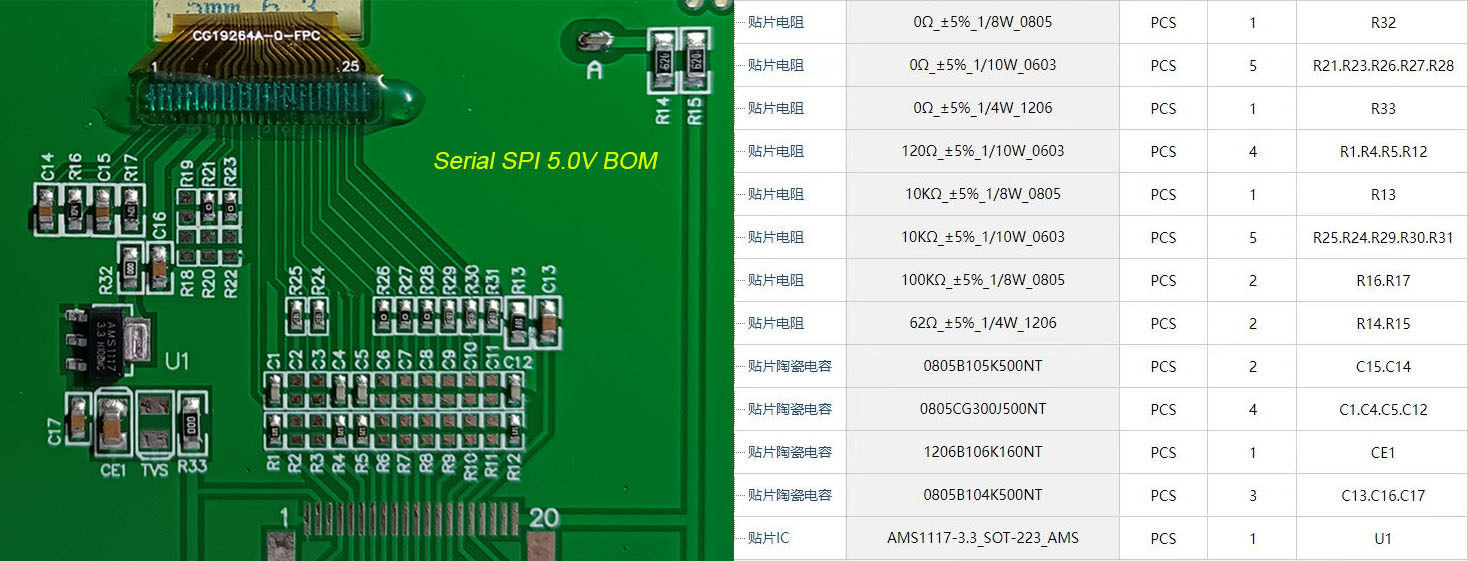

We suppply sample in Parallel Mode only, if you need Serial SPI 5V Mode, please revise it by yourself.

  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
2 Controller Controller IC ST7525 Datasheet PDF 2008-09-24 Graphic LCD Controller: ST7525
