Model No.: SLG19264C (4.0")
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Controller: ST7920, AIP31020 or Equal
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Controller: ST7920, AIP31020 or Equal
19 sold
Quantity
Detail
Customer Reviews
- Overview
SLG19264C is a 192*64 Monochrome Graphic LCD Module, ST7920/AIP31020 Controller standard 20P/2.54 19264 parallel Graphic LCD Module.
SLG19264C supprot 6800 4/8-Bit parallel and 3-wire SPI interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
SLG19264C supprot 6800 4/8-Bit parallel and 3-wire SPI interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.100Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG19264C (4.0") |
| Display Format | 192*64 Dots |
| Interface | 6800 4-bit Parallel, 6800 8-bit Parallel |
| IC or Equivalent | ST7920, AIP31020 or Equal |
| Voltage | 5.0V in default |
| Connection | 1X20P/2.54 Pin Header |
| Outline Dimension | 130.00(W)x65.00(H)x11.50(T)mm |
| Visual Area | 104.00x39.00mm |
| Active Area | 97.49x32.46mm |
| Display Type | STN Yellow Green, STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | Yellow Green, White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

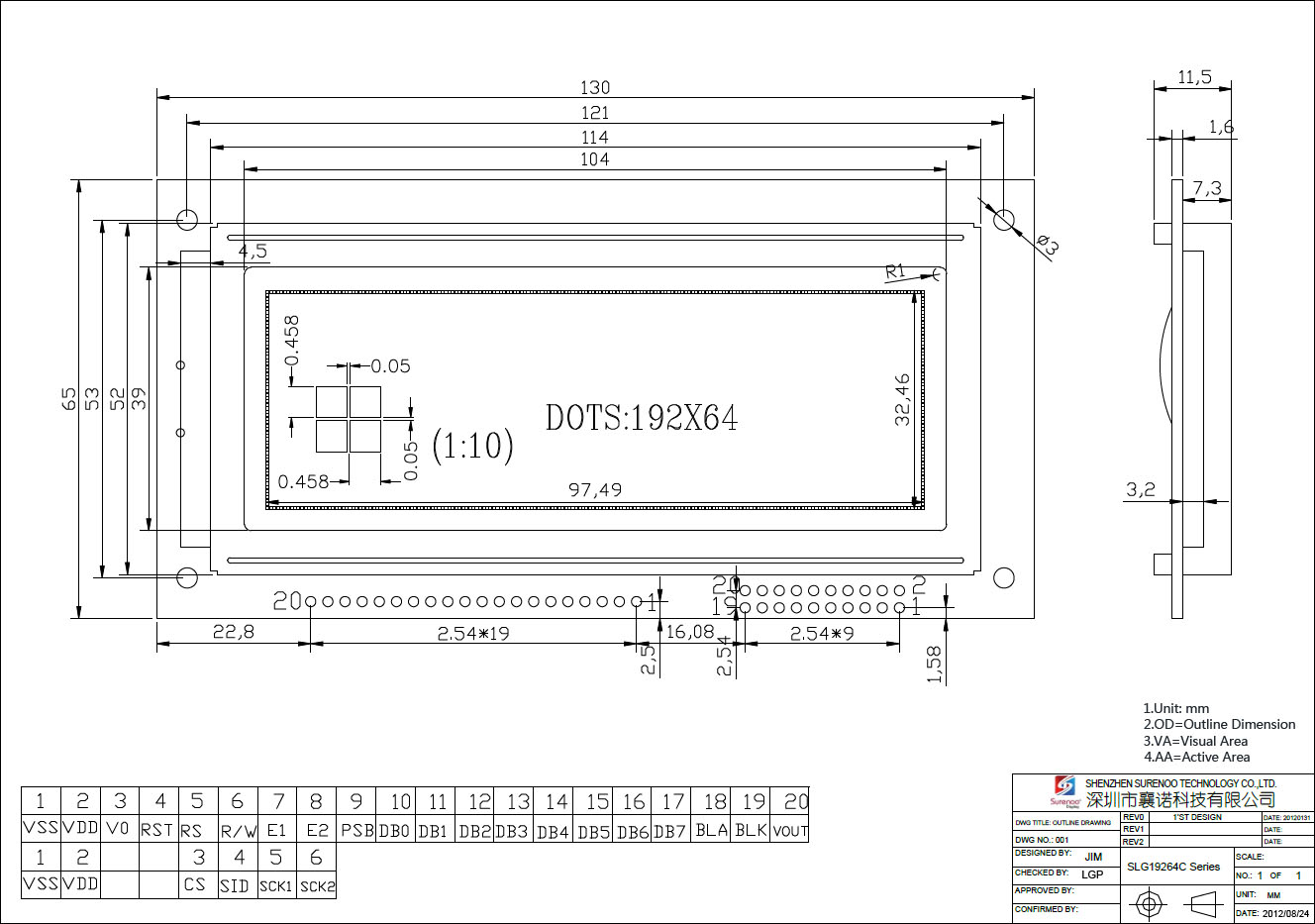

- Outline Drawing
- Interface
| 6800 4/8-Bit Parallel | 3-Wire Serial SPI | ||||
| Pin No. | Symbol | Description | Pin No. | Symbol | Description |
| 1 | VSS |
Ground | 1 | VSS | Ground |
| 2 | VDD |
Logic Power Supply | 2 | VDD | Logic Power Supply |
| 3 | V0 |
Operating Voltage for LCD | 3 | V0 | Operating Voltage for LCD |
| 4 | RST | Reset Signal | 4 | RST | Reset Signal |
| 5 | RS | H: Data; L: Instruction Code | 5 | CS | Chip Selection |
| 6 | R/W | H: Read; L: Write | 6 | SID | Serial Data Input |
| 7 | E1 | Enable Signal | 7 | SCK1 | Serial Clock Input 1 |
| 8 | E2 | Enable Signal | 8 | SCK2 | Serial Clock Input 2 |
| 9 | PSB | H: Parallel Model; L: Serial Mode | 9 | PSB | H: Parallel Model; L: Serial Mode |
| 10-17 | DB0-DB7 | Data Bus Line | 10-17 | NC | No Connect |
| 18 | BLA | Positive Power for LED backlight | 18 | BLA | Positive Power for LED backlight |
| 19 | BLK | Positive Power for LED backlight | 19 | BLK | Positive Power for LED backlight |
| 20 | VOUT (NC) | Power Booster Output for V0 | 20 | VOUT (NC) | Power Booster Output for V0 |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 192X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 19264 Graphic LCD Module | ||
| 2 | Controller | Controller IC ST7920 Datasheet | |
2008-09-24 | Graphic LCD Controller: ST7920 or AIP31020 |
