SLG19264B Outline=130.00X65.00MM 4.0" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel KS0108 AIP31108 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

Model No.: SLG19264B (4.0")
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Controller: KS0108, AIP31108 or Equal
28 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG19264B is a 192*64 Monochrome Graphic LCD Module, KS0108/AIP31108 Controller standard 20P/2.54 19264 parallel Graphic LCD Module.

SLG19264B supprot 6800 4/8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.100Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG19264B (4.0")
Display Format 192*64 Dots
Interface 6800 4-bit Parallel, 6800 8-bit Parallel
IC or Equivalent KS0108, AIP31108 or Equal
Voltage 5.0V in default
Connection 1X20P/2.54 Pin Header
Outline Dimension 130.00(W)x65.00(H)x11.50(T)mm
Visual Area 104.00x39.00mm
Active Area 95.58x31.83mm
Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

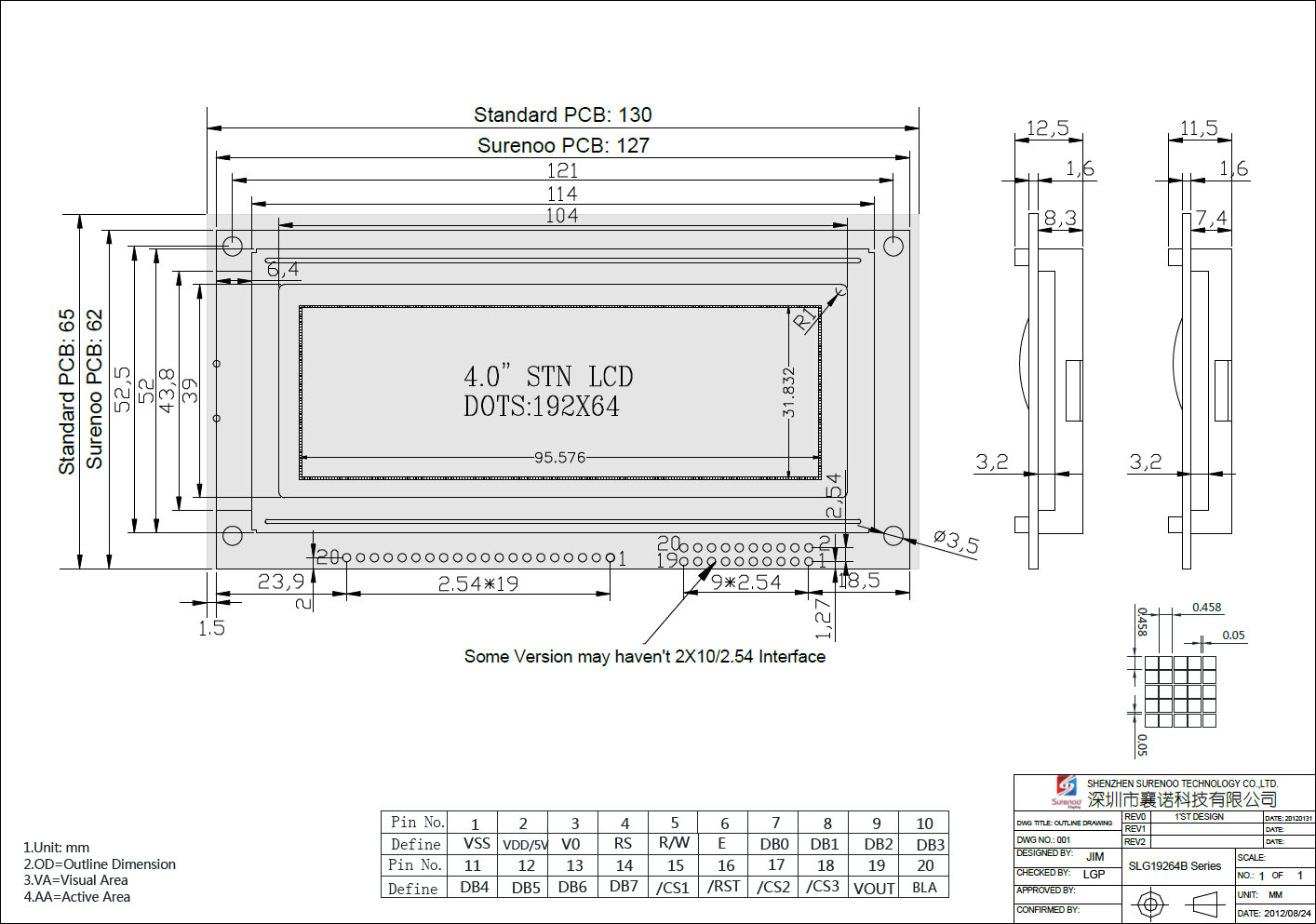

  • Outline Drawing

  • Interface
Pin No. Symbol I/O Description
1 VSS
0V Ground
2 VDD
5.0V Logic Power Supply
3 V0
- Operating Voltage for LCD
4 RS
H/L H: Data; L: Instruction Code
5 R/W
H/L H: Read; L: Write
6 E H, H/L Enable Signal
7-14 DB0-DB7 H/L Data Bus Line
15 CS1 H/L Chip selection, enable access to left section of the LCD module
16 RST L Reset Signal
17 CS2 H/L Chip selection, enable access to middle section of the LCD module
18 CS3 H/L Chip selection, enable access to right section of the LCD module
19 VOUT - Power Booster Output for V0
20 LED_A 5.0V Backlight Anode
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
2 Controller Controller IC KS0108 Datasheet PDF 2008-09-24 Graphic LCD Controller: KS0108 or AIP31108
