SLG14432A Outline=80.00X36.00 2.4" 14432 144X32 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial SPI AIP31020 ST7920 Controller STN Blue Negative White LED Backlight for MCU 8051 PIC AVR ARM
SLG14432A Outline=80.00X36.00 2.4" 14432 144X32 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial SPI AIP31020 ST7920 Controller STN Blue Negative White LED Backlight for MCU 8051 PIC AVR ARM
Model No.: SLG14432A (2.4")
Display Format: 144*32 Dots
Outline: 80.00X36.00MM
Controller: AIP31020, ST7920 or Equal
Display Format: 144*32 Dots
Outline: 80.00X36.00MM
Controller: AIP31020, ST7920 or Equal
27 sold
Quantity
Detail
Customer Reviews
- Overview
SLG14432A is a 144*32 Monochrome Graphic LCD Module, AIP31020/ST7920 Controller that is built-in with 8192 16X16 dots Chinese fonts and 126 16X8 dots half height alphanumerical fonts.
SLG14432A supprot 6800 4/8-Bit parallel and 3-wire serial spi interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
SLG14432A supprot 6800 4/8-Bit parallel and 3-wire serial spi interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.040Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG14432A (2.4") |
| Display Format | 144*32 Dots |
| Interface | 6800 4-bit Parallel, 6800 8-bit Parallel, Serial SPI |
| IC or Equivalent | AIP31020, ST7920 or Equal |
| Fonts | 2M-bits Chinese fonts ROM (CGROM), supporting 8192 Chinese fonts (16x16 dot matrix) 16K-bits half height ROM (HCGROM), supporting 126 character set (16x8 dot matrix) 64 x 16-bits character generation RAM (CGRAM) Chinese Tranditional & Korean is optionl for Bulk Order |
| Voltage | 5.0V in default |
| Connection | 1X18P/2.54 Pin Header |
| Outline Dimension | 80.00(W)x36.00(H)x12.70(T)mm |
| Visual Area | 64.50x16.00mm |
| Active Area | 60.45x13.41mm |
| Display Type | STN Blue Negative |
| Backlight Type (LED) | White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
- Outline Drawing
- Interface
| Pin No. | Symbol | Description |
Symbol |
Description |
| Interface | 6800 4/8-Bit Parallel | 3-Wire Serial SPI | ||
| 1 | VSS | Ground 0V | VSS | Ground 0V |
| 2 | VDD | Logic Power Supply | VDD | Logic Power Supply |
| 3 | V0 | Operating voltage for LCD | V0 | Operating voltage for LCD |
| 4 | RS | Register Select (H: Data Signal, L: Instruction Signal) | CS | Chip Selelction (High valid) |
| 5 | R/W | Read / Write (H: Read Mode, L: Write Mode) | SID | Serial Data Signal |
| 6 | E | Enable Signal (High valid) | SCLK | Serial Clock Signal |
| 7-14 | DB0-DB7 | Data Bus | NC | No Connect |
| 15 | LED_A | Backlight Anode | LED_A | Backlight Anode |
| 16 | LED_K | Backlight Cathode | LED_K | Backlight Cathode |

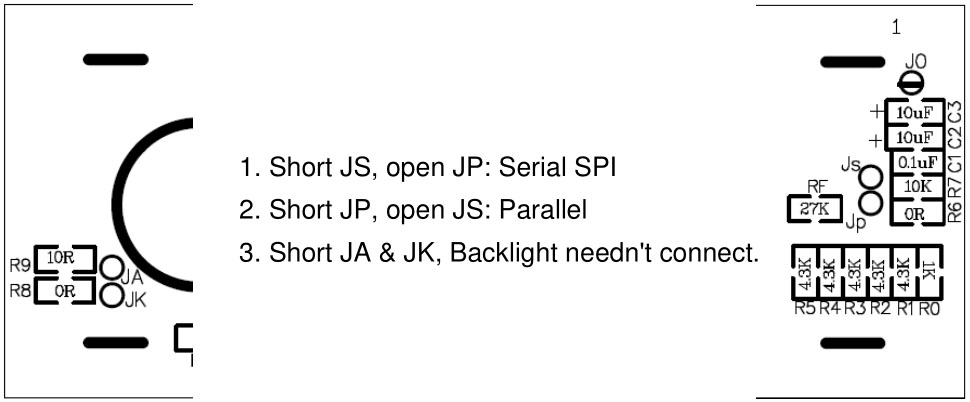

| 17 | PSB | Parallel / Serial Selection Pin | PSB | Parallel / Serial Selection Pin |
| 18 | RST | Reset Pin (Low Valid) | RST | Reset Pin (Low Valid) |
 |
||||
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 144X32 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 14432 Graphic LCD Module | ||
| 2 | Controller | Controller IC ST7920 Datasheet | |
2008-09-24 | Graphic LCD Controller, Compatible with ST7920, build-in Chinese Font, support Serial SPI |
