Model No.: SLG12832A (2.0")
Display Format: 128*32 Dots
Outline: 56.80X33.00MM
Controller: ST7567 or Equal
Display Format: 128*32 Dots
Outline: 56.80X33.00MM
Controller: ST7567 or Equal
36 sold
Quantity
Detail
Customer Reviews
- Overview
SLG12832A is a 128*32 Monochrome Graphic LCD Module, ST7567 Controller, supprot 6800 4/8-Bit parallel and 3-wire serial spi interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.040Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12832A (2.0") |
| Display Format | 128*32 Dots |
| Interface | 6800 4-bit Parallel, 6800 8-bit Parallel, Serial SPI |
| IC or Equivalent | ST7567 or Equal |
| Fonts | Not Inlduding, Bulk order is optional |
| Voltage | 3.3V in default |
| Connection | 1X20P/2.54 Pin Header |
| Outline Dimension | 56.80(W)x33.00(H)x5.10(T)mm |
| Visual Area | 52.00x16.00mm |
| Active Area | 49.00x14.00mm |
| Display Type | STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

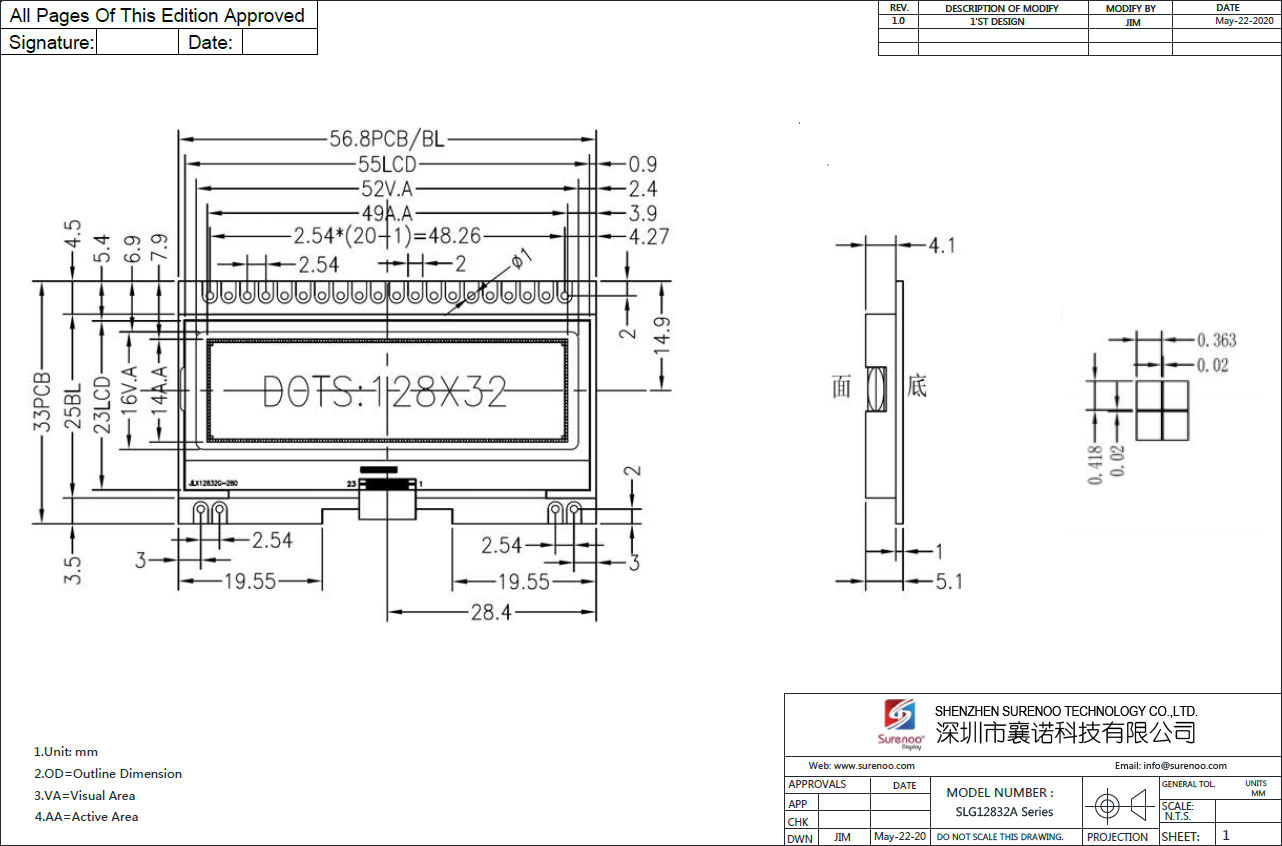

- Outline Drawing
- Interface
| 6800 4/8-Bit Parallel |
3-Wire Serial SPI |
|||
| Pin No. | Symbol | Description |
Symbol |
Description |
| 1-4 | NC | Handspace Pin for Font Chip | NC | Handspace Pin for Font Chip |
| 5 | LEDA | Backlight Anode | LEDA | Backlight Anode |
| 6 | VSS | Ground | VSS | Ground |
| 7 | VDD | Logic Power Supply (3.3V) | VDD | Logic Power Supply (3.3V) |
| 8 | A0(RS) | Register Select (H: Data Signal, L: Instruction Signal) | A0(RS) | Register Select (H: Data Signal, L: Instruction Signal) |
| 9 | RES | Low for Reset, High for LCD Working | RES | Low for Reset, High for LCD Working |
| 10 | CS | Low Level Chip Selection | CS | Low Level Chip Selection |
| 11 | DB7 | Data Bus | SDA | Serial Data Signal |
| 12 | DB6 | Data Bus | SCLK | Serial Clock Signal |
| 13-18 | DB5-DB0 | Data Bus | NC | No Connect |
| 19 | E | Enable Signal | NC | No Connect |
| 20 | LED_K | Read / Write (H: Read Mode, L: Write Mode) | NC | No Connect |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 128X32 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 12832 COG Graphic LCD Module | ||
| 2 | Controller | Controller IC ST7567 Datasheet | |
2008-09-24 | Graphic LCD Controller ST7567, support Parallel & Serial SPI |
