SLG12232C Outline=76.60X28.00 2.0" 12232 122X32 Surenoo Graphic LCD Module Display Screen Panel Serial SPI 7PIN AIP31020 ST7920 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM
SLG12232C Outline=76.60X28.00 2.0" 12232 122X32 Surenoo Graphic LCD Module Display Screen Panel Serial SPI 7PIN AIP31020 ST7920 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM
Model No.: SLG12232C (2.0")
Display Format: 122*32 Dots
Outline: 76.60X28.00MM
Controller: AIP31020, ST7920 or Equal
Display Format: 122*32 Dots
Outline: 76.60X28.00MM
Controller: AIP31020, ST7920 or Equal
180 sold
Quantity
Detail
Customer Reviews
- Overview
SLG12232C is a 122*32 Monochrome Graphic LCD Module, AIP31020/ST7920 Controller that is built-in with 8192 16X16 dots Chinese fonts and 126 16X8 dots half height alphanumerical fonts.
SLG12232C supprot 3-wire serial spi interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
SLG12232C supprot 3-wire serial spi interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.040Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12232C (2.0") |
| Display Format | 122*32 Dots |
| Interface | Serial SPI |
| IC or Equivalent | AIP31020, ST7920 or Equal |
| Fonts | 2M-bits Chinese fonts ROM (CGROM), supporting 8192 Chinese fonts (16x16 dot matrix) 16K-bits half height ROM (HCGROM), supporting 126 character set (16x8 dot matrix) 64 x 16-bits character generation RAM (CGRAM) |
| Voltage | 5.0V in default |
| Connection | 1X7P/2.54 Pin Header |
| Outline Dimension | C1: 76.60(W)x28.00(H)x8.60(T)mm / C2: 76.60(W)x28.00(H)x13.00(T)mm |
| Visual Area | 60.50x18.00mm |
| Active Area | C1: 48.76x14.68mm / C2: 54.86x14.38mm |
| Display Type | STN Yellow Green, STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | Yellow Green, White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

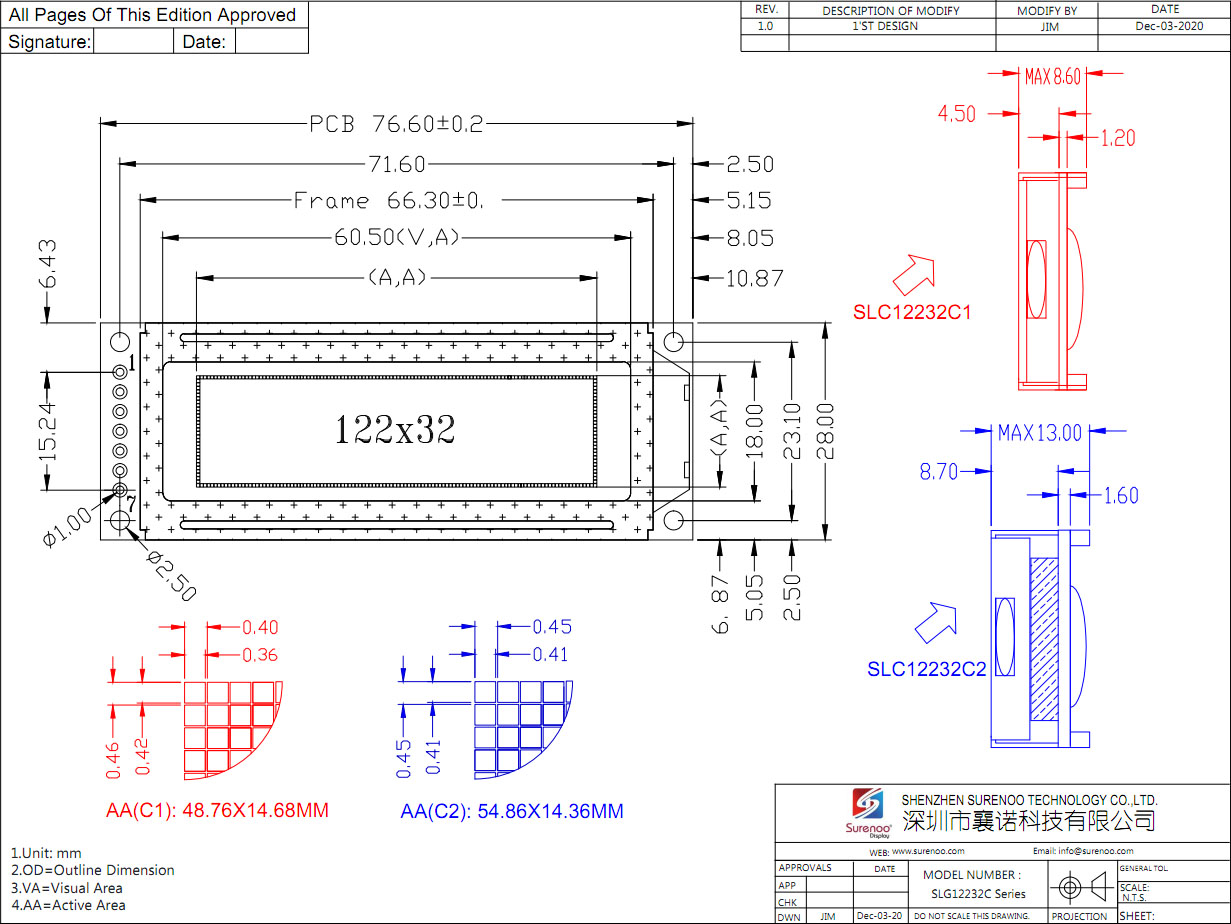

- Outline Drawing
- Interface
| CN1 | Symbol | Level | Description |
| 1 | VSS | 0V | Ground 0V |
| 2 | VDD | 5.0V | Logic Power Supply |
| 3 | CS | H | Chip Enable Signal |
| 4 | SID | H/L | Serial Data Input |
| 5 | SCLK | L | Serial Clock Input |
| 6 | RST | H | Reset Pin |
| 7 | LED_A | 5.0V | Backlight Anode |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 122X32 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 12232 Graphic LCD Module | ||
| 2 | Controller | Controller IC ST7920 Datasheet | |
2008-09-24 | Graphic LCD Controller, Compatible with ST7920, build-in Chinese Font, support Serial SPI | ||
| 3 |
Library |
Serial SPI Interface Demo Code | TXT |  |
2009-07-19 | Surenoo Library for ST7920 Serial SPI Library |
