Model No.: SLC2004A4
Display Format: 20X04 Characters
PCB Size: 98.00X60.00MM
Controller: RW1063 or Equal
26 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

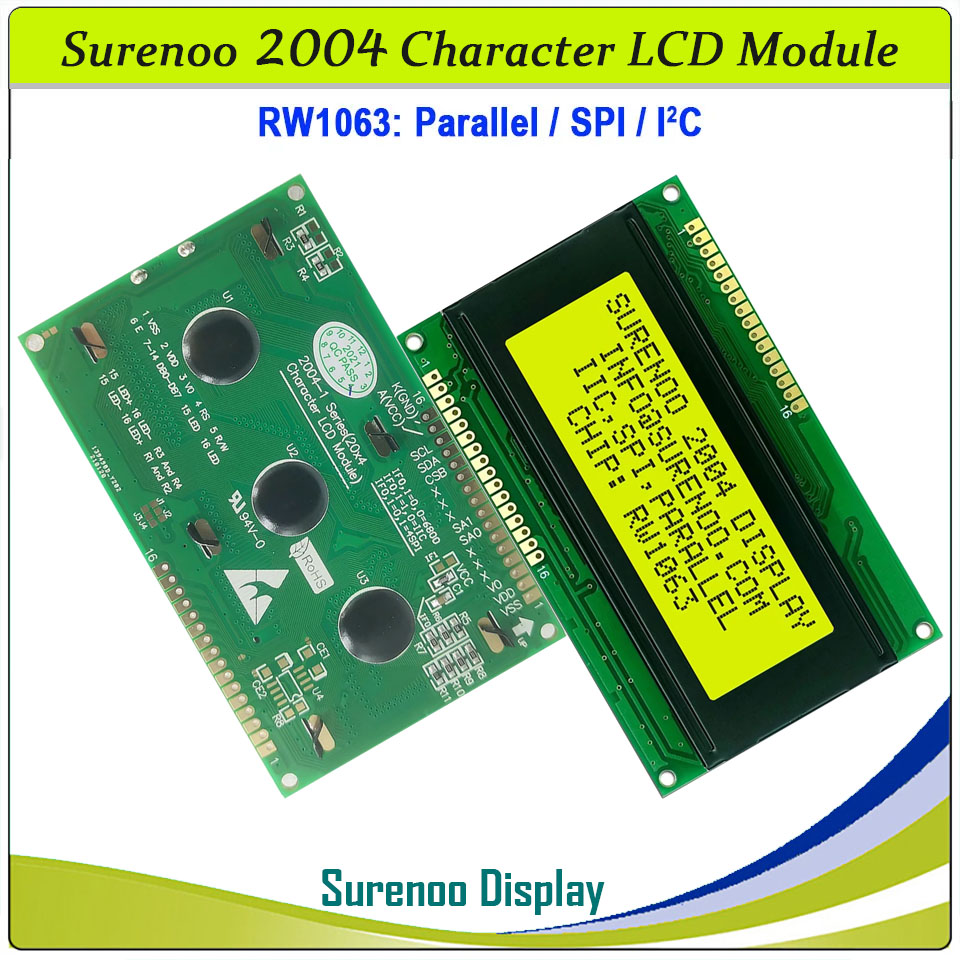

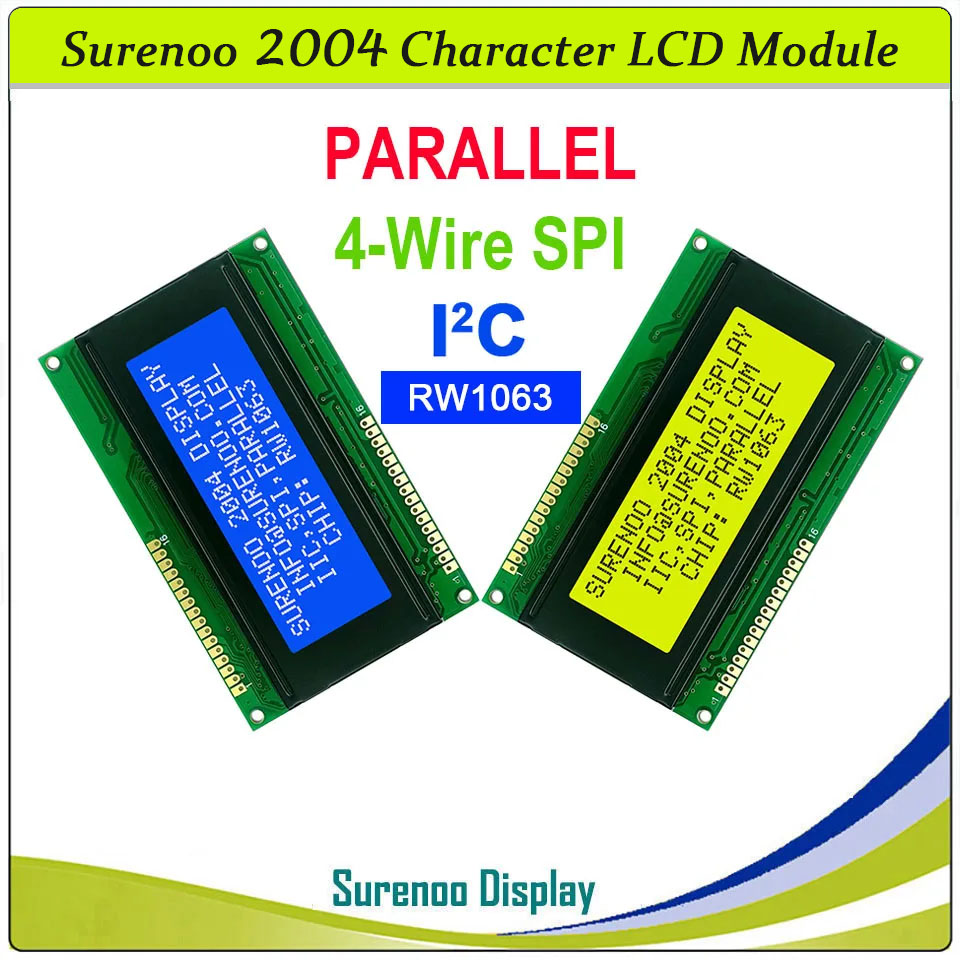

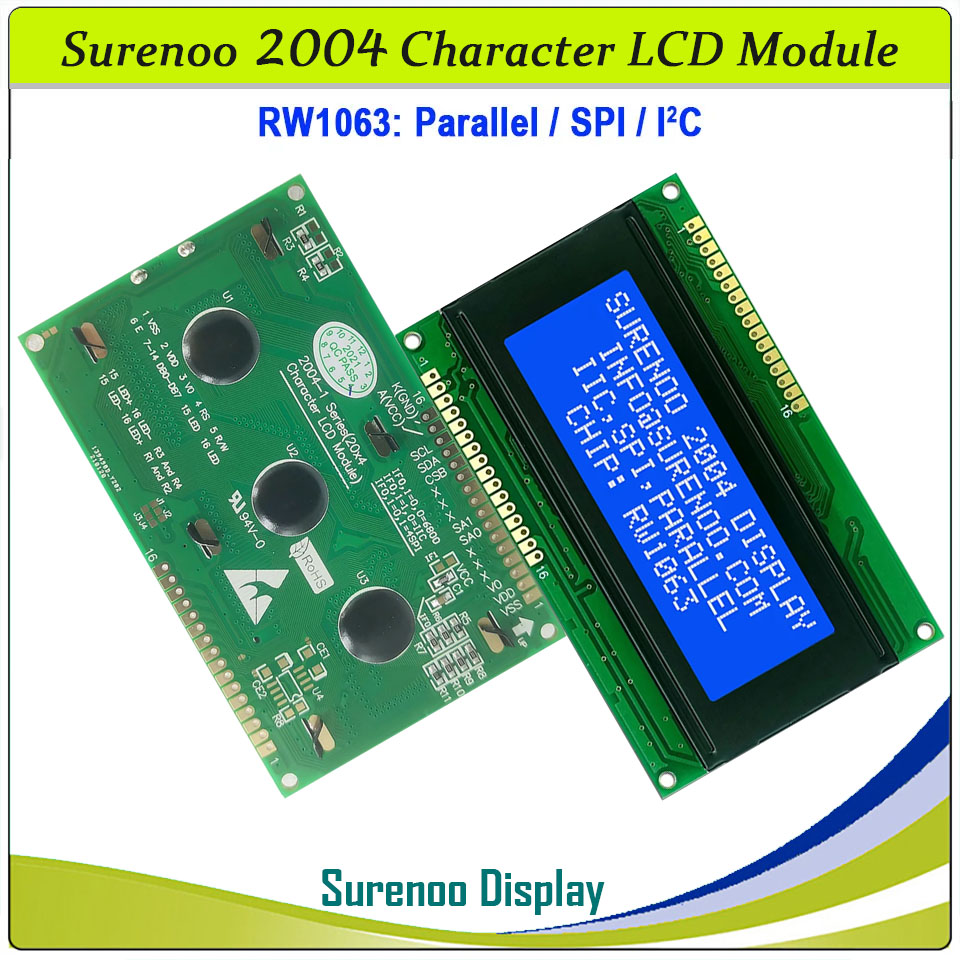

    SLC2004A4 is 20 characters wide, 4 rows character LCD Module, RW1063 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, Serial SPI IIC interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the RW1063 datasheet for the full character set. It's 5V or 3.3V power supply, and IIC and SPI Interface is optional for Arduino.
    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Character LCD Module / IIC Display
    Continuity Supply More than 10 years
    Part No. SLC2004A4
    Display Format 20x4 Character
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Integrated Serial IIC, Integrated Serial SPI
    IC or Equivalent RW1063 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X4P/2.54 Pin Header
    Outline Dimension 98.00(W)x60.00(H)x13.10(T)mm
    Visual Area 77.00x25.20mm
    Active Area 70.40x20.80mm
    Display Type STN LCD-Yellow Green, STN Blue Negative
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface (IIC Interface default)
    1. Pin Configuration (6800: IF0=0, IF1=0)
    Pin No. Symbol Level  Function
    1 VSS 0V Ground 0V
    2 VDD 5.0V Logic Power Supply
    3 V0 (Variable) Operating voltage for LCD
    4 RS H/L H: Data Signal, L: Instruction Signal
    5 R/W H/L Read / Write (H: Read Mode, L: Write Mode)
    6 E H, H➡L Chip Enable Signal
    7-14 DB0-DB7 H/L Data Bus
    15 LED_A - Backlight Anode
    16 LED_K - Backlight Cathode

    2. Pin Configuration (IIC: IF0=1, IF1=0)
    Pin No. Symbol Level  Function
    1 VSS 0V Ground 0V
    2 VDD 5.0V Logic Power Supply
    3 V0 (Variable) Operating voltage for LCD
    4-6 NC - No Connection
    7 SA0 H/L In I2C interface, DB1(SA1) and DB0(SA0) are used for slave address,
    must be connect to VDD or VSS
    8 SA1 H/L
    9-11 NC - No Connection
    12 CSB H/L In I2C serial mode, this pin is used as Chip Selection input.
    When selected, CSB = “Low”, When not selected, CSB = “High”
    (Low access enable)
    13 SDA H/L Serial Input Data
    14 SCL H/L Serial Clock Input
    15 A - Backlight Anode
    16 K - Backlight Cathode

     I2C Interface Protocol
    Four 7-bit slave addresses (0111100, 0111101, 0111110 and 0111111) are reserved for the Controller. The least significant bit of the slave address is set by connecting the input SA0 (DB0) and SA1 (DB1) to either logic 0 (VSS) or logic 1 (VDD).
    Commands are:
    #define I2C_ADDRESS 0c3C //0b0111100
    #define I2C_ADDRESS 0c3D //0b0111101
    #define I2C_ADDRESS 0c3E //0b0111110
    #define I2C_ADDRESS 0c3F //0b0111111

    If you need connect 13th(SDA), 14th(SCL), 15th(VCC), 16th(GND) to work on Arduino Library only, please short 1-2-3-4-5 Jumber on PCBA as following:


     3. Pin Configuration  (SPI: IF0=0, IF1=1)
    Pin No. Symbol Level  Function
    1 VSS 0V Ground 0V
    2 VDD 5.0V Logic Power Supply
    3 V0 (Variable) Operating voltage for LCD
    4 RS H/L H: Data Signal, L: Instruction Signal
    5-11 NC - No Connection
    12 CSB H/L In 4-SPI serial mode, this pin is used as Chip Selection input.
    When selected, CSB = “Low”, When not selected, CSB = “High”
    (Low access enable)
    13 SCLK H/L Serial Clock Input
    14 SID H/L Serial Data Input
    15 A - Backlight Anode
    16 K - Backlight Cathode
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC2004A4 PDF 2013-03-17 Standard 2004 Character LCD Module
    2 Controller RW1063 PDF 2008-09-24 RW1063 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......, and Build-in Serial SPI/IIC also
    3 RW1063 51 IIC Library RW1063 C 2017-08-22 AIP31068 51 IIC Library on STC15W4K32S4 MCU
    4 Arduino IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
