Surenoo Inner HDMI Display 5.0" inch 1024*600 IPS LCD Display Module Screen Monitor with USB Capacitive Touch Panel CTP for Windows Win11 RaspBerry Pi 4B/5

WISHLIST
Model No.: SHN050B-1024600
Model Size: 5.0 Inch
Resolution: 1024*600 IPS
Interface: Inner-HDMI
Touch Type: Capacitive Touch Panel (CTP)
49 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

    1. 5.0 inch IPS full Angle display
    >> The viewing Angle is large
    >> True color
    >> Dynamic picture quality is excellent

    2. 1024x600 Resolution
    >> HD Vision
    >> Display is very delicate

    3. HDMI video input interfaces
    >> High definition video display
    >> Can be used as an HDMI display

    4. Support multiple device access
    >> Can connect to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black, etc
    >> Can connect to mainstream game consoles such as PS4, Xbox360, Switch, etc
    >> Can connect to mainstream TV boxes and digital cameras (display only)

    5. Supports multiple system displays
    >> Support systems such as Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT, and touch free drive
    >> Support Win7/8/10/11 and other systems, touch free drive

    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 5.0" Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    LCD Display Mode Normally Black
    		 -
    Recommended Viewing Direction ALL VIEW (IPS) O'Clock
    Model No. SHN050B-1024600 -
    Resolutions 1024(RGB)*600 -
    Video Input Interface
    		 HDMI -
    Power Supply
    		 Type-C USB 5.0V -
    Touch Type USB 5-Points Capacitive Touch Panel (CTP) -
    Consumption
    		 2.30W (100%) -
    Backlight Type
    		 White LED -
    Luminance(TYP)
    		 330 LUM
    LCM Module Size (W×H×T) 121.11×77.93×13.94 MM
    Active Area (W×H) 108.00×64.80
    		 MM

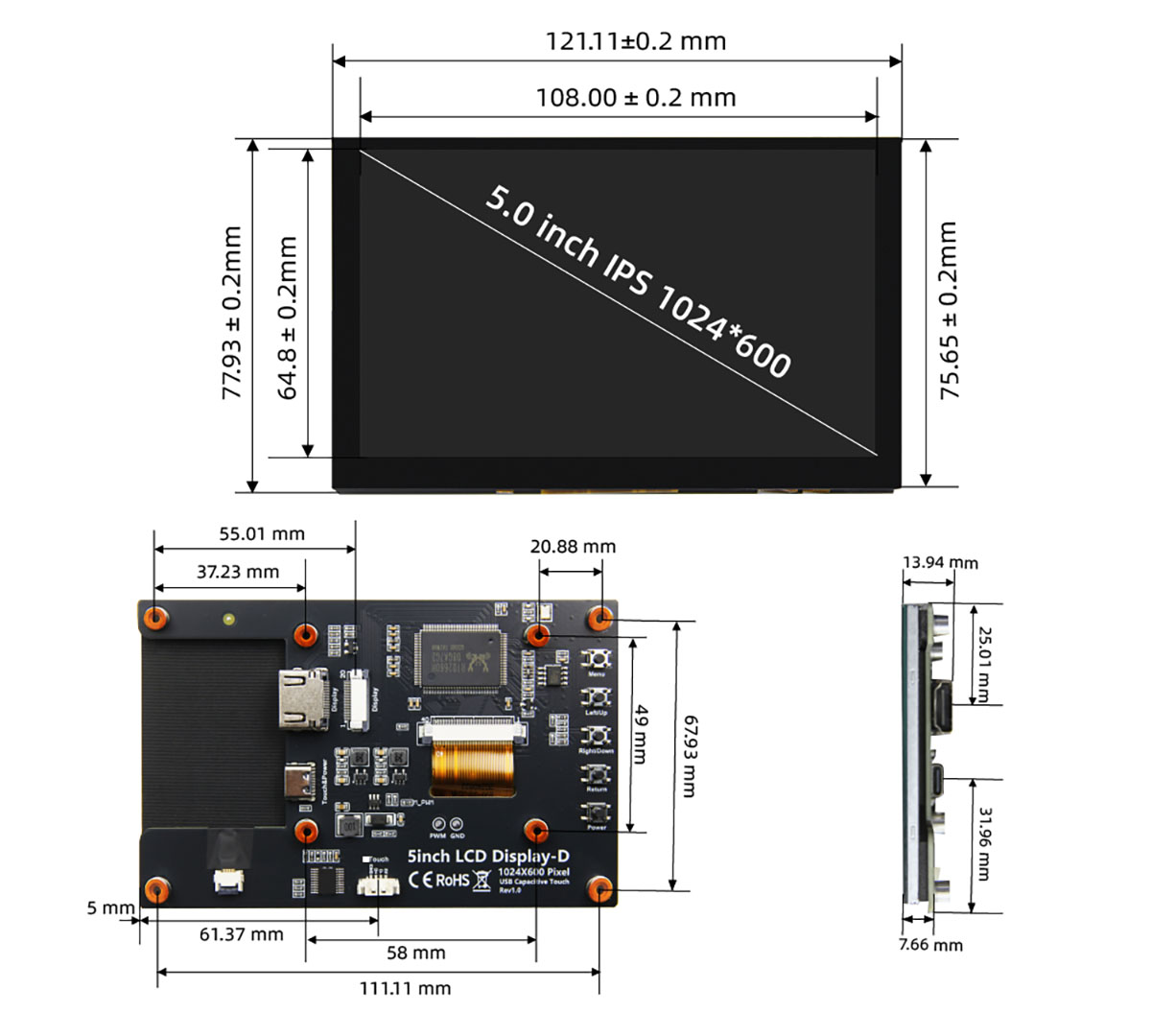

    • External Dimensions

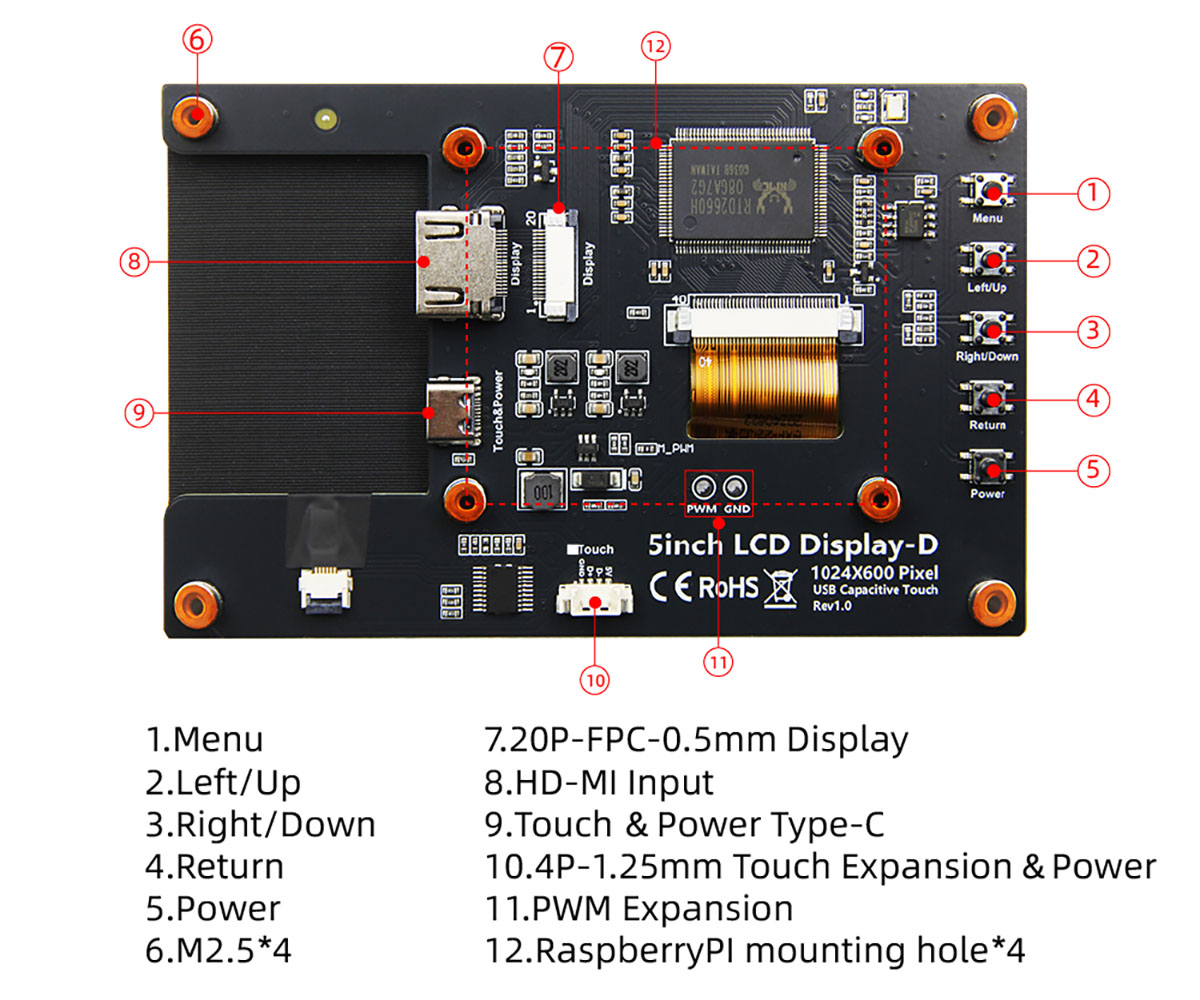

    • Function & Interface


    >> Pin Definition of the 20Pin-0.5mm-FPC (⑦)

    PIN Identifier
    		 Function Description
    1 NC Floating
    2 RX0_N Data transmission pin, used to transmit the differential data signal of channel 0
    3 GND Ground Pin
    4 RX0_P Data transmission pin, used to transmit the differential data signal of channel 0
    5 RX1_N Data transmission pin, used to transmit the differential data signal of channel 1
    6 GND Ground Pin
    7 RX1_P Data transmission pin, used to transmit the differential data signal of channel 1
    8 RX2_N Data transmission pin, used to transmit the differential data signal of channel 2
    9 GND Ground Pin
    10 RX2_P Data transmission pin, used to transmit the differential data signal of channel 2
    11 RXC_N Clock transmission pin, used to transmit the differential clock signal
    12 GND Ground Pin
    13 RXC_P Clock transmission pin, used to transmit the differential clock signal
    14 NC Floating
    15 NC Floating
    16 HDMI SCL IIC clock line, which provides a clock signal for data transmission
    17 HDMI SDA IIC data line, used for actual data transmission
    18 GND Ground Pin
    19 HDMI 5V Power pin, providing 5V power supply
    20 HDMI HPD0 It is the hot-plug detection signal pin in the HDMI interface

    >> Pin Definition of the 4Pin-1.25mm (⑩)
    PIN
    		 Identifier
    		 Function Description
    1 5.0V
    Power pin, providing 5V power supply
    2 D+ Data transmission pin, used to transmit differential data signals
    3 D- Data transmission pin, used to transmit differential data signals
    4 GND Data transmission pin, used to transmit the differential data signal of channel 0

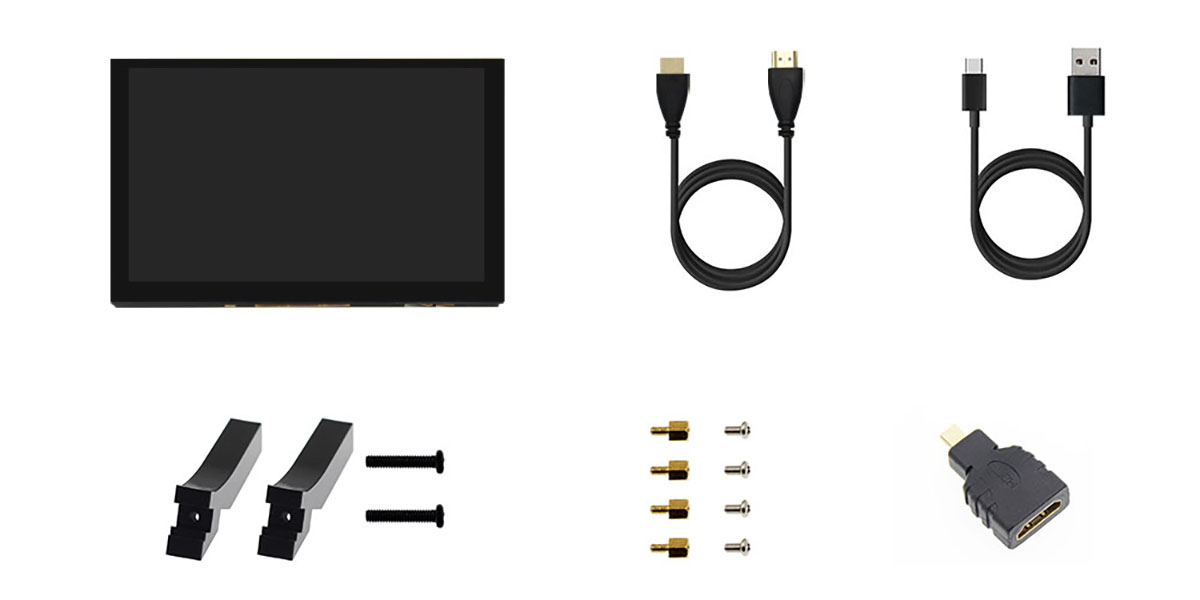

    • Packing List
