Surenoo DSI Display 4.3" inch 800*480 IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for RaspBerry Pi 5/4B/3B+/3B, Orange Pi 3B(Ubuntu/Linux)

WISHLIST
Model No.: SDSR043A_800480
Model Size: 4.3 Inch
Resolution: 800*480 IPS
Interface: Mipi DSI
Touch Type: Capacitive Touch Panel (CTP)
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    Surenoo DSI Display 4.3" inch 800*480 IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for RaspBerry Pi 5/4B/3B+/3B, Orange Pi 3B(Ubuntu/Linux)
    • Overview


    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 4.3" Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    Recommended Viewing Direction ALL VIEW (IPS) O'Clock
    Model No. SDSR043A_800480 -
    LCM Module Size (W×H×T) 106.00×68.00 MM
    Active Area (W×H) 95.04×53.86
    		  MM
    Number of Pixels (Resolution) 800(RGB)×480 Pixels
    Color Pixel Arrangement RGB Stripe -
    Interface Type MIPI 4 Lane -
    Color Numbers 16.7M -
    Backlight Type White LED -
    Touch Type Capacitive Touch Panel (CTP) --

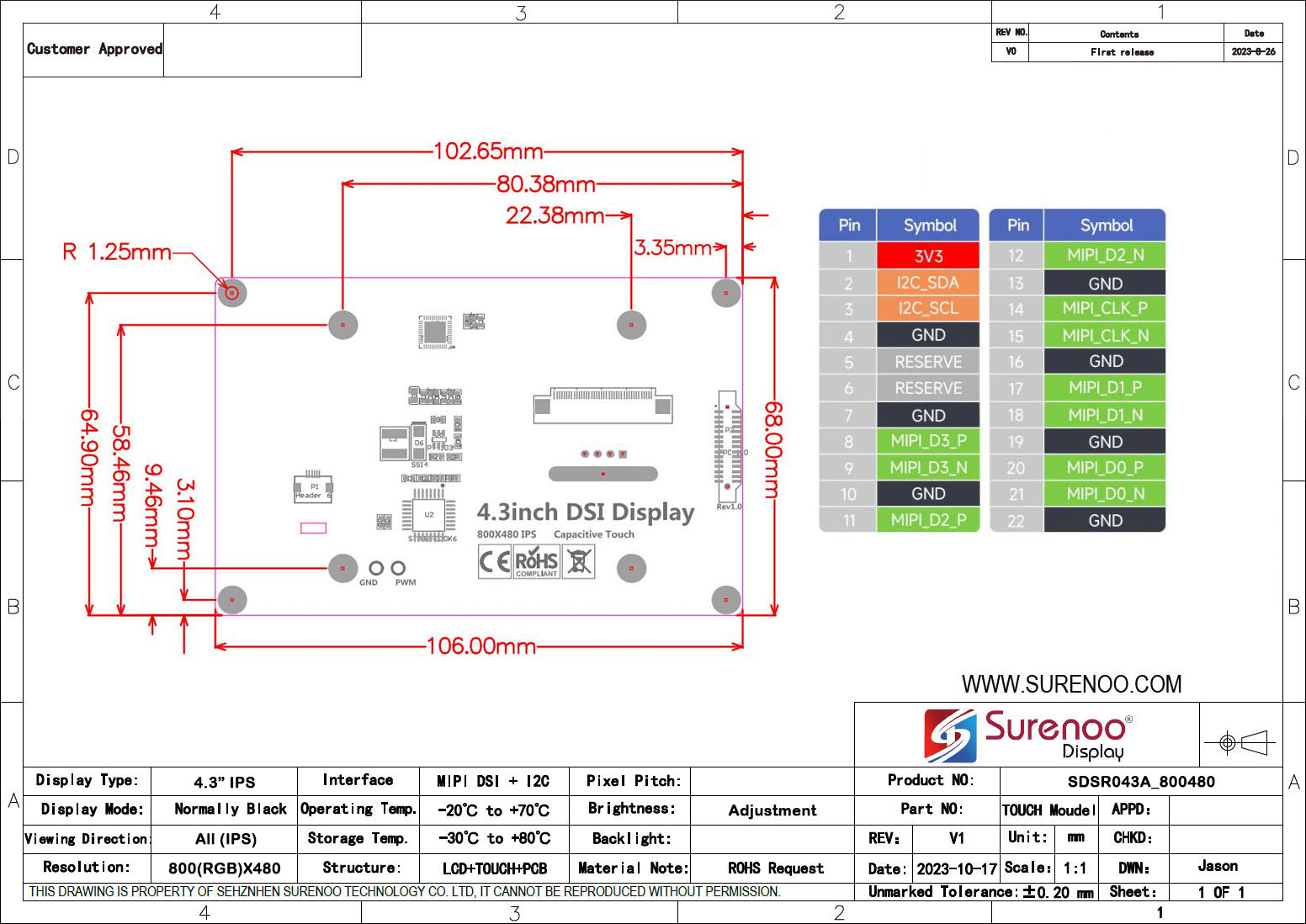

    • External Dimensions & Interface
