Surenoo DSI Display 5.5" inch 1080*1920 high-definition IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for Orange Pi OP-5 / OPI-5B / OPI-5Plus / OPI-5Pro Development Board

WISHLIST
Model No.: SDSO055A_10801920
Model Size: 5.5 Inch
Resolution: 1080*1920 IPS
Interface: Mipi DSI
Touch Type: Capacitive Touch Panel (CTP)
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    1. The Orange Pi Official OS cannot be used directly for DSI Display, and kernel drivers need to be updated.
    2. Please request the Image Download Link from our Customer Service after your purchase.
    3. Orange Pi Board is not including in the Package, please buy it in Orange Pi Official Store.
    4. 5.5 inch 1080*1920 Portrait DSI Display
         Linux OS Support Landscape & Portrait Rotation
         Android OS Support Portrait Only
    • Overview
    Surenoo DSI Display 5.5" inch 1080*1920 high-definition IPS LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for Orange Pi OP-5 / OPI-5B / OPI-5Plus / OPI-5Pro Development Board
      • Product Parameters
      Item of General Information Contents Unit
      LCD Display Size (Diagonal) 5.5 Inch
      LCD Display Type
      		 TFT/TRANSMISSIVE
      		 -
      LCD Display Mode Normally Black
      		 -
      Recommended Viewing Direction ALL VIEW (IPS) O'Clock
      Model No. SDSO055A_10801920 -
      MPN No. SUR55FHD001-WCT
      		 -
      LCM Module Size (W×H×T) 76.88×134.20×6.40 MM
      Active Area (W×H)
      		 68.04×120.96
      		 MM
      Number of Pixels (Resolution) 1080(RGB)×1920 Pixel
      Pixel Pitch (W×H) 0.063×0.063 MM
      Color Pixel Arrangement RGB Stripe -
      LCD Driver IC HX8399 -
      Interface Type MIPI 4 Lane -
      Color Numbers 16.7M -
      Backlight Type White LED -
      Touch Type Capacitive Touch Panel (CTP) --
      CTP Surface Hardness 6H -
      CTP Transparency ≥82%
      		 -
      CTP Driver IC GT911
      		 -
      CTP Interface IIC -
      CTP Support Points 5 -
      • External Dimensions

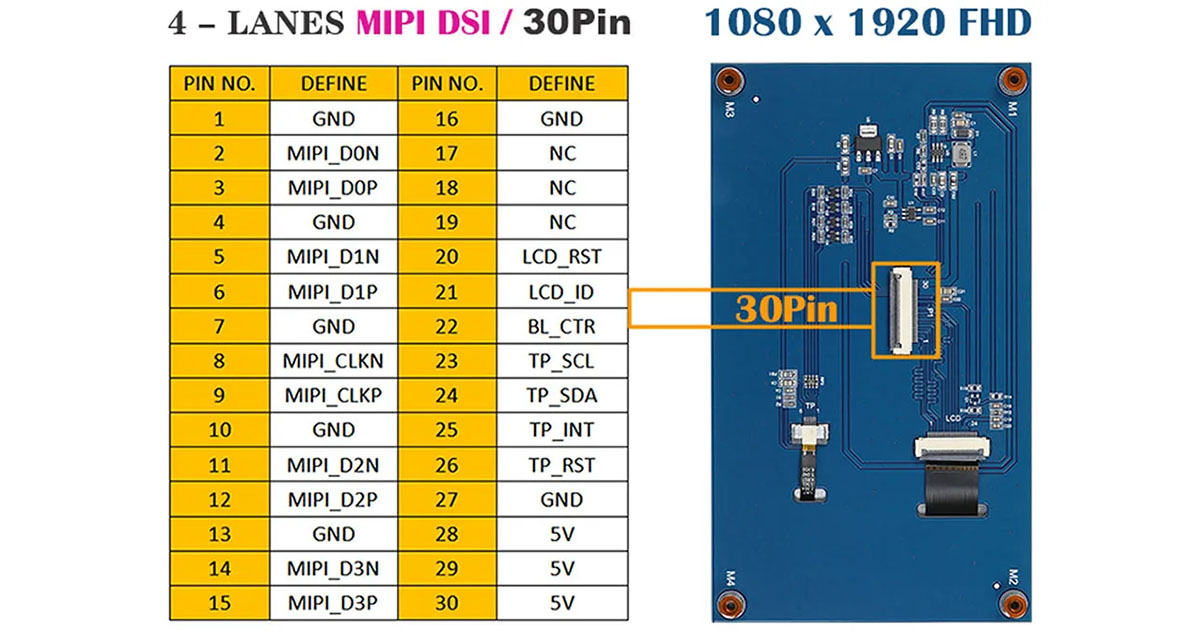

      • Interface Description

      • Application (How to connect display with Orange Pi 5/5B/5Plus/5Pro?)
      • Packing List
