Surenoo Arduino Display 3.5" inch 320*480 ILI9486 TFT Color LCD Display Module Screen Resistive Touch Panel RTP support Arduino 8-Bit Parallel for Arduino UNO & Mega2560 Development Board

WISHLIST
3.5" inch 320*480 ILI9486 TFT Color LCD Display Module Screen
Display Size: 3.5 Inch Arduino Display Module
Resolution: 320*480
Controller: ILI9486
Interface: Arduino UNO/Mega2560 8-Bit Parallel
Touch Type: Yes (RTP)
59 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    Surenoo Arduino Display 3.5" inch 320*480 ILI9486 TFT Color LCD Display Module Screen Resistive Touch Panel RTP support Arduino 8-Bit Parallel for Arduino UNO & Mega2560 Development Board

      • Specification
      Item Parameter
      Manufacturer Surenoo
      Display Type Arduino Display Module
      Continuity Supply More than 10 years
      Model Details 3.5" / 320*480 / SAR0350A-320480 / ILI9486
      Display Type TN
      Display Color RGB 65K Color
      Interface 8-Bit Parallel for Arduino UNO & Mega2560
      Voltage 5.0V
      Operating Temperature
      -20℃~60℃
      Storage Temperature
      -30℃~70℃

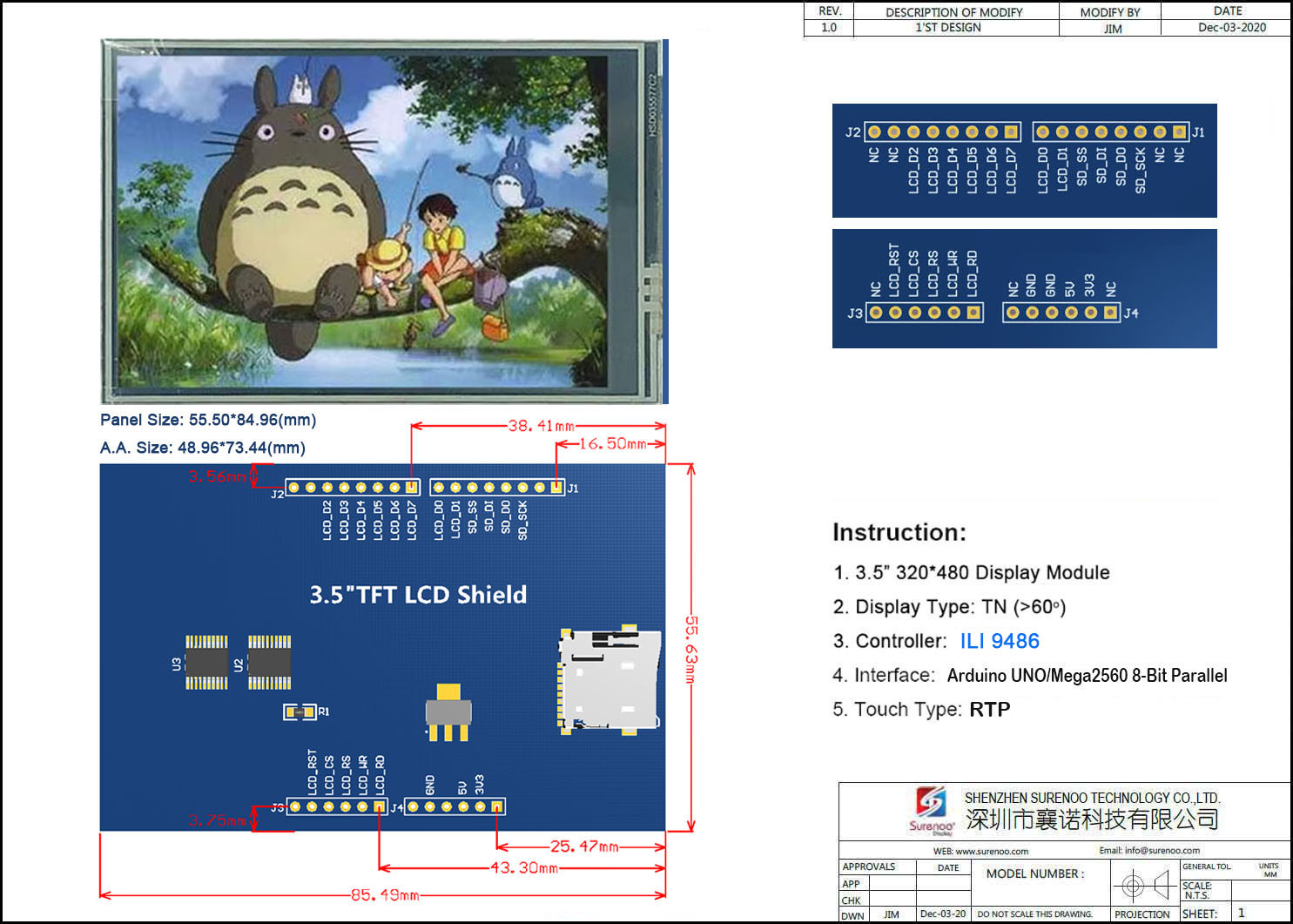

      • Outline Drawing

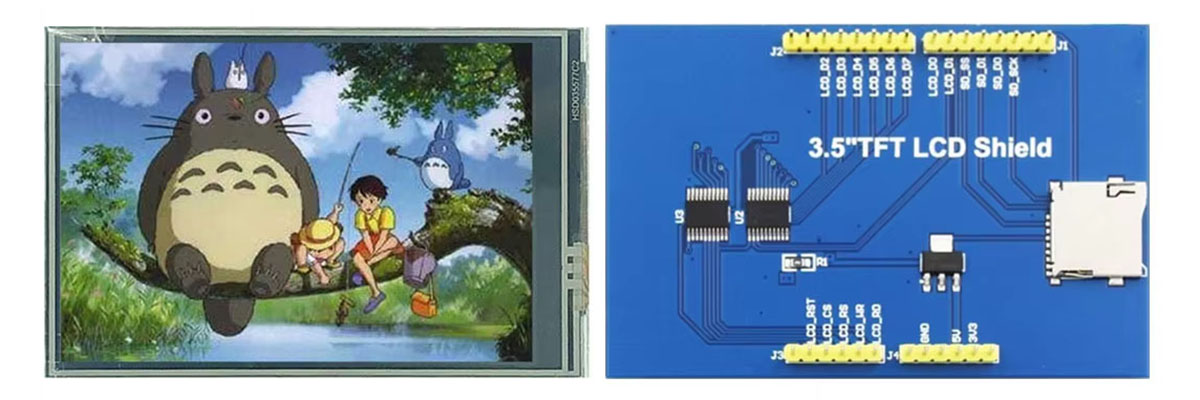

      • Interface
      Interface Pin No. Symbol Description
      J1 1-2 NC No Connection
      3 SD_SCK SD card SPI bus clock signal
      4 SD_DO SD card SPI bus MISO signal
      5 SD_DI SD card SPI bus MOSI signal
      6 SD_SS SD card SPI bus chip select signal, low level enable
      7-8 LCD_D1-D0 Data bus
       J2 1-6 LCD_D7-D2 Data bus
      7-8 NC No Connection
      J3 1 LCD_RD LCD read control signal
      2 LCD_WR LCD write control signal
      3 LCD_RS LCD bus Command / Data selection signal, low level: command, high level: data
      4 LCD_CS LCD bus chip select signal, low level enable
      5 LCD_RST LCD bus reset signal, low level reset
      6 NC No Connection
      J4 1, 4, 6 NC No Connection
      2 3V3 3.3V power input, this pin can be disconnected
      3 5V Power Supply (5V)
      5 GND Power Ground
