Surenoo Arduino Display 4.0/3.95" inch 320*480 ILI9488 TFT Color LCD Display Module Screen with Resistive Touch Panel support Arduino 8-/16- Bit Parallel for Arduino Mega2560 Development Board

WISHLIST
3.95" inch 320*480 ILI9488 TFT Color IPS LCD Display Module Screen
Display Size: 3.95 Inch Arduino Display Module
Resolution: 320*480
Controller: ILI9488
Interface: Arduino Mega2560 8-/16- Bit Parallel
Touch Type: Yes (RTP)
95 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    Surenoo Arduino Display 4.0/3.95" inch 320*480 ILI9488 TFT Color LCD Display Module Screen with Resistive Touch Panel support Arduino 8-/16- Bit Parallel for Arduino Mega2560 Development Board


      • Specification
      Item Parameter
      Manufacturer Surenoo
      Display Type Arduino Display Module
      Continuity Supply More than 10 years
      Model Details 4.0"(3.95") / 320*480 / SAR0400B-320480 / ILI9488
      Display Type TN
      Display Color RGB 65K Color
      Interface 8-Bit/16-Bit Parallel for Arduino Mega2560
      Voltage 5.0V
      Operating Temperature
      -20℃~60℃
      Storage Temperature
      -30℃~70℃

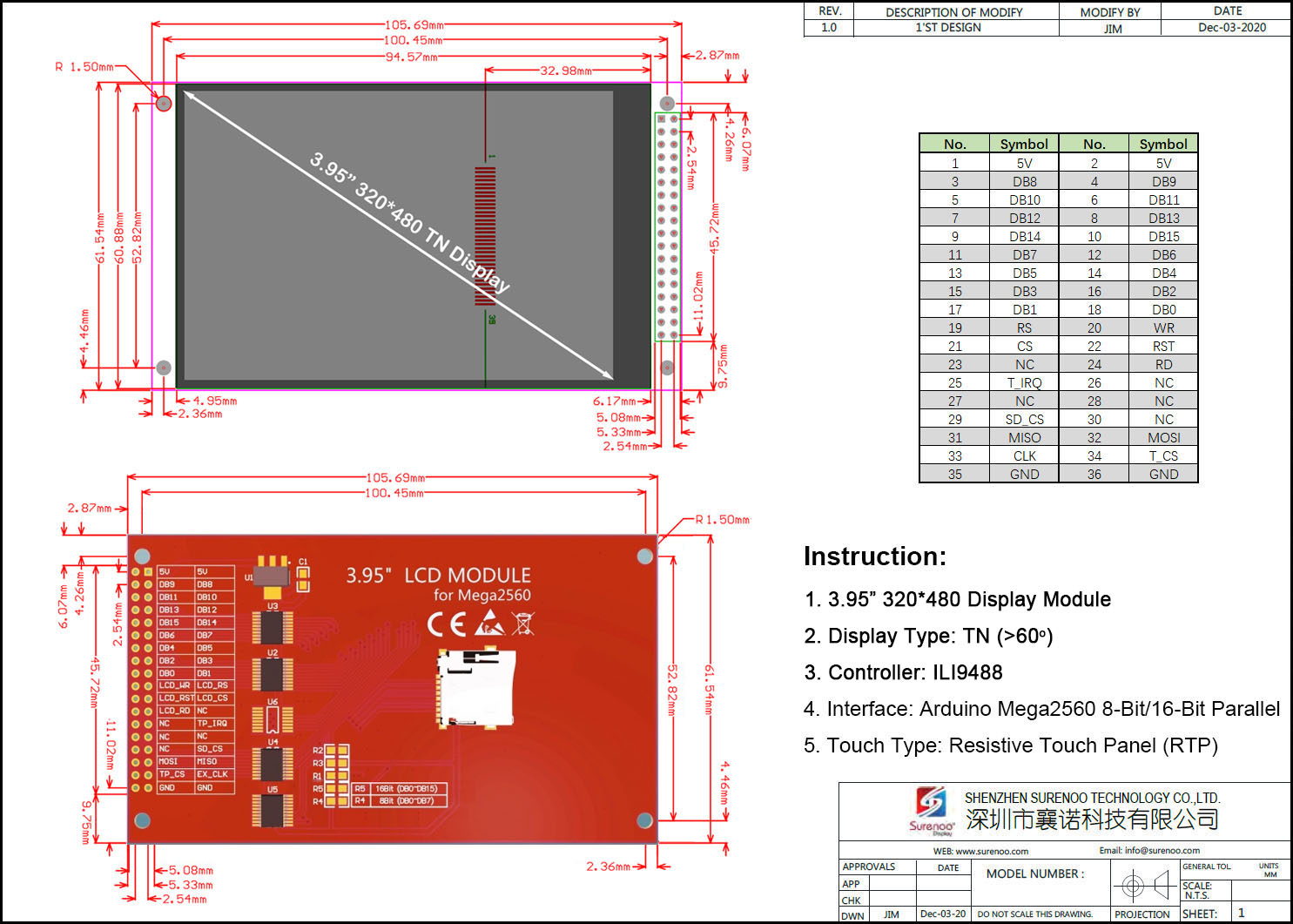

      • Outline Drawing

      • Interface
      Pin No. Symbol Description
      1-2 5V Positive power supply
      3-10 DB8-DB15
      		 Data Bus
      11-18 DB7-DB0/NC Data Bus / NC: If use 8-Bit mode, It's "No Connection"
      19 RS LCD register / data selection signal, Low level: register, high level: command
      20 WR LCD write control signal
      21 CS LCD screen select control signal, low level enable
      22 RST LCD reset control signal, low reset
      23, 26-28, 30 NC Undefined, reserved
      24 RD LCD read control signal
      25 T_IRQ Touch screen interrupt control signal, low level when touch is detected
      29 SD_CS SD card select control signal, low level enable
      31 MISO SPI bus input signal
      32 MOSI SPI bus output signal
      33 CLK SPI bus clock signal
      34 T_CS Touch screen chip select control signal, low level enable
      35-36 GND Power ground
