Guition HMI Q3 Series 5.0 inch 800X480 IPS LCD Display Module Capacitive Touch & WIFI Optional Screen Panel Main Controller ArtInChip D121BBV 400MHz Dominant Frequency Software Editing JC8048Q350

[400MHz Main Frequency HMI 5.0-inch Display]

TFT IPS LCD touch free or capacitive touch display, resolution 800*480, frequency up to 400MHz, 16M FLASH, supports audio and video.

[Upper Level Software Development Interface]

Supports upper level software development interface, drag and drop method, rich controls, simple development, three minute manual interface development, online compilation, supports simulation;

[Rich Interfaces, easy to use]

Rich peripheral interfaces and extended functions, plug and play, enable it to meet the needs of different fields.

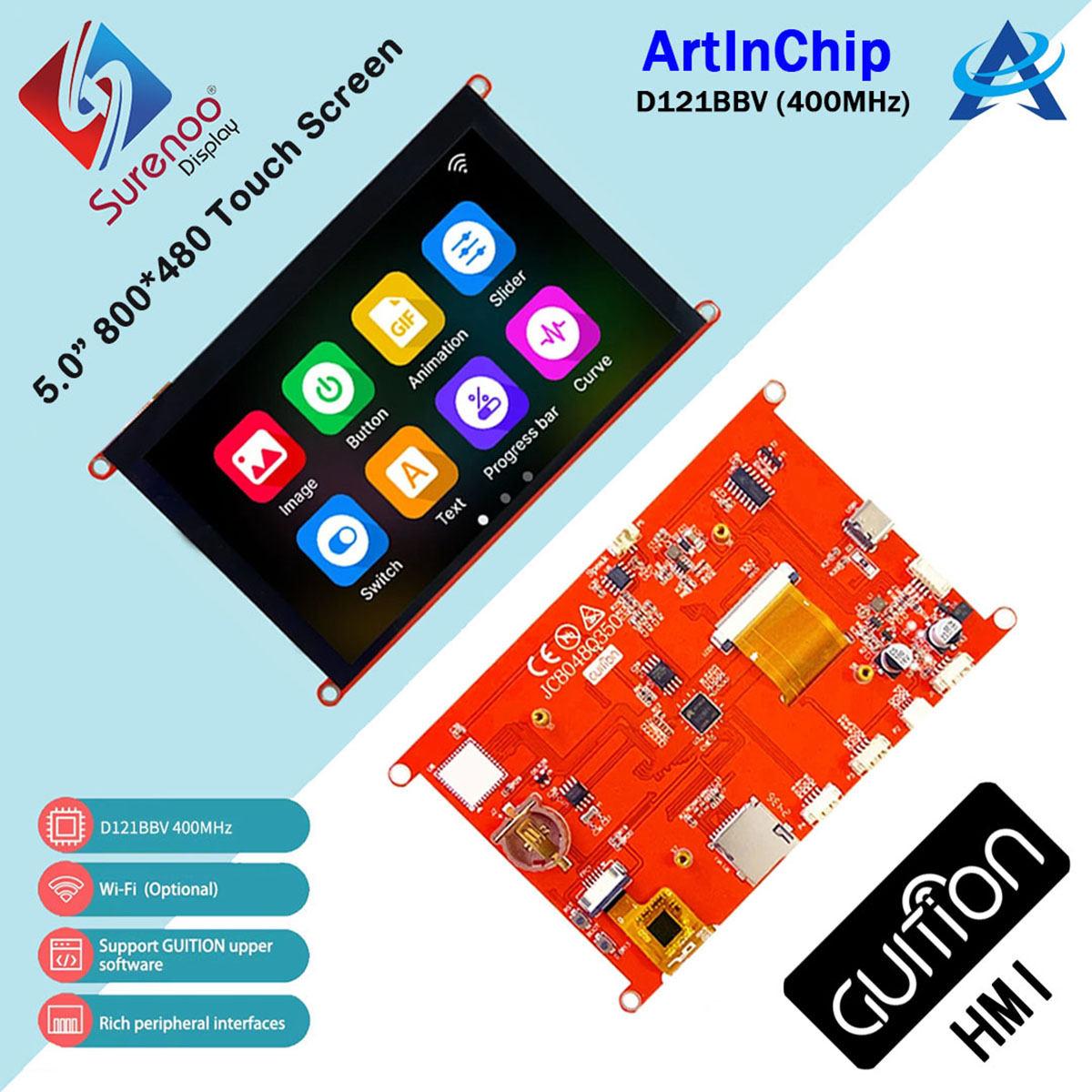

The GUITION JC8048Q350 monitor is a powerful HMI touch screen (capacitive touch screen is optional) with an 800*480 resolution LCD display. It uses a 400MHz chip as the main control processor, with optional WiFi and onboard RTC functions. It has audio and video capabilities and reserved multiple IO for users to use, with powerful performance and wide applications, suitable for IoT application devices and other human-machine interface display scenarios.

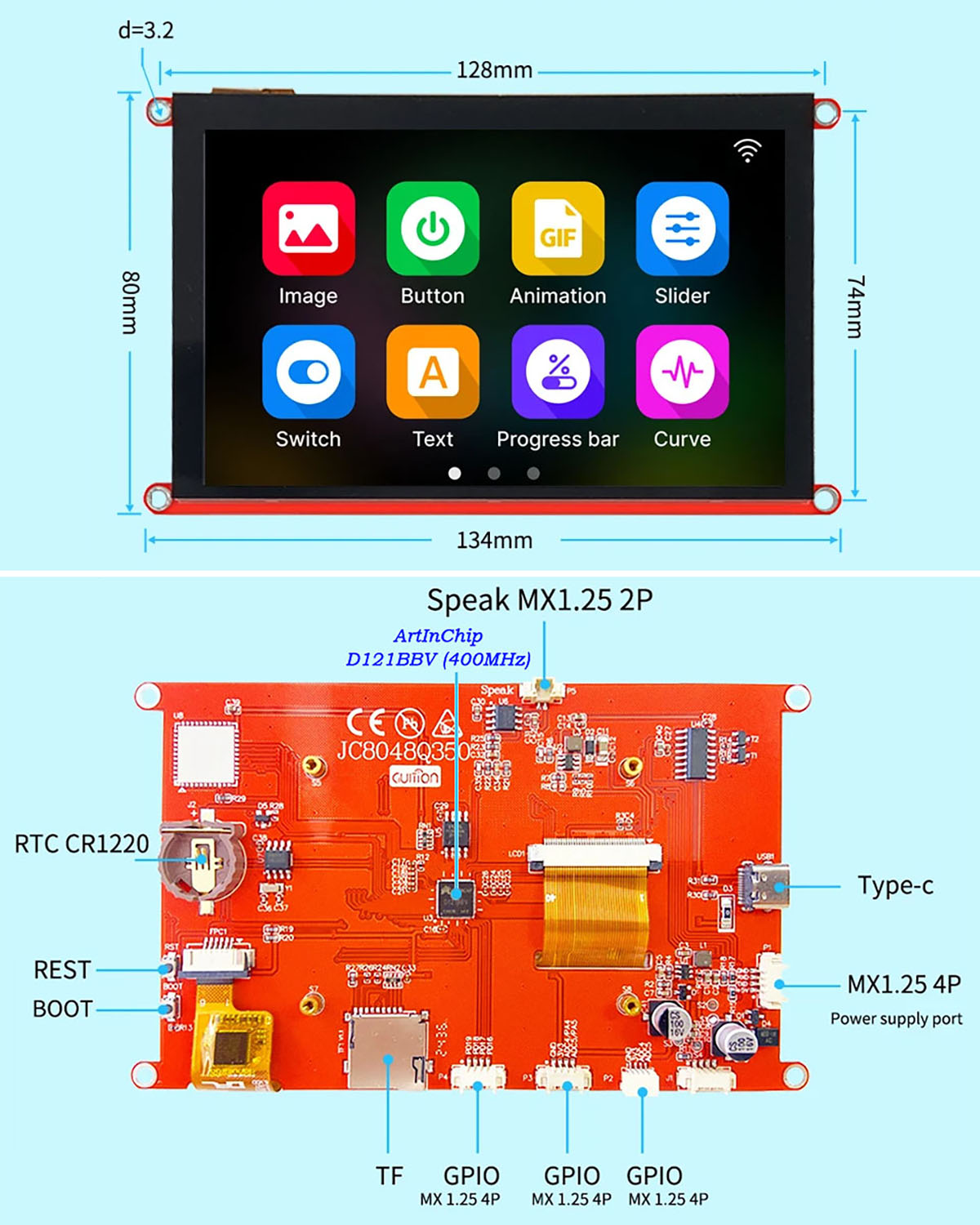

This module includes a 5.0-inch LCD display and a driver board. In addition, the board also reserves TF card slots, multiple peripheral interfaces, Type-C interfaces, and speaker interfaces, providing more expansion possibilities. It supports the upper software development interface of GUITION, which can communicate with the user MCU through serial port. This allows developers to not only customize their own UI interface, but also quickly and easily create interesting projects, greatly shortening the development cycle.

The GUITION JC8048Q350 monitor 5.0-inch module is suitable for various scenarios, such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its rich interface and extended functions enable it to meet the needs of different fields and provide users with more comprehensive solutions.
