Guition HMI P4 Series ESP32-P4NRW32 ESP32-C6-MINI-1U-N4 7.0-inch IPS 1024*600 high-definition LCD Display Module Capacitive Touch Panel with WIFI and Bluetooth 32M PSRAM 16M FLASH JC1060P470 Development in Arduino IDE, ESP IDE, Micropython, GUITION

WISHLIST
Model No.: JC1060P470
Model Size: 7.0 Inch
Resolution: 1024*600 IPS
Main Controller: ESP32-P4NRW32
Secondary Controller: ESP32-C6-MINI-1U-N4
Touch Type: CTP
100 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    Do not provide the default Firmware source code, But provides LVGL display and touch basic examples.
    • Download & Development Tools
    Guntion Development online Tool: https://guition.com/

    • Overview
    JC1060P470 use ESP32-P4NRW32 & ESP32-C6-MINI-1U-N4 as the controller, the main controller(ESP32-P4NRW32) is a dual-core MCU, ESP32-C6-MINI-1U-N4 integrated WI-FI and Bluetooth functions, the main frequency can reach 400MHz, 768KB_HP 16KB_LP SRAM, 128KB ROM, 32M PSRAM, Flash size is 16MB, 5.0 inch display resolution is 1024*600, with Capacitive Touch Panel.

    The module includes LCD display screen, backlight control circuit, touch screen control circuit.

    Reserve the TF card interface ,IO port interface, this module supports development in Arduino IDE, ESP IDE, Micropython and GUITION.
      • Product Parameters
      Item Description
      Display Color 16.7M Color
      SKU Capacitive Touch Panel: JC1060P470C
      Size 7.0 Inch
      Type TFT
      Controller JD9165
      Resolution 1024*600(Pixel)

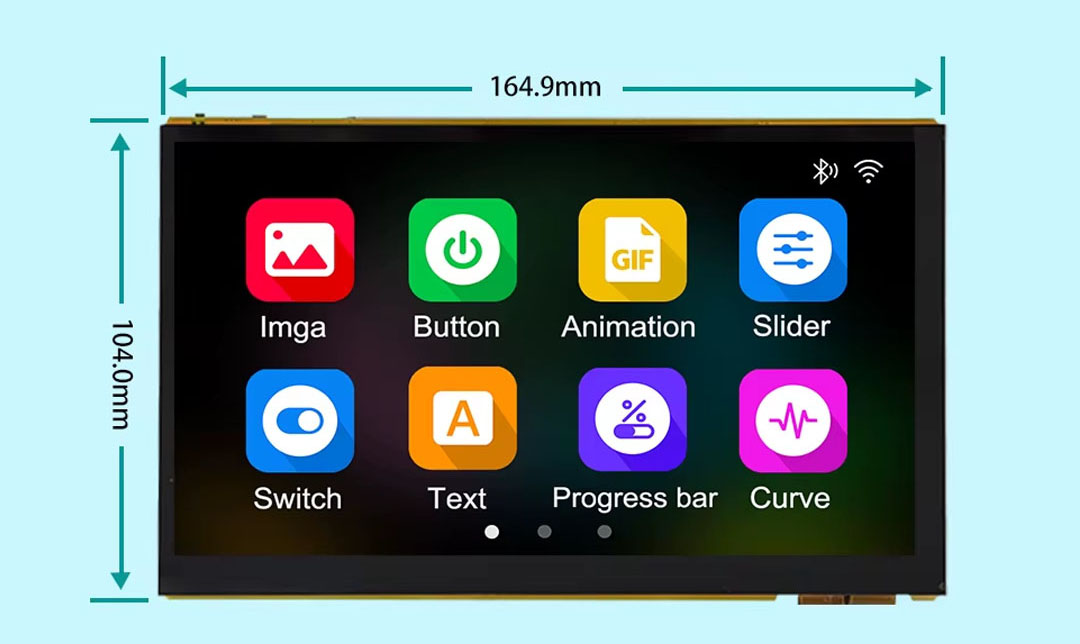

      Module Size 165.00*104.00(mm)
      Effective Display Area 154.21* 85.92(mm)
      View IPS
      Operating temperature -20℃~70℃
      storage temperature -30℃~80℃
      Operating Voltage 5.0V
      Power consumption About 600MA
      • Features

      >> 7.0-inch color screen, support 16.7M color display, display rich colors
      >> 1024X600 resolution
      >> The sample program has been programmed in the factory and can be plugged in
      >> With TF card slot for easy expansion storage
      >> Provide arduino library functions and sample programs to facilitate rapid secondary development
      >> Lithium battery charging and discharging circuit with overcharging and discharging protection
      >> Support one-click download program
      >> More IOs can be used separately by customers
      >> Military-grade process standards, long-term stable work

      • Controller
      Main Controller: ESP32-P4NRW32
      Secondary Controller: ESP32-C6-MINI-1U-N4

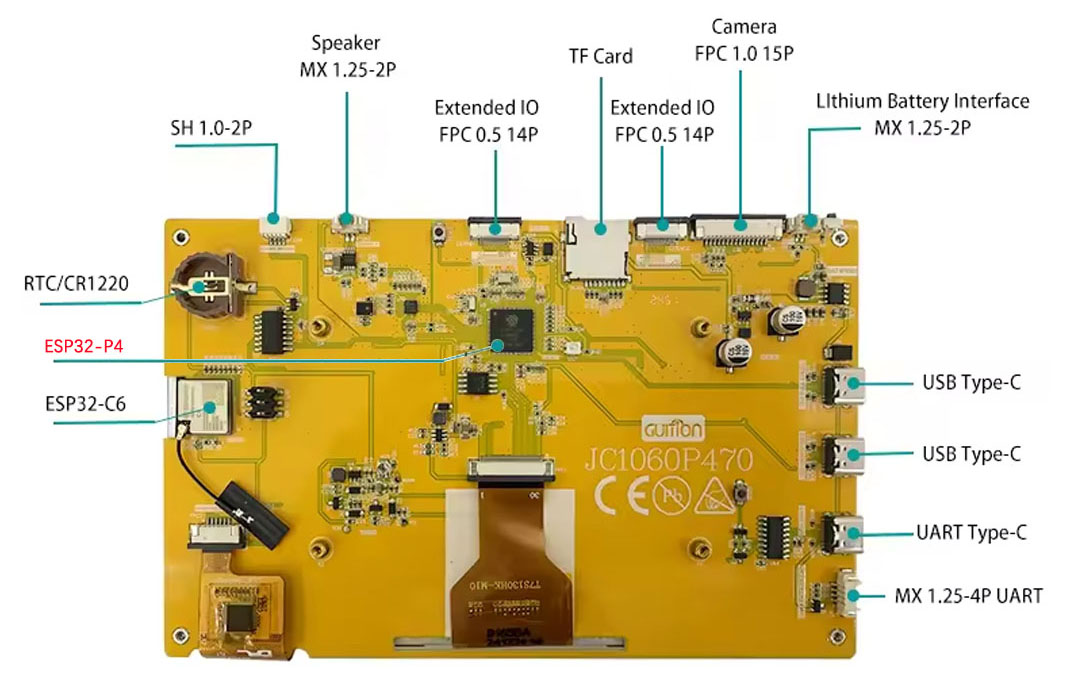

      • Function Description


      Pasted Image
