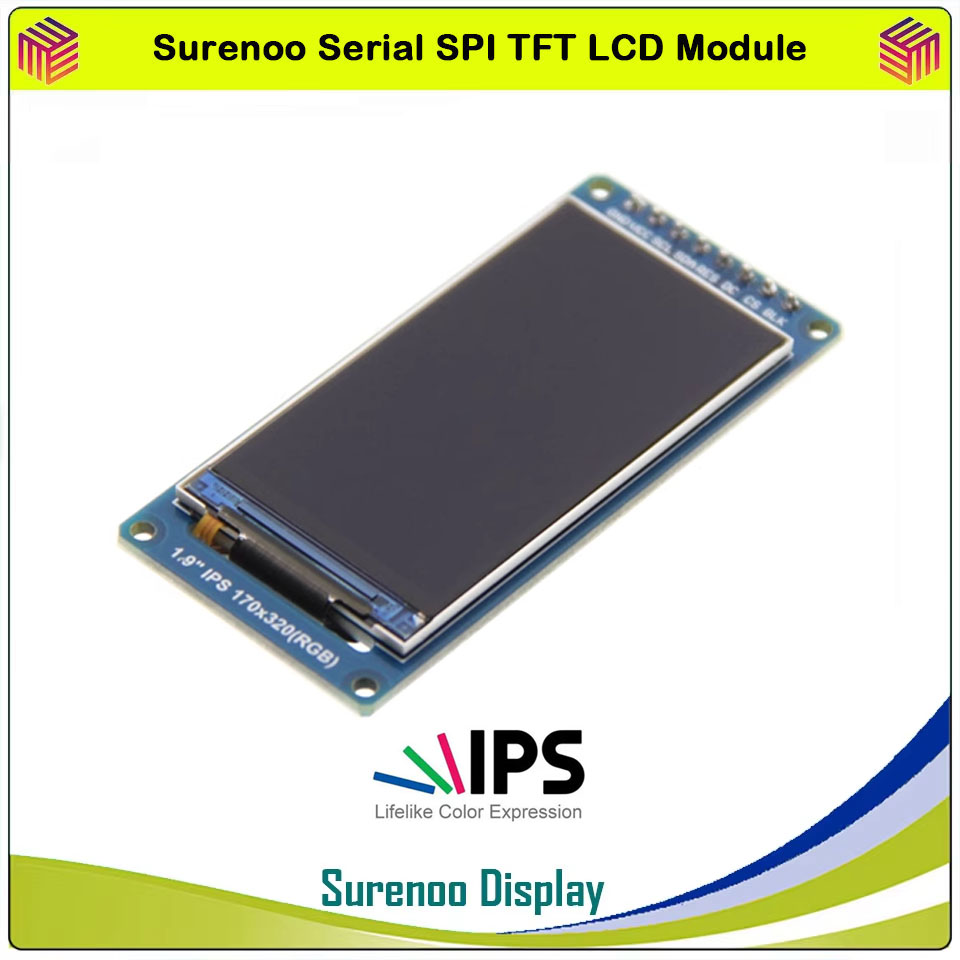

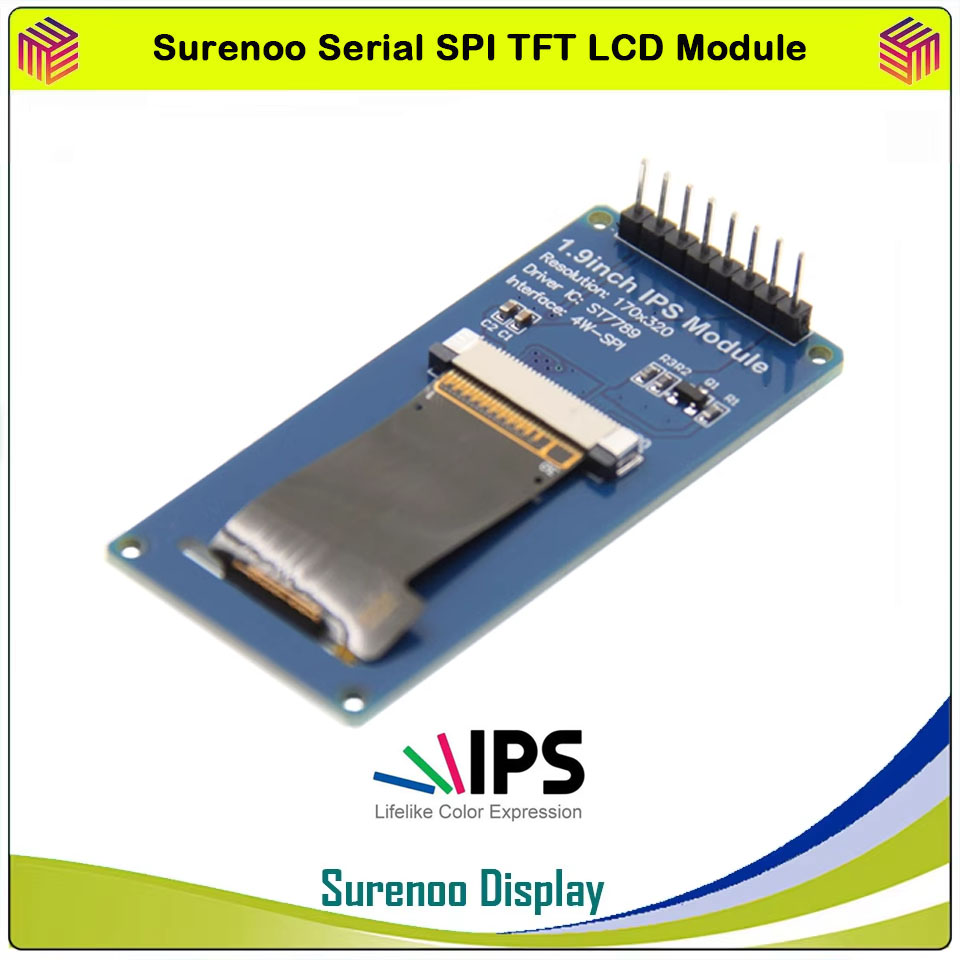

Surenoo 1.9" 170*320 Serial SPI IPS TFT LCD Module Display Screen ST7789 Controller Without Touch Panel for Arduino 51 STM32 Dev. Board

WISHLIST
Display Size: 1.9"
Model No.: 1.9" / 170*320 / SSP0190A-170320 / ST7789V
Display Mode: IPS
Interface: Serial SPI
28 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    Surenoo
    Model No.: 1.9" / 170*320 / SSP0190A-170320 / ST7789V
    Serial SPI Display Module IPS Series, without Touch Panel, It's standard solder Pin on Board.
      • Specification
      Item Parameter
      Manufacturer Surenoo
      Display Type Serial SPI Display Module
      Continuity Supply More than 10 years
      Diagonal Size
      1.9" / 170*320 / SSP0190A-170320 / ST7789V
      Display Type IPS
      Display Color RGB 65K Color
      Interface Serial SPI
      Voltage 3.3V
      Outline Dimension Check on Drawing
      Active Area Check on Drawing
      Touch Panel Optional NTP
      SKU -
      Operating Temperature
      -20℃~60℃
      Storage Temperature
      -30℃~70℃
      • Outline Drawing

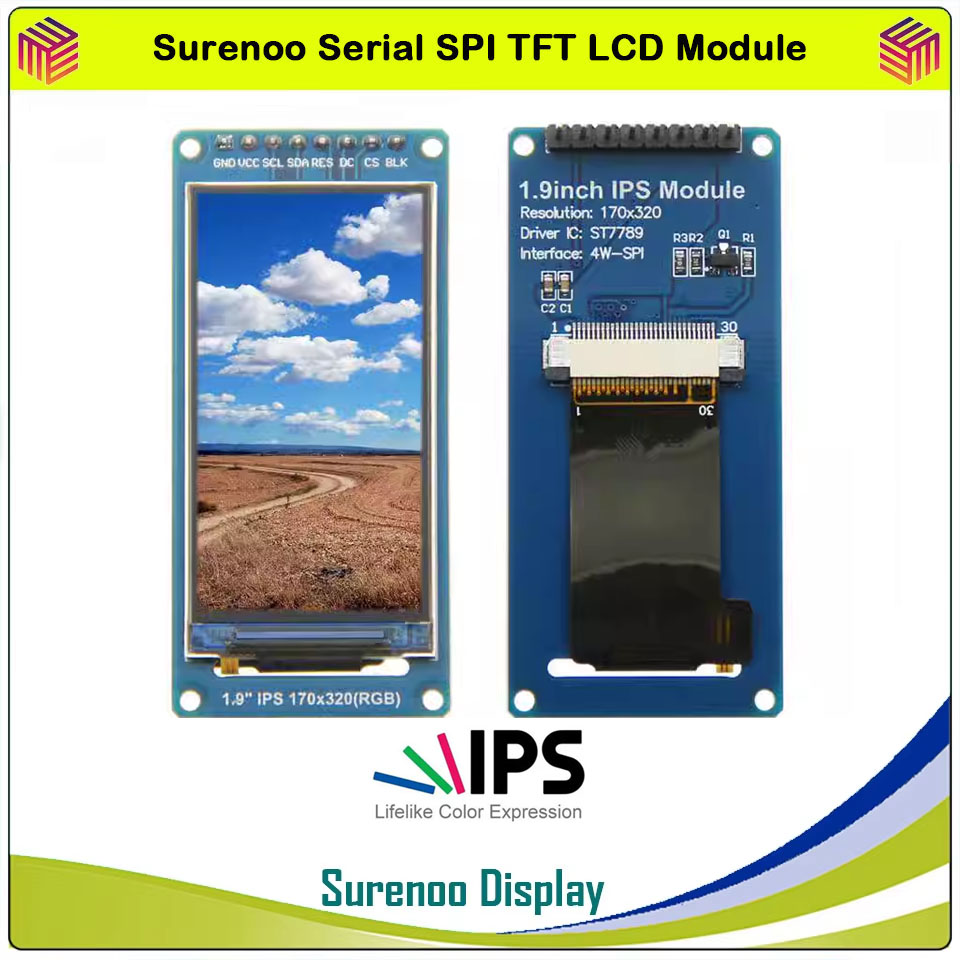

      • Interface
      Symbol Description
      GND Ground
      VCC
      		 Power Input (3.3V)
      SCL
      		 SPI Bus Clock Signal
      SDA
      		 SPI Bus Write Data Signal
      RES LCD Reset Signal, Low Level Enable
      DC
      		 LCD Register / Data Selection Signal, High Level: Register, Low Level: Data
      CS LCD Chip Select Signal, Low Level Enable
      LED Backlight Control, High Level Lighting, If not Controlled, Connect 3.3V always Bright
