Surenoo 1.77" 1.8" 128*160 Serial SPI TFT LCD Module Display Screen Without Touch Panel for Arduino 51 STM32 Dev. Board
Surenoo 1.77" 1.8" 128*160 Serial SPI TFT LCD Module Display Screen Without Touch Panel for Arduino 51 STM32 Dev. Board
WISHLIST
Display Size: 1.8"
Model No.: SSP0180A_128160/SSP0180B_128160
Resolution: 128*160
Interface: Serial SPI
Controller: ST7735S
Model No.: SSP0180A_128160/SSP0180B_128160
Resolution: 128*160
Interface: Serial SPI
Controller: ST7735S
28 sold
Quantity
-
Detail
- Overview

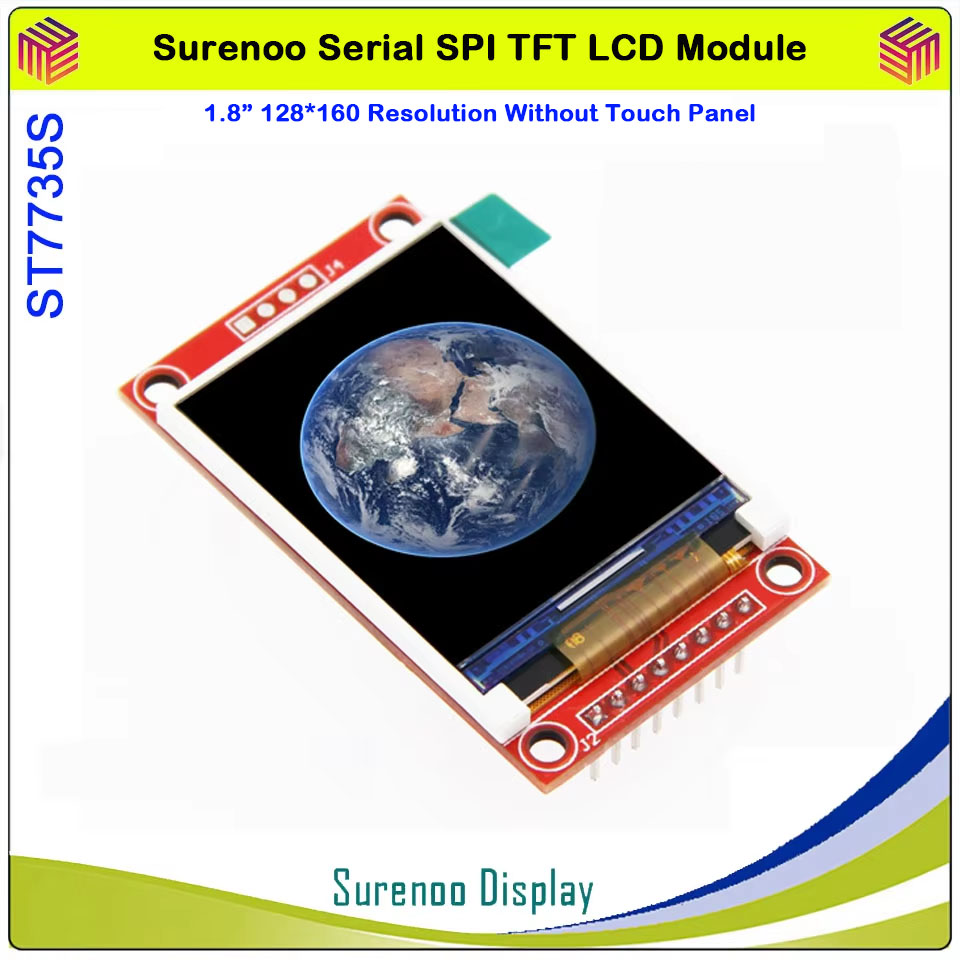

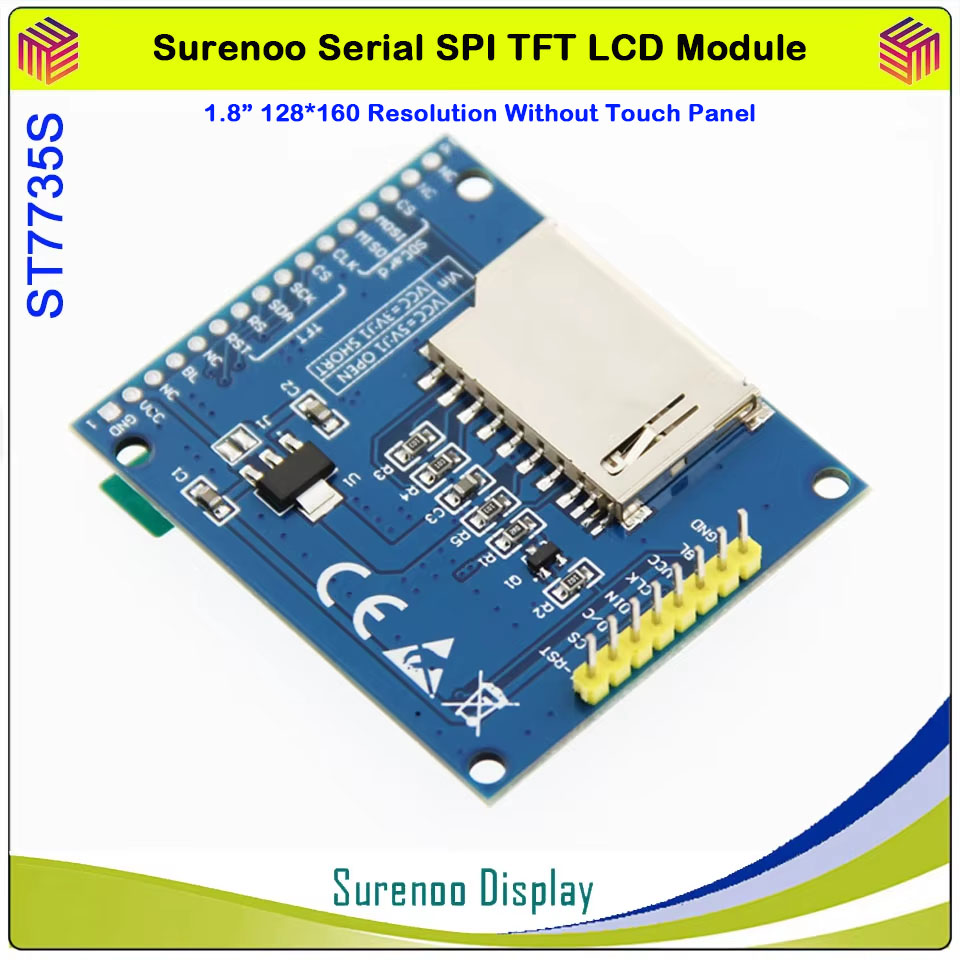

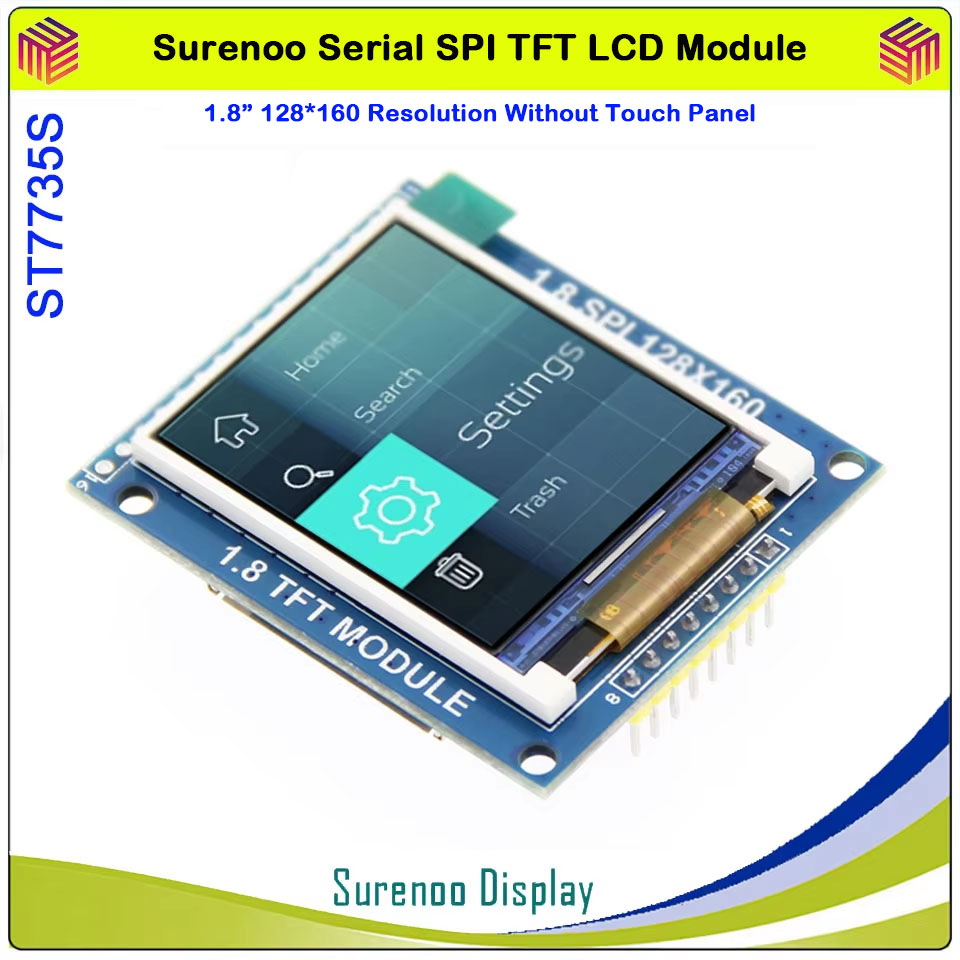

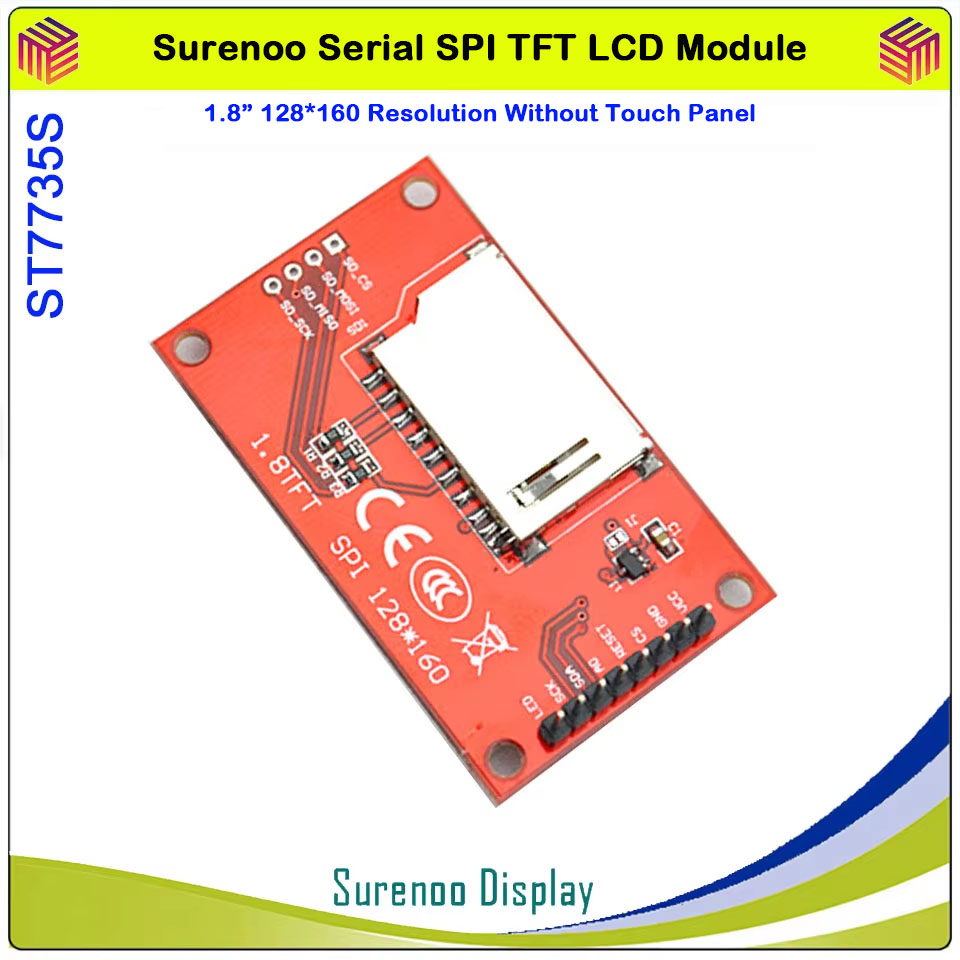

Surenoo 1.8 Inch 128*160 Serial SPI Display Module TN Series, without Touch Panel, It's standard solder on Board.- Specification
Item Parameter Manufacturer Surenoo Display Type Serial SPI Display Module Continuity Supply More than 10 years Diagonal Size 1.77“ Part No. (LCD Wiki) SSP0180A_128160
SSP0180B_128160Display Format 128*160 Display Type TN Display Color RGB 65K Color Interface Serial SPI Pins Check on Drawing Controller ST7735S Voltage 3.3-5.0V Outline Dimension Check on Drawing Active Area 28.03X35.04 MM Touch Panel Optional NTP SKU - Operating Temperature-20℃~60℃Storage Temperature-30℃~70℃- Outline Drawing
- Interface
Pin No. Symbol Description Power Supply VCC Power Input (3.3-5.0V) GND Ground TFT CS LCD Chip Select Signal, Low Level Enable RST LCD Reset Signal, Low Level Enable DC/RS LCD Register / Data Selection Signal, High Level: Register, Low Level: Data SDI SPI Bus Write Data Signal SCK SPI Bus Clock Signal TF Card
SD CardCS TF/SD Card Chip Select Signal, Low Level Enable MOSI SPI Bus Write Data Signal, If you do not need to the write function, you can not connect it MISO SPI Bus Read Data Signal, If you do not need to the read function, you can not connect it CLK TF/SD Card SPI Bus Clock Signal Backlight BL Backlight Control, High Level Lighting, If not Controlled, Connect 3.3V always Bright -
