Surenoo 2.2" 240*320 Serial SPI TFT LCD Module Display Screen Without Touch Panel for Arduino 51 STM32 Dev. Board

WISHLIST
Display Size: 2.2"
Model No.: SSP0220A_240320
Resolution: 240*320
Interface: Serial SPI
Controller: ILI9341
28 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    Surenoo 2.2 Inch 240*320 Serial SPI Display Module TN Series, without Touch Panel, It's standard 9P/2.54 Pin Header solder on Board.
      • Specification
      Item Parameter
      Manufacturer Surenoo
      Display Type Serial SPI Display Module
      Continuity Supply More than 10 years
      Diagonal Size 2.2“
      Part No. (LCD Wiki) SSP0220A_240320
      Display Format 240*320
      Display Type TN
      Display Color RGB 65K Color
      Interface Serial SPI
      Pins 9P/2.54
      Controller ILI9341
      Voltage 3.3-5.0V
      Outline Dimension 40.10X67.20 MM
      Active Area 33.84X45.12 MM
      Touch Panel Optional NTP
      SKU MSP2202
      Operating Temperature
      -20℃~60℃
      Storage Temperature
      -30℃~70℃

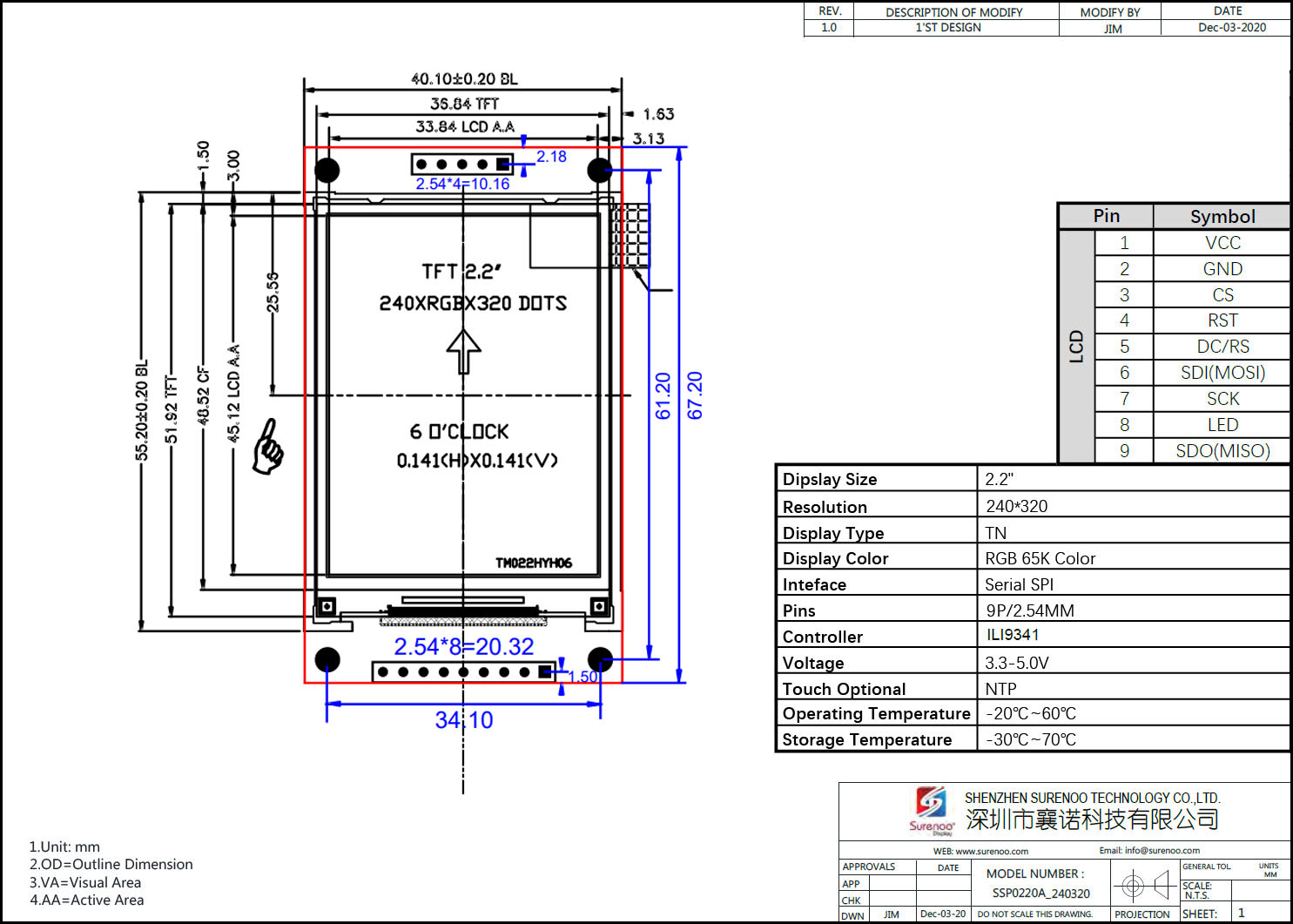

      • Outline Drawing (SSP0220A_240320)

      • Interface
      Pin No. Symbol Description
      1 VCC Power Input (3.3-5.0V)
      2 GND
      		 Ground
      3 CS LCD Chip Select Signal, Low Level Enable
      4 Reset
      		 LCD Reset Signal, Low Level Enable
      5 DC/RS LCD Register / Data Selection Signal, High Level: Register, Low Level: Data
      6  SDI (MOSI) SPI Bus Write Data Signal
      7 SCK SPI Bus Clock Signal
      8 LED Backlight Control, High Level Lighting, If not Controlled, Connect 3.3V always Bright
      9  SDO (MISO)
      		 SPI Bus Read Data Signal, If you do not need to the read function, you can not connect it
