ESP32 Display 4.3-inch 800*480 IPS ESP32-8048S043 480*272 TN ESP32-4827S043 LCD Display Module Screen ESP32-S3-N16R8 ESP32-S3-WROOM-1 with WIFI and Bluetooth 8M PSRAM 16M FLASH Development in LVGL, Arduino IDE, ESP IDE, Micropython, Mixly

WISHLIST
Model No.: ESP32-8048S043 / ESP32-4827S043
Model Size: 4.3 Inch
Resolution: 800*480 IPS / 480*272 TN
Controller: ESP32-S3-N16R8
Touch Type: CTP/RTP/NTP
28 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    ESP32 Development Board, standard 4.3-inch TFT screen and CTP/RTP/NTP, support one-key automatic download, provide LVGL demo and arduino examples.
    • Overview

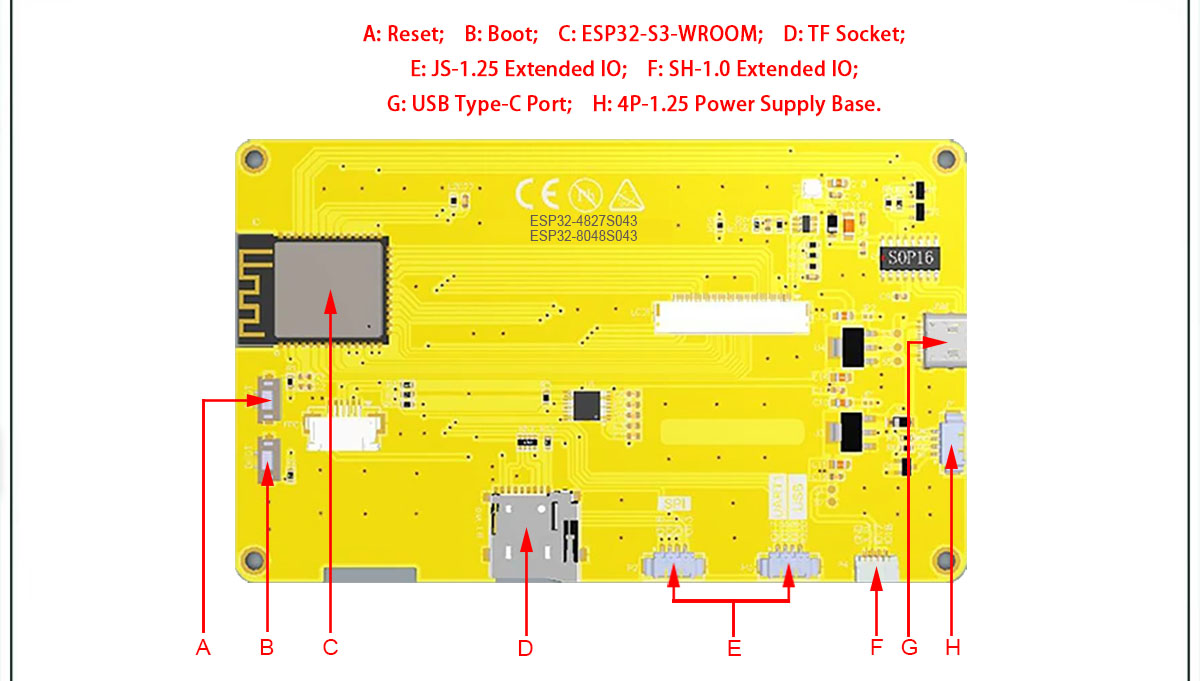

    This LCD module uses ESP32-S3-WROOM-1-N16R8 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 800*480/480*272, Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface, Up to 12 IO available, this module supports development in Arduino IDE, ESP IDE, Micropython and Mixly.


      • Product Parameters
      Item Description
      Display Color RGB 262K Color
      SKU ESP32-8048S043C: 800*480 Resolution with Capacitive Touch Panel
      ESP32-4827S043C: 480*272 Resolution with Capacitive Touch Panel
      ESP32-4827S043R: 480*272 Resolution with Resistive Touch Panel
      ESP32-4827S043N: 480*272 Resolution without Touch Panel
      Size 4.3 Inch
      Type TFT
      Controller ILI9485
      Touch Type Capacitive Touch Panel / Without Touch Panel
      Resolution 800*480(Pixel) / 480*272(Pixel)

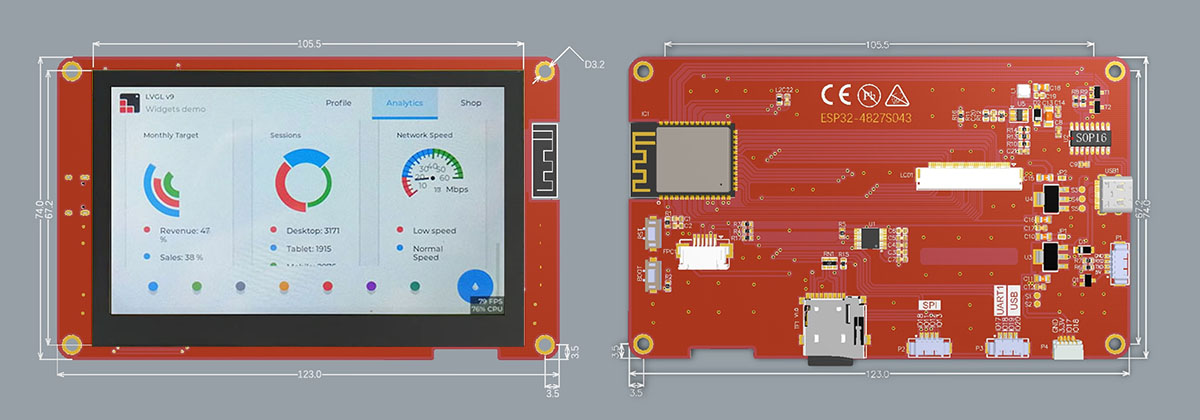

      Module Size 105.50*74.00(mm)
      Effective Display Area 95.04*53.86(mm)
      View 800*480: IPS (Full Angle) / 480*272: >60°
      Operating temperature -20℃~70℃
      storage temperature -30℃~80℃
      Operating Voltage 5.0V (Support Wireless Power Supply)
      Power consumption About 260MA
      • Features

      >> 4.3-inch color screen, support 16 BIT RGB 65K color display, display rich colors
      >> 800X480(IPS) / 480X272(TN) resolution
      >> The sample program has been programmed in the factory and can be plugged in
      >> With TF card slot for easy expansion storage
      >> Provide arduino library functions and sample programs to facilitate rapid secondary development
      >> Lithium battery charging and discharging circuit with overcharging and discharging protection
      >> Support one-click download program
      >> Military-grade process standards, long-term stable work

      • Controller (ESP32-S3-WROOM-1U-N16R8)
