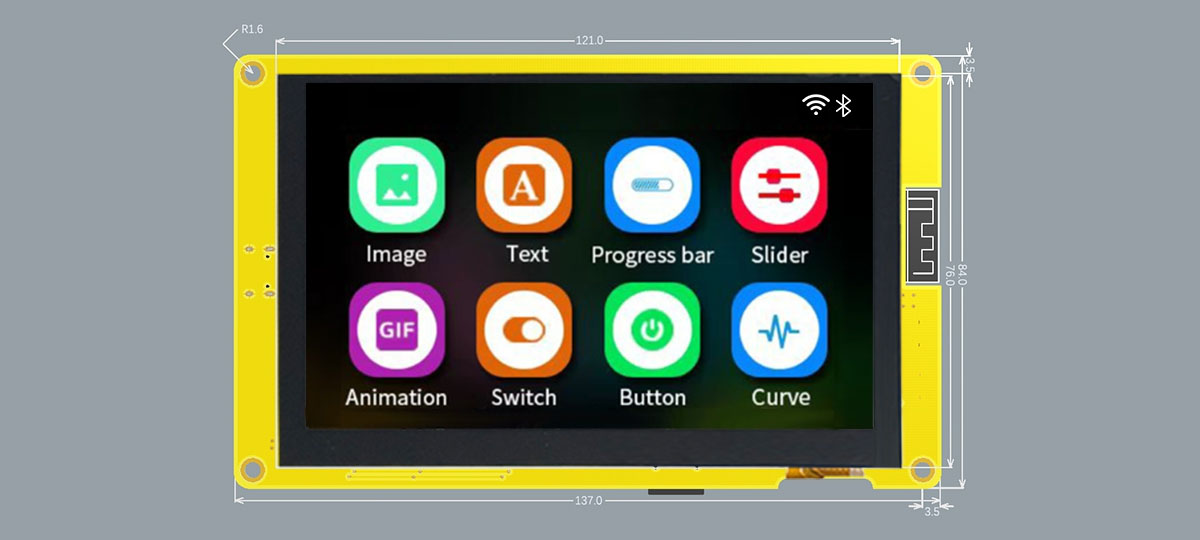

5.0-inch 800*480 IPS LCD Display Module Screen
Model No.: ESP32-8048S050
Model Size: 5.0 Inch (IPS)
Resolution: 800*480
Controller: ESP32-S3-N16R8
Touch Type: CTP/NTP
28 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    ESP32 Development Board, standard 5.0-inch TFT screen and CTP/NTP, support one-key automatic download, provide LVGL demo and arduino examples.
    • Overview

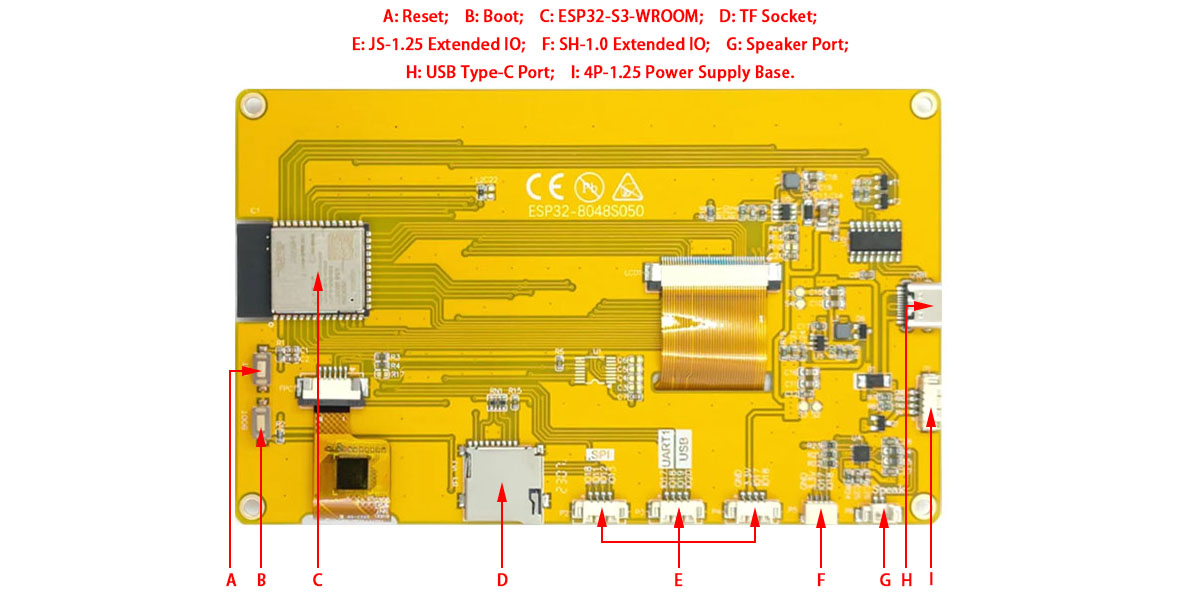

    This LCD module uses ESP32-S3-WROOM-1-N16R8 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 800*480, Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface, Up to 12 IO available, this module supports development in Arduino IDE, ESP IDE, Micropython and Mixly.


      • Product Parameters
      Item Description
      Display Color RGB 262K Color
      SKU ESP32-8048S050C: Capacitive Touch Panel
      ESP32-8048S050N: Without Touch Panel
      Size 5.0 Inch
      Type TFT
      Controller ST7262
      Touch Type Capacitive Touch Panel / Without Touch Panel
      Resolution 800*480(Pixel)
      Module Size 137.00*84.00(mm)
      Effective Display Area 108.00*64.80(mm)
      View IPS (Full Angle)
      Operating temperature -20℃~70℃
      storage temperature -30℃~80℃
      Operating Voltage 5.0V (Support Wireless Power Supply)
      Power consumption About 320MA
      • Features

      >> 5.0-inch color screen, support 16 BIT RGB 65K color display, display rich colors
      >> 800X480 resolution
      >> The sample program has been programmed in the factory and can be plugged in
      >> With TF card slot for easy expansion storage
      >> Provide arduino library functions and sample programs to facilitate rapid secondary development
      >> Lithium battery charging and discharging circuit with overcharging and discharging protection
      >> Support one-click download program
      >> Military-grade process standards, long-term stable work

      • Controller (ESP32-S3-WROOM-1U-N16R8)
