ESP32 Display 4.0-inch 480*480 IPS LCD Display Module Screen ESP32-S3-WROOM-1U-N16R8 WIFI Bluetooth 240MHz 512KB SRAM16MB FLASH ESP32-4848S040 Development in LVGL For 1 Way /3 way 86 Control Box, Arduino IDE, ESP IDE, Micropython, Mixly

Model No.: ESP32-4848S040
Model Size: 480*480
Controller: ESP32-S3-WROOM-1U-N16R8
Touch Type: CTP
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    ESP32 Development Board, standard 4.0-inch TFT screen and CTP, support one-key automatic download, provide LVGL demo and arduino examples.

    To download the USB-TYPE-C program, you need to install the driver for CH340, which is included in the driver package.

    About power supply, it is not recommended to use a laptop USB port, use the USB 3.0 port of a desktop computer instead, because the screen is in WiFi mode and the instantaneous current is relatively high. If the computer still cannot be powered, you can try using a mobile phone charger to power it.
    • Overview

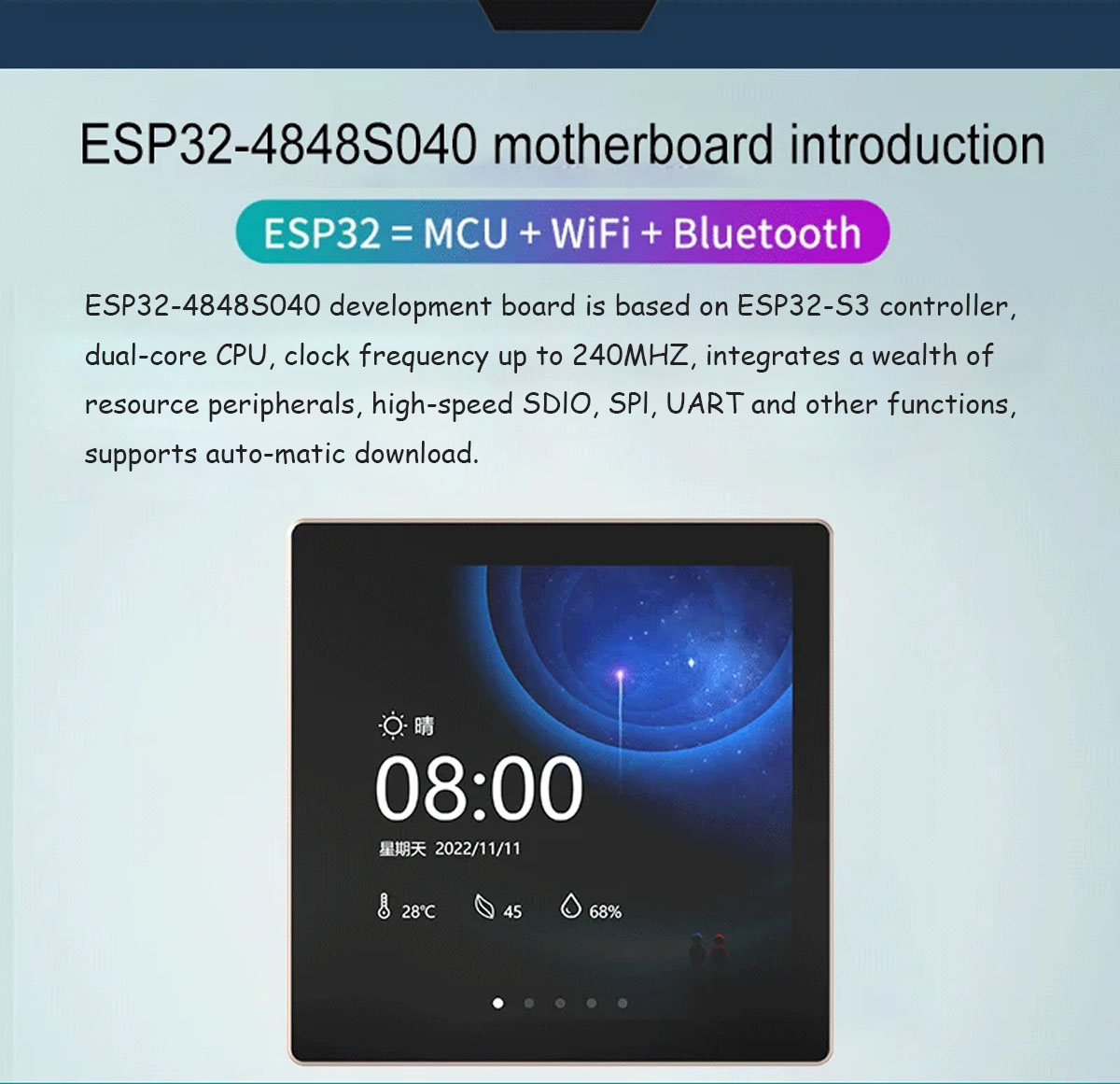

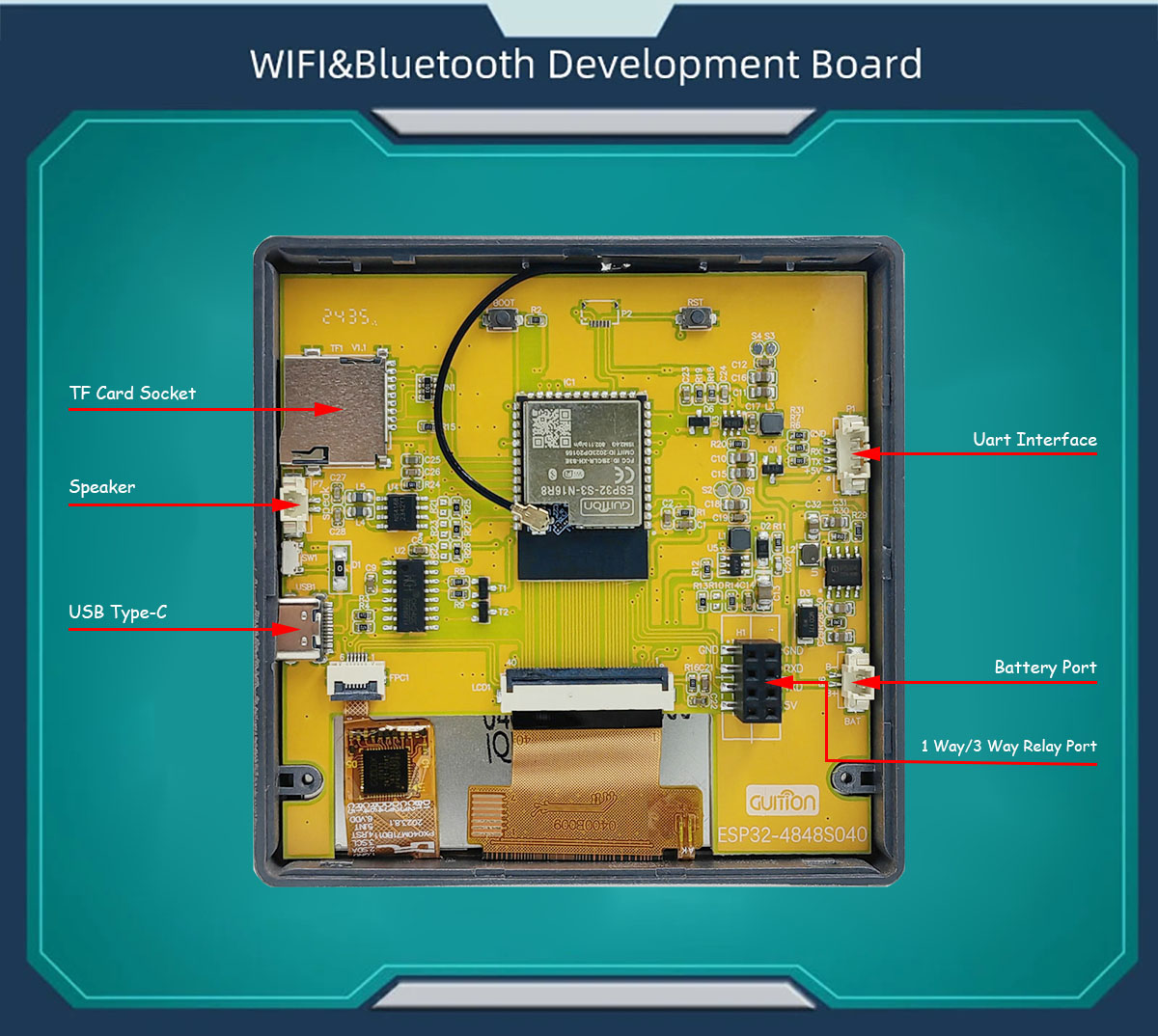

    This LCD module uses ESP32-S3-WROOM-1U-N16R8 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM,Flash size is 16MB, The display resolution is 480*480, Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface, IO Port Interface.

    This module supports development in Arduino IDE, ESP IDE, Micropython and Mixly.
      • Product Parameters
      Item Description
      Display Color RGB 65K Color
      SKU ESP32-4848S040C_I_Y_1: 1 Way Relay
      ESP32-4848S040C_I_Y_3: 3 Way Relay
      Size 4.0 Inch
      Type TFT
      Controller ST7701
      Resolution 480*480(Pixel)
      Module Size 86.50*86.50*37.80(mm)
      Effective Display Area 71.80*70.20(mm)
      View IPS
      Operating temperature -20℃~70℃
      storage temperature -30℃~80℃
      Operating Voltage 5.0V
      Power consumption About 260MA
      • Features

      >> 4.0-inch color screen, support 16 BIT RGB 65K color display, display rich colors
      >> 480X480 resolution
      >> The sample program has been programmed in the factory and can be plugged in
      >> With TF card slot for easy expansion storage
      >> Provide arduino library functions and sample programs to facilitate rapid secondary development
      >> Support one-click download program
      >> Military-grade process standards, long-term stable work

      • Function Description
      Main Controller: ESP32-S3-WROOM-1U-N16R8
