ESP32 Display 3.2-inch 240*320 IPS LCD Display Module Screen ESP32-WROOM-32 with WIFI and Bluetooth 520KB SRAM 4MB FLASH ESP32-2432S032 Development in LVGL, Arduino IDE, ESP IDE, Micropython, Mixly

Model No.: ESP32-2432S032
Model Size: 240*320
Controller: ESP32-WROOM-32
Touch Type: CTP/RTP/NTP
98 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Tips
ESP32 Development Board, standard 3.2-inch TFT screen and CTP/RTP/NTP, support one-key automatic download, provide LVGL demo and arduino examples.
  • Overview
This LCD module uses ESP32-WROOM-32 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB, The display resolution is 240x320, resistive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit.

TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface.

This module supports development in Arduino IDE, ESP IDE, Micropython and Mixly.


    • Product Parameters
    Item Description
    Display Color RGB 65K Color
    SKU Capacitive Touch Panel: ESP32-2432S032C
    Resistive Touch Panel: ESP32-2432S032R
    Without Touch Panel: ESP32-2432S032N
    Size 3.2 Inch
    Type TFT
    Controller ST7789
    Resolution 240*320(Pixel)

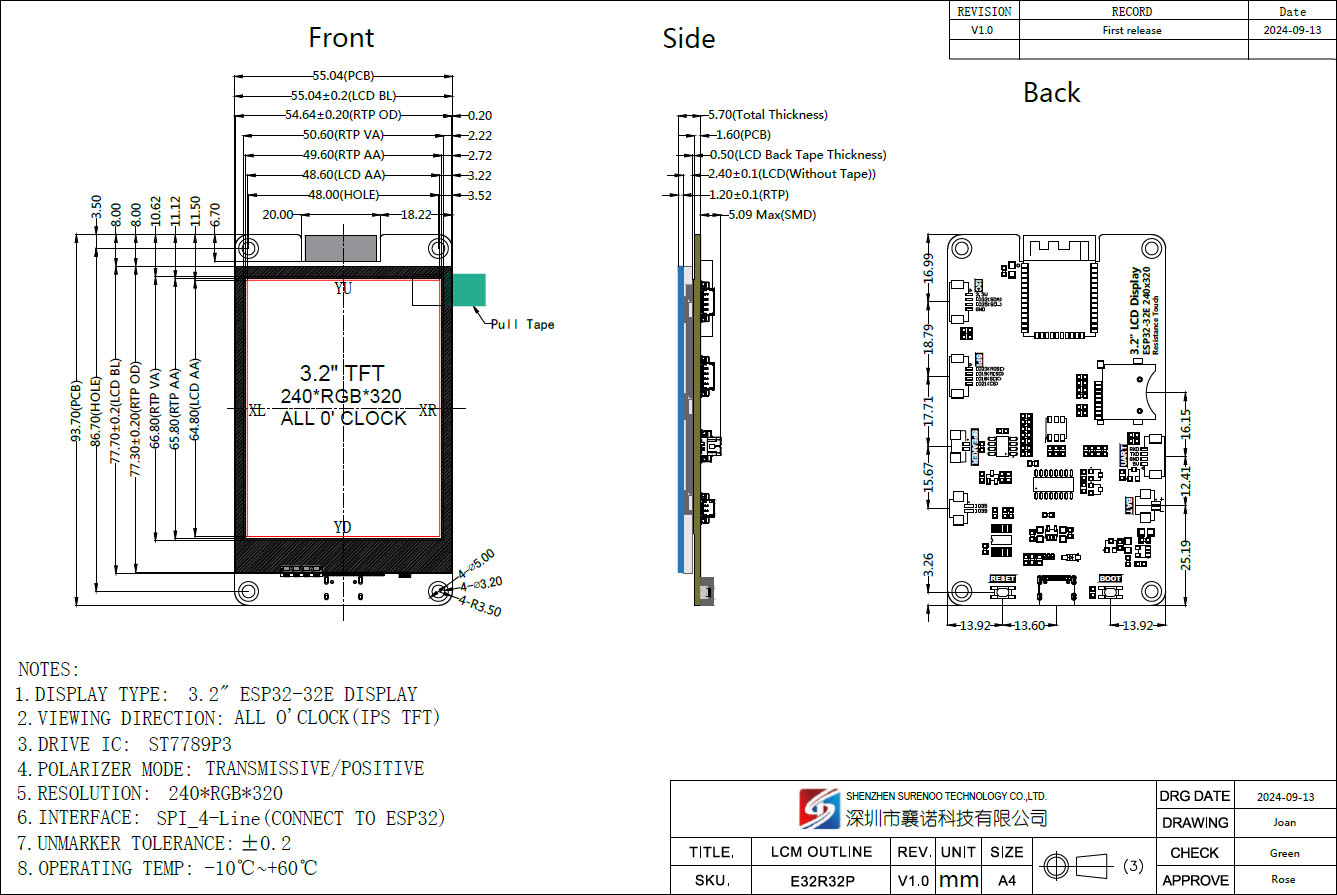

    Module Size 93.70*55.00(mm)
    Effective Display Area 48.60*64.80(mm)
    View IPS
    Operating temperature -20℃~70℃
    storage temperature -30℃~80℃
    Operating Voltage 5.0V
    Power consumption About 140MA
    • Features

    >> 3.2-inch color screen, support 16 BIT RGB 65K color display, display rich colors
    >> 240X320 resolution
    >> The sample program has been programmed in the factory and can be plugged in
    >> With TF card slot for easy expansion storage
    >> Provide arduino library functions and sample programs to facilitate rapid secondary development
    >> Support one-click download program
    >> Military-grade process standards, long-term stable work

    • Function Description
    Main Controller: ESP32-WROOM-32-N4
