Guition ESP32-S3-N16R8 W5 Series 5.0-inch IPS 800*480 high-definition LCD display module with WIFI and Bluetooth ESP32-S3-WROOM-1 8M PSRAM 16M FLASH JC8048W550 Development in Arduino IDE, ESP IDE, Micropython, GUITION

Model No.: JC8048W550
Model Size: 5.0 Inch
Resolution: 800*480
Controller: ESP32-S3-N16R8
Touch Type: CTP/RTP/NTP
98 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Tips
Do not provide the default Firmware source code, But provides LVGL display and touch basic examples.
  • Overview
JC8048W550 uses ESP32-S3-WROOM-1 Module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash size is 16MB, 5.0 inch display resolution is 800*480, NTP (Without Touch Panel), RTP (Resistive Touch Panel), CTP (Capacitive Touch Panel) are optional.

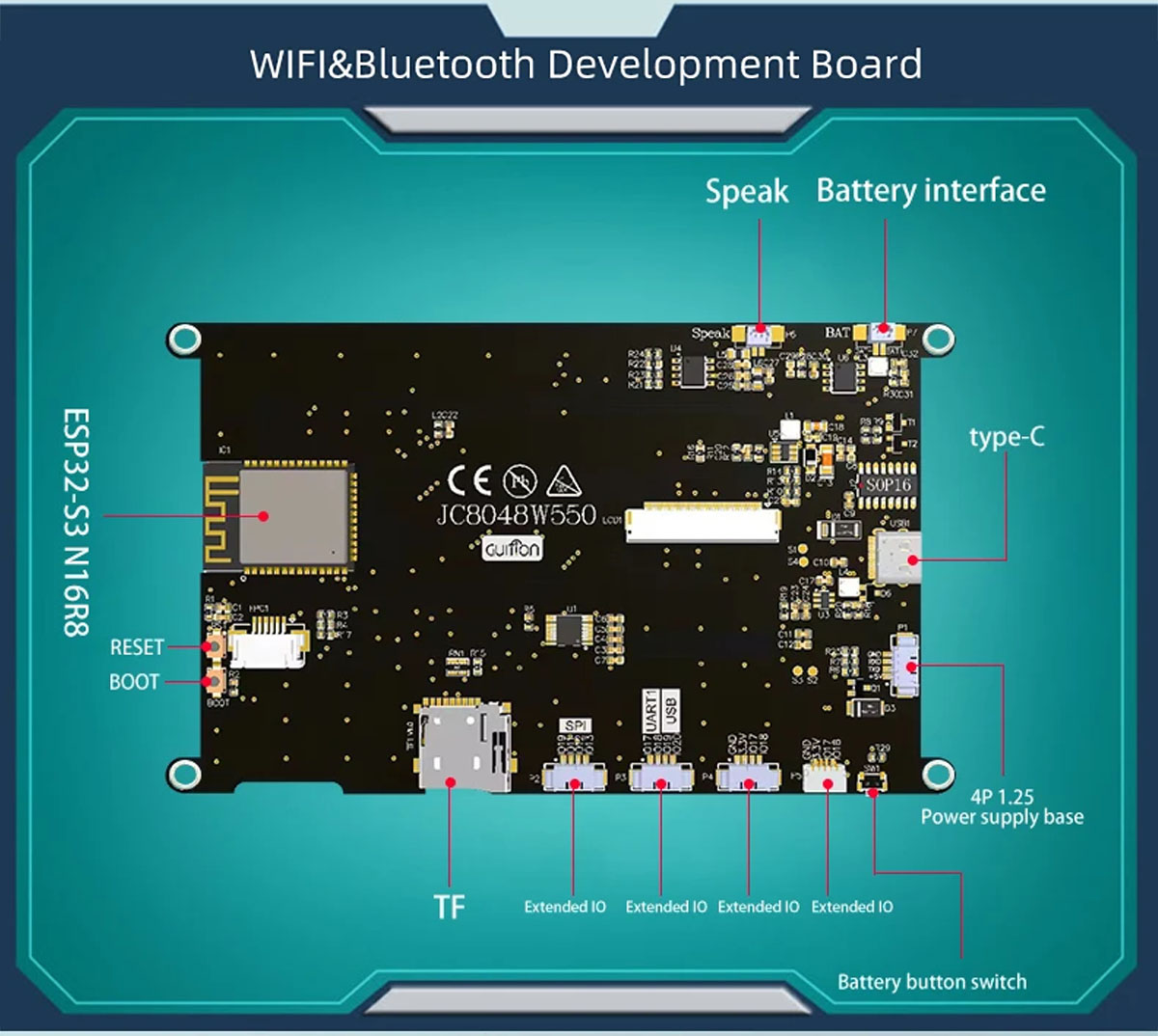

The Module includes LCD display screen, backlight control circuit, touch screen control circuit.

Reserve the TF card interface, Up to 10 IO available, this module supports development in Arduino IDE, ESP IDE, Micropython and GUITION.
    • Product Parameters
    Item Description
    Display Color RGB 65K Color
    SKU Without Touch Panel: JC8048W550N
    Resistive Touch Panel: JC8048W550R
    Capacitive Touch Panel: JC8048W550C
    Size 5.0 Inch
    Type TFT
    Controller ST7262
    Resolution 800*480(Pixel)
    Module Size 134.00*80.00(mm)
    Screw Hole(R1.60) Distance 128.00*74.00(mm)
    Effective Display Area 108.00* 64.80(mm)
    View IPS
    Operating temperature -20℃~70℃
    storage temperature -30℃~80℃
    Operating Voltage 5.0V
    Power consumption About 320MA
    • Features

    >> 5.0-inch color screen, support 16 BIT RGB 65K color display, display rich colors>
    >> 800X480 resolution
    >> The sample program has been programmed in the factory and can be plugged in
    >> With TF card slot for easy expansion storage
    >> Provide arduino library functions and sample programs to facilitate rapid secondary development
    >> Lithium battery charging and discharging circuit with overcharging and discharging protection
    >> Support one-click download program
    >> Up to 10 IOs can be used separately by customers
    >> Military-grade process standards, long-term stable work

    • Controller (ESP32-S3-WROOM-1-N16R8)


    • Function Description
