Surenoo 7.0" 1024*600 3-/4- Wire Serial SPI LT7686 TFT IPS LCD Module Display Screen Capacitive Touch Panel CTP FT5426 for 51 STM32 Dev. Board

WISHLIST
Model No.: SSP0700B_1024600
Model Size: 7.0 Inch
Resolution: 1024*600
Interface: 3-/4- Wire Serial SPI
SPI Controller: LT7686
Touch Type: CTP (GT5426)
19 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    Surenoo 7.0 Inch 3-/4- Wire Serial SPI CTP Touch Display Module, it's standard 20P/2.54 Pin Header solder and 20P/0.5 Connector on Board.
    It's easy to drive it on STM32 51 Dev. Board.
      • Specification
      SSP0700B-1024600-LTP SSP0700B-1024600-CTP SSP0700B-1024600-RTP SSP0700B-1024600-NTP
      LTP CTP RTP NTP
      Larger Capacitive Touch Panel Capacitive Touch Panel Resistive Touch Panel Without Touch Panel

      Click Image to Zoom Out

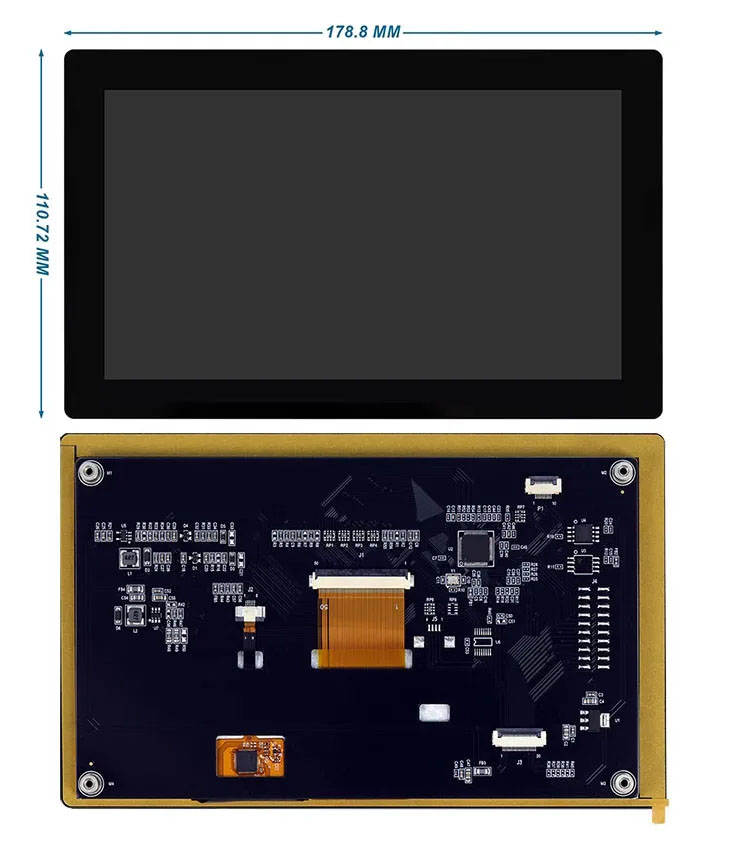

      178.80×110.72×7.98
      Click Image to Zoom Out

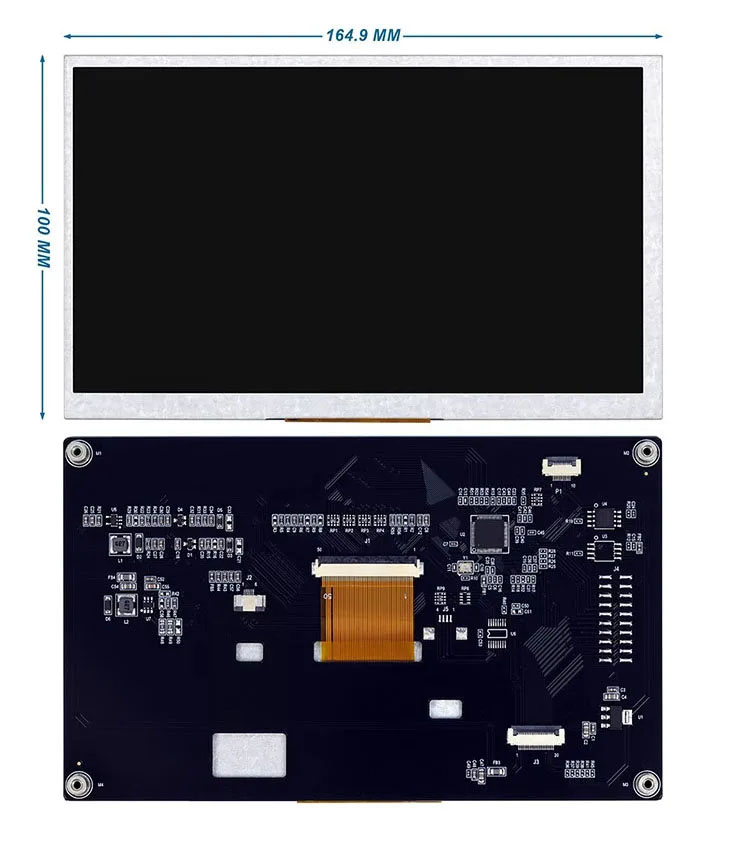

      164.90×100.00×7.98
      Click Image to Zoom Out

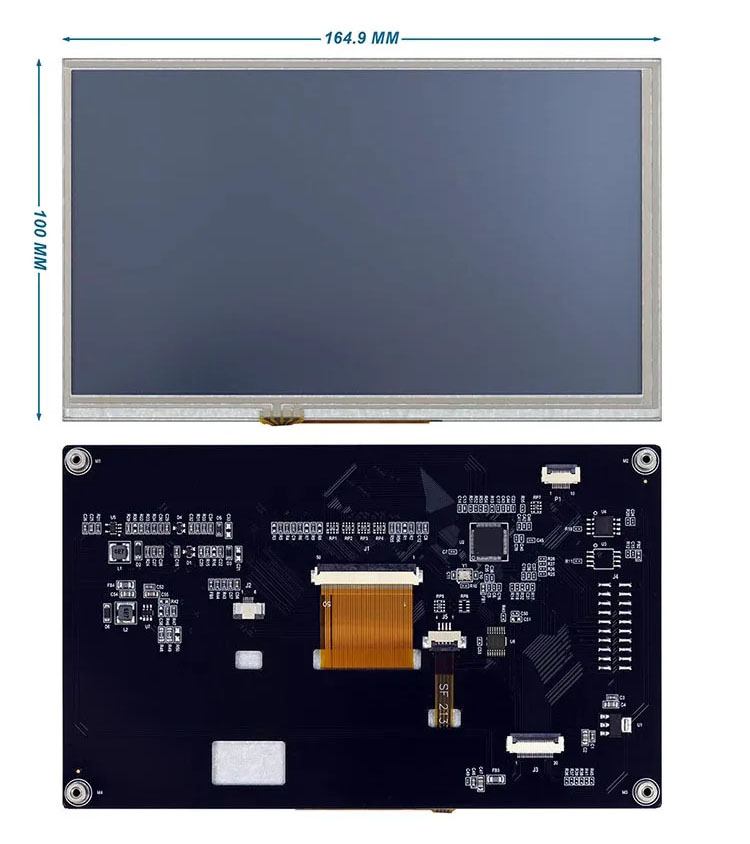

      164.90×100.00×7.98
      Click Image to Zoom Out
      164.90×100.00×5.98


      Item of general information Contents Unit
      LCD Display Size (Diagonal) 7.0" Inch
      Module Structure LCD + TOUCH + PCB
      (NTP Version without TOUCH Struction)      		  -
      LCD Display Type TFT/TRANSMISSIVE  -
      LCD Display Mode Normally Black  -
      Recommended Viewing Direction ALL VIEW O'Clock
      Module Size (W×H×T)
      		 LTP 178.80×110.72×7.98
      		 MM
      CTP 164.90×100.00×7.98
      RTP 164.90×100.00×7.98
      NTP 164.90×100.00×5.98
      Model No. (Datasheet Download) SSP0700B_1024600 -
      Active Area (W×H) 154.21X85.92 MM
      Resolution 1024(RGB)×600 Pixel
      Pixel Pitch (W×H) 0.1506X0.1432 MM
      Interface Type 3-/4- Wire SPI Interface (LT7686) -
      Module Input Voltage 5.0V V
      Module Power Consumption - mA
      Color Numbers 262K  -
      Backlight Type  White LED  -

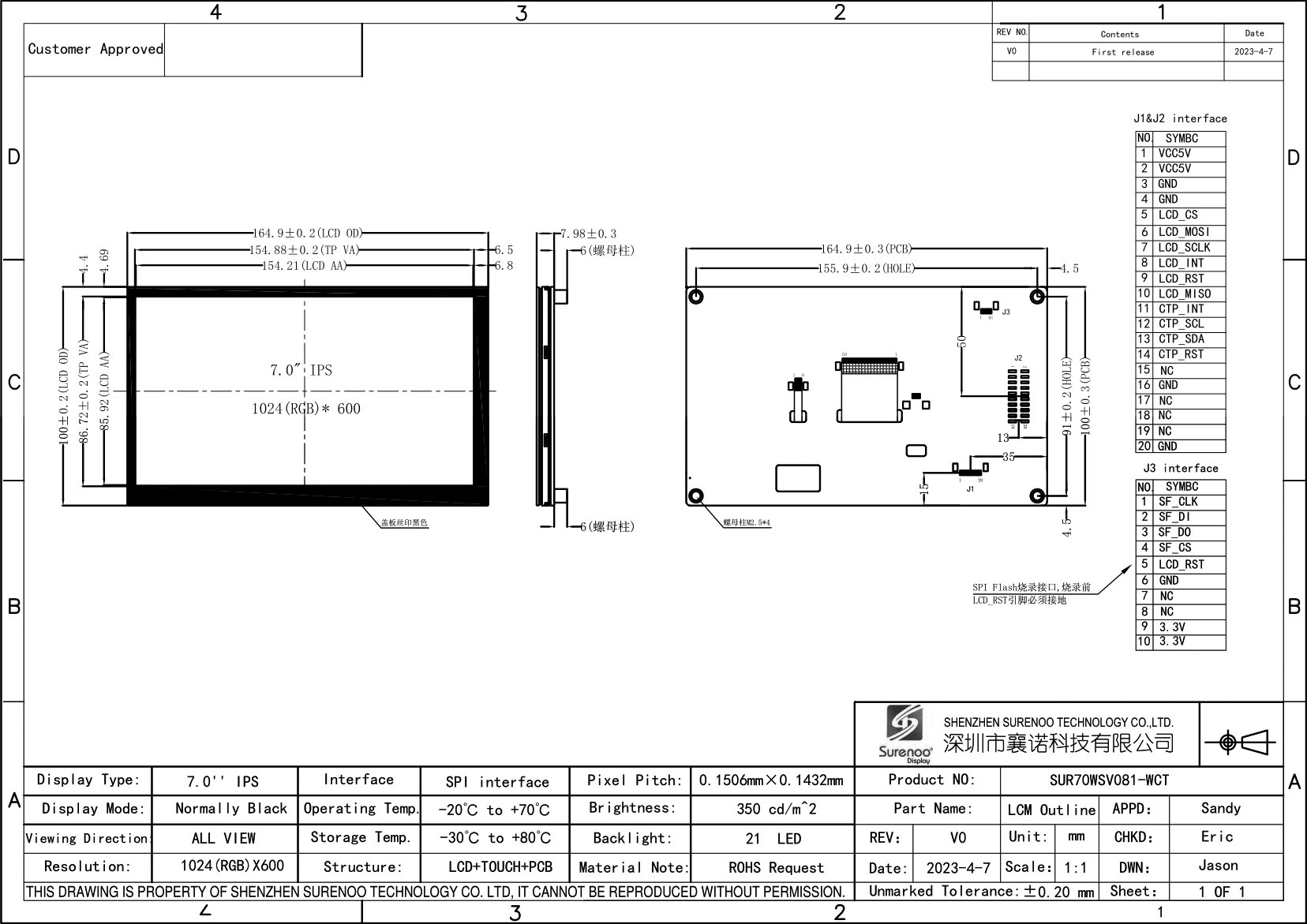

      • Outline Drawing
      We supply CTP Drawing for reference only, the drawing for other version you can check size in the specifiction.

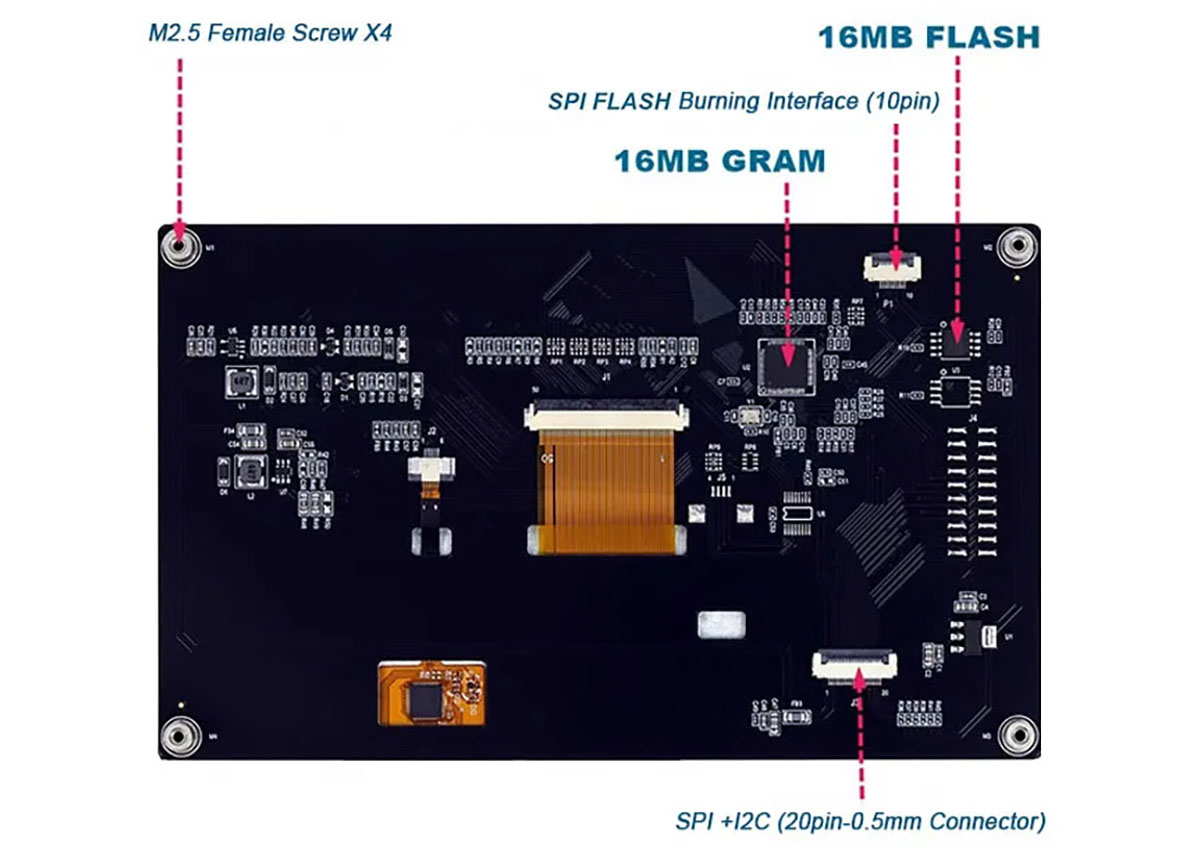

      • Interface
      1. J1 & J2 Module Interface Description
      Pin No. Symbol I/O Description
      1-2 VCC5V Power Supply Module Power Supply (5V Typ.)
      3, 4, 16, 20 GND
      		 Power Supply Power Ground
      5 LCD_CS I Chip Select Pin for 3-Wire Serial I/F
      6 LCD_MOSI
      		 I Data Input Pin of 3-Wire SPI I/F
      7 LCD_SCLK I Clock of 3-Wire Serial I/F
      8 LCD_INT O The Interrupt Output for host to indicate the status
      9 LCD_RST I This is an Active Low Reset Pin for LCD
      10 LCD_MISO O Bi-direction Data Pin of 3-Wire SPI I/F
      11 CTP_INT
      		 O CTP External Interrupt to the host
      12 CTP_SCL I CTP I2C Clock Input
      13 CTP_SDA I/O CTP I2C Data Input and Output
      14 CTP_RST I CTP External Reset Signal, Low is Active
      15, 17-19 NC
      		 - No Connection

      2. J3 Interface Description (SPI Flash Burning Interface)
      Pin No. Symbol I/O Description
      1 SF_CLK I Serial Clock Input
      2 SF_DI I Serial Data Input
      3 SF_DO O Serial Data Output
      4 SF_CD
      		 I Chip Selection
      5 LCD_RST I LCD Reset Signal, This Pin must be Pull Low
      6 GND Power Supply Power Ground
      7-8 NC - No Connection
      9-10 3.3V Power Supply Power Supply for the SPI Flash (3.3V)
      • Testing on Surenoo GD32F303RCT6 Development Board

      Note:
      "Surenoo Mini/Micro GD32 Development Board" is NOT inclduing in the package.
      If you need it, please contact Surenoo Customer Servicer to get purchase link.
