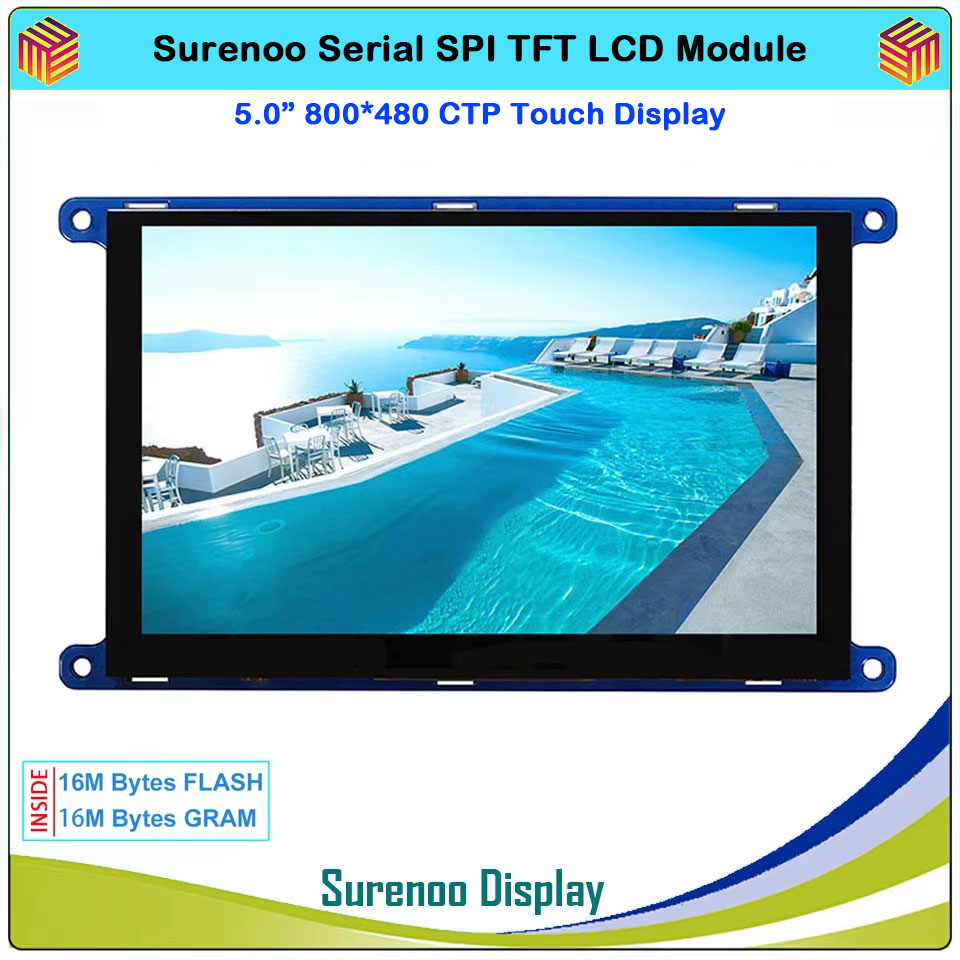

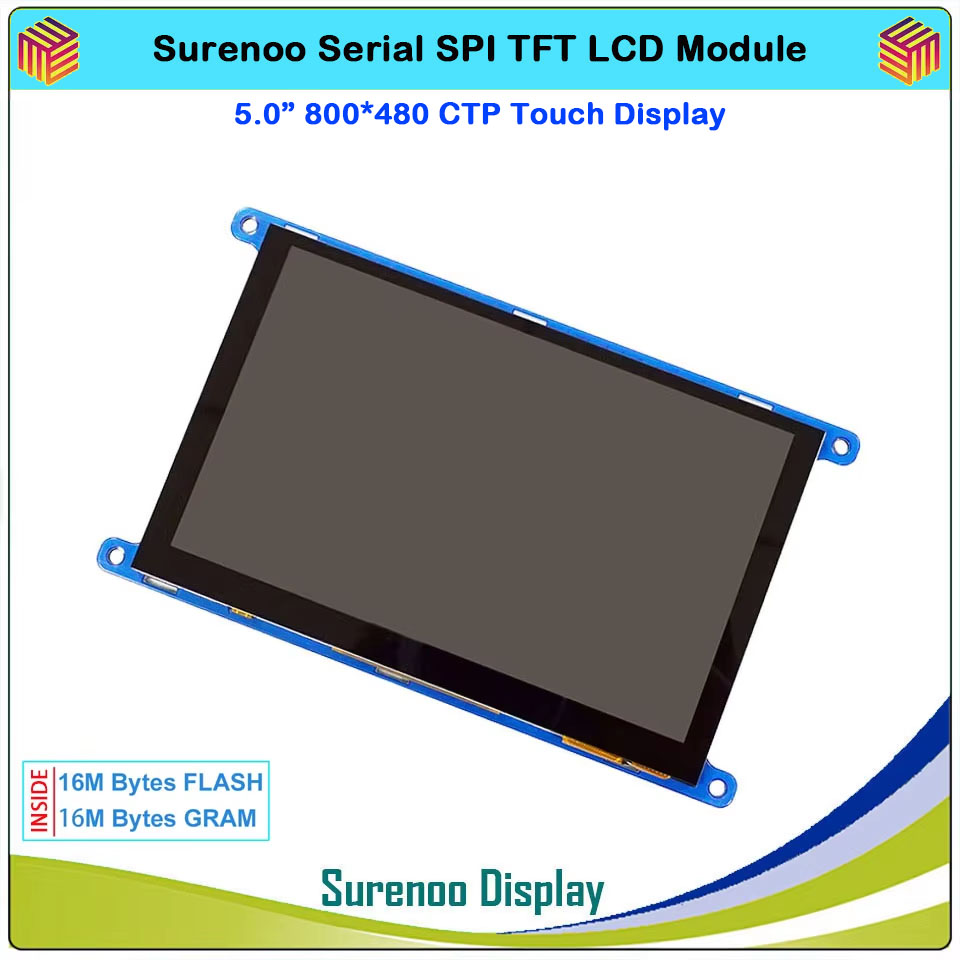

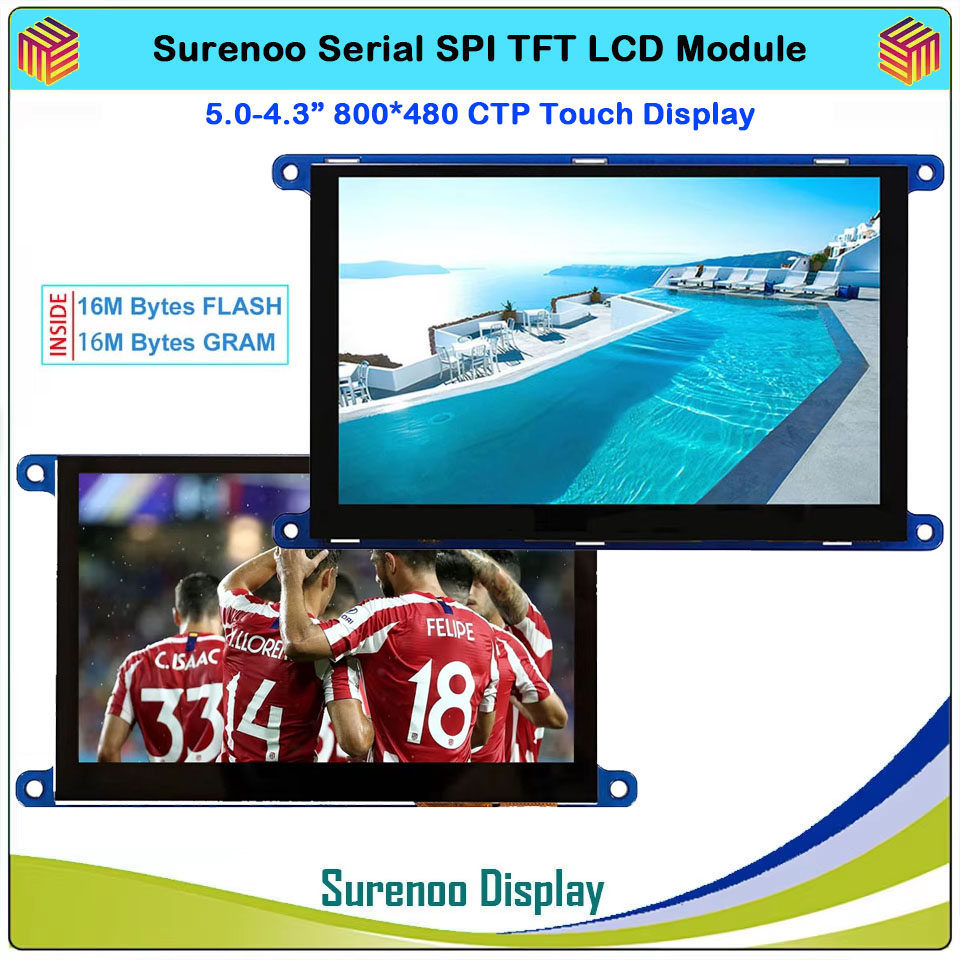

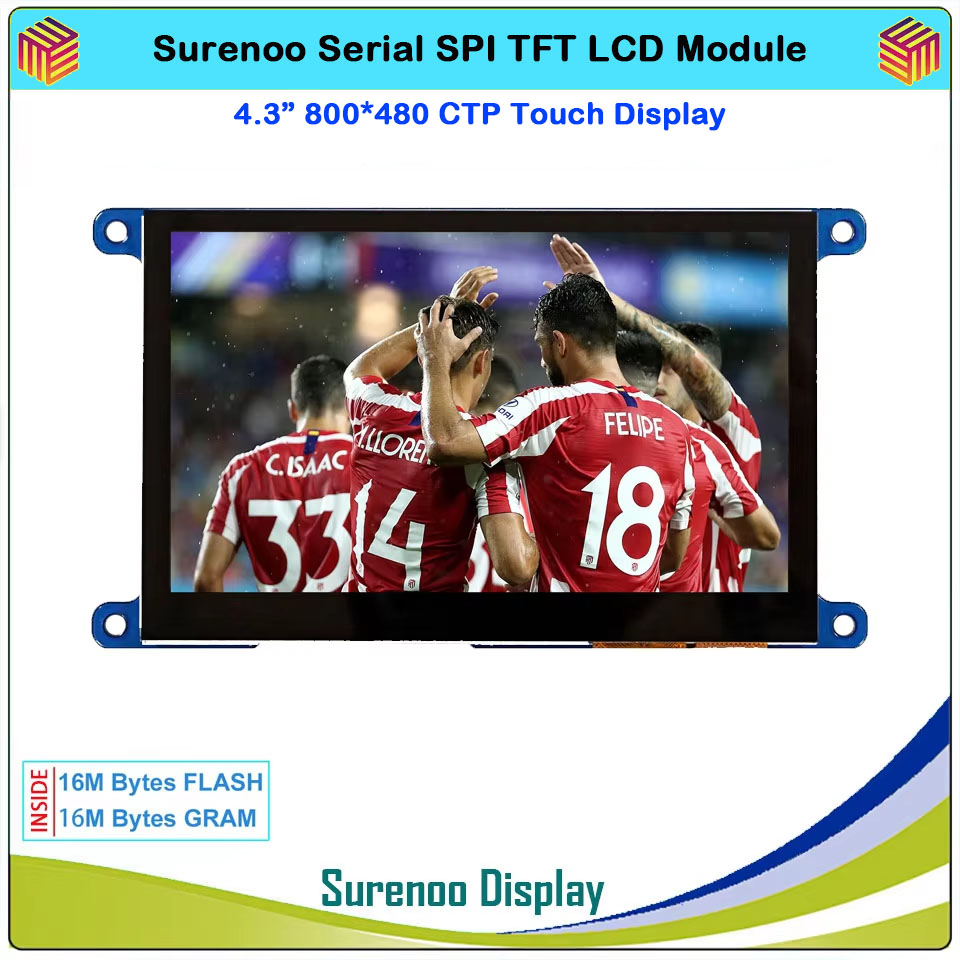

Surenoo 4.3-5.0" 800*480 3-Wire Serial SPI LT7680A TFT LCD Module Display Screen Capacitive Touch Panel CTP GT911 GT1151 for 51 STM32 Dev. Board

Model No.: SSP0500A_800480/SSP0430A_800480
Model Size: 5.0 Inch / 4.3 Inch
Resolution: 800*480
Interface: 3-Wire Serial SPI
SPI Controller: LT7680A
Touch Type: CTP (GT911/GT1151)
19 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

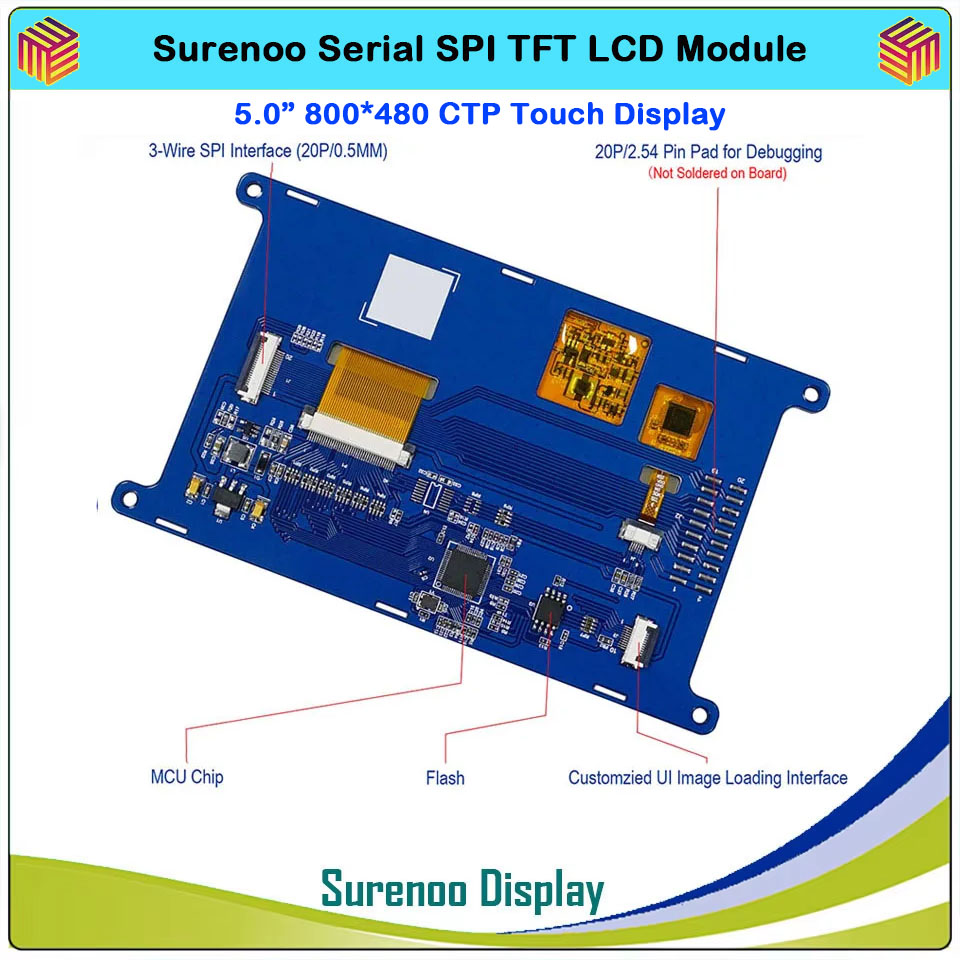

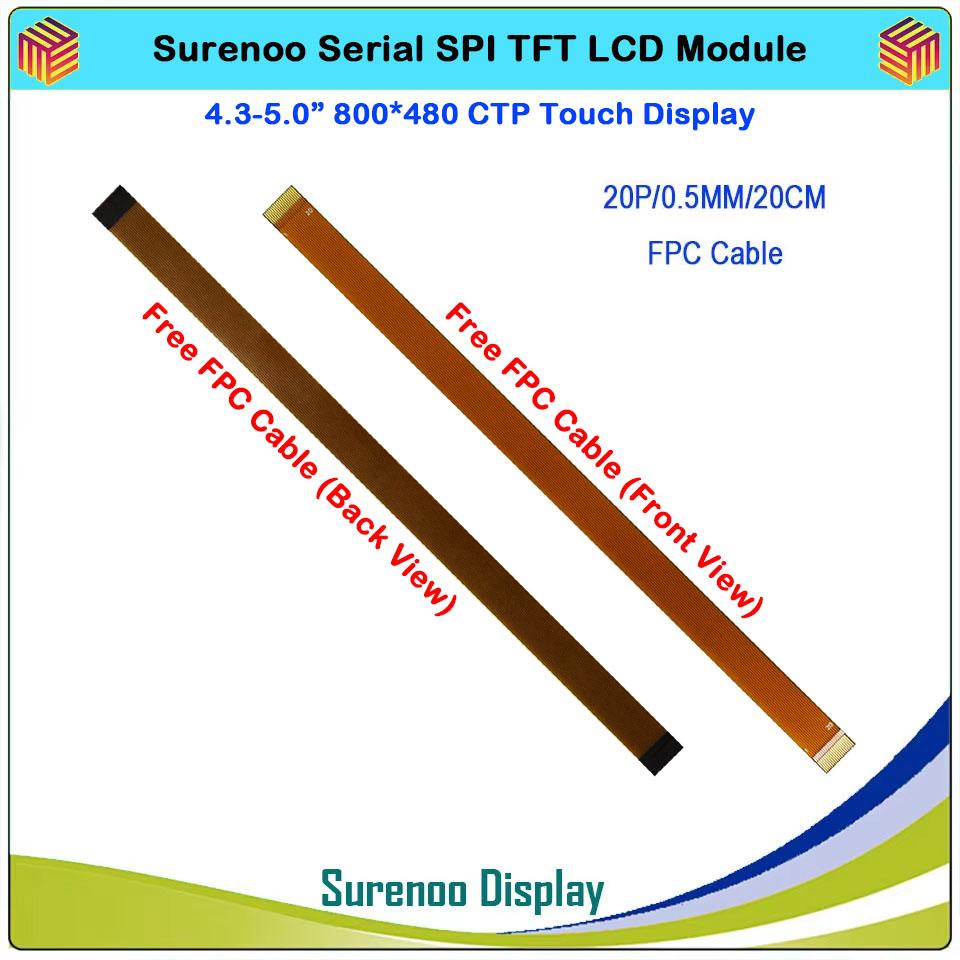

    Surenoo 5.0-4.3 Inch 3-Wire Serial SPI CTP Touch Display Module, it's standard 20P/2.54 Pin Header solder and 20P/0.5 Connector on Board.
    It's easy to drive it on STM32 51 Dev. Board.
      • Specification
      Item of general information Contents Unit
      LCD Display Size (Diagonal) 5.0 (TN) 4.3 (IPS) Inch
      Module Structure LCD + C-TOUCH + PCB  -
      LCD Display Type TFT/TRANSMISSIVE  -
      LCD Display Mode Normally Black  -
      Recommended Viewing Direction 12:00
      		 ALL VIEW O'Clock
      Gray Inversion Direction 6:00
      		 ALL VIEW O'Clock
      Module Size (W×H×T) 137.30X80.97X7.28
      		 122.00X69.09X6.75
      		 MM
      Model No. (Datasheet Download) SSP0500A-800480 SSP0430A-800480 -
      Active Area (W×H) 108.00X64.80 95.04X53.86 MM
      Resolution 800(RGB)×480 800(RGB)×480 Pixel
      Pixel Pitch (W×H) 0.1350X0.1350 0.1188X0.1122 MM
      Interface Type LCD 3-Wire SPI Interface (LT7680A) -
      Touch (CTP) IIC Interface (5,0: GT911; 4.3" GT1151)
      		 -
      Module Input Voltage 5.0V V
      Module Power Consumption - mA
      Color Numbers 262K  -
      Backlight Type  White LED  -
      • Outline Drawing
      1. SSP0500A_800480


      2. SSP0430A_800480

      • Interface

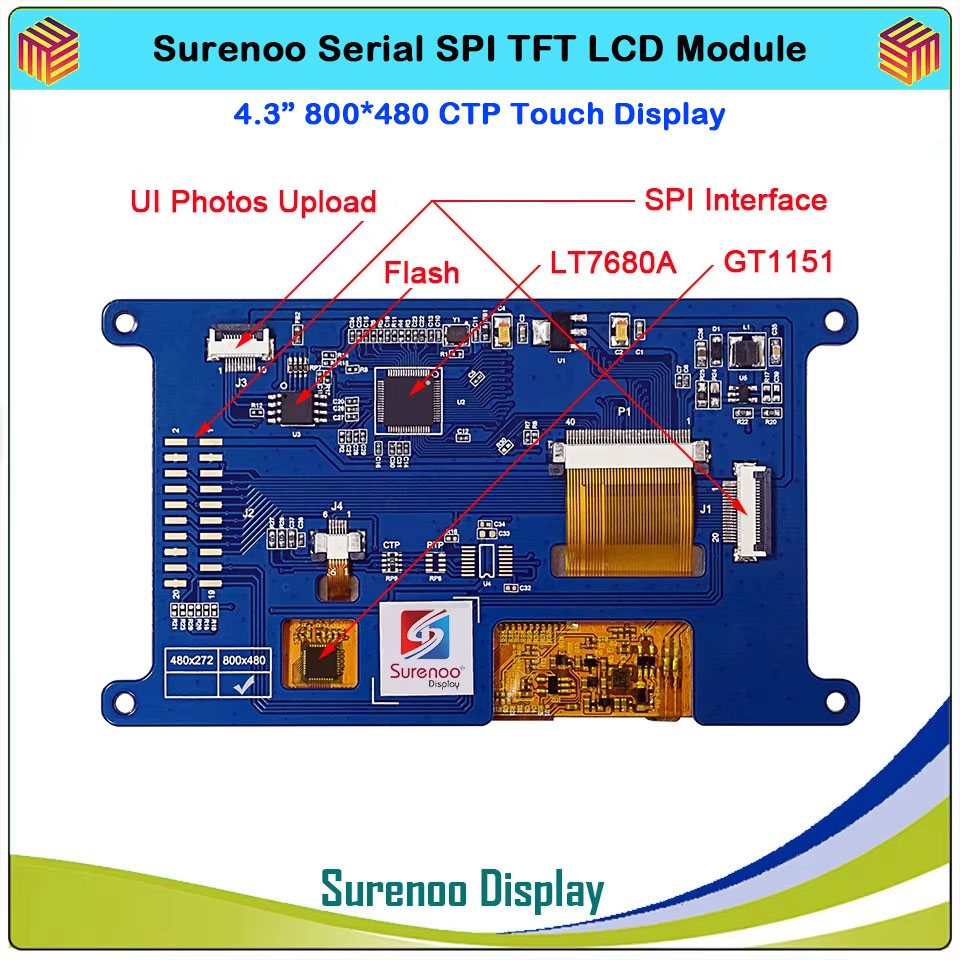

      1. J1 & J2 Module Interface Description
      Pin No. Symbol I/O Description
      1-2 VCC5V Power Supply Module Power Supply (5V Typ.)
      3, 4, 16, 20 GND
      		 Power Supply Power Ground
      5 LCD_CS I Chip Select Pin for 3-Wire Serial I/F
      6 LCD_MOSI
      		 I Data Input Pin of 3-Wire SPI I/F
      7 LCD_SCLK I Clock of 3-Wire Serial I/F
      8 LCD_INT O The Interrupt Output for host to indicate the status
      9 LCD_RST I This is an Active Low Reset Pin for LCD
      10 LCD_MISO O Bi-direction Data Pin of 3-Wire SPI I/F
      11 CTP_INT
      		 O CTP External Interrupt to the host
      12 CTP_SCL I CTP I2C Clock Input
      13 CTP_SDA I/O CTP I2C Data Input and Output
      14 CTP_RST I CTP External Reset Signal, Low is Active
      15, 17-19 NC
      		 - No Connection

      2. J3 Interface Description (SPI Flash Burning Interface)
      Pin No. Symbol I/O Description
      1 SF_CLK I Serial Clock Input
      2 SF_DI I Serial Data Input
      3 SF_DO O Serial Data Output
      4 SF_CD
      		 I Chip Selection
      5 LCD_RST I LCD Reset Signal, This Pin must be Pull Low
      6 GND Power Supply Power Ground
      7-8 NC - No Connection
      9-10 3.3V Power Supply Power Supply for the SPI Flash (3.3V)
