Surenoo 4.0" 480*320 / 3.5" 480*320 / 3.2" 320*240 / 2.8" 320*240 / 2.4" 320*240 Serail SPI TFT LCD Module Display Screen Resistive Touch Panel Optional for Arduino 51 STM32 Dev. Board

Model No.: SSP0XX0A_480320/320240
Resolution: 480*320 / 320*240
Interface: Serial SPI
Controller: ST7796 / ILI9488 / ILI9341
35 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
Surenoo 4.0-3.5-3.2-2.8-2.4 Inch Serial SPI Display Module TN Series, RTP & NTP is Optional for your design, It's standard 14P/2.54 Pin Header solder on Board.
    • Specification
    Item Parameter
    Manufacturer Surenoo
    Display Type Serial SPI Display Module
    Continuity Supply More than 10 years
    Diagonal Size 4.0“ 3.5“ 3.2“ 2.8“ 2.4“
    Part No. (LCD Wiki) SSP0400A_480320 SSP0350A_480320 SSP0320A_320240 SSP0280A_320240 SSP0240A_320240
    Display Format 480*320 480*320 320*240 320*240 320*240
    Display Type TN TN TN TN TN
    Display Color RGB 65K Color RGB 65K Color RGB 65K Color RGB 65K Color RGB 65K Color
    Interface Serial SPI Serial SPI Serial SPI Serial SPI Serial SPI
    Pins 14P/2.54 14P/2.54 14P/2.54 14P/2.54 14P/2.54
    Controller ST7796 ILI9488 ILI9341 ILI9341 ILI9341
    Voltage 3.3-5.0V 3.3-5.0V 3.3-5.0V 3.3-5.0V 3.3-5.0V
    Outline Dimension 61.74X108.04 MM 56.34X98.00 MM 55.04X89.30 MM 50.00X86.00 MM 42.72X77.18 MM
    Active Area 55.68X83.52 MM 48.96X73.44 MM 48.60X64.80 MM 43.20X57.60 MM 36.72X48.96 MM
    Touch Panel Optional RTP
    (XPT2046)    		 NTP RTP
    (XPT2046)    		 NTP RTP
    (XPT2046)    		 NTP RTP
    (XPT2046)    		 NTP RTP
    (XPT2046)    		 NTP
    SKU MSP4021 MSP4020 MSP3520 MSP3521 MSP3218 MSP3217 MSP2807 MSP2806 MSP2402 MSP2401
    Operating Temperature
    -20℃~60℃
    Storage Temperature
    -30℃~70℃
    • Outline Drawing

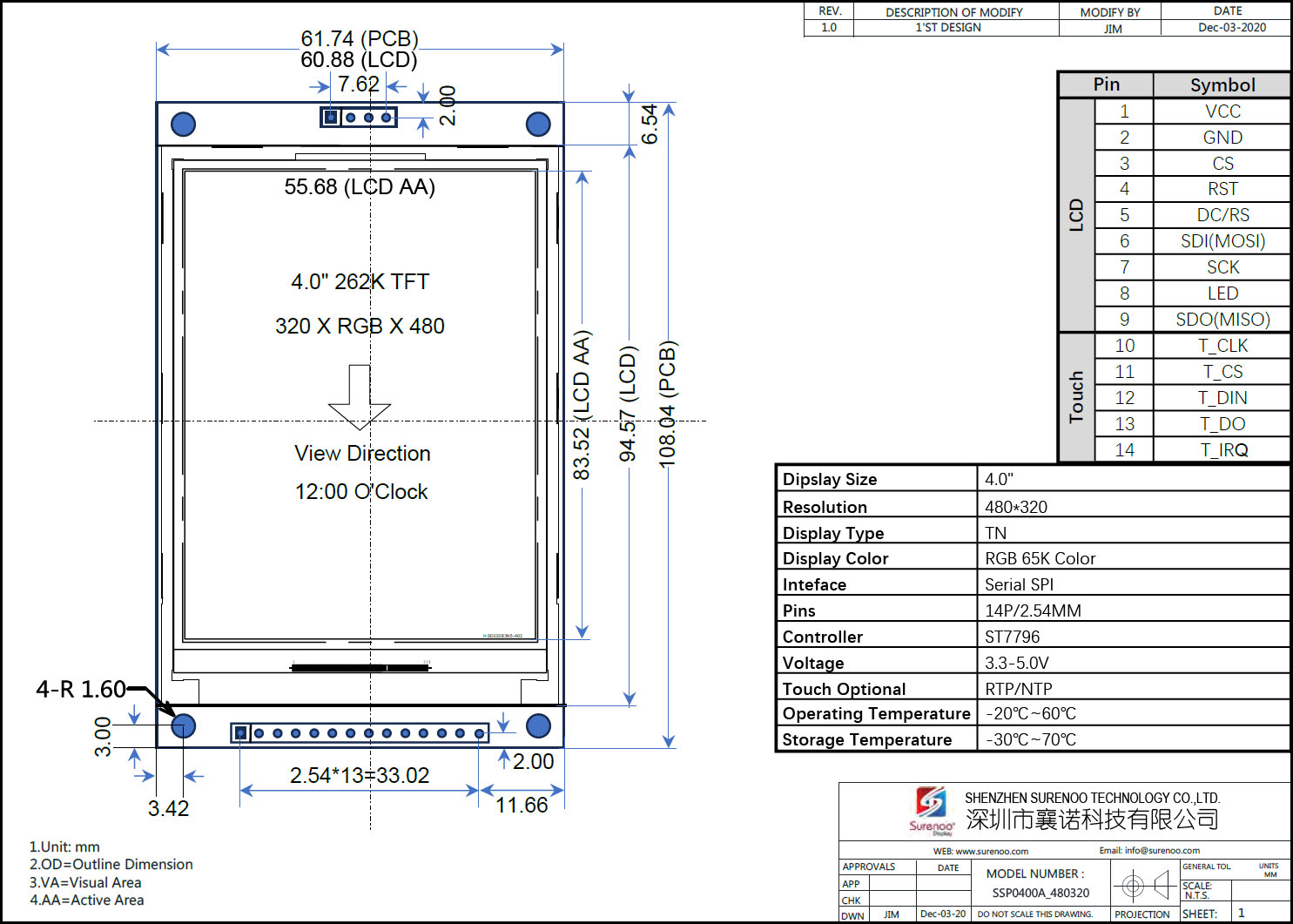

    1. SSP0400A_480320

    2. SSP0350A_480320

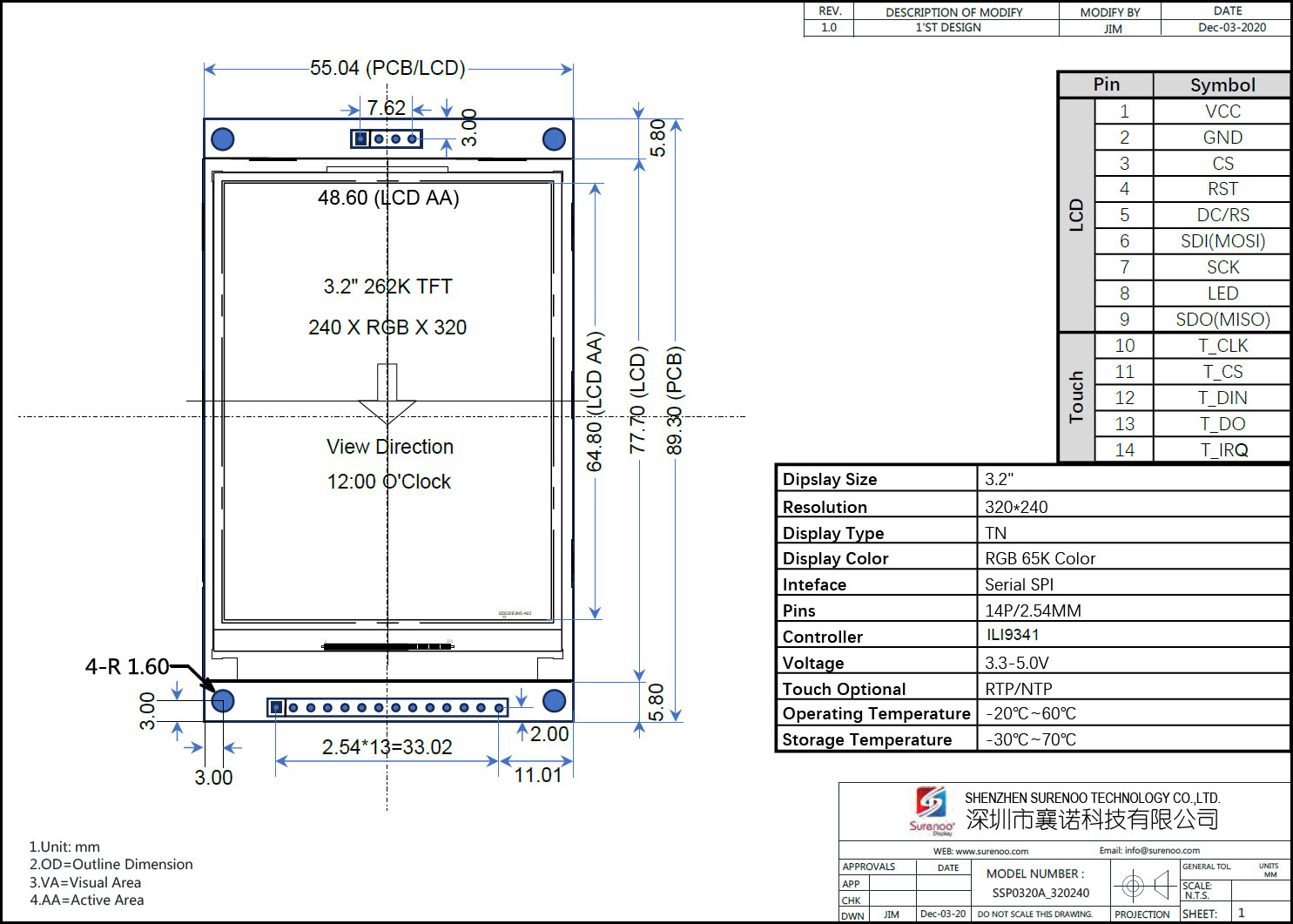

    3. SSP0320A_320240

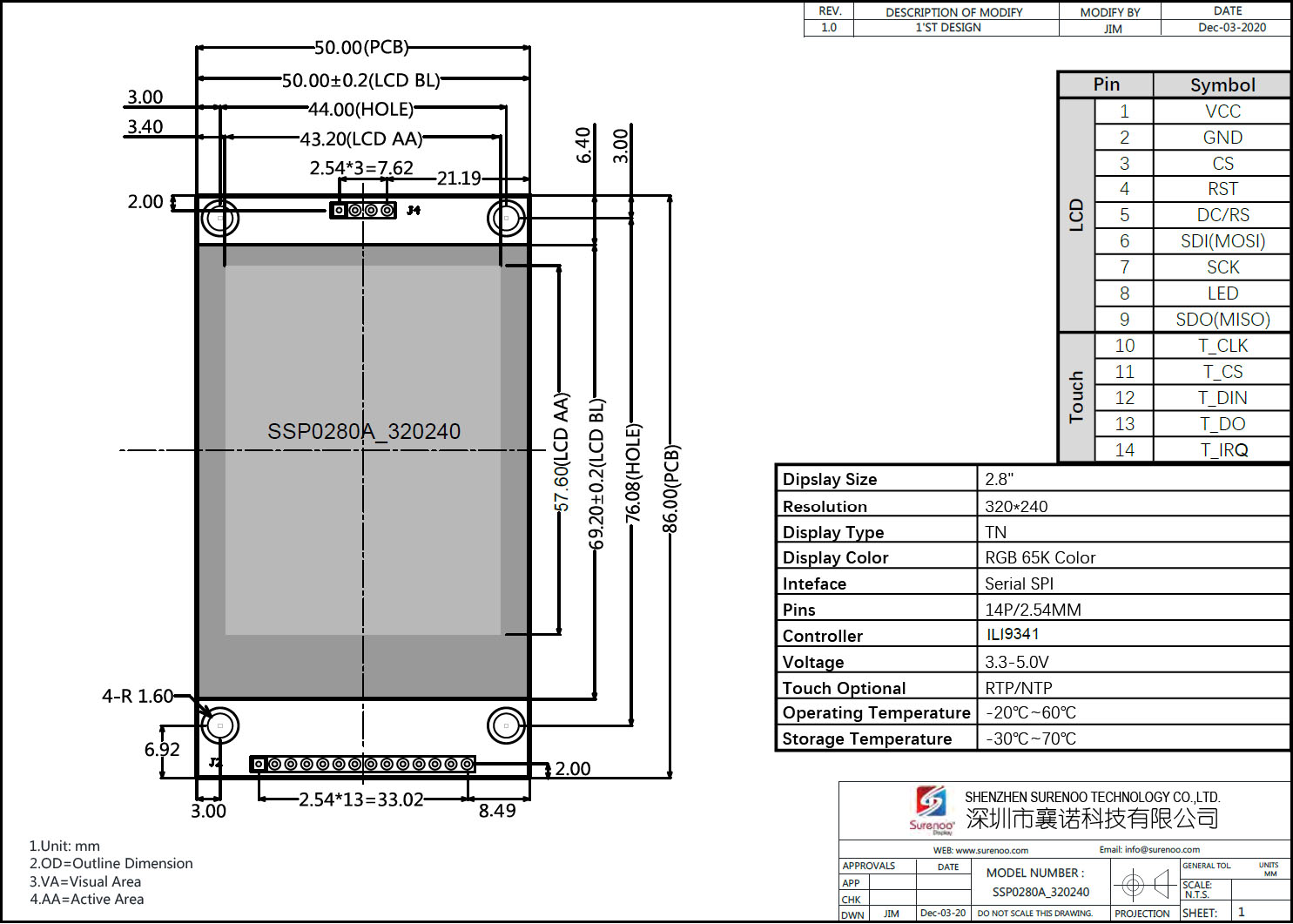

    4. SSP0280A_320240

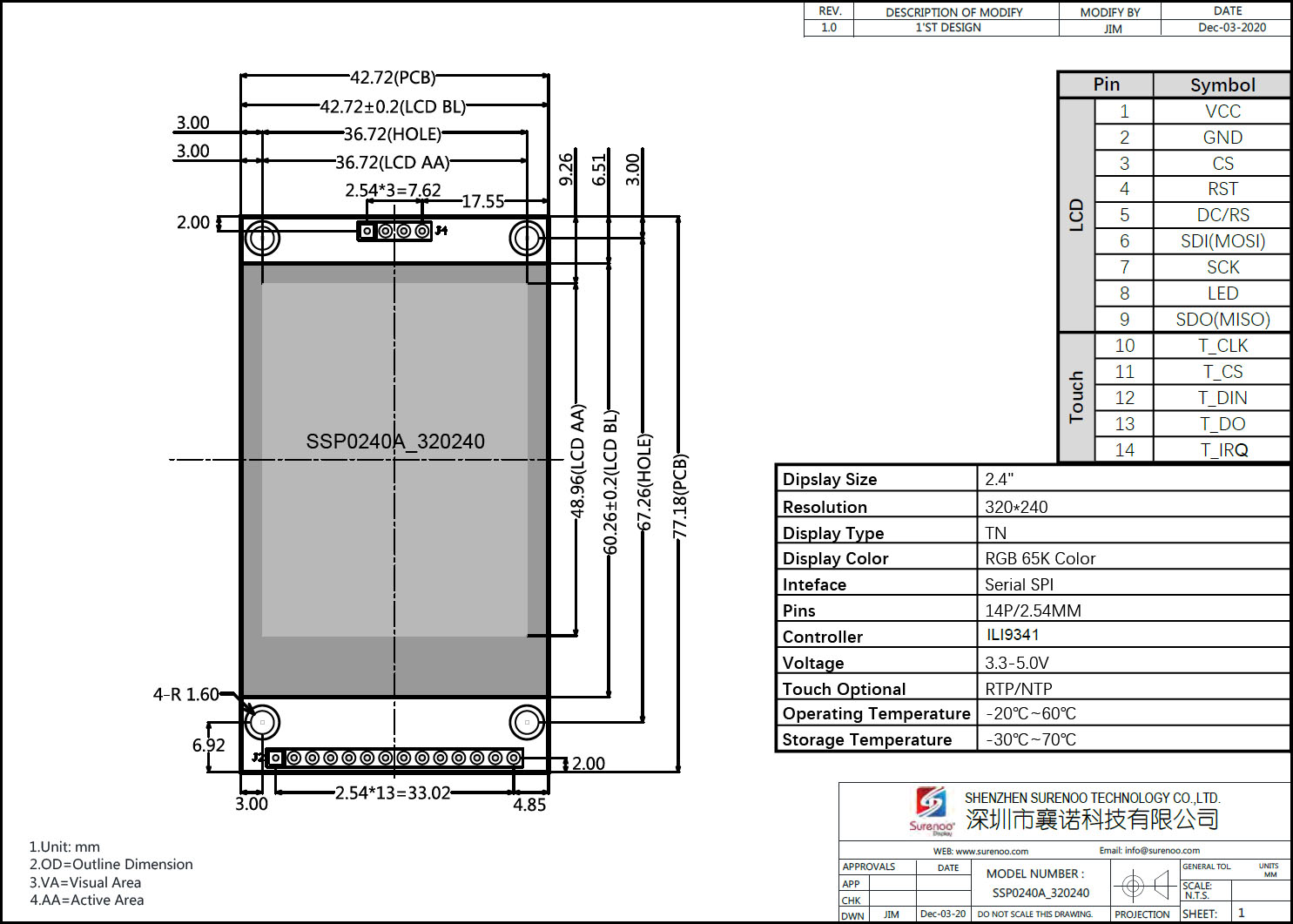

    5. SSP0240A_320240

    • Interface
    Pin No. Symbol Description
    1 VCC Power Input (3.3-5.0V)
    2 GND
    		 Ground
    3 CS LCD Chip Select Signal, Low Level Enable
    4 Reset
    		 LCD Reset Signal, Low Level Enable
    5 DC/RS LCD Register / Data Selection Signal, High Level: Register, Low Level: Data
    6  SDI (MOSI) SPI Bus Write Data Signal
    7 SCK SPI Bus Clock Signal
    8 LED Backlight Control, High Level Lighting, If not Controlled, Connect 3.3V always Bright
    9  SDO (MISO)
    		 SPI Bus Read Data Signal, If you do not need to the read function, you can not connect it
    The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them.
    10 T_CLK Touch SPI Bus Clock Signal
    11 T_CS Touch Chip Select Signal, Low Level Enable
    12 T_DIN Touch SPI Bus Input
    13 T_DO
    		 Touch SPI Bus Output
    14 T_IRQ Touch Interrupt Signal, Low Level when touch is detected
