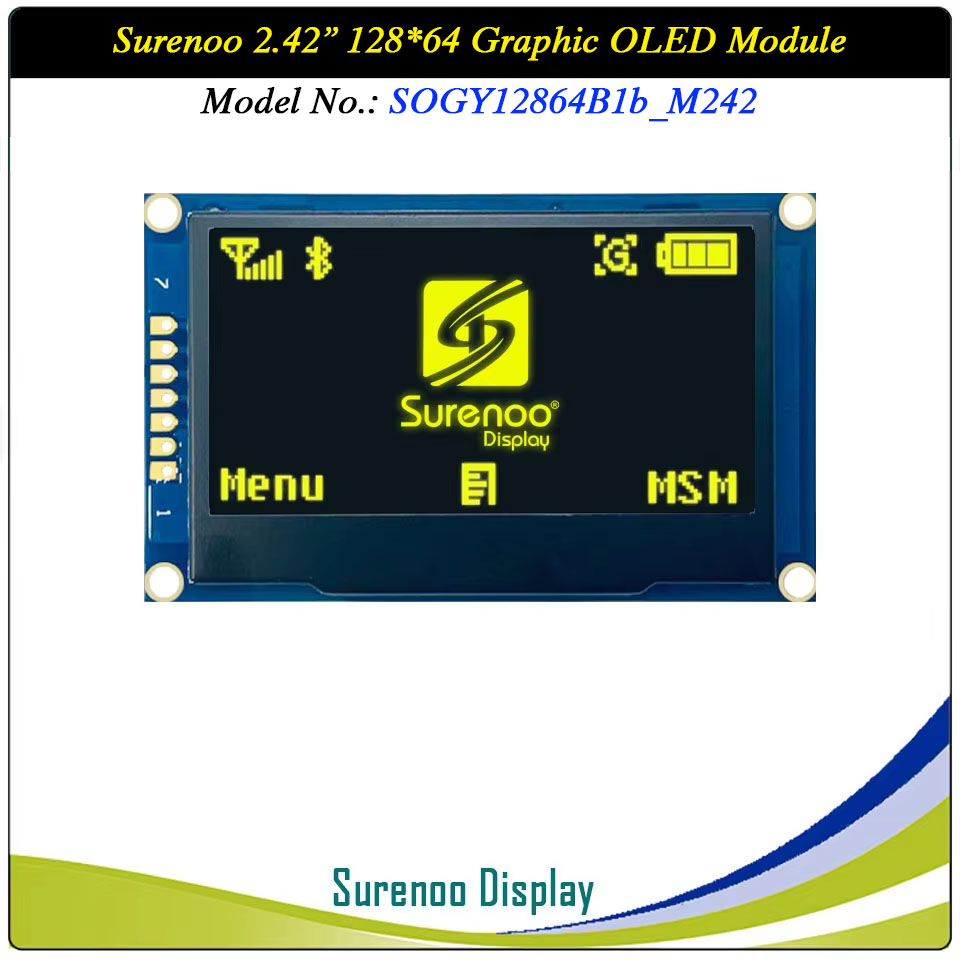

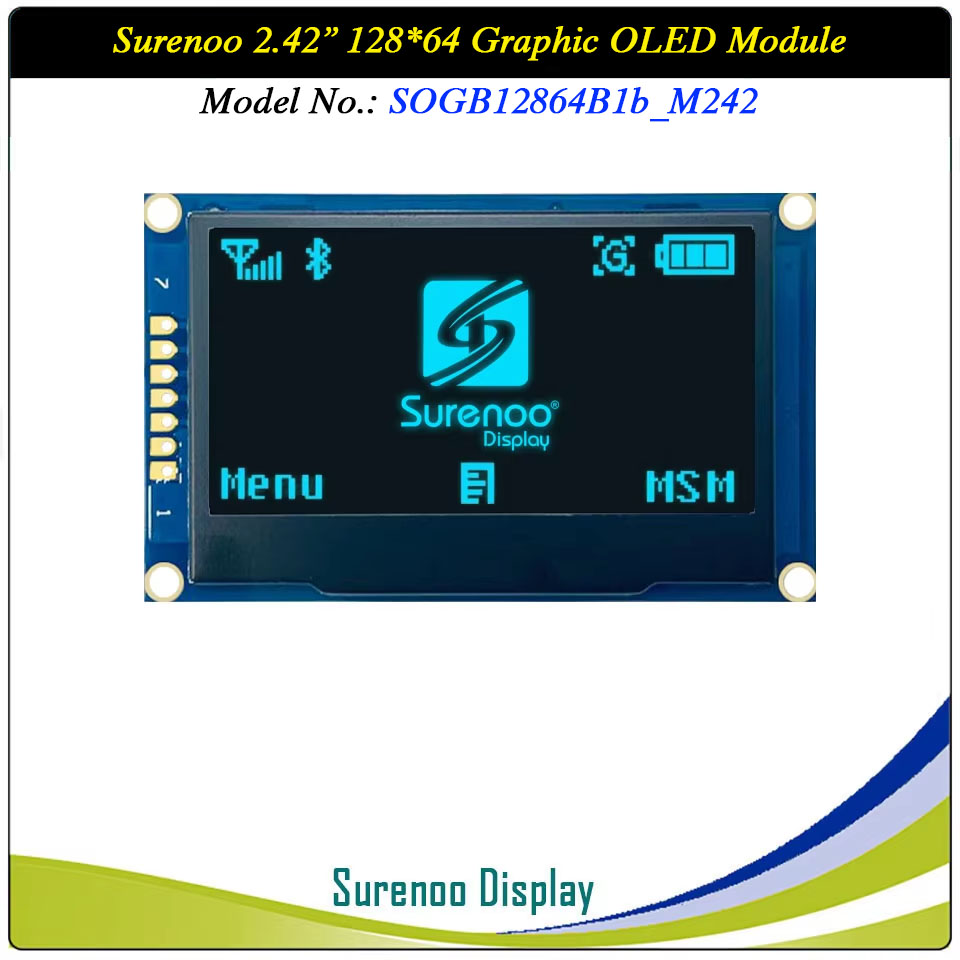

Surenoo Graphic OLED Module 2.42" 12864 128*64 128X64 Graphic LCD Module Display Screen Panel PM-OLED 4-Wire Serial SPI IIC I2C SSD1309 Controller SOG12864B1b_M242
Surenoo Graphic OLED Module 2.42" 12864 128*64 128X64 Graphic LCD Module Display Screen Panel PM-OLED 4-Wire Serial SPI IIC I2C SSD1309 Controller SOG12864B1b_M242
Display Size: 2.42"
Model No.: SOG1286B1b_M242
Display Format: 128*64 Dots
Outline: 72.00X43.00MM
Controller: SSD1309 or Equal
Model No.: SOG1286B1b_M242
Display Format: 128*64 Dots
Outline: 72.00X43.00MM
Controller: SSD1309 or Equal
48 sold
Quantity
Detail
Customer Reviews
- Overview
It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.040Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic OLED Module |
| Continuity Supply | More than 10 years |
| Part No. | SOG12864B1b_M242 |
| Diagonal Size (Visual Area) |
2.42" |
| Display Format | 128*64 Dots |
| Interface |
4-Wire Serial SPI, IIC |
| IC or Equivalent | SSD1309 or Equal |
| Voltage(Type) | 3.3-5.0V |
| Outline Dimension | 72.00(W)x43.00(H)x5.90(T)mm |
| Visual Area | 57.01x29.49mm |
| Active Area |
55.01x27.49mm |
| Dots Size | 0.40x0.40mm |
| Dots Pitch |
0.43x0.43mm |
| Display Type | PM-OLED Panel |

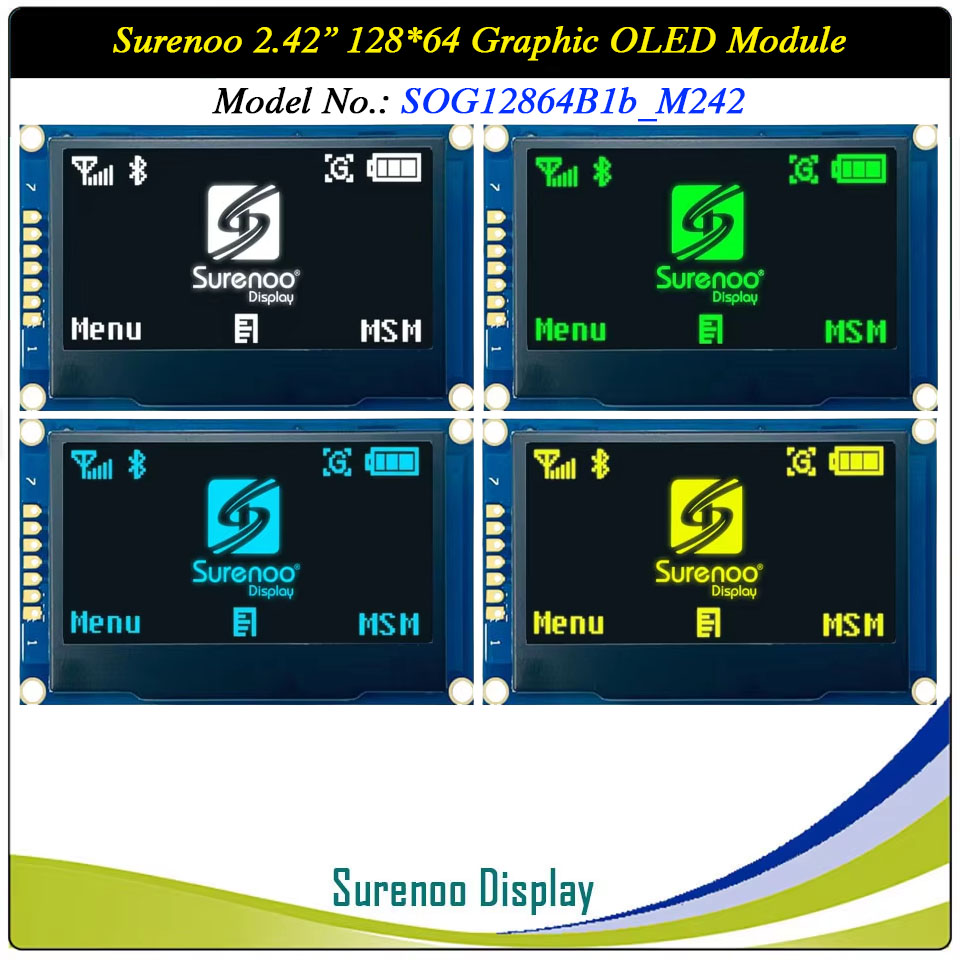

| Colors Code | White(SOGW) / Yellow(SOGY) / Green(SOGG) / Blue(SOGB) |
| IC Package | COG |
| Viewing Direction | Full Viewing Angle |
| Operating Temperature | -40℃~70℃ |
| Storage Temperature | -40℃~90℃ |

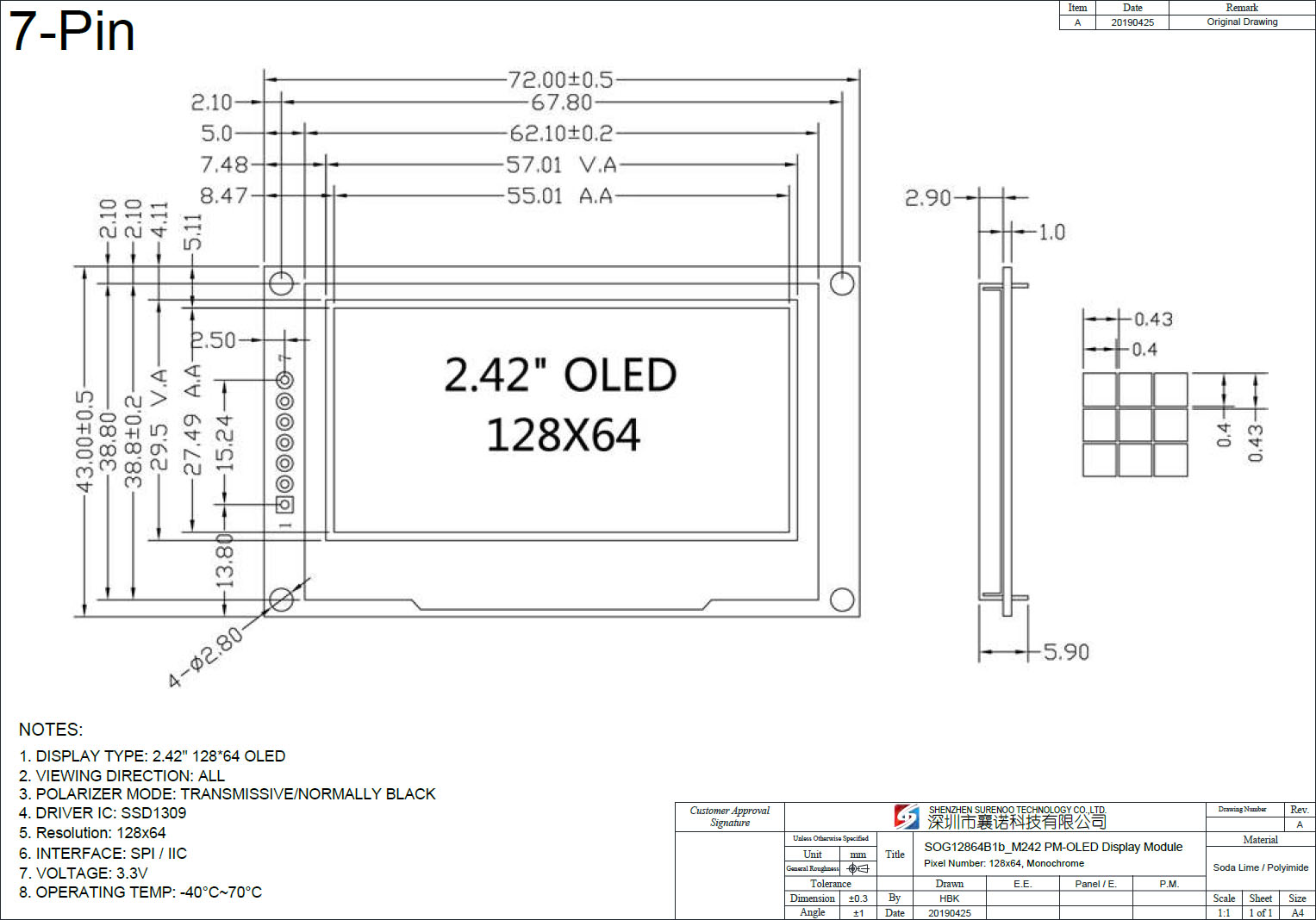

- Outline Drawing (SOG12864B1b_M242)

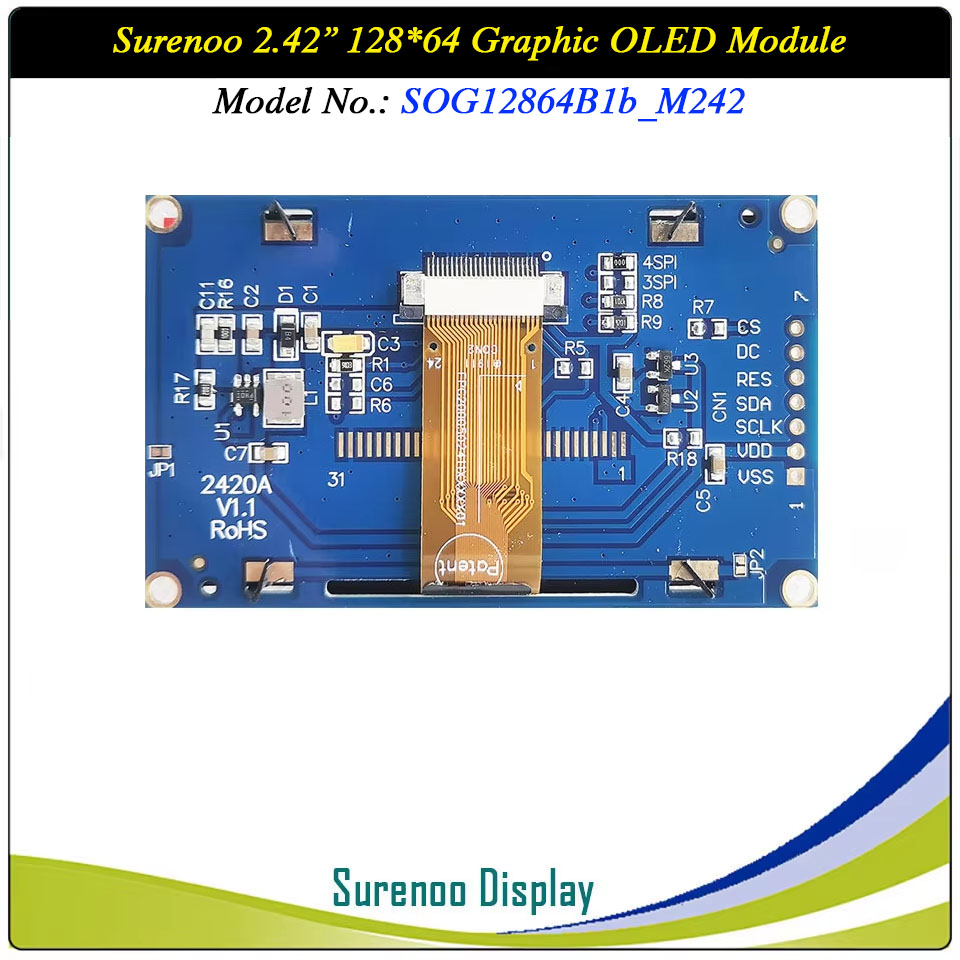

- Interface
| Pin No. | Pin Name | Description | ||
| 1 | GND (0V) | Ground 0V | ||
| 2 | VDD (3.3-5.0V) | Power Supply for logic | ||
| 3 | SCLK (H/L) | Serial Clock signal | ||
| 4 | SDA (H/L) | Serial Data input | ||
| 5 | /RES (H/L) | Active LOW Reset signal | ||
| 6 | SPI: D/C (H/L) | IIC: SA0 (H/L) | SPI: H: Data, L: Command | IIC: Slave Address Selection signal |
| 7 | SPI: /CS (L) | IICI: NC | Chip Selection | IIC: No connect (R7=0R) |
- Documents
| No. | Item | File Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | SOG12864B1b_M242 |  |
2013-03-17 | Standard 128*64 Graphic OLED Module | ||
| 2 | Controller | SSD1309 | |
2008-09-24 | SSD1309 is a COG Graphic 128*64 OLED Controller |
