Surenoo COG OLED Module SOC1602F Outline=80.00X20.20MM Compatible Standard 1602 16*02 16X02 Character LCD Module Display Screen Panel Serial IIC I2C KS0066 Controller
Surenoo COG OLED Module SOC1602F Outline=80.00X20.20MM Compatible Standard 1602 16*02 16X02 Character LCD Module Display Screen Panel Serial IIC I2C KS0066 Controller
Model No.: SOC1602F OLED
Display Format: 16X02 Characters
Outline: 80.00X20.20MM
Controller: KS0066 or Equal
Display Format: 16X02 Characters
Outline: 80.00X20.20MM
Controller: KS0066 or Equal
8 sold
Quantity
Detail
Customer Reviews
- Overview
KS0066 Buil-in character set supports English/Japanese, West European, Scandinavian European, and Cyrillic (Russian), see the KS0066 datasheet for the full character set.
It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.032Kg |
| Manufacturer | Surenoo |
| Display Type | Character OLED Module |
| Continuity Supply | More than 10 years |
| Part No. | SOC1602F |
| Display Format | 16x2 Characters |
| Interface | Serial IIC |
| IC or Equivalent | KS0066 or Equal |
| Fonts | English/Japanese, West European, Scandinavian European, and Cyrillic (Russian) |
| Voltage(Type) | 3.3-5.0V |
| Connection | 1*4P/2.54 Pin Header |
| Outline Dimension | 80.00(W)x20.20(H)x3.60(T)mm |
| Visual Area | 58.22x13.52mm |
| Active Area |
56.22x11.52mm |
| Display Type | PM-OLED Panel |
| Colors Code | White(SOCW) / Yellow(SOCY) |
| IC Package | COG |
| Viewing Direction | Full Viewing Angle |
|
Operating Temperature
|
-40℃~85℃
|
|
Storage Temperature
|
-40℃~90℃
|

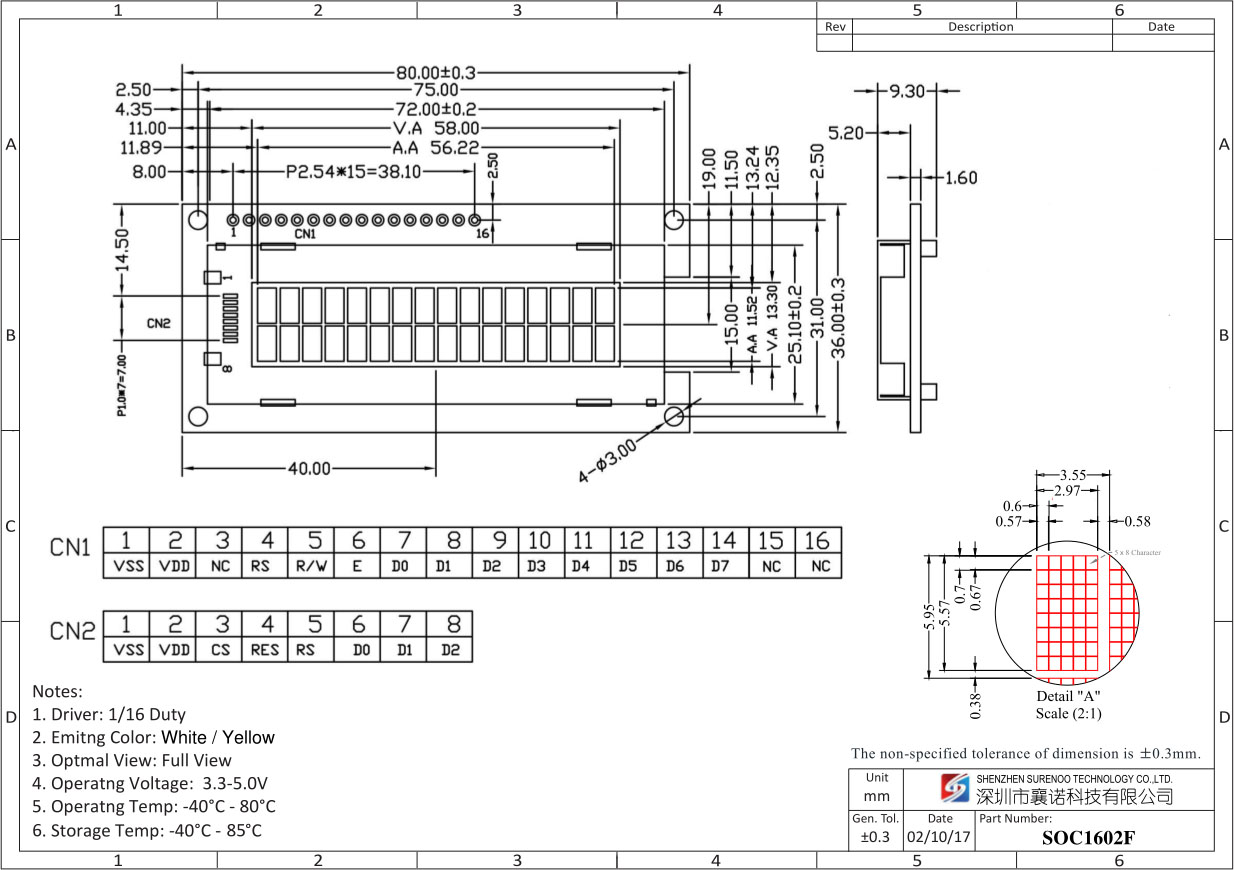

- Outline Drawing

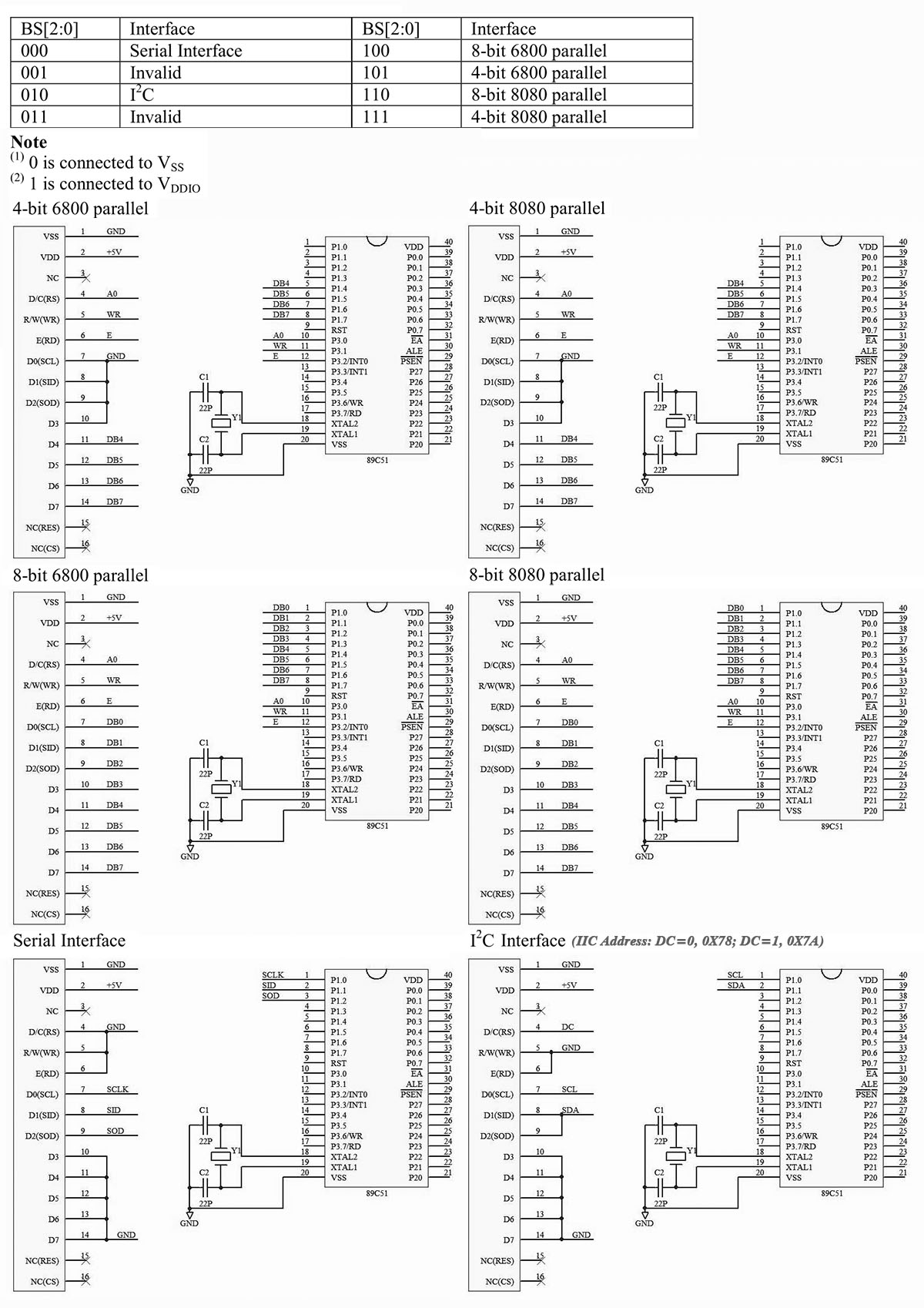

- Interface
| Pin No. | Pin Name | Description |
| 1 | GND | Ground 0V |
| 2 | VDD | Power Supply for LCD (3.0-5.0V) |
| 3 | SCL | Serial Clock Signal |
| 4 | SDA | Serial Data Signal |
