Surenoo COG OLED Module SOC2002B Outline=116.00X37.00MM Compatible Standard 2002 20*02 20X02 Character LCD Module Display Screen Panel 6800 4/8-Bit Parallel Serial SPI IIC I2C SSD1311 US2066 Controller

Model No.: SOC2002B OLED
Display Format: 20X02 Characters
Outline: 116.00X37.00MM
Controller: SSD1311/US2066 or Equal
14 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews

  • Overview
SOC2002B is 20 Characters wide, 2 row Character OLED Module, SSD1311/US2066 controlle, 6800 8080 4/8-Bit Parallel & Serial SPI & Serial IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 5.0V power supply.

SSD1311/US2066 Buil-in character set supports English/Japanese, West European, Scandinavian European, and Cyrillic (Russian), see the US2066 datasheet for the full character set.

It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.080Kg
Manufacturer Surenoo
Display Type Character OLED Module
Continuity Supply More than 10 years
Part No. SOC2002B
Display Format 20x2 Characters
Interface 6800 8080 4/8-Bit Parallel, Serial SPI, Serial IIC
IC or Equivalent SSD1311/US2066 or Equal
Fonts English/Japanese, West European, Scandinavian European, and Cyrillic (Russian)
Voltage(Type) 3.3-5.0V
Connection 2*8P/2.54 Pin Header
Outline Dimension 116.00(W)x37.00(H)x9.80(T)mm
Visual Area 75.52x13.52mm
Active Area
 73.52x11.52mm
Display Type PM-OLED Panel
Colors Code White(SOCW) / Yellow(SOCY) / Green(SOCG) / Blue(SOCB) / Red(SOCR)
IC Package COG
Viewing Direction Full Viewing Angle
Operating Temperature
-40℃~80℃
Storage Temperature
-40℃~80℃
  • Outline Drawing

  • Interface
1. Parallel Interface (default)
Pin No. Pin Name Description
1 VSS Ground 0V
2 VDD Power Supply for LCD (5.0V)
3 NC No Connection
4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
5 R/W Read / Write (H: Read Mode, L: Write Mode)
6 E Enable Signal
7-14 DB0-DB7 Data Bus
15 NC No Connection
16 NC No Connection

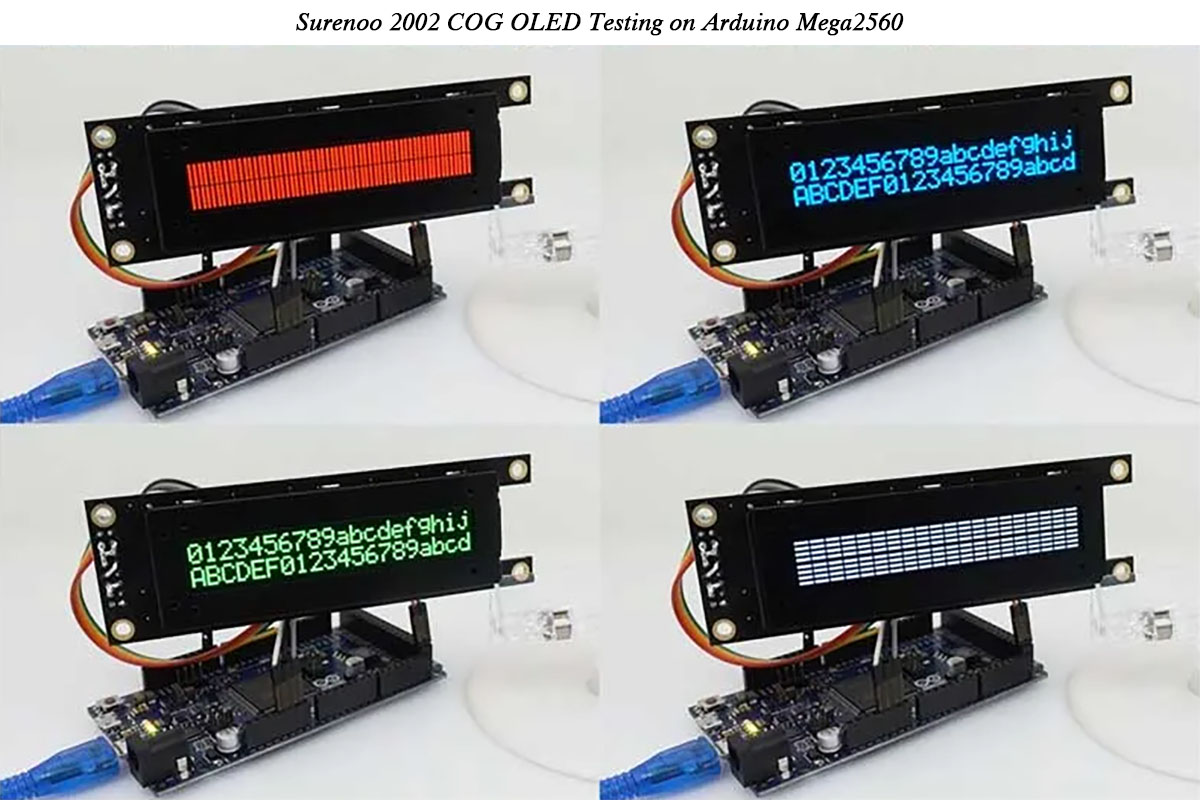

2. How to use Serial SPI Interface on Arduino UNO/MEGA2560/DUE?

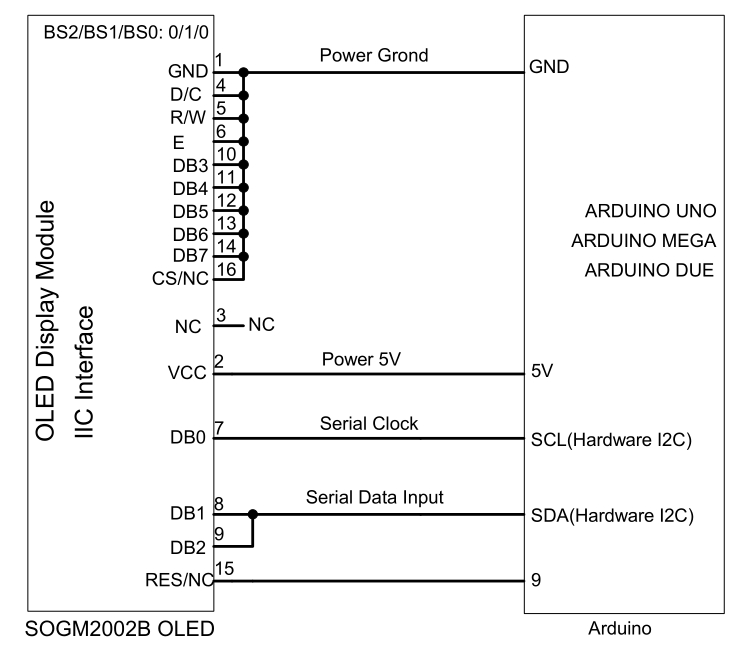

3. How to use Serial IIC Interface on Arduino UNO/MEGA2560/DUE?

4. How to use Serial IIC Interface on Raspberry Pi?

  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SOC2002B PDF 2013-03-17 Standard 2002 Character OLED Module, Compatible 2002 LCD Module
2 Controller SSD1311
US2066		 PDF 2008-09-24 US2066 Character OLED Controller, Compatible with SPC780, ST7066, HD44780, ......, Support Serial SPI
