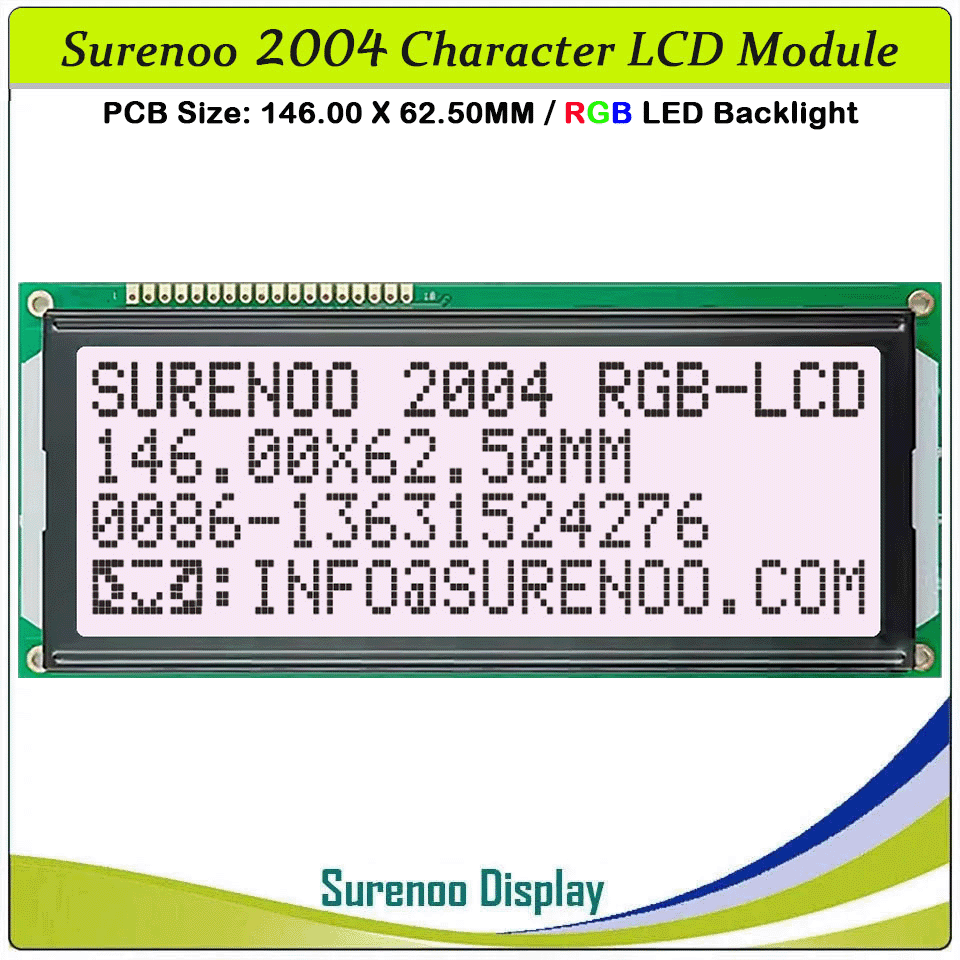

SLC2004G PCB=146.00X62.50MM 2004 20*4 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel AIP31066 SPLC780D ST7066 Controller FSTN Positive with RGB LED Backlight

Model No.: SLC2004G
Display Format: 20X04 Characters
PCB Size: 146.00X62.50MM
Controller: AIP31066, ST7066 or Equal
7 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLC2004G is 20 characters wide, 4 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Russian, see the AIP31066 datasheet for the full character set. It's 5V power supply.

It's easily controlled by MCU such as 8051, PIC, AVR, ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.080Kg
Manufacturer Surenoo
Display Type Character LCD Module
Continuity Supply More than 10 years
Part No. SLC2004E
Display Format 20x4 Character
Interface 6800 4-bit Parallel, 6800 8-bit Parallel
IC or Equivalent AIP31066, ST7066 or Equal
Fonts English-Japanese
Voltage(Type) 5.0V in default
Connection 1X18P/2.54 Pin Header
Outline Dimension 146.00(W)x62.50(H)x13.00(T)mm
Visual Area 123.50x43.00mm
Active Area 118.83x38.47mm
Display Type FSTN Positive
Backlight Type (LED) RGB Backlight
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

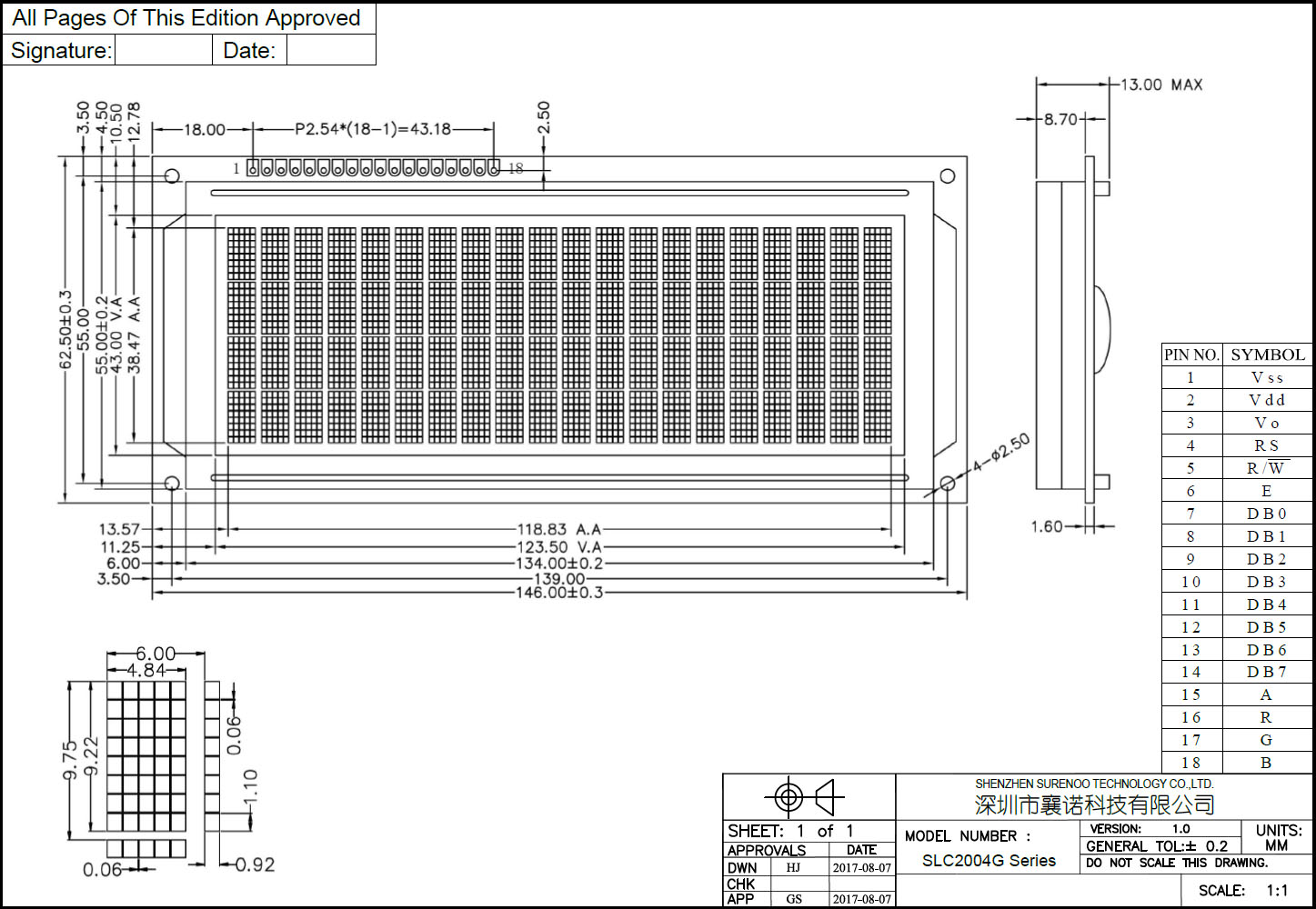

  • Outline Drawing

  • Interface
Pin No. Pin Name Description
1 VSS Ground 0V
2 VDD Logic Power Supply
3 V0 Operating voltage for LCD
4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
5 R/W Read / Write (H: Read Mode, L: Write Mode)
6 E Enable Signal
7-14 DB0-DB7 Data Bus
15 LED_A Backlight Anode
16 LED_K (R) Backlight Cathode (Red)
17 LED_K (G) Backlight Cathode (Green)
18 LED_K (B) Backlight Cathode (Blue)
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC2004G PDF 2013-03-17 Standard 2004 Character LCD Module
2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
3 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
