SLG320240E Outline=99.50X71.75MM 3.8" inch 320240 320X240 320*240 Surenoo Graphic LCD Module Display Screen Panel 8080 6800 8-bit MPU Parallel S1D13700 Controller Optional FSTN Positive LED White Backlight LM2068E-1 LM2068S

Model No.: SLG320240E (3.8")
Display Format: 320*240 Dots
Outline Size: 99.50X71.75MM
Controller: S1D13700 or Equal / Without Controller
26 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG320240E is a 320*240 dots Monochrome Graphic LCD Module, S1D13700 standard 1X20P/1.0 320*240 Parallel Graphic LCD Module, supprot 8080 6800 8-Bit parallel interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.160Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG320240E
Display Format 320*240 Dots
Interface E1: 8080 8-Bit Parallel / E2: 4-Bit Parallel
IC or Equivalent S1D13700 or Equal / Without Controller
Voltage 3.3V in default
Connection 1X20P/1.0 Connector (S1D13700 Controller) / 1X16P/1.0 Connector (Without Controller)
Outline Dimension 99.50(W)x71.75(H)x5.90(T)mm
Visual Area 79.80x60.60mm
Active Area 76.79x57.59mm
Display Type FSTN Postive
Backlight Type (LED/CCFL) White
IC Package COG
Viewing Direction 9:00 O'Clock
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
  • Outline Drawing

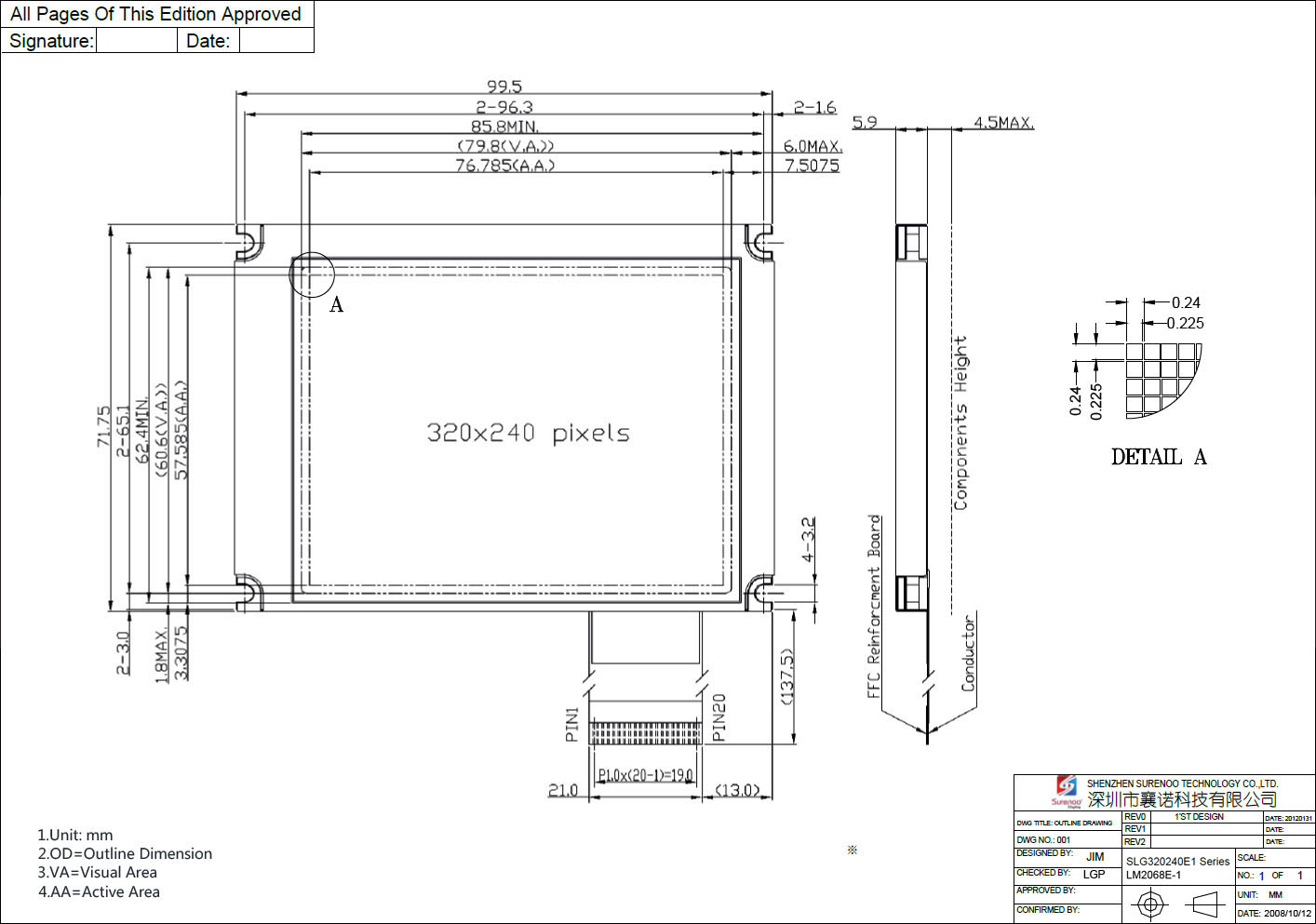

1. SLG320240E1 (With S1D13700 Controller)

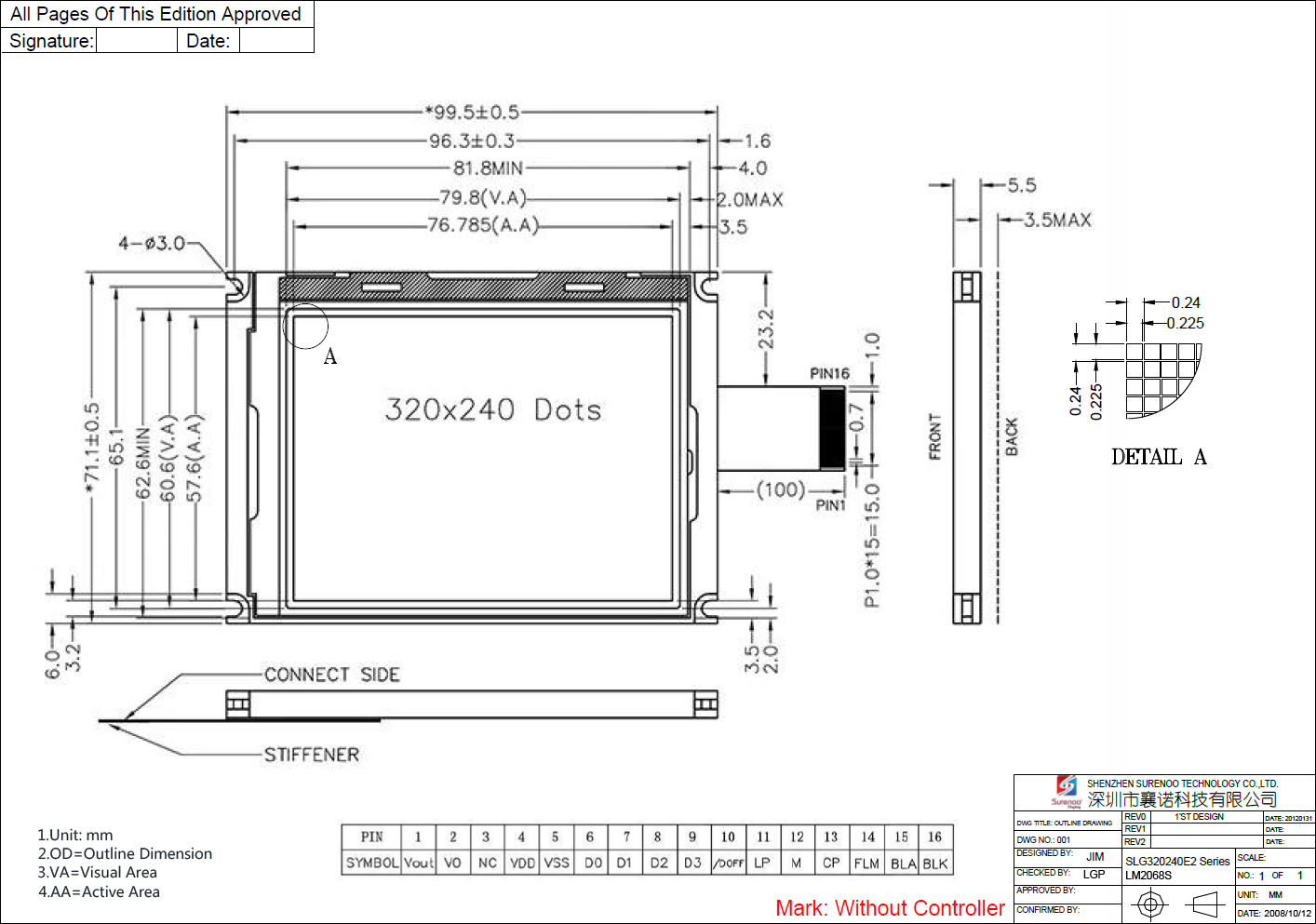

2. SLG320240E2 (Without Controller)

  • Interface
SLG320240E1:  8080 8-Bit MPU Parallel
Pin No. Symbol Level Description
1 VSS 0V Ground
2 VDD 5.0V Power Supply for Logic
3 V0 - Contrast Adjust
4 WR L Write Signal
5 RD L Read Signal
6 CS L Chip Selection Signal
7 A0 H/L Instruction / Data Selection
8 RST L Reset Signal, Low Active
9-16 DB0-DB7 H/L Data Bus Line
17 /WAIT Output Wait signal (*1)
18 VEE - Negative Voltage Output
19 BLA 5.0V Backlight Anode (+3.3V)
20 BLK 0V Backlight Cathode (0V)
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 320X240 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 320240 Graphic LCD Module
2 Controller Controller IC S1D13700 Datasheet PDF 2008-09-24 Graphic LCD Controller: S1D13700
